Princeton Gamma-Tech

Princeton Gamma-Tech PGT OS19-PO13 X-Ray Detector -800 VDC Bias IMIX

(No reviews yet) Write a Review
SKU:
38969
MPN:
OS19-PO13
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
17.00 LBS
Shipping:
Calculated at Checkout
  • Princeton Gamma-Tech PGT OS19-PO13 X-ray EDS detector – full assembly showing cylindrical cryostat with Omega label and aluminum XY positioning stage with probe tip

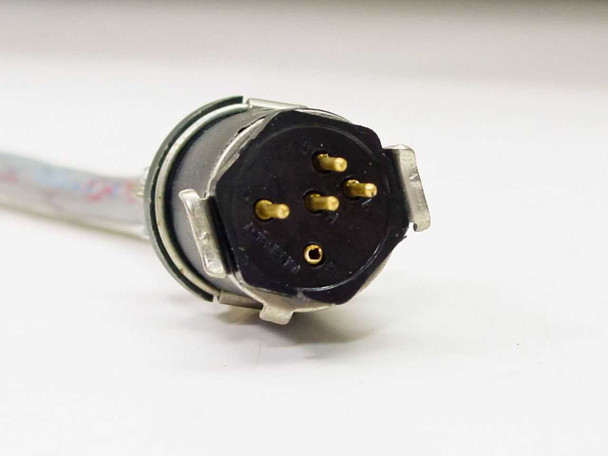

  • PGT OS19-PO13 detector signal cable – close-up of 4-pin circular military-style connector with gold contacts

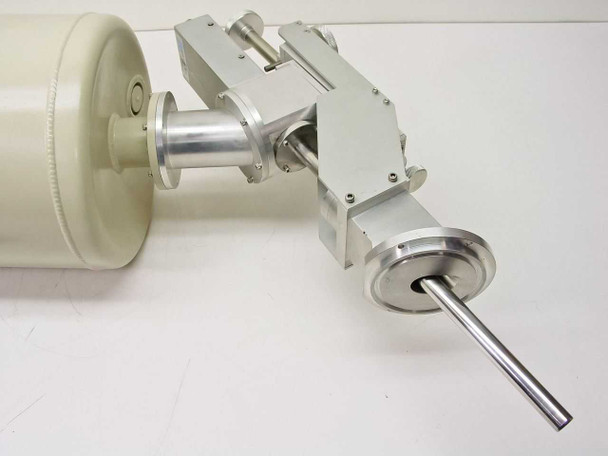

  • PGT OS19-PO13 X-ray detector – close-up of aluminum XY positioning stage and goniometer arm attached to cryostat flange
  • PGT OS19-PO13 – angled view of aluminum positioning stage assembly with knob adjusters and probe rod extending from flange
  • PGT OS19-PO13 X-ray detector – side view showing DB9 connector and BNC ports on the detector electronics module alongside XY stage
  • Princeton Gamma-Tech PGT detector electronics module – close-up of rear panel showing BIAS, TEST, OUTPUT, INHIBIT, POWER BNC connectors and DB9 interface port
  • Princeton Gamma-Tech PGT OS19-PO13 model label – shows Model OS19-PO13, Serial 2201, Bias -800 VDC, Made in USA, Princeton NJ
  • PGT OS19-PO13 cryostat – end-on view of cylindrical detector housing opening with attached signal cable and crystal/window assembly laid out separately
  • PGT OS19-PO13 detector window/crystal assembly – close-up of white cylindrical beryllium window holder with attached signal cable

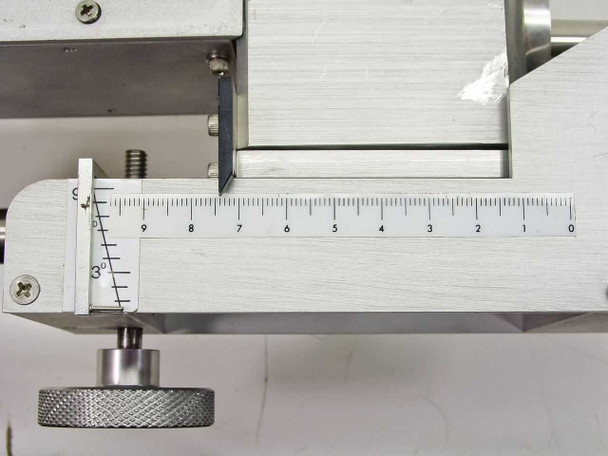

  • PGT OS19-PO13 XY stage – close-up of machined aluminum linear positioning stage with engraved ruler scale and knurled thumb-screw adjustment knob
$750.00
Was: $1,500.00
Current Stock: 1

Sold Out

Description

Princeton Gamma-Tech PGT OS19-PO13 X-Ray Detector -800 VDC Bias IMIX Microanalyzer

Energy Dispersive X-Ray Spectroscopy (EDS/EDX) detector designed for compositional analysis in electron microscopy. Operates at -800 VDC bias and integrates with the PGT IMIX microanalyzer system for material characterization.

Specifications & What's Included

  • Model: OS19-PO13 (IMIX system compatible)
  • Bias Voltage: -800 VDC
  • Technology: Energy Dispersive X-Ray Spectroscopy (EDS/EDX)
  • Connectors: BNC (Bias, Test, Output, Inhibit, Power), DB9, 4-pin circular military-style signal cable
  • Positioning: Machined aluminum XY stage with lead screws
  • Form Factor: Cylindrical cryostat with integrated positioning stage
  • Includes: Detector cryostat, XY positioning stage assembly, signal cable

Applications

Used for X-ray microanalysis and elemental composition mapping in scanning electron microscopy (SEM). The detector identifies and measures characteristic X-rays emitted from samples during electron bombardment, providing quantitative and qualitative compositional data. Commonly deployed in materials science, geology, metallurgy, and failure analysis workflows.

Condition: Used
This Princeton Gamma-Tech PGT OS19-PO13 X-ray EDS detector and IMIX microanalyzer assembly has been inspected and appears to be in good condition. The cylindrical cryostat housing is clean with only light surface marks typical of lab use. The machined aluminum XY positioning stage shows no damage — linear slides and lead screws are intact, and the adjustment knobs turn freely. The BNC and DB9 connectors on the detector electronics module are present and undamaged. The 4-pin circular signal cable connector is intact with no bent or missing pins. The detector window/crystal assembly and attached cable are included and appear intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Princeton Gamma-Tech
Model:
OS19-PO13
MPN:
OS19-PO13
Secondary Model:
IMIX
Type:
X-Ray EDS Detector / Energy Dispersive Spectrometer
SKU:
38969
Bias Voltage:
-800 VDC
Detector Technology:
Energy Dispersive X-Ray Spectroscopy (EDS/EDX)
Application / Use Case:
X-ray microanalysis, SEM EDS, electron microscopy
Interface / Connectors:
BNC (Bias, Test, Output, Inhibit, Power), DB9
Connector – Signal Cable:
4-pin circular military-style connector
Positioning Assembly:
Machined aluminum XY positioning stage with lead screws
Country/Region of Manufacture:
United States
Form Factor:
Cylindrical cryostat with integrated positioning stage
Compatible System:
PGT IMIX Integrated Microanalyzer for Imaging & X-Ray
Seller Notes:
Includes detector cryostat, XY stage assembly, and signal cable
Condition:
Used – Inspected and Appears in Good Condition
Condition Notes:
Princeton Gamma-Tech PGT OS19-PO13 X-ray EDS detector inspected and in good condition. Cryostat, XY positioning stage, BNC/DB9 module, signal cable, and window assembly all present. Please contact us with any questions.
