Riber

Riber TCE-300 E-Gun Beam X-Ray Focusing Resolution Control 220V MBE XRF

(No reviews yet) Write a Review
SKU:
40629
MPN:
TCE 300
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
44.00 LBS
Shipping:
Calculated at Checkout

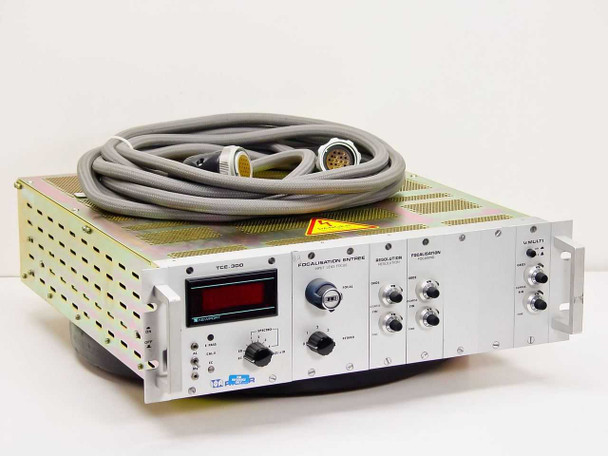

  • Riber TCE-300 E-Gun X-Ray Focusing Resolution Control – front panel and top view with multi-pin cable coiled on top

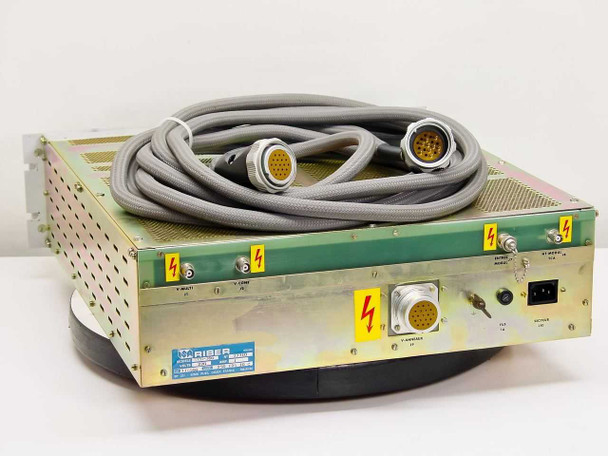

  • Riber TCE-300 – rear panel showing BNC connectors, multi-pin connectors, IEC power inlet, and high-voltage warning stickers

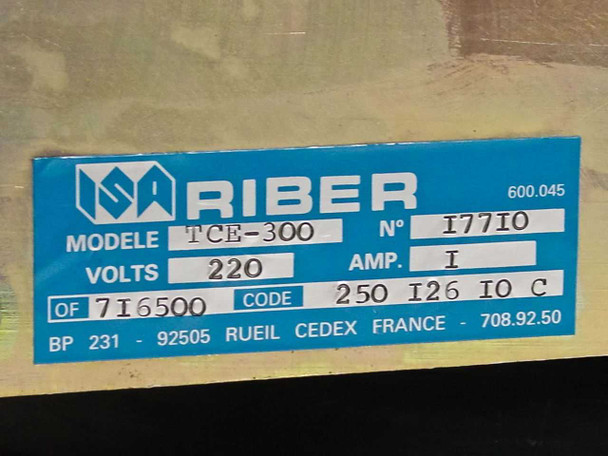

  • Riber TCE-300 rating plate label showing Model TCE-300, 220V, 1A, Code 250 126 10 C, serial I77I0, made in France

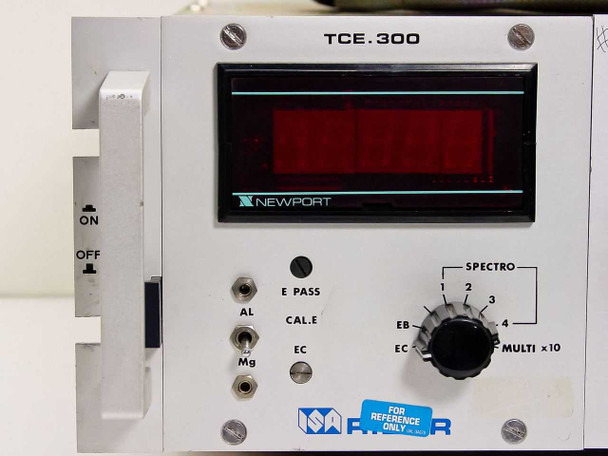

  • Riber TCE-300 front left section – Newport LED digital display, ON/OFF switch, E PASS, CAL.E, EC indicators, and Spectro selector knob

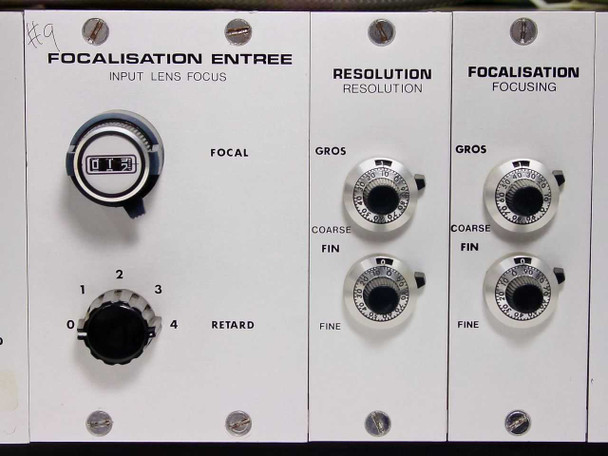

  • Riber TCE-300 front panel center sections – Focalisation Entree (Input Lens Focus) with Focal knob and Retard dial, Resolution section with Coarse and Fine knobs, Focalisation Focusing section with Coarse and Fine knobs

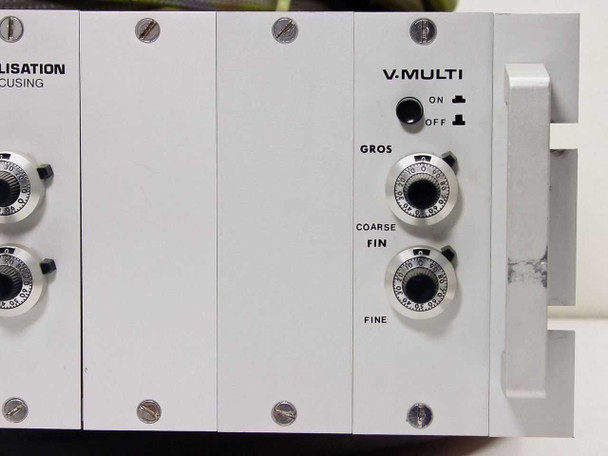

  • Riber TCE-300 front panel right section – V.Multi module with ON/OFF switch and Coarse (Gros) and Fine (Fin) control knobs

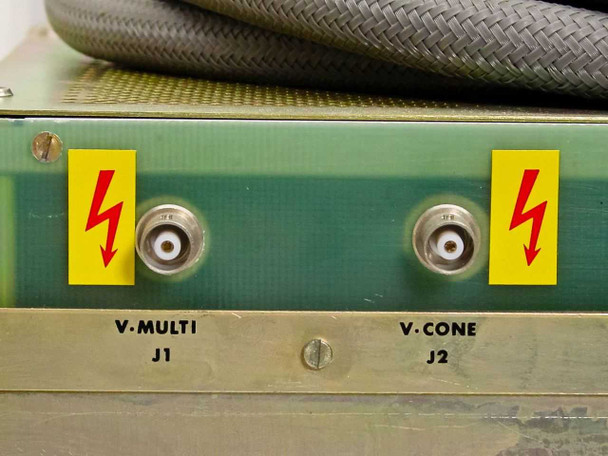

  • Riber TCE-300 rear panel – V.Multi J1 and V.Cone J2 BNC connectors with high-voltage warning labels

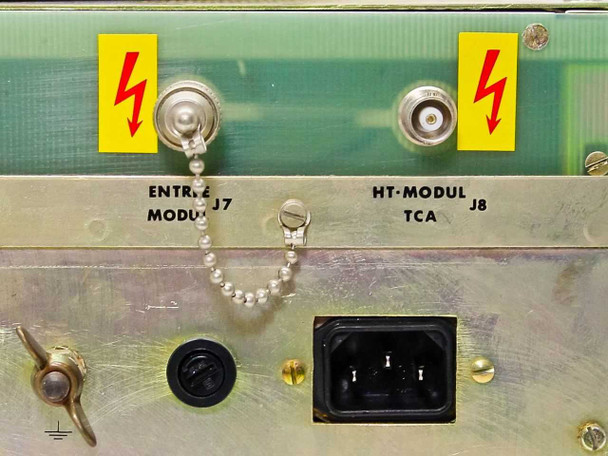

  • Riber TCE-300 rear panel – Entree Modul J7 and HT-Modul TCA J8 connectors with IEC AC power inlet and ground terminal

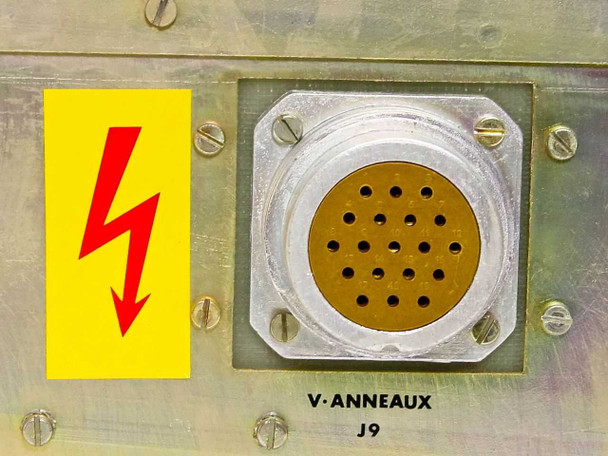

  • Riber TCE-300 rear panel – V.Anneaux J9 large multi-pin circular connector with high-voltage warning label

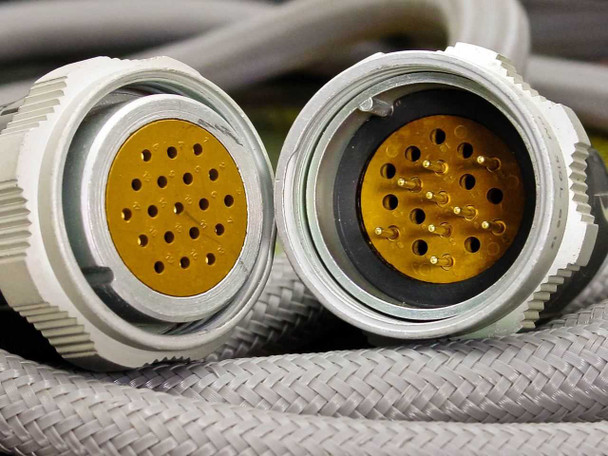

  • Riber TCE-300 included multi-pin circular cable – close-up of both connector ends showing gold-contact pin arrangement
$500.00
Was: $1,000.00
Current Stock: 1

Sold Out

Description

Riber TCE-300 E-Gun Beam X-Ray Focusing Resolution Control 220V MBE XRF

Control unit for electron gun beam focusing and resolution adjustment in Riber molecular beam epitaxy (MBE) and X-ray fluorescence (XRF) systems. Manages beam parameters through analog controls and digital display readout.

Specifications & What's Included

  • Model: TCE-300 (MPN 600.045)
  • Input: 220V, 1A
  • Display: Newport LED digital readout
  • Controls: Coarse and fine analog knob adjustment for focalisation, resolution, and multi-voltage parameters
  • Connectors: V.Multi J1 (BNC), V.Cone J2 (BNC), module connectors J7, J8, J9
  • Form factor: Rackmount
  • Includes: Multi-pin circular connector cable (approximately 2m)

Applications

The TCE-300 serves as the primary beam control interface for Riber MBE and XRF electron gun systems. It regulates focus geometry and beam resolution across multiple spectroscopy modes via the four-position selector (EB, EC, 1–4, Multi x10). Commonly deployed in thin-film deposition and materials analysis laboratories where precise electron beam parameters are required.

Condition: Used
This Riber TCE-300 E-Gun / X-Ray Focusing and Resolution Control unit has been inspected and appears to be in good used condition. The front panel controls — including the Focalisation Entree, Resolution, Focalisation, and V.Multi sections with their coarse and fine adjustment knobs — are all present and show no obvious damage. The Newport LED digital display is intact. The chassis shows light surface wear and minor scuffing consistent with lab use, but there are no cracks, broken knobs, or missing hardware. The rear BNC connectors (J1, J2), multi-pin connectors (J7, J8), large circular connector (J9), and IEC power inlet all appear complete and undamaged. The included multi-pin interconnect cable is present with both connector ends intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Riber
Model:
TCE-300
MPN:
600.045
Secondary Model:
TCE 300
Type:
E-Gun / X-Ray Focusing & Resolution Control Unit
SKU:
40629
Voltage:
220V
Current Rating:
1A
Code:
250 126 10 C
OF Number:
7I6500
Serial Number (Label):
I77I0
Country/Region of Manufacture:
France
Manufacturer Location:
BP 231, 92505 Rueil Cedex, France
Form Factor:
Rackmount
Display Type:
Newport LED Digital Display
Front Panel Sections:
Focalisation Entree, Resolution, Focalisation, V.Multi
Control Type:
Coarse (Gros) and Fine (Fin) analog knob controls
Rear Connectors:
V.Multi J1 (BNC), V.Cone J2 (BNC), Entree Modul J7, HT-Modul TCA J8, V.Anneaux J9 (multi-pin)
Included Cable:
Multi-pin circular connector cable (approx. 2m)
Application:
MBE / XRF electron gun beam focusing and resolution control
Spectro Selector:
4-position selector: EB, EC, 1–4, Multi x10
Seller Notes:
Includes multi-pin interconnect cable with circular connectors
Condition:
Used – Inspected and in Good Condition
Compatible With:
Riber MBE / XRF systems using TCE-300 electron gun controller
Condition Notes:
Riber TCE-300 E-Gun X-Ray Focusing & Resolution Control. Inspected, in good used condition. Front panel controls and connectors intact, no broken knobs or damage. Includes multi-pin cable. Light lab wear.
View AllClose

Related Products

Related Products

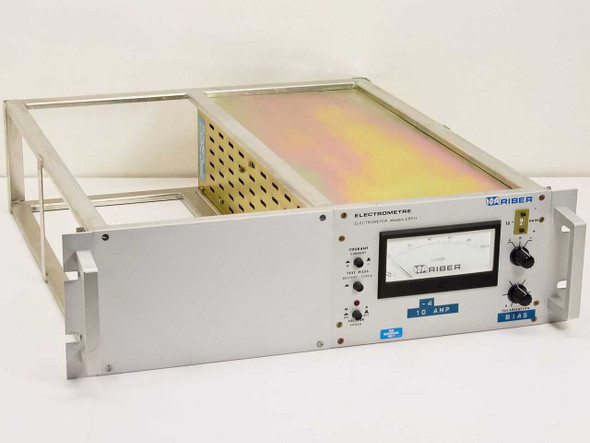

ISA Riber EPP.II electrometer front panel in aluminum rackmount frame showing analog meter and BIAS knob ISA Riber EPP.II electrometer rear view showing BNC signal input, recorder output, IEC power inlet, and battery compartment
Add to Cart
Quick view

ISA Riber EPP.II Electrometer 0-100uA 220V 315mA Rackmount MBE Vacuum System

Riber

$295.00
Was: $600.00
ISA Riber EPP.II Electrometer 0-100uA 220V 315mA Rackmount MBE Vacuum SystemThe ISA Riber EPP.II (also labeled EPP11) is a rackmount electrometer designed for measuring very small ion and beam...
40620
SKU:
40620
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Brand:
ISA Riber
Model:
EPP.II
MPN:
EPP.II
Secondary Model:
EPP11
Type:
Electrometer
SKU:
40620
Serial Number (Internal):
I7724
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
France
Form Factor:
Rack Mount
Power Requirements:
220V, 315mA
Voltage:
220V
Current Rating:
315mA
Measurement Range:
0-100 µA
Measurement Type:
Current (Ion/Beam Current)
Display Type:
Analog Meter (0-100µA scale)
Gain Setting:
x GAIN multiplier with front-panel selector
Bias / Polarisation:
0-100V Polarisation (BIAS), front-panel knob
Signal Input:
BNC (J1 - Signal Input, rear panel)
Recorder Output:
BNC (J2 - Sortie Enregistreur, rear panel)
Battery Set:
Internal battery set (Bloc Piles), rear compartment
Power Connector:
IEC C13 (Secteur / Mains, rear panel)
Fuse:
315mA (rear panel)
Application:
MBE (Molecular Beam Epitaxy) vacuum systems
Compatible With:
Riber MBE systems and vacuum deposition equipment
Reference Code:
600.045
OF Code:
7I5880
Seller Notes:
Sold as-shown; no accessories included beyond the unit itself.
Condition Notes:
ISA Riber EPP.II Electrometer pulled from a working MBE vacuum system. Inspected and in good used condition. Front panel, meter, and connectors show normal lab wear. Please view photos and contact us with questions.

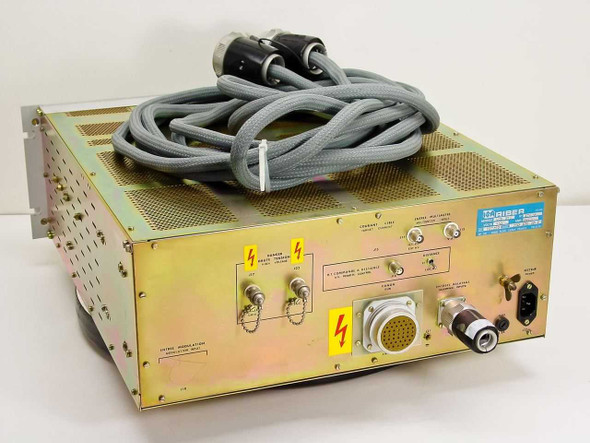

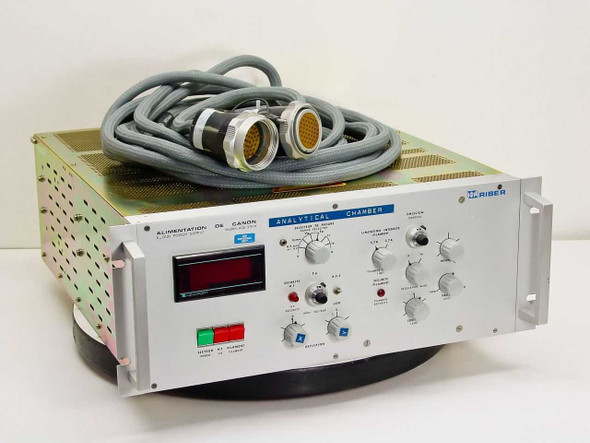

Riber ACE 576 N E-Gun Power Supply front panel with Newport LED display, control knobs, and multi-pin cannon cable resting on top Riber ACE 576 N E-Gun Power Supply rear panel showing high-voltage connectors, IEC power inlet, cannon gun connector, and high-voltage warning labels
