Riber

Riber ACE 576 N E-Gun Power Supply Analytical Chamber 220V 500mA Rackmount

(No reviews yet) Write a Review
SKU:
40630
MPN:
ACE 576 N
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
46.00 LBS
Shipping:
Calculated at Checkout

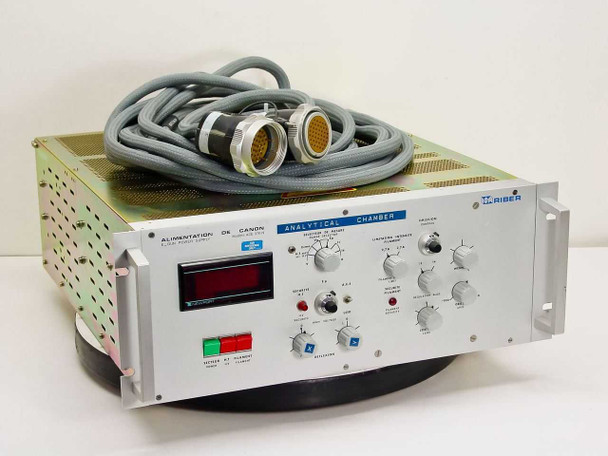

  • Riber ACE 576 N E-Gun Power Supply front panel with Newport LED display, control knobs, and multi-pin cannon cable resting on top
  • Riber ACE 576 N E-Gun Power Supply rear panel showing high-voltage connectors, IEC power inlet, cannon gun connector, and high-voltage warning labels
  • Riber ACE 576 N rating plate label showing Model ACE 576, Serial I7666, 220V, 500mA, Code 250 IOI 60 P, manufactured in Rueil Cedex France
  • Riber ACE 576 N front panel close-up showing Newport LED readout, Alimentation de Canon E-Gun label, SECTEUR/H.T./FILAMENT pushbuttons, and Range Selector knob
  • Riber ACE 576 N right-side front panel close-up showing Filament Current Limit selector (2.7A/3.7A), Emission Control, Wehnelt Grid, Lens, and Deflexion controls
  • Riber ACE 576 N rear panel close-up showing high-voltage J17 and J23 safety connectors with danger labels, Grid and Arc connectors, and Modulation Input J18
  • Riber ACE 576 N rear panel close-up showing Target Current (J15), Multimeter Input (J13), H.V. Remote Control (J16), large Cannon Gun connector (J19), Scanning Inputs (J20), fuse, and IEC power connector (J22)
  • Close-up of the two multi-pin braided cannon cable connectors included with the Riber ACE 576 N E-Gun Power Supply, showing gold-pin contacts
$700.00
Was: $1,400.00
Current Stock: 1

Sold Out

Description

Riber ACE 576 N E-Gun Power Supply Analytical Chamber 220V 500mA Rackmount

Riber electron gun power supply designed for analytical and molecular beam epitaxy (MBE) chamber applications. Supplies regulated high-voltage and filament current to electron guns used in surface analysis and thin-film deposition systems.

Specifications & What's Included

  • 220V AC, 500mA input; rackmount form factor
  • Filament current limit: 2.7A / 3.7A selectable
  • HV controls: High Tension, Wehnelt Grid, Lens with selectable grid regulation (-100 to +100V)
  • Emission control (If/Ie selectable) and modulation input (J18)
  • Newport red LED digital display; remote and local/distance control
  • Multiple rear connectors (Cannon, IEC power, scanning inputs)
  • Includes multi-pin braided cannon cable with connectors

Applications

E-gun power supplies regulate electron beam parameters in analytical systems such as Auger electron spectroscopy (AES), X-ray photoelectron spectroscopy (XPS), and MBE chambers. These units manage filament heating, beam acceleration voltage, and grid bias to control electron emission and beam characteristics. Commonly integrated into chamber systems from vendors including Riber and other European analytical equipment manufacturers.

Condition: Used
This Riber ACE 576 N E-Gun Power Supply for Analytical Chamber has been inspected and is in good condition. The front panel controls, knobs, and LED display appear intact with normal cosmetic wear consistent with lab use. The gold-anodized chassis shows light surface wear and minor scuffing. The multi-pin braided cannon cable with both connectors is included and appears undamaged. Rear connectors and high-voltage safety hardware are present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Riber
Model:
ACE 576 N
MPN:
ACE 576 N
Secondary Model:
600.045
Serial Number (Internal):
I7666
Type:
Electron Gun (E-Gun) Power Supply
SKU:
40630
Voltage Rating:
220V
Current Rating:
500mA
Power Requirements:
220V AC
Code / Configuration:
250 IOI 60 P
OF Number:
7I7290
Application / Use Case:
Electron Gun Power Supply for Analytical/MBE Chamber
Filament Current Limit:
2.7A / 3.7A selectable
HV Controls:
H.T. (High Tension), Wehnelt Grid, Lens
Regulation Mode:
Selectable (-100 to +100 Grid)
Emission Control:
If / Ie selectable
Modulation Input:
J18 — Modulation Input connector
Remote Control:
H.V. Remote Control (J16), Local/Distance switch
Connectors — Front:
Multi-pin Cannon/Gun connector, BNC
Connectors — Rear:
J14, J15, J17, J19 (Cannon), J20, J21, J22 (IEC power), J23
Scanning Inputs:
Entrees Balayage / Scanning Inputs (J20)
Display:
Newport red LED digital readout
Form Factor:
Rackmount
Country/Region of Manufacture:
France
Condition:
Used – Inspected and in Good Condition
Included Accessories:
Multi-pin braided cannon cable with two connectors
Seller Notes:
Includes multi-pin braided cannon interface cable with two connectors.
Condition Notes:
Riber ACE 576 N E-Gun Power Supply, inspected and in good condition. Normal cosmetic wear from lab use. Multi-pin cannon cable included. Front panel controls and LED display intact. Please contact us with any questions.
View AllClose

Related Products

Related Products

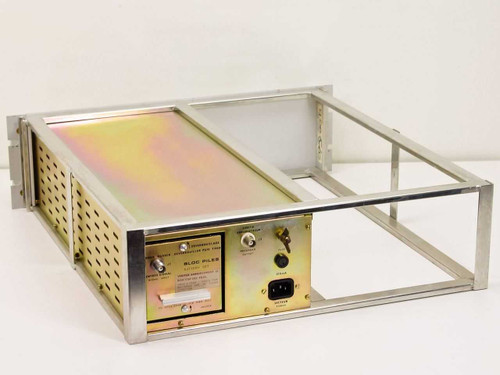

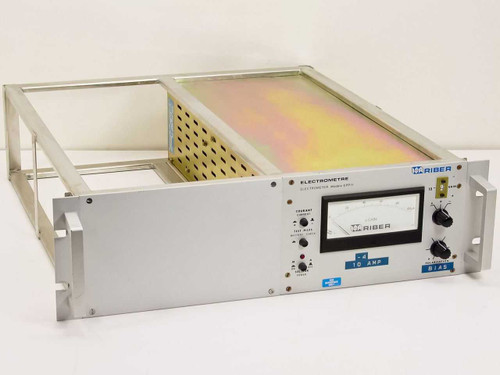

ISA Riber EPP.II electrometer front panel in aluminum rackmount frame showing analog meter and BIAS knob ISA Riber EPP.II electrometer rear view showing BNC signal input, recorder output, IEC power inlet, and battery compartment
Add to Cart
Quick view

ISA Riber EPP.II Electrometer 0-100uA 220V 315mA Rackmount MBE Vacuum System

Riber

$295.00
Was: $600.00
ISA Riber EPP.II Electrometer 0-100uA 220V 315mA Rackmount MBE Vacuum SystemThe ISA Riber EPP.II (also labeled EPP11) is a rackmount electrometer designed for measuring very small ion and beam...
40620
SKU:
40620
Availability:
Usually ships within 1-2 business days.
Weight:
25.00 LBS
Brand:
ISA Riber
Model:
EPP.II
MPN:
EPP.II
Secondary Model:
EPP11
Type:
Electrometer
SKU:
40620
Serial Number (Internal):
I7724
Condition:
Used – Pulled from Working Environment
Country/Region of Manufacture:
France
Form Factor:
Rack Mount
Power Requirements:
220V, 315mA
Voltage:
220V
Current Rating:
315mA
Measurement Range:
0-100 µA
Measurement Type:
Current (Ion/Beam Current)
Display Type:
Analog Meter (0-100µA scale)
Gain Setting:
x GAIN multiplier with front-panel selector
Bias / Polarisation:
0-100V Polarisation (BIAS), front-panel knob
Signal Input:
BNC (J1 - Signal Input, rear panel)
Recorder Output:
BNC (J2 - Sortie Enregistreur, rear panel)
Battery Set:
Internal battery set (Bloc Piles), rear compartment
Power Connector:
IEC C13 (Secteur / Mains, rear panel)
Fuse:
315mA (rear panel)
Application:
MBE (Molecular Beam Epitaxy) vacuum systems
Compatible With:
Riber MBE systems and vacuum deposition equipment
Reference Code:
600.045
OF Code:
7I5880
Seller Notes:
Sold as-shown; no accessories included beyond the unit itself.
Condition Notes:
ISA Riber EPP.II Electrometer pulled from a working MBE vacuum system. Inspected and in good used condition. Front panel, meter, and connectors show normal lab wear. Please view photos and contact us with questions.

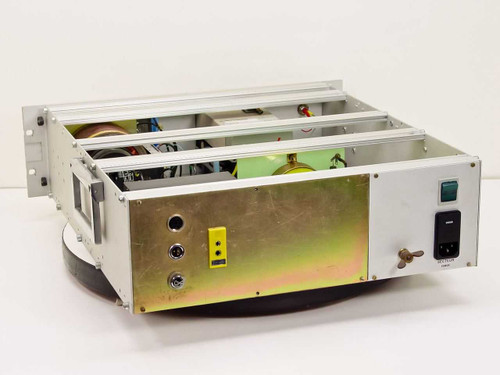

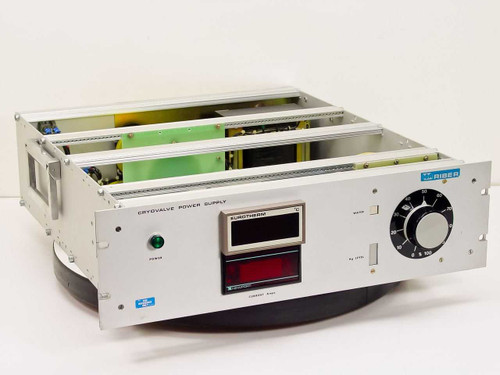

Riber Cryovalve Power Supply rackmount unit front view showing Eurotherm and Newport displays, power LED, and percent dial Riber Cryovalve Power Supply rear panel view showing multi-pin circular connectors, IEC power inlet labeled SECTEUR 220VAc, and green power switch
