Riber HEED 510 Alimentation Optique Optical Power Unit 220V 0.5A HEED MBE

Riber HEED 510 Alimentation Optique Optical Power Unit 220V 0.5A HEED MBE

The Riber HEED 510 is a specialized optical power and electron beam control unit designed for use with Riber HEED (High Energy Electron Diffraction) systems in MBE (Molecular Beam Epitaxy) and thin-film research environments. Built by ISA Riber in France and dating from the early 1990s, this unit provides stabilized power and precise deflection control for HEED/RHEED electron gun assemblies. It integrates a dedicated focusing power supply module and a multi-axis deflection and alignment control section on a single rackmount/benchtop chassis.

Specifications & What's Included

• Manufacturer: Riber (ISA Riber), Rueil-Malmaison, France
• Model: HEED 510
• Code: 250 I04 40 U
• Reference: 600.045
• Input Voltage: 220V AC
• Input Current: 0.5A
• Fuse: 0.5A (rear panel, FUS 0.5A)

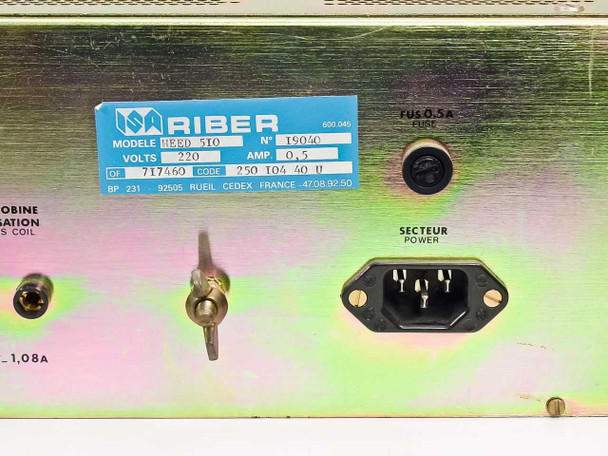

• Power Inlet: IEC C14 (labeled SECTEUR / POWER)

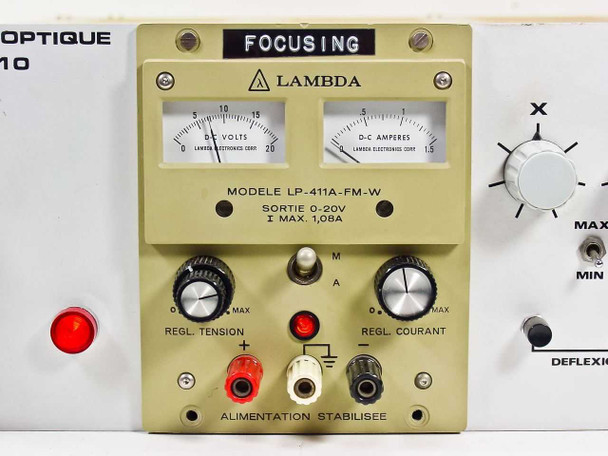

• Integrated Focusing Module: Lambda LP-411A-FM-W Alimentation Stabilisée (stabilized power supply)
• Focusing Output Voltage: 0–20V DC
• Focusing Output Current: 1.08A maximum
• Focusing Module Meters: Dual analog meters — DC Volts (0–20V) and DC Amperes (0–1.5A)
• Focusing Module Controls: REGL. TENSION (voltage adjust) and REGL. COURANT (current adjust) knobs
• Deflection/Alignment Controls: X, Y, H, V axis knobs with SENSIBILITE / SENSITIVITY selector (MAX/MIN)
• Front Panel Buttons: DEFLEXION, MESURE, ALIGNEMENT
• Front Panel Power Switch: MARCHE (ON) / ARRET (OFF) with red indicator lamp

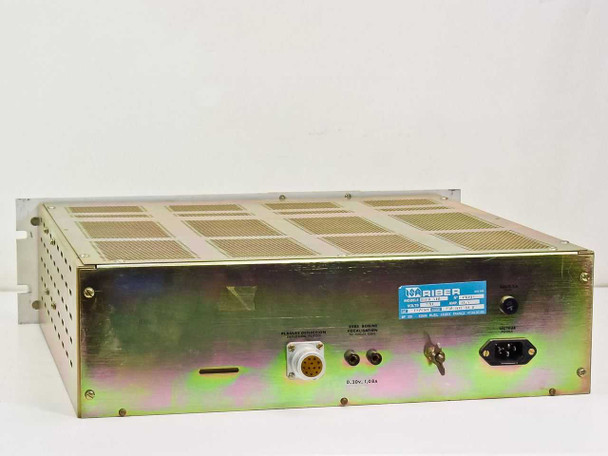

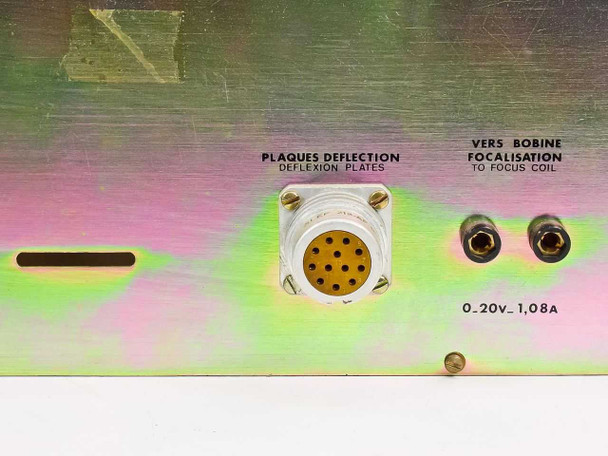

• Rear Connector — Deflection Plates: Multi-pin circular connector (labeled PLAQUES DEFLECTION / DEFLECTION PLATES)
• Rear Connector — Focus Coil: Two output posts (labeled VERS BOBINE FOCALISATION / TO FOCUS COIL); rated 0–20V, 1.08A
• Rear: Key lock switch present
• Form Factor: Rackmount / benchtop chassis
• Country of Manufacture: France
• Date Code: 1992 (per rear label)

Applications

The Riber HEED 510 is a purpose-built power and control unit for HEED and RHEED (Reflection High Energy Electron Diffraction) systems, which are standard in-situ surface analysis tools used during MBE (Molecular Beam Epitaxy) thin-film growth. In an MBE system, a RHEED gun directs a grazing-incidence electron beam at the sample surface; the diffraction pattern on a phosphor screen provides real-time information about surface structure and film quality during growth. The HEED 510 provides the deflection plate voltages, focusing coil current, and alignment controls needed to aim and shape that electron beam precisely. Riber was a leading French manufacturer of MBE systems and associated analytical equipment from the 1970s through the 1990s, and their HEED/RHEED power units are found in university research labs, national laboratories, and semiconductor R&D facilities that maintain Riber MBE systems. Replacement or spare HEED power units for Riber MBE systems are uncommon on the used market, making this a relevant find for groups maintaining legacy Riber equipment.
