Riber

Riber 40I 1000 Ion Pump Power Supply MBE Growth Chamber 220V 18A Code 250 103 52

(No reviews yet) Write a Review
SKU:
44281
MPN:
40I I000
Condition:
Used
Availability:
Usually ships within 1-2 business days; freight shipment required due to size and weight.
Weight:
150.00 LBS
Shipping:
Calculated at Checkout
  • Riber 40I 1000 Ion Pump Power Supply – front panel view showing meter, controls, and ANALYTICAL CHAMBER section

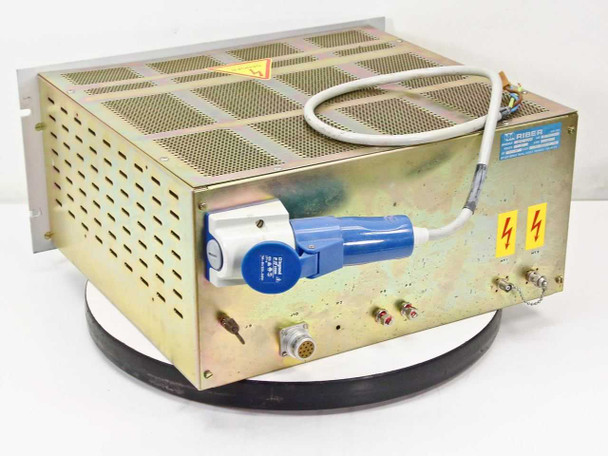

  • Riber 40I 1000 Ion Pump Power Supply – rear view showing Legrand P17 industrial power plug and multi-pin circular connector

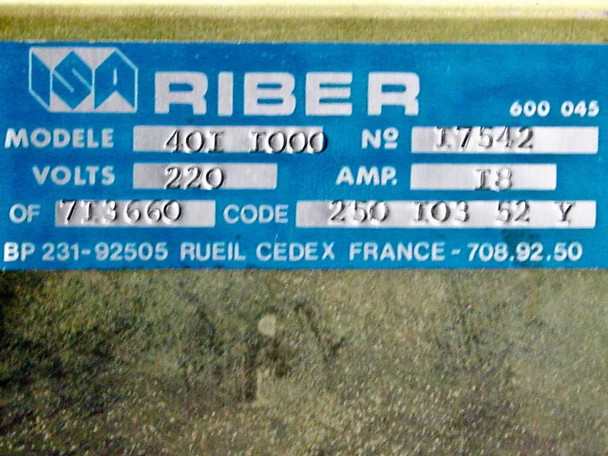

  • Riber 40I 1000 rating plate showing Model 40I 1000, Serial No. 17542, 220V, 18A, Code 250 103 52 Y, manufactured in Rueil, France
  • Riber 40I 1000 – close-up of power cable end showing exposed conductors and disconnected terminal connector

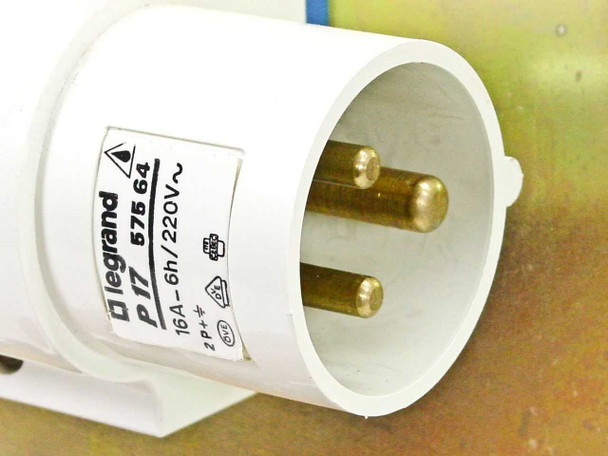

  • Riber 40I 1000 – close-up of Legrand P17 57564 16A 220V industrial power inlet plug on rear panel

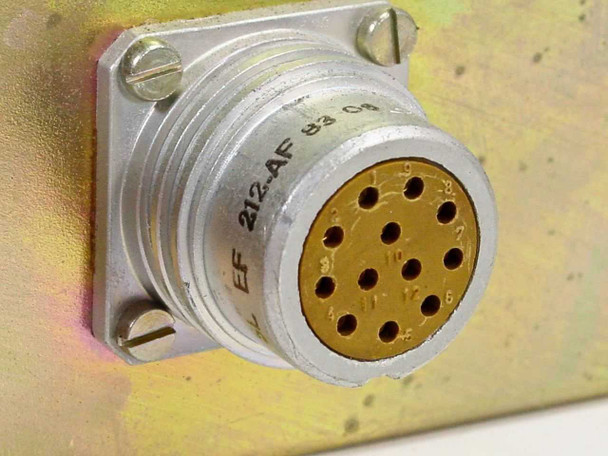

  • Riber 40I 1000 – close-up of EF 212-AF multi-pin circular rear panel connector dated 93 08
  • Riber 40I 1000 – close-up of Haute Tension (High Voltage) output connector on rear panel
  • Riber 40I 1000 – close-up of Mesure Auxiliaire (Aux Meter) output connector on rear panel
  • Riber 40I 1000 – close-up of Enregistreur (Recorder) output and Niveau (Level Adjust) connectors on rear panel
  • Riber 40I 1000 – close-up of analog meter face showing µA, mA, KV, and Torr pressure/current scales

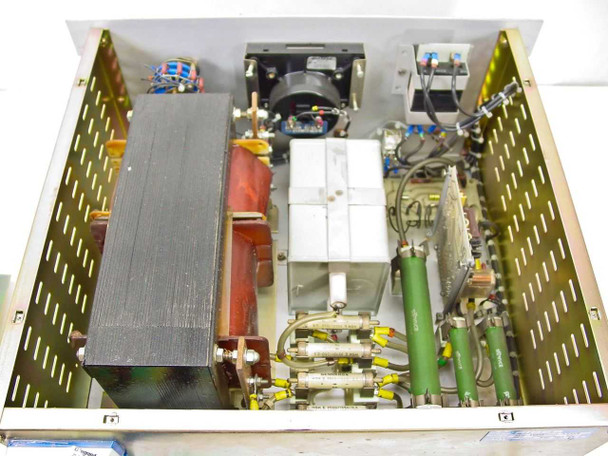

  • Riber 40I 1000 Ion Pump Power Supply – interior view showing transformer, high-voltage components, and resistor bank
  • Riber 40I 1000 – interior view from opposite angle showing transformer assembly and high-voltage circuit boards

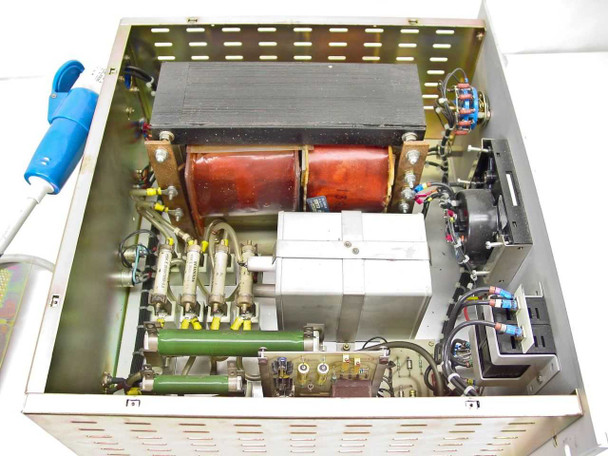

  • Riber 40I 1000 – interior view showing large toroidal transformers, capacitor banks, and internal wiring
$700.00
Was: $1,400.00
Current Stock: 1

Sold Out

Description

Riber 40I 1000 Ion Pump Power Supply MBE Growth Chamber 220V 18A Code 250 103 52 Y

High-voltage DC power supply for ion pumps used in Molecular Beam Epitaxy (MBE) growth systems. Provides regulated output across multiple current ranges with integrated pressure monitoring and recorder outputs.

Specifications & What's Included

  • Model: 40I 1000 (Code 250 103 52 Y)
  • Input: 220V AC, 18A max (Legrand P17 IEC plug)
  • Output Current Ranges: 30mA, 3mA, 300µA, 30µA (selector switch)
  • High Voltage DC output for ion pump drive
  • Analog pressure meter with µA / mA / KV / Torr scales
  • Recorder output and auxiliary meter output (BNC connectors)
  • Rear panel EF 212-AF multi-pin connector
  • Benchtop form factor: 21" × 19" × 9"

Applications

This supply operates ion pumps in Riber MBE growth chambers for thin-film deposition. Ion pumps maintain ultra-high vacuum environments required for molecular beam epitaxy processes in semiconductor and materials research. The unit integrates pressure monitoring and control outputs typical of chamber-mounted equipment from the 1990s–2010s era.

Condition: Used
This Riber 40I 1000 Ion Pump Power Supply has been inspected and appears to be in good condition. It was pulled from a working MBE environment where it was in active use. The front panel, meter, and controls show normal wear consistent with lab use. The power cable end is cut/exposed and will need to be re-terminated before use — this is clearly visible in the photos. The rear multi-pin circular connector and the Legrand P17 industrial power plug are both present and appear intact. Interior components visible in the photos appear complete and undamaged. Freight shipping is required due to the size and weight of this unit. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Riber
Model:
40I 1000
MPN:
250 103 52 Y
Secondary Model:
401-1000
SKU:
44281
Type:
Ion Pump Power Supply
Application:
Molecular Beam Epitaxy (MBE) Ion Pump
Input Voltage:
220V AC
Input Current:
18A
Output Type:
High Voltage DC (ion pump drive)
Current Ranges:
30mA, 3mA, 300µA, 30µA (selector switch)
Pressure Display:
Analog meter, µA / mA / KV / Torr scales
Recorder Output:
Output (Sortie) and Level Adjust (Niveau) BNC
Aux Meter Output:
Mesure Auxiliaire / Aux Meter connector
High Voltage Output:
Haute Tension / High Voltage output connector
Rear Connector:
EF 212-AF multi-pin circular connector (rear panel)
Power Connector:
Legrand P17 57564, 16A 220V IEC industrial plug
Form Factor:
Benchtop / Rackmount
Dimensions:
21" x 19" x 9"
Code:
250 103 52 Y
Reference Number:
600 045
Country/Region of Manufacture:
France
Condition:
Used – Pulled from Working Environment
Seller Notes:
Pulled from working MBE system; power cable end exposed/cut — see photos
Compatible With:
Riber MBE growth chambers, ion pump systems
Condition Notes:
Riber 40I 1000 Ion Pump Power Supply, pulled from working MBE environment, inspected and in good condition. Power cable end is cut/exposed and will need re-termination. Normal lab wear. Freight shipping required.
