Riber
-
Riber Jet 40K Selenium Cracker CIGS Solar Cell PVD Source 18g/min 1340mm
Riber
$120,000.00Was: $240,000.00Riber Jet 40K Selenium Cracker CIGS Solar Cell PVD Source 18g/min 1340mm Selenium vapor deposition source used in CIGS photovoltaic solar cell manufacturing. This system performs bottom-up and...52159- SKU:
- 52159
- Availability:
- This is a large industrial item — please contact us for freight shipping arrangements before purchasing.
- Weight:
- 1,500.00 LBS
- Brand:
- Riber
- Model:
- Jet 40K
- MPN:
- Jet 40K
- SKU:
- 52159
- Condition:
- Used – Deinstalled from Production Line
- Seller Notes:
- Includes control cabinet, vacuum pumps, cabling, and motor assembly
- Country of Manufacture:
- France
- Form Factor:
- Freestanding / Pallet-Mounted Industrial System
- Application:
- CIGS Photovoltaic Solar Cell Manufacturing
- Process Type:
- Selenium Vapor Deposition / PVD
- Se Loading Capacity:
- 100 kg
- Max Se Flow Rate:
- 18 g/min
- Coating Width:
- 300 mm – 1340 mm
- Deposition Geometry:
- Bottom-Up / Top-Down
- Substrate Compatibility:
- 1200 mm PV substrate or web (roll-to-roll)
- Flux Control:
- High conductance valve
- Vacuum Pump 1:
- Leybold Trivac D16B
- Vacuum Gauge 1:
- Leybold TTR 100 S2
- Vacuum Gauge 2:
- Leybold TTR 101 S2
- Vacuum Gauge 3:
- Inficon VAP025-X
- Additional Component 1:
- MDC REF#KDFT-4100-2
- Additional Component 2:
- SNT VMP25-A-RV-VERS371B5D-LH
- Motor:
- 8LSA35.EB060D200-0
- Provenance:
- Ex-Solopower, Portland OR — deinstalled early 2019
- Compatible With:
- In-line CIGS PV manufacturing systems, roll-to-roll PVD lines
- Condition Notes:
- This Riber Jet 40K Selenium Cracker came from Solopower's Portland, OR facility, where it was part of an operational CIGS solar cell production line. It was deinstalled in early 2019 when the facility closed.
$120,000.00Was: $240,000.00 -
Riber JBA 12A Vacuum Pressure Gauge Controller - Sputtering Chamber - As Is
Riber
$154.00Was: $250.00Riber JBA 12A Vacuum Pressure Gauge Controller - Sputtering Chamber - As Is Overall Dimensions: 19" x 11" x 4" -- 14 LBS Condition: For Parts or Not WorkingThis used controller is listed in...44295- SKU:
- 44295
- Weight:
- 19.00 LBS
$154.00Was: $250.00 -
Riber Cryovalve Power Supply Rackmount Eurotherm 140-03-462-19-00 115/230V
Riber
$250.00Was: $500.00Riber Cryovalve Power Supply Rackmount Eurotherm 140-03-462-19-00 115/230VRackmount power supply and controller for cryogenic valve systems used in molecular beam epitaxy (MBE) and vacuum deposition...40617- SKU:
- 40617
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 40.00 LBS
- Brand:
- Riber
- Model:
- Cryovalve Power Supply
- MPN:
- 140-03-462-19-00
- Type:
- Cryovalve Power Supply
- SKU:
- 40617
- Form Factor:
- Rack Mount
- Power Requirements:
- 115/230V, 50-60Hz
- Voltage Rating:
- 115V / 230V AC
- Frequency:
- 50-60 Hz
- Controller Brand:
- Eurotherm
- Controller Model:
- 140-03-462-19-00
- Controller Origin:
- Worthing, England
- Temperature Display:
- Eurotherm °C display (integrated)
- Current Display:
- Newport Current Amps display (integrated)
- Front Panel Controls:
- Power LED, % dial (0-100), Water indicator, Hg Level indicator
- Thermocouple Type:
- Chromel/Alumel (K-type)
- Rear Connectors:
- Multi-pin circular connectors, Chromel/Alumel TC terminals
- Power Inlet:
- 220VAc IEC inlet (rear, labeled SECTEUR)
- Application:
- Cryovalve control, MBE / vacuum deposition systems
- Compatible With:
- Riber MBE vacuum deposition systems
- Country/Region of Manufacture:
- France
- Seller Notes:
- Includes integrated Eurotherm controller and Newport current display
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Riber Cryovalve Power Supply P/N 140-03-462-19-00 inspected and in good used condition. Pulled from a working environment where it was in active use. Front panel, displays, and internal components visually intact. Normal lab wear.
$250.00Was: $500.00 -
ISA Riber EPP.II Electrometer 0-100uA 220V 315mA Rackmount MBE Vacuum System
Riber
$295.00Was: $600.00ISA Riber EPP.II Electrometer 0-100uA 220V 315mA Rackmount MBE Vacuum SystemThe ISA Riber EPP.II (also labeled EPP11) is a rackmount electrometer designed for measuring very small ion and beam...40620- SKU:
- 40620
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 25.00 LBS
- Brand:
- ISA Riber
- Model:
- EPP.II
- MPN:
- EPP.II
- Secondary Model:
- EPP11
- Type:
- Electrometer
- SKU:
- 40620
- Serial Number (Internal):
- I7724
- Condition:
- Used – Pulled from Working Environment
- Country/Region of Manufacture:
- France
- Form Factor:
- Rack Mount
- Power Requirements:
- 220V, 315mA
- Voltage:
- 220V
- Current Rating:
- 315mA
- Measurement Range:
- 0-100 µA
- Measurement Type:
- Current (Ion/Beam Current)
- Display Type:
- Analog Meter (0-100µA scale)
- Gain Setting:
- x GAIN multiplier with front-panel selector
- Bias / Polarisation:
- 0-100V Polarisation (BIAS), front-panel knob
- Signal Input:
- BNC (J1 - Signal Input, rear panel)
- Recorder Output:
- BNC (J2 - Sortie Enregistreur, rear panel)
- Battery Set:
- Internal battery set (Bloc Piles), rear compartment
- Power Connector:
- IEC C13 (Secteur / Mains, rear panel)
- Fuse:
- 315mA (rear panel)
- Application:
- MBE (Molecular Beam Epitaxy) vacuum systems
- Compatible With:
- Riber MBE systems and vacuum deposition equipment
- Reference Code:
- 600.045
- OF Code:
- 7I5880
- Seller Notes:
- Sold as-shown; no accessories included beyond the unit itself.
- Condition Notes:
- ISA Riber EPP.II Electrometer pulled from a working MBE vacuum system. Inspected and in good used condition. Front panel, meter, and connectors show normal lab wear. Please view photos and contact us with questions.
$295.00Was: $600.00 -

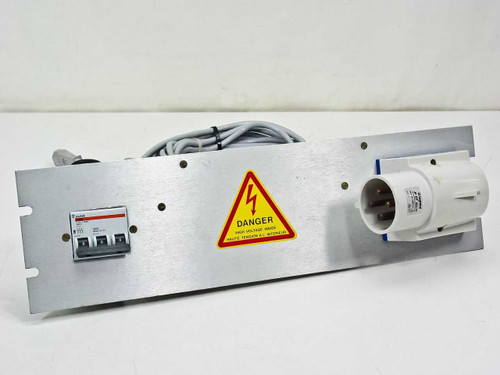

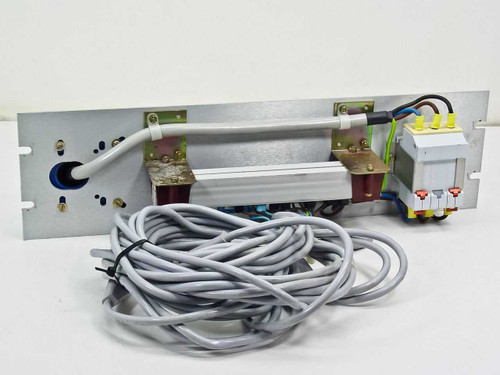

Riber 3.B220TRI Power Distribution Panel Legrand P17 58265 220V 32A 3-Phase
Riber
$150.00Was: $300.00Riber 3.B220TRI Power Distribution Panel Legrand P17 58265 220V 32A 3-PhaseThree-phase industrial power distribution panel manufactured by Riber for semiconductor and MBE equipment systems. Features...44282- SKU:
- 44282
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 6.00 LBS
- Brand:
- Riber
- Model:
- 3.B220TRI
- MPN:
- 3.B220TRI
- Secondary Model:
- Code 252 116 20T
- Type:
- Three-Phase Power Distribution Panel
- SKU:
- 44282
- Voltage Rating:
- 220V Three-Phase (220TRI)
- Current Rating:
- 32A
- Phase:
- Three Phase
- Connector Type:
- Legrand P17 58265, 3P+E IEC Industrial Plug
- Circuit Breaker:
- Merlin Gerin Multi9 C32N, 32A, 3-Pole, 380V
- Breaker Interrupting Capacity:
- 8000A IEC P1
- Connector Rating:
- 32A - 9h / 220V, 3P+E
- Country/Region of Manufacture:
- France
- Form Factor:
- Panel / Rackmount Plate
- Condition:
- Used – Inspected
- Seller Notes:
- Includes panel with Legrand P17 plug and attached power cable harness
- Compatible With:
- Riber MBE / semiconductor equipment systems
- Certifications:
- IEC, OVE (Austrian Standards)
- Condition Notes:
- Riber 3.B220TRI 220V 32A 3-phase power panel inspected and in good used condition. Legrand P17 plug and Multi9 C32N breaker intact. Rear brackets show minor oxidation. Cable harness included.
$150.00Was: $300.00 -
Riber 40I 1000 Ion Pump Power Supply MBE Growth Chamber 220V 18A Code 250 103 52
Riber
$700.00Was: $1,400.00Riber 40I 1000 Ion Pump Power Supply MBE Growth Chamber 220V 18A Code 250 103 52 YHigh-voltage DC power supply for ion pumps used in Molecular Beam Epitaxy (MBE) growth systems. Provides regulated...44281- SKU:
- 44281
- Availability:
- Usually ships within 1-2 business days; freight shipment required due to size and weight.
- Weight:
- 150.00 LBS
- Brand:
- Riber
- Model:
- 40I 1000
- MPN:
- 250 103 52 Y
- Secondary Model:
- 401-1000
- SKU:
- 44281
- Type:
- Ion Pump Power Supply
- Application:
- Molecular Beam Epitaxy (MBE) Ion Pump
- Input Voltage:
- 220V AC
- Input Current:
- 18A
- Output Type:
- High Voltage DC (ion pump drive)
- Current Ranges:
- 30mA, 3mA, 300µA, 30µA (selector switch)
- Pressure Display:
- Analog meter, µA / mA / KV / Torr scales
- Recorder Output:
- Output (Sortie) and Level Adjust (Niveau) BNC
- Aux Meter Output:
- Mesure Auxiliaire / Aux Meter connector
- High Voltage Output:
- Haute Tension / High Voltage output connector
- Rear Connector:
- EF 212-AF multi-pin circular connector (rear panel)
- Power Connector:
- Legrand P17 57564, 16A 220V IEC industrial plug
- Form Factor:
- Benchtop / Rackmount
- Dimensions:
- 21" x 19" x 9"
- Code:
- 250 103 52 Y
- Reference Number:
- 600 045
- Country/Region of Manufacture:
- France
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Pulled from working MBE system; power cable end exposed/cut — see photos
- Compatible With:
- Riber MBE growth chambers, ion pump systems
- Condition Notes:
- Riber 40I 1000 Ion Pump Power Supply, pulled from working MBE environment, inspected and in good condition. Power cable end is cut/exposed and will need re-termination. Normal lab wear. Freight shipping required.
$700.00Was: $1,400.00 -

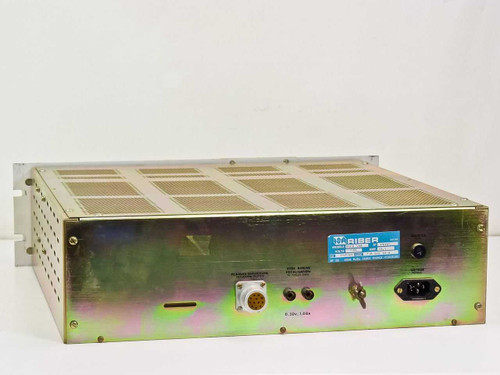

Riber HEED 510 Alimentation Optique Optical Power Unit 220V 0.5A HEED MBE
Riber
$600.00Was: $1,200.00Riber HEED 510 Alimentation Optique Optical Power Unit 220V 0.5A HEED MBEThe Riber HEED 510 is a specialized optical power and electron beam control unit designed for use with Riber HEED (High Energy...44280- SKU:
- 44280
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 26.00 LBS
- Brand:
- Riber
- Model:
- HEED 510
- MPN:
- 250 I04 40 U
- Secondary Model:
- 600.045
- Type:
- Optical Power Unit / HEED Control Power Supply
- SKU:
- 44280
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Includes integrated Lambda LP-411A-FM-W focusing power supply module
- Country/Region of Manufacture:
- France
- Input Voltage:
- 220V
- Input Current:
- 0.5A
- Fuse Rating:
- 0.5A
- Output Voltage (Focusing Supply):
- 0-20V DC
- Output Current (Focusing Supply):
- 1.08A max
- Integrated Module:
- Lambda LP-411A-FM-W Stabilized Power Supply
- Code:
- 250 I04 40 U
- Serial Number Range:
- N° I9040 (OF 717460)
- Rear Connector - Deflection:
- Multi-pin circular connector (Plaques Deflection / Deflection Plates)
- Rear Connector - Focus Coil:
- 2x BNC-type posts (Vers Bobine Focalisation / To Focus Coil)
- Power Inlet:
- IEC C14 (Secteur / Power)
- Form Factor:
- Rackmount / Benchtop
- Application:
- HEED / RHEED system optical and electron beam control, MBE
- Controls:
- X, Y, H, V deflection knobs; Sensitivity (Min/Max); Deflexion/Mesure/Alignement
- Front Panel Language:
- French / English bilingual
- Condition Notes:
- Riber HEED 510 Optical Power Unit. Used, inspected, in good condition. Light surface wear; internal boards and wiring appear clean and intact. Lambda LP-411A-FM-W focusing module included.
$600.00Was: $1,200.00 -
Riber ACE 576 N E-Gun Power Supply Analytical Chamber 220V 500mA Rackmount
Riber
$700.00Was: $1,400.00Riber ACE 576 N E-Gun Power Supply Analytical Chamber 220V 500mA RackmountRiber electron gun power supply designed for analytical and molecular beam epitaxy (MBE) chamber applications. Supplies...40630- SKU:
- 40630
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 46.00 LBS
- Brand:
- Riber
- Model:
- ACE 576 N
- MPN:
- ACE 576 N
- Secondary Model:
- 600.045
- Serial Number (Internal):
- I7666
- Type:
- Electron Gun (E-Gun) Power Supply
- SKU:
- 40630
- Voltage Rating:
- 220V
- Current Rating:
- 500mA
- Power Requirements:
- 220V AC
- Code / Configuration:
- 250 IOI 60 P
- OF Number:
- 7I7290
- Application / Use Case:
- Electron Gun Power Supply for Analytical/MBE Chamber
- Filament Current Limit:
- 2.7A / 3.7A selectable
- HV Controls:
- H.T. (High Tension), Wehnelt Grid, Lens
- Regulation Mode:
- Selectable (-100 to +100 Grid)
- Emission Control:
- If / Ie selectable
- Modulation Input:
- J18 — Modulation Input connector
- Remote Control:
- H.V. Remote Control (J16), Local/Distance switch
- Connectors — Front:
- Multi-pin Cannon/Gun connector, BNC
- Connectors — Rear:
- J14, J15, J17, J19 (Cannon), J20, J21, J22 (IEC power), J23
- Scanning Inputs:
- Entrees Balayage / Scanning Inputs (J20)
- Display:
- Newport red LED digital readout
- Form Factor:
- Rackmount
- Country/Region of Manufacture:
- France
- Condition:
- Used – Inspected and in Good Condition
- Included Accessories:
- Multi-pin braided cannon cable with two connectors
- Seller Notes:
- Includes multi-pin braided cannon interface cable with two connectors.
- Condition Notes:
- Riber ACE 576 N E-Gun Power Supply, inspected and in good condition. Normal cosmetic wear from lab use. Multi-pin cannon cable included. Front panel controls and LED display intact. Please contact us with any questions.
$700.00Was: $1,400.00
