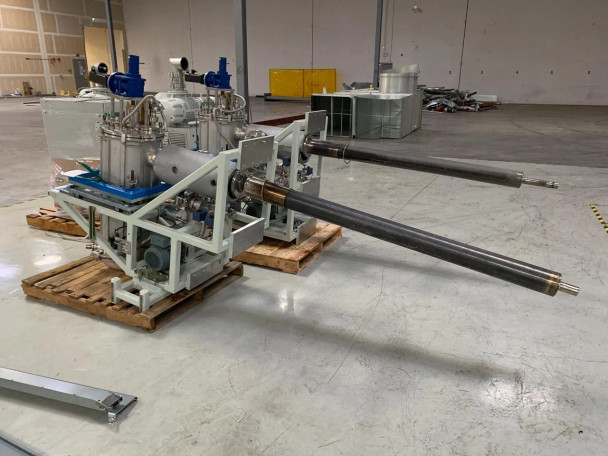

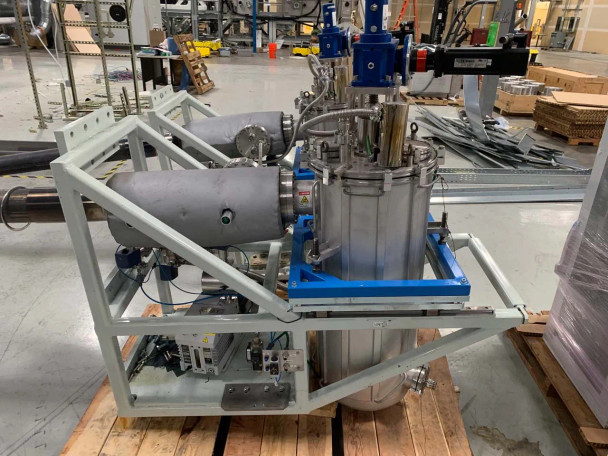

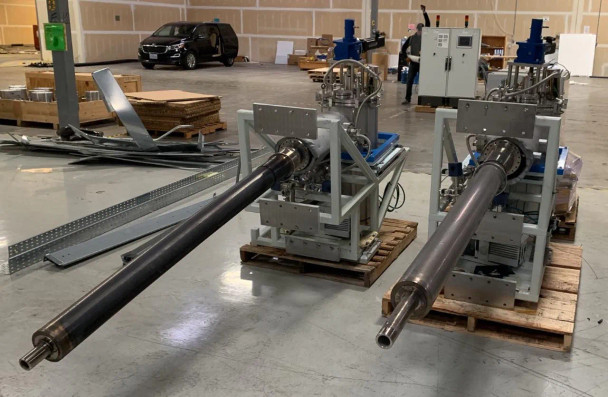

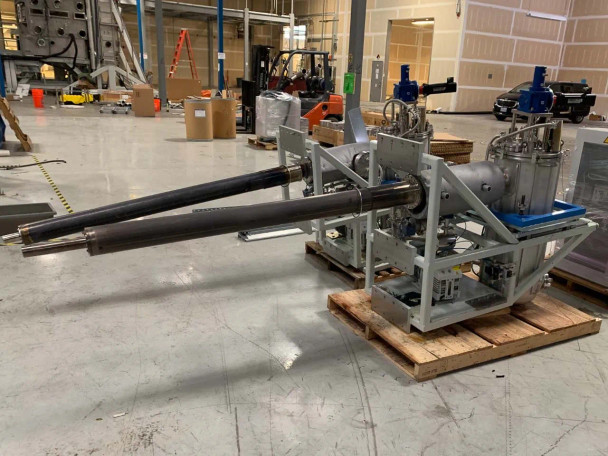

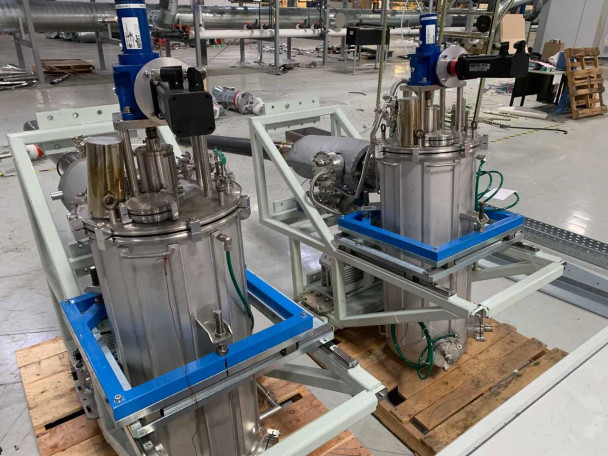

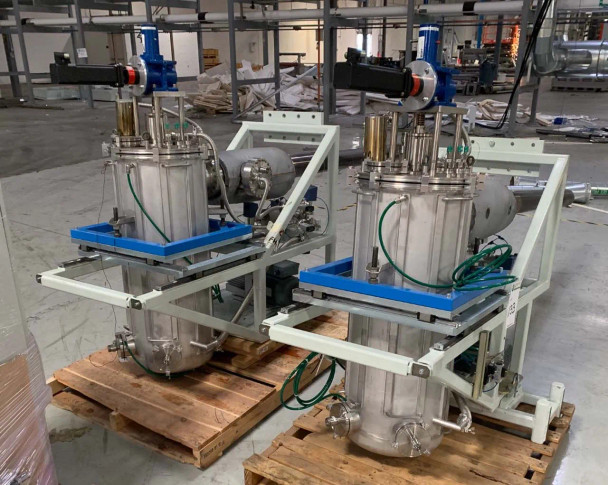

Riber Jet 40K Selenium Cracker CIGS Solar Cell PVD Source 18g/min 1340mm
Selenium vapor deposition source used in CIGS photovoltaic solar cell manufacturing. This system performs bottom-up and top-down selenium coating on substrates up to 1340mm width for roll-to-roll production lines.
Specifications & What's Included
- Model: Riber Jet 40K
- Max selenium flow rate: 18 g/min
- Selenium loading capacity: 100 kg
- Coating width: 300–1340 mm
- Substrate compatibility: 1200 mm PV substrate or web (roll-to-roll)

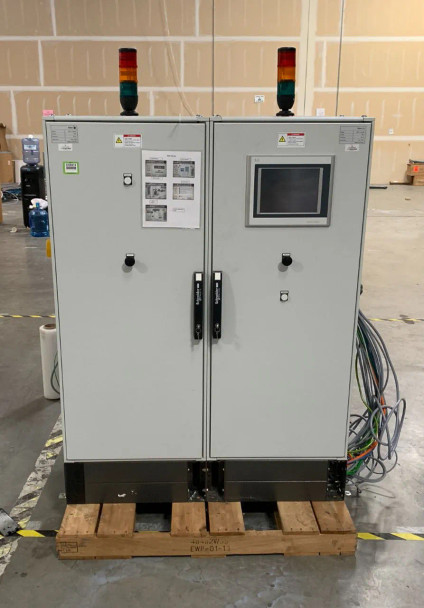

- Includes control cabinet, Leybold vacuum pumps (Trivac D16B), vacuum gauges, cabling, motor assembly (8LSA35.EB060D200-0), and high conductance valve
- Form factor: Freestanding, pallet-mounted
- Manufactured in France
Applications
Suited for in-line CIGS PV manufacturing systems and roll-to-roll PVD production lines.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
Condition: Used
This Riber Jet 40K Selenium Cracker came from Solopower's Portland, OR facility, where it was part of an operational CIGS solar cell production line. It was deinstalled in early 2019 when the facility closed. The prior operator reported it was in working condition at the time of deinstallation; however, it has not been powered up or tested at our facility since removal. The system appears complete with vacuum pumps, control cabinet, cabling, and motor assembly intact. Please view our photos and contact us with any questions before purchasing.
This Riber Jet 40K Selenium Cracker came from Solopower's Portland, OR facility, where it was part of an operational CIGS solar cell production line. It was deinstalled in early 2019 when the facility closed. The prior operator reported it was in working condition at the time of deinstallation; however, it has not been powered up or tested at our facility since removal. The system appears complete with vacuum pumps, control cabinet, cabling, and motor assembly intact. Please view our photos and contact us with any questions before purchasing.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Riber |
Model: |
Jet 40K |
MPN: |
Jet 40K |
SKU: |
52159 |
Condition: |
Used – Deinstalled from Production Line |
Seller Notes: |
Includes control cabinet, vacuum pumps, cabling, and motor assembly |
Country of Manufacture: |
France |
Form Factor: |
Freestanding / Pallet-Mounted Industrial System |
Application: |
CIGS Photovoltaic Solar Cell Manufacturing |
Process Type: |
Selenium Vapor Deposition / PVD |
Se Loading Capacity: |
100 kg |
Max Se Flow Rate: |
18 g/min |
Coating Width: |
300 mm – 1340 mm |
Deposition Geometry: |
Bottom-Up / Top-Down |
Substrate Compatibility: |
1200 mm PV substrate or web (roll-to-roll) |
Flux Control: |
High conductance valve |
Vacuum Pump 1: |
Leybold Trivac D16B |
Vacuum Gauge 1: |
Leybold TTR 100 S2 |
Vacuum Gauge 2: |
Leybold TTR 101 S2 |
Vacuum Gauge 3: |
Inficon VAP025-X |
Additional Component 1: |
MDC REF#KDFT-4100-2 |
Additional Component 2: |
SNT VMP25-A-RV-VERS371B5D-LH |
Motor: |
8LSA35.EB060D200-0 |
Provenance: |
Ex-Solopower, Portland OR — deinstalled early 2019 |
Compatible With: |
In-line CIGS PV manufacturing systems, roll-to-roll PVD lines |
Condition Notes: |
This Riber Jet 40K Selenium Cracker came from Solopower's Portland, OR facility, where it was part of an operational CIGS solar cell production line. It was deinstalled in early 2019 when the facility closed. |
