Description
Solopower SP1 CIGS Raw Solar Cell String 60-Cell 40-50W 14.5x82in Flexible SS
Raw unencapsulated CIGS solar cell string manufactured by Solopower. Flexible stainless steel substrate rated 40–50W output, designed for custom panel assembly, research, and experimentation without factory encapsulation or mounting hardware.
Specifications & What's Included
- 60-cell CIGS (Copper Indium Gallium Selenide) technology

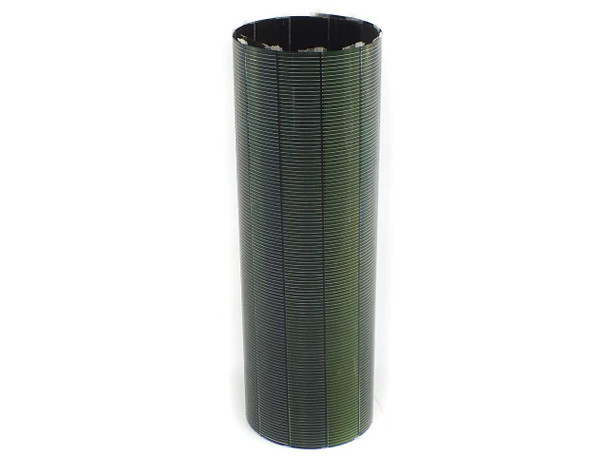

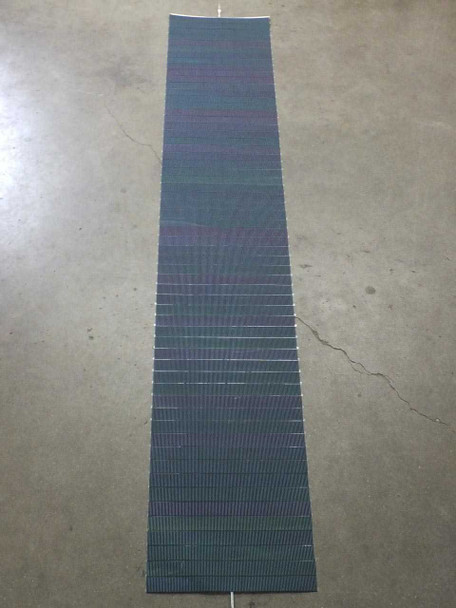

- Dimensions: 14.5 in W × 82 in L × 1/32 in thick; rolls to 4 in diameter or less
- Power output: 40–50W (approximate, varies by string)
- Vmp: 17–19V; Imp: 2.5–3A; Voc: 27–29V
- Flexible, rollable, cuttable substrate
- Connection via 3M 1182 double-sided conductive acrylic tape
- Unencapsulated — no frame, junction box, or encapsulant included
Applications
CIGS raw cell strings are used in DIY solar projects, custom panel fabrication, and research applications where flexibility and thin-profile form factor are required. This string supports prototype development and integration into custom enclosure systems. Compatible with standard conductive pressure-sensitive tape termination methods.
Condition: New
This Solopower SP1 CIGS raw solar cell string is new and unused — it was never sold or installed. These strings were staged for panel production at the Solopower Portland factory and were left as work in progress when Solopower closed and liquidated in 2019. They have been tested and confirmed to produce power. The string is unencapsulated and has no frame or junction box. Cosmetically the cells appear clean and in good shape with no visible damage to the CIGS layer or the stainless steel substrate. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Solopower SP1 CIGS raw solar cell string is new and unused — it was never sold or installed. These strings were staged for panel production at the Solopower Portland factory and were left as work in progress when Solopower closed and liquidated in 2019. They have been tested and confirmed to produce power. The string is unencapsulated and has no frame or junction box. Cosmetically the cells appear clean and in good shape with no visible damage to the CIGS layer or the stainless steel substrate. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Data Sheet: |
|
Brand: |
Solopower |
Model: |
SP1 |
MPN: |
SP1 |
Type: |
Raw Unencapsulated CIGS Solar Cell String |
SKU: |
52352 |
Number of Cells: |
60 |
Cell Technology: |
CIGS (Copper Indium Gallium Selenide) |
Substrate Material: |
Flexible Stainless Steel |
Encapsulation: |
None – Raw/Unencapsulated |
String Dimensions: |
14.5 in W x 82 in L x 1/32 in thick |
Rolled Diameter: |
4 inches or less |
Maximum Power Output: |
40–50 Watts (approximate, varies by string) |
Maximum Voltage (Vmp): |
17–19 Volts |
Maximum Current (Imp): |
2.5–3 Amps |
Open Circuit Voltage (Voc): |
27–29 Volts |
Connection Method: |
Double-sided conductive clear acrylic tape |
Flexibility: |
Flexible – can be rolled and cut to shape |
Cuttable: |
Yes – cuttable to size and shape |
Seller Notes: |
Raw unencapsulated 60-cell CIGS string. No encapsulant, frame, or junction box included. |
Country/Region of Manufacture: |
United States |
Application: |
DIY Solar, Research, Experimentation, Custom Panel Fabrication |
Compatible Tape: |
3M 1182 double-sided acrylic conductive pressure sensitive tape |
Source: |
Solopower Portland factory, closed 2019 |
Form Factor: |
Flexible Roll / Sheet |
Condition Notes: |
Solopower SP1 CIGS 60-cell solar string. New, unused, untested from 2019 Solopower Portland factory closure. Tested to produce power. Unencapsulated — no frame or junction box. Clean, no visible damage. |
