Riber TCA 380 Scan Generator w/ Scan & Modulator Plug-ins 220V France

Riber TCA 380 Scan Generator w/ Scan & Modulator Plug-ins 220V France

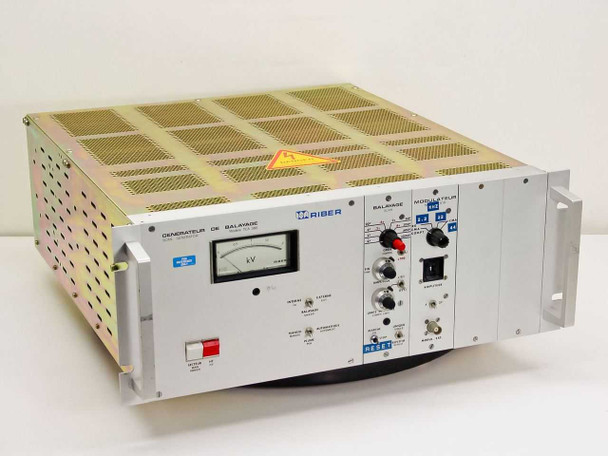

The Riber TCA 380 is a rackmount scan generator (Générateur de Balayage) designed for use with electron spectrometers and surface analysis instruments. It generates and controls the high-voltage sweep signal applied to the analyzer section of an electron spectrometer, with the scan voltage output displayed on a front-panel analog kV meter. The unit accepts two plug-in modules — a Scan (Balayage) module and a Modulator module — allowing it to drive both the sweep and modulation functions required for spectrometer operation. Made in France by ISA Riber.

Specifications & What's Included

• Model: Riber TCA 380
• Manufacturer: ISA Riber, Rueil-Malmaison, France

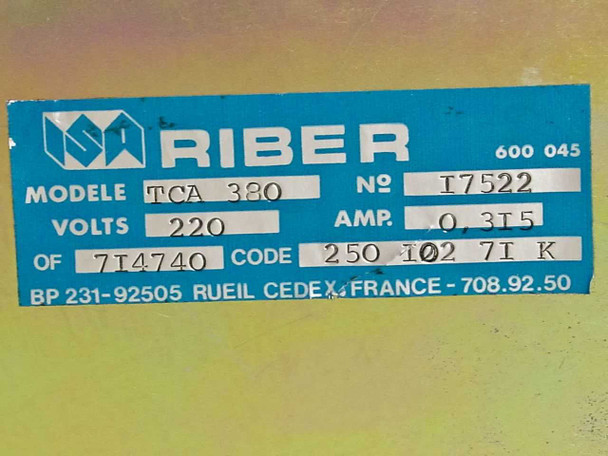

• Reference No.: 600 045
• Input Voltage: 220V AC
• Current: 0.315A
• Power inlet: IEC with fuse (rear, J32)
• Form factor: Rackmount chassis
• Front panel meter: Analog kV meter, 0–2 kV range (×10 scale)

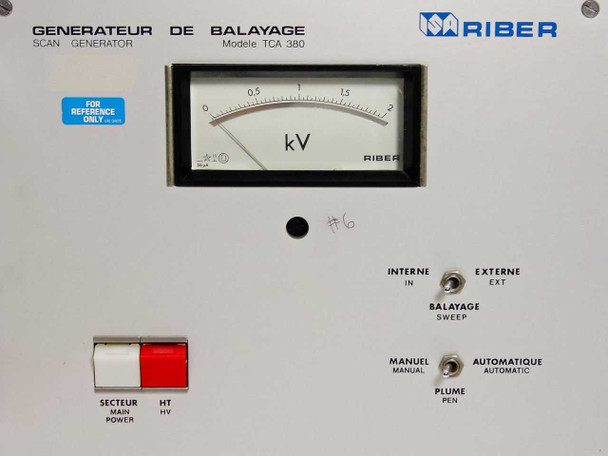

• Front panel controls: SECTEUR (Main Power) and HT (High Voltage) switches; Balayage (Sweep) selector: Internal/External; Plume (Pen): Manual/Automatic

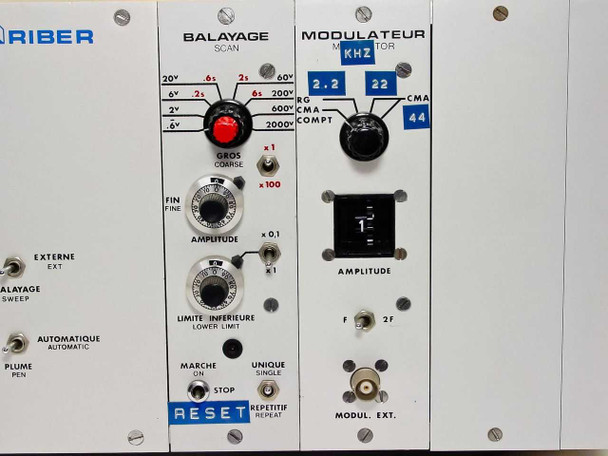

• Scan (Balayage) plug-in module installed: Coarse/Fine amplitude controls; Sweep time ranges: 20s, 6s, 2s, 60s, 6s, 200V, 2V, 600V, 6V, 2000V; Lower Limit (Limite Inférieure) control; Mode selector: ON/STOP, Single (Unique), Repeat (Répétitif); RESET button
• Modulator plug-in module installed: Frequency selector: 2.2 kHz, 22 kHz, 44 kHz; Amplitude control; CMA/COMPT selector; External modulation input (MODUL. EXT.)

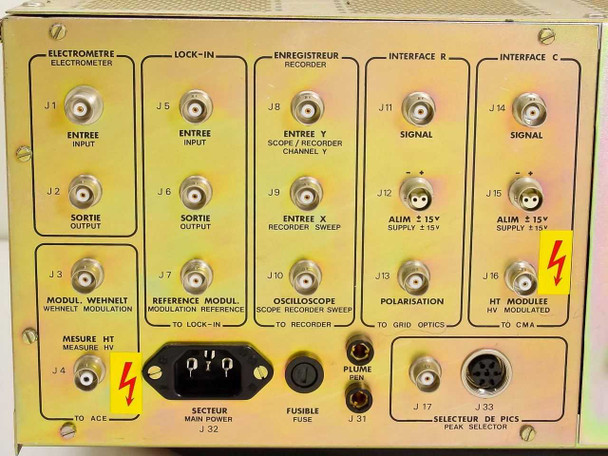

• Rear connectors — Electrometer section: J1 Input (Entrée), J2 Output (Sortie), J3 Wehnelt Modulation, J4 Measure HV (Mesure HT)
• Rear connectors — Lock-In section: J5 Input, J6 Output, J7 Modulation Reference
• Rear connectors — Recorder section: J8 Y Channel, J9 Recorder Sweep (X), J10 Oscilloscope Sweep
• Rear connectors — Interface R: J11 Signal, J12 Supply ±15V, J13 Polarisation
• Rear connectors — Interface C: J14 Signal, J15 Supply ±15V, J16 HT Modulée (HV Modulated)
• Rear connectors — Other: J17 Grid Optics, J33 Peak Selector (Sélecteur de Pics), J31 Pen (Plume)
• Connector types: BNC throughout rear panel
• Includes: Scan (Balayage) plug-in and Modulator plug-in modules, installed

Applications

The Riber TCA 380 is a specialized instrument used in electron spectroscopy systems, particularly X-ray photoelectron spectroscopy (XPS/ESCA) and Auger electron spectroscopy (AES) instruments manufactured by ISA Riber. In these systems, the scan generator controls the voltage sweep applied to the electron energy analyzer, stepping or ramping the retarding potential to scan across the energy spectrum of electrons emitted from a sample surface. The modulator channel provides the AC modulation signal used in lock-in detection schemes, which improve signal-to-noise in Auger and derivative-mode spectroscopy. The Riber TCA 380 was produced in France during the 1970s–1980s, an era when ISA Riber was one of the leading European manufacturers of surface science instrumentation. These instruments are still sought by laboratories maintaining legacy Riber spectrometer systems, as well as collectors and researchers working with vintage surface analysis equipment. The extensive rear-panel interfacing — covering electrometer, lock-in amplifier, recorder, CMA, and grid optics connections — reflects the instrument's role as the central signal-generation hub of a complete spectrometer system.
