Riber

Riber 3.B220TRI Power Distribution Panel Legrand P17 58265 220V 32A 3-Phase

(No reviews yet) Write a Review
SKU:
44282
MPN:
B.B22OTRI
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • Riber 3.B220TRI power distribution panel front view showing Merlin Gerin Multi9 C32N circuit breaker on left, high-voltage danger label center, Legrand P17 58265 3-phase plug on right, with attached gray cable
  • Riber 3.B220TRI panel rear view showing bus bar assembly, red terminal blocks, three-pole contactor or breaker, green/yellow earth wire, and long gray cable harness spread out

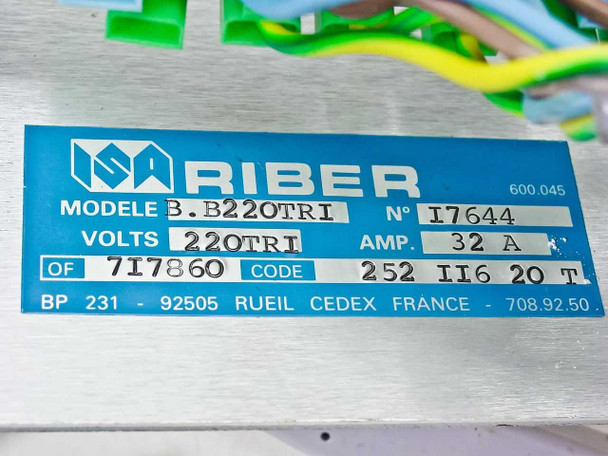

  • Riber 3.B220TRI rating plate closeup: ISA Riber logo, Modele 3.B220TRI, N° I7644, Volts 220TRI, Amp 32A, OF 7I7860, Code 252 II6 20T, BP 231 92505 Rueil Cedex France
  • Merlin Gerin Multi9 C32N three-pole circuit breaker closeup showing n°35, U(32A), 380V, 8000A IEC P1, part number 85 23 E, all poles in OFF position
  • Legrand P17 58265 industrial plug closeup mounted on panel, showing four-pin 3P+E configuration with brass contact pins visible

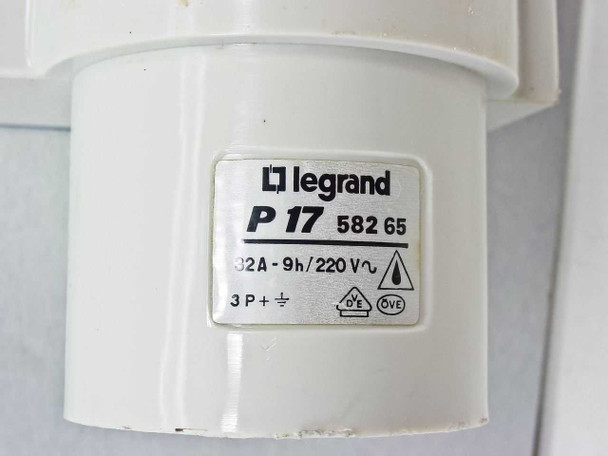

  • Legrand P17 58265 connector label closeup: 32A-9h/220V, 3P+E, OVE and D/E certification marks visible

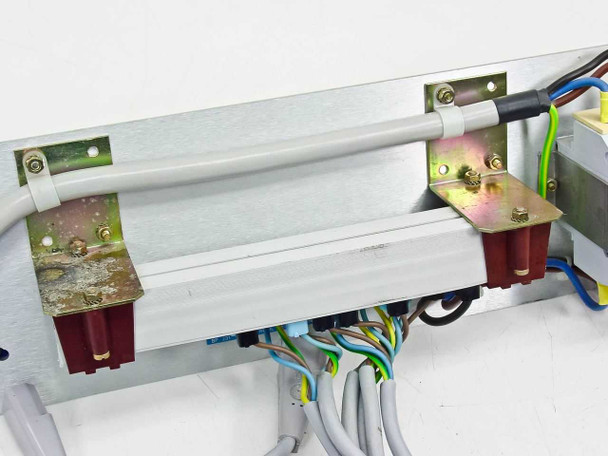

  • Rear panel detail showing bus bar with red ceramic/bakelite insulators, mounting brackets with oxidation/patina, gray wiring harness with blue, brown, green/yellow conductors

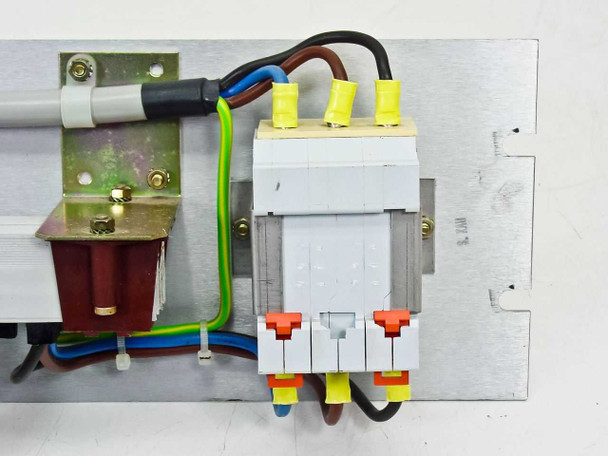

  • Rear panel detail showing contactor or three-pole breaker assembly with red and orange flag indicators, yellow wire ferrules on black and brown conductors, green/yellow earth wire

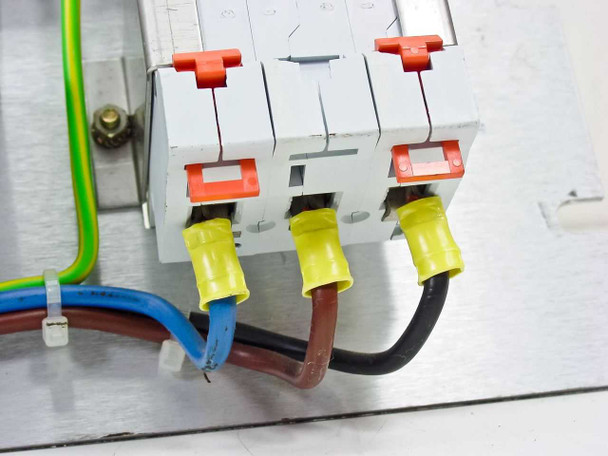

  • Close-up of three-pole breaker/contactor rear terminals showing red and orange tripping flags, yellow insulated ferrule connections on blue, brown, and black phase conductors

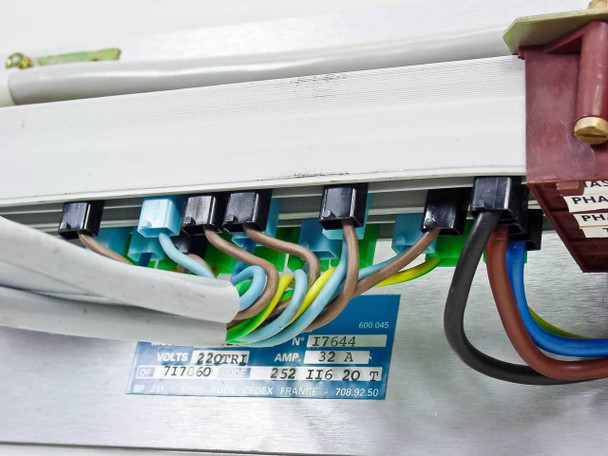

  • Rear interior view showing terminal block strip with multiple wire connections, blue rating plate partially visible confirming 220TRI 32A and Code 252 II6 20T, brown and blue phase wires
  • Riber B.B22OTRI Panel w/ Legrand P17 582 65 Connector 220V 32A Code:252 116 20T
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Riber 3.B220TRI Power Distribution Panel Legrand P17 58265 220V 32A 3-Phase

Three-phase industrial power distribution panel manufactured by Riber for semiconductor and MBE equipment systems. Features a Legrand P17 58265 connector with integrated Merlin Gerin Multi9 C32N circuit breaker.

Specifications & What's Included

  • Voltage Rating: 220V Three-Phase
  • Current Rating: 32A
  • Connector: Legrand P17 58265, 3P+E IEC Industrial Plug
  • Circuit Breaker: Merlin Gerin Multi9 C32N, 32A, 3-Pole, 380V
  • Interrupting Capacity: 8000A IEC P1
  • Manufactured: France
  • Includes: Panel with attached power cable harness

Applications

Used in Riber molecular beam epitaxy and semiconductor manufacturing equipment as primary power distribution and protection. The three-phase 220V supply with 32A capacity supports high-power vacuum systems and control electronics common in thin-film deposition and materials research platforms. Panel-mount design integrates directly into equipment racks and system cabinets.

Condition: Used
This Riber 3.B220TRI three-phase power distribution panel has been inspected and appears to be in good used condition. The panel housing, Legrand P17 58265 plug, and Merlin Gerin Multi9 C32N circuit breaker are all intact and show normal wear consistent with prior industrial use. The rear bus bar mounting brackets show some oxidation/patina, visible in the photos. The cable harness and wiring are present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Riber
Model:
3.B220TRI
MPN:
3.B220TRI
Secondary Model:
Code 252 116 20T
Type:
Three-Phase Power Distribution Panel
SKU:
44282
Voltage Rating:
220V Three-Phase (220TRI)
Current Rating:
32A
Phase:
Three Phase
Connector Type:
Legrand P17 58265, 3P+E IEC Industrial Plug
Circuit Breaker:
Merlin Gerin Multi9 C32N, 32A, 3-Pole, 380V
Breaker Interrupting Capacity:
8000A IEC P1
Connector Rating:
32A - 9h / 220V, 3P+E
Country/Region of Manufacture:
France
Form Factor:
Panel / Rackmount Plate
Condition:
Used – Inspected
Seller Notes:
Includes panel with Legrand P17 plug and attached power cable harness
Compatible With:
Riber MBE / semiconductor equipment systems
Certifications:
IEC, OVE (Austrian Standards)
Condition Notes:
Riber 3.B220TRI 220V 32A 3-phase power panel inspected and in good used condition. Legrand P17 plug and Multi9 C32N breaker intact. Rear brackets show minor oxidation. Cable harness included.
