Description

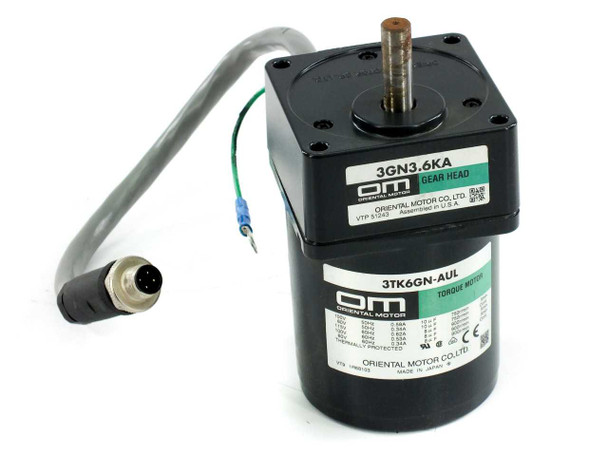

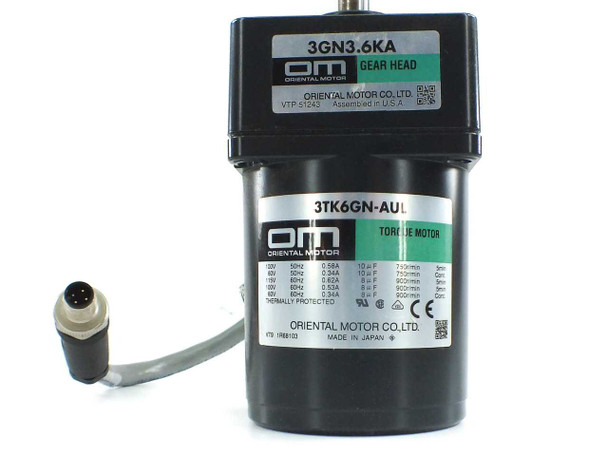

Oriental Motor 3TK6GN-AUL Torque Motor 3GN3.6KA Gear Head 6W 110V 300RPM
AC torque motor with integrated parallel shaft gear head. Delivers consistent low-speed, high-torque output for industrial and telecom equipment requiring continuous rotation under load.
Specifications & What's Included
- Motor: Oriental Motor 3TK6GN-AUL with 3GN3.6KA gear head
- Power: 6W (1/125 HP) at 110/115V AC, single-phase, 60 Hz
- Output: 300 RPM, 1.87 lb-in torque, 3:1 gear ratio
- Frame: 70mm (2.76 in.) square
- Connector: M12 4-pin circular with attached cable
- Manufactured in Japan
Applications
This motor type is used in telecom switching equipment, industrial control systems, and automation where reliable low-speed torque is required. The gear head provides mechanical advantage for load-driven applications including paper feed mechanisms, indexing drives, and rotary actuators. Compatible with legacy telecom and industrial cabinet systems from the 1990s–2000s that use M12 connectors.
Condition: Used
This Oriental Motor 3TK6GN-AUL torque motor with 3GN3.6KA gear head has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The motor body and gear head are clean and intact, with normal surface wear consistent with prior installation. The M12 connector cable is present and shows no visible damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Oriental Motor 3TK6GN-AUL torque motor with 3GN3.6KA gear head has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The motor body and gear head are clean and intact, with normal surface wear consistent with prior installation. The M12 connector cable is present and shows no visible damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Oriental Motor |
Model: |
3TK6GN-AUL |
MPN: |
3TK6GN-AUL |
Secondary Model: |
3GN3.6KA |
SKU: |
52457 |
Type: |
AC Torque Motor with Parallel Shaft Gear Head |
Output Power: |
6 W (1/125 HP) |
Voltage: |
110/115V AC, Single-Phase |
Frequency: |
60 Hz |
Gear Ratio: |
3:1 |
Output Speed: |
300 RPM |
Output Torque: |
1.87 lb-in at max output |
Shaft/Gear Type: |
Parallel Shaft Gearhead |
Frame Size: |
2.76 in. sq. (70 mm) |
Connector Type: |
M12 4-pin circular connector |
Country/Region of Manufacture: |
Japan |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes motor and gear head with attached M12 connector cable |
Condition Notes: |
Oriental Motor 3TK6GN-AUL torque motor with 3GN3.6KA gear head. Inspected, good used condition. Pulled from a working environment. M12 connector cable included. Normal wear from prior use. |
