Oriental Motor

Oriental Motor 2SK4GN-A Reaction Synchronous Motor 2GN30K Gear Head 4W 100V

(No reviews yet) Write a Review
SKU:
47903
MPN:
2SK4GN-A
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

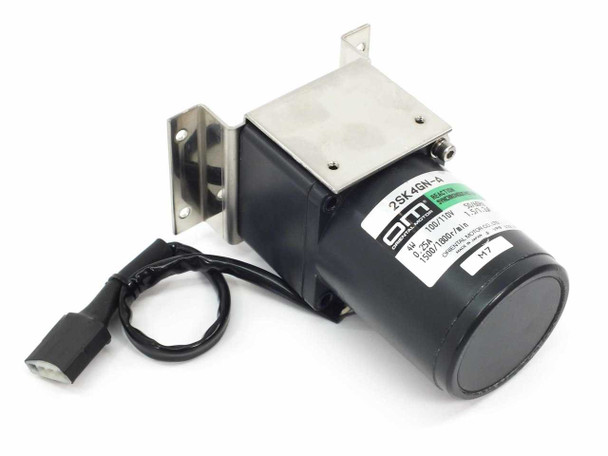

  • Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head — three-quarter front view showing motor body, stainless mounting bracket, and lead wire connector

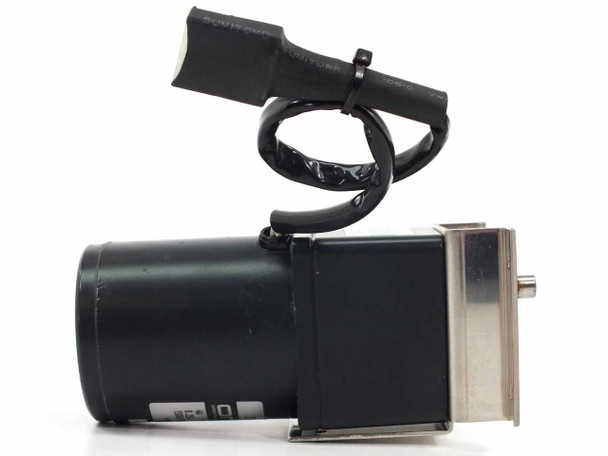

  • Oriental Motor 2SK4GN-A Synchronous Motor with 2GN30K Gear Head — side view showing output shaft and stainless steel mounting bracket

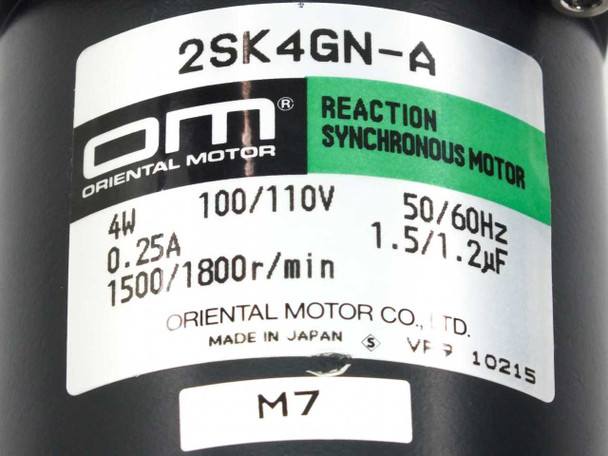

  • Oriental Motor 2SK4GN-A motor nameplate label showing model number, 4W, 100/110V, 50/60Hz, 0.25A, 1500/1800 RPM, and 1.5/1.2µF capacitor rating
  • Oriental Motor 2GN30K Gear Head label showing model number and Oriental Motor Co. Ltd. Made in Japan markings
  • Oriental Motor 2SK4GN-A Synchronous Motor with 2GN30K Gear Head — front face view showing output shaft and mounting bracket bolt pattern
  • Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head
  • Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head
  • Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head
  • Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head
  • Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head
  • Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head
  • Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head
  • Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head
$80.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Oriental Motor 2SK4GN-A Reaction Synchronous Motor 2GN30K Gear Head 4W 100V

This is a reaction synchronous motor paired with a 30:1 gear head, designed for low-speed applications requiring consistent torque. The combined unit includes mounting bracket and lead wire.

Specifications & What's Included

  • Power Rating: 4W at 100/110V AC
  • Frequency: 50/60Hz, Single Phase
  • Current: 0.25A
  • Motor Speed: 1500/1800 RPM
  • Gear Ratio: 30:1 (2GN30K head)
  • Capacitor: 1.5/1.2 µF
  • Includes: Motor, gear head, mounting bracket, lead wire
  • Country of Origin: Japan

Applications

Commonly used in timing mechanisms, small machinery, and control systems requiring synchronized low-speed rotation.

Condition: Used
This Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head has been visually inspected and shows normal wear consistent with prior use. The unit has not been powered up or bench-tested at our facility. Photos show the motor body, gear head, mounting bracket, and lead wire connector in generally clean condition. Please view our photo set and reach out with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Oriental Motor
Model:
2SK4GN-A
Secondary Model:
2GN30K
MPN:
2SK4GN-A
SKU:
47903
Condition:
Used – Inspected
Seller Notes:
Motor and gear head included as a combined unit with mounting bracket and lead wire.
Country of Manufacture:
Japan
Form Factor:
Inline Gear Motor
Motor Type:
Reaction Synchronous Motor
Power Rating:
4W
Voltage Rating:
100/110V AC
Current Rating:
0.25A
Frequency:
50/60Hz
Speed:
1500/1800 RPM
Capacitor:
1.5/1.2 µF
Gear Head Model:
2GN30K
Gear Ratio:
30:1
Phase:
Single Phase
Power Requirements:
100/110V AC, 50/60Hz, 0.25A
Condition Notes:
This Oriental Motor 2SK4GN-A Reaction Synchronous Motor with 2GN30K Gear Head has been visually inspected and shows normal wear consistent with prior use. The unit has not been powered up or bench-tested at our facility.
View AllClose
