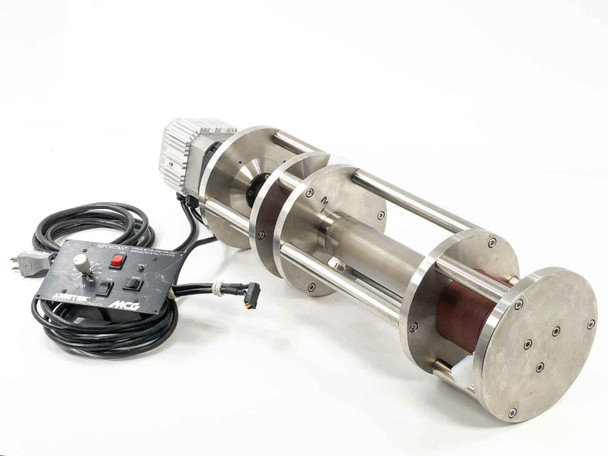

Ametek Pittman 3482-MAC5115 Brushless DC Motor 120V 3450 RPM w/ MCG Control Panel
The Ametek Pittman 3482-MAC5115 is a brushless DC electric motor from the MA34000 series, manufactured by Ametek Technical & Industrial Products under their Pittman motor line. This unit is integrated with a dual-port stainless steel liquid screw pump and an Ametek MCG variable-speed control panel, forming a complete motor-driven pump assembly. Brushless DC motors in this class use electronic commutation rather than mechanical brushes, offering precise speed control with longer service life compared to brushed designs. The included MCG control panel provides variable RPM selection and motor direction control (CW/CCW) from a standalone panel.
Specifications & What's Included

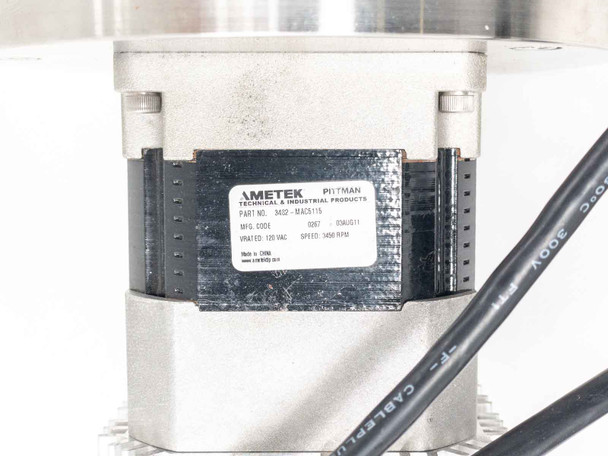

- Part Number: 3482-MAC5115
- Series: MA34000
- Motor Type: Brushless DC (BLDC), Pittman by Ametek
- Voltage Rating: 120V AC
- Speed: 3450 RPM
- Power Rating: 1/3 HP
- Phase: Single Phase
- Housing: Stainless steel, reinforced construction
- Overall Dimensions: 6.5" x 6.5" x 28.5"
- Pump Type: Dual-port liquid screw pump with hose inlet and outlet fittings
- Pump Body: Clear acrylic mid-section with stainless steel flanged ends
- Includes: MCG / Ametek 48181 control panel with RPM dial (340–3450 RPM range), CW/CCW direction switch, Run/Stop rocker, Fault indicator, and Reset button

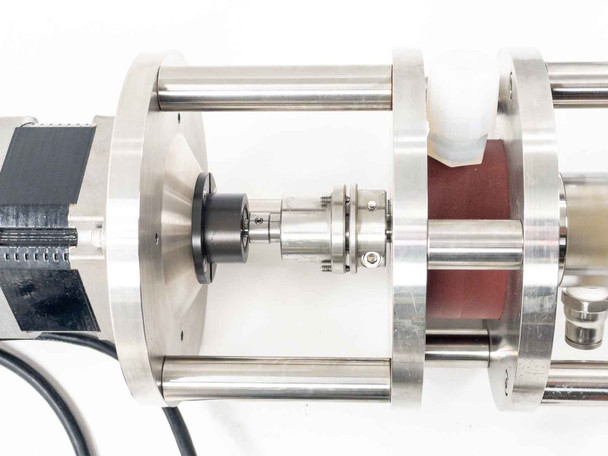

- Includes: Motor-to-pump drive shaft coupling and multi-pin motor connector cable
- Includes: Standard AC power cord
Applications
The Ametek Pittman MA34000 series brushless DC motor with integrated screw pump is used in industrial and laboratory fluid-handling applications requiring precise, variable-speed liquid transfer. Screw pump configurations of this type are commonly found in semiconductor process equipment, chemical dispensing systems, laboratory fluid delivery, and industrial automation lines where smooth, low-pulsation fluid flow is needed. The brushless motor design provides electronically controlled RPM and direction reversal, making this assembly suited to applications where flow rate must be adjustable or where reversal is required for purging or backflushing. The MCG control panel allows standalone operation without a separate drive controller.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.
Ametek Pittman 3482-MAC5115 Brushless DC Motor 120V 3450 RPM with MCG variable-speed control panel and stainless steel screw pump assembly. Unit powers on and has been tested at our facility. The stainless steel housing and flanged pump body show light surface wear consistent with prior use. The MCG control panel is intact with all switches, RPM dial, and controls present and functional. The clear acrylic pump section and internal rotor are intact. Includes the MCG variable-speed control panel with RPM selection, CW/CCW direction control, and Run/Stop/Fault/Reset controls, plus dual-port stainless steel screw pump assembly.
Warranty Information
Additional Information
Brand: |
Ametek Pittman |
Model: |
3482-MAC5115 |
MPN: |
3482-MAC5115 |
Secondary Model: |
MA34000 Series |
Type: |
Brushless DC Electric Motor with Control Panel |
SKU: |
53117 |
Voltage Rating: |
120V AC |
Speed (RPM): |
3450 RPM |
Power Rating: |
1/3 HP |
Phase: |
Single Phase |
Motor Type: |
Brushless DC (BLDC) |
Control Panel Model: |
MCG / Ametek 48181 |
Control Features: |
Variable RPM, CW/CCW Direction Control, Run/Stop, Fault/Reset |
Housing Material: |
Stainless Steel |
Pump Type: |
Dual Port Liquid Screw Pump |
Overall Dimensions: |
6.5" x 6.5" x 28.5" |
Includes: |
MCG Control Panel, Stainless Steel Screw Pump Assembly, Power Cable |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Powers On, Not Fully Tested, Sold As-Is |
Seller Notes: |
Includes MCG variable-speed control panel and dual-port stainless steel screw pump assembly. |
Condition Notes: |
Ametek Pittman 3482-MAC5115 Brushless DC Motor 120V 3450 RPM. Powers on, tested. MCG control panel and stainless steel pump included. Light cosmetic wear. All controls intact. |
