Marathon Electric

Marathon Electric BLACK MAX FVM 56H17T5301BP Inverter Duty Motor 1/2HP 230/460V

(No reviews yet) Write a Review
SKU:
51720
MPN:
56H17T5301BP
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
40.00 LBS
Shipping:
Calculated at Checkout
  • Marathon Electric BLACK MAX FVM 56H17T5301BP inverter duty motor – front drive end showing multi-groove pulley and WARNING label
  • Marathon Electric BLACK MAX FVM 56H17T5301BP motor – side/rear view showing nameplate label and BLACK MAX junction box
  • Marathon Electric BLACK MAX motor – close-up of drive end face plate and multi-groove poly-V belt pulley
  • Marathon Electric BLACK MAX motor – caliper measurement of drive end coupling or keyway slot showing approximately 0.5 inch dimension
  • Marathon Electric BLACK MAX Inverter-Duty Motor nameplate label close-up on junction box cover
  • Marathon Electric BLACK MAX FVM 56H17T5301BP full specification nameplate – showing model, frame 56C, 230/460V, 1735 RPM, 1/2HP, 3-phase ratings
$200.00
Was: $400.00
Current Stock: 1

Sold Out

Description

Marathon Electric BLACK MAX FVM 56H17T5301BP Inverter Duty Motor 1/2HP 230/460V 56C

Three-phase AC induction motor rated 1/2 HP designed for variable frequency drive (VFD) operation. This inverter-duty motor is built to handle the electrical demands of VFD systems in industrial and telecom equipment.

Specifications & What's Included

  • Model: FVM 56H17T5301BP (BLACK MAX line)
  • Power: 1/2 HP (0.37 kW), 3-phase, 60 Hz
  • Voltage: 230/460V dual-voltage rated
  • Speed: 1735 RPM full load; 5400 RPM maximum
  • Frame: 56C; Enclosure: TENV (IP 43)
  • Insulation Class F; Service Factor 1.0; Continuous duty
  • Includes multi-groove pulley on drive end
  • UL and CE certified; IEC 34-1/34-5 compliant

Applications

Inverter-duty motors are used in industrial automation, HVAC systems, pump drives, and telecom equipment where variable speed operation is required. This motor type handles the harmonic stresses from VFD output, making it suitable for conveyor systems, compressors, and motor-driven machinery in manufacturing and commercial settings.

Condition: Used
This Marathon Electric BLACK MAX FVM 56H17T5301BP inverter-duty motor has been inspected and is in good used condition. The motor body, junction box, and nameplate are all intact and legible. The drive end shows a multi-groove poly-V pulley attached, visible in the photos. There is typical light surface wear consistent with prior industrial use; no cracks, broken fins, or major damage are observed. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Marathon Electric
Model:
FVM 56H17T5301BP
MPN:
FVM 56H17T5301BP
Secondary Model:
Y534
Type:
3-Phase Inverter Duty AC Induction Motor
SKU:
51720
Product Line:
BLACK MAX
Horsepower:
1/2 HP (0.37 kW)
Voltage:
230/460V
Phase:
Three Phase
Frequency:
60 Hz
Full Load RPM:
1735 RPM
Max Safe RPM:
5400 RPM
Full Load Amps:
1.6A (230V) / 0.8A (460V)
No Load Amps:
0.52A
Poles:
4
Frame:
56C
Enclosure:
TENV (Totally Enclosed Non-Ventilated)
Insulation Class:
F
Design:
B
Service Factor:
1.0
Duty:
Continuous
Temperature Sensors:
TSTATS (Thermostats)
Max Ambient Temp:
40°C
Ohms/Phase:
22.3 / 17.0
Code:
L
Enclosure Rating:
IP 43
Standards:
IEC34-1, IEC34-5, UL Listed, CE
Cat No:
Y534
Catalog Reference:
A-91070A
Condition:
Used – Inspected
Seller Notes:
Motor only; includes multi-groove pulley/sheave on drive end as shown in photos.
Country/Region of Manufacture:
United States
Compatible With:
VFD / Variable Frequency Drive systems; 56C frame mounts
Condition Notes:
This Marathon Electric BLACK MAX FVM 56H17T5301BP inverter-duty motor has been inspected and is in good used condition. Light surface wear consistent with prior use. Drive-end pulley attached. Please contact us with any questions.
View AllClose

Related Products

Related Products

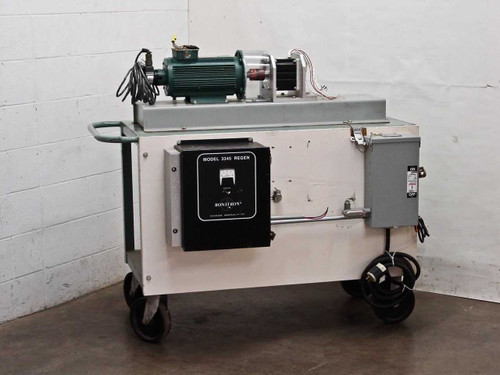

Reliance Electric P18A6103R-XZ Duty Master AC Motor Torque Tester Cart – full front view showing Bonitron 3345 Regen panel and Murray enclosed switch on cart with casters Reliance Electric Duty Master Motor Torque Tester Cart – right side and rear view showing AC motor, torque coupling assembly, and lower shelf of steel cart
