Marathon Electric

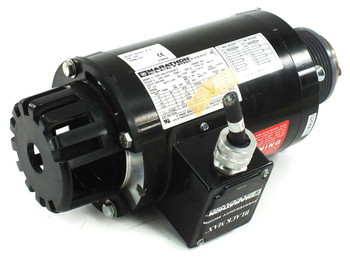

Marathon Electric BLACK MAX FVM 56H17T5301BP Inverter Duty Motor 1/2HP 230/460V

Marathon Electric

SKU:

51720

Availability:

Usually ships within 1-2 business days.

Weight:

40.00 LBS

Brand:

Marathon Electric

Model:

FVM 56H17T5301BP

MPN:

FVM 56H17T5301BP

Secondary Model:

Y534

Type:

3-Phase Inverter Duty AC Induction Motor

SKU:

51720

Product Line:

BLACK MAX

Horsepower:

1/2 HP (0.37 kW)

Voltage:

230/460V

Phase:

Three Phase

Frequency:

60 Hz

Full Load RPM:

1735 RPM

Max Safe RPM:

5400 RPM

Full Load Amps:

1.6A (230V) / 0.8A (460V)

No Load Amps:

0.52A

Poles:

4

Frame:

56C

Enclosure:

TENV (Totally Enclosed Non-Ventilated)

Insulation Class:

F

Design:

B

Service Factor:

1.0

Duty:

Continuous

Temperature Sensors:

TSTATS (Thermostats)

Max Ambient Temp:

40°C

Ohms/Phase:

22.3 / 17.0

Code:

L

Enclosure Rating:

IP 43

Standards:

IEC34-1, IEC34-5, UL Listed, CE

Cat No:

Y534

Catalog Reference:

A-91070A

Condition:

Used – Inspected

Seller Notes:

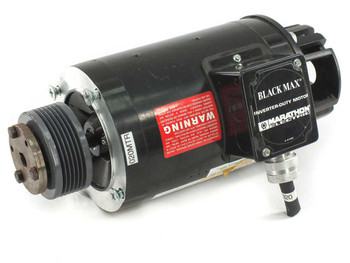

Motor only; includes multi-groove pulley/sheave on drive end as shown in photos.

Country/Region of Manufacture:

United States

Compatible With:

VFD / Variable Frequency Drive systems; 56C frame mounts

Condition Notes:

This Marathon Electric BLACK MAX FVM 56H17T5301BP inverter-duty motor has been inspected and is in good used condition. Light surface wear consistent with prior use. Drive-end pulley attached. Please contact us with any questions.
