Tung Lee

Tung Lee M315-402 Stepless Variable Speed Motor 15W 220V w/ Vexta ASM46AK

(No reviews yet) Write a Review
SKU:
49411
MPN:
M315-402
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
11.00 LBS
Shipping:
Calculated at Checkout

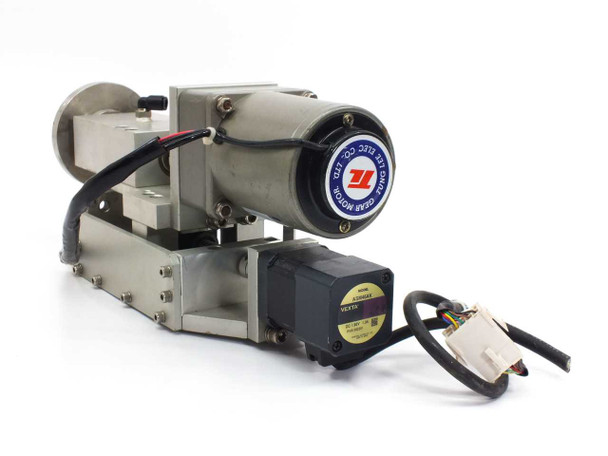

  • Tung Lee M315-402 variable speed gear motor assembly with Vexta ASM46AK — left side view showing motor body, gear head, and linear slide stage
  • Tung Lee M315-402 gear motor assembly — right side view showing output shaft disc, linear rail, and motor cable connector
  • Vexta ASM46AK motor label closeup — DC 1.95V, 1.3A, Oriental Motor Co. Ltd., Made in Japan

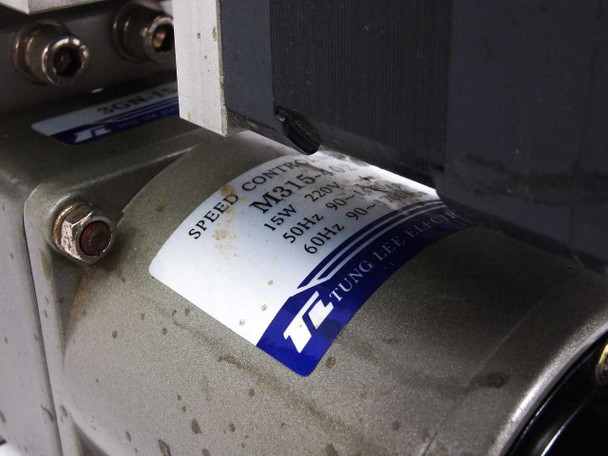

  • Tung Lee Electrical M315-402 speed control motor label — 15W, 220V, 50Hz 90-1400 RPM, 60Hz, single phase
  • Tung Lee M315-402 gear motor assembly — opposite side view showing vacuum flange port, linear stage, and Vexta ASM46AK motor

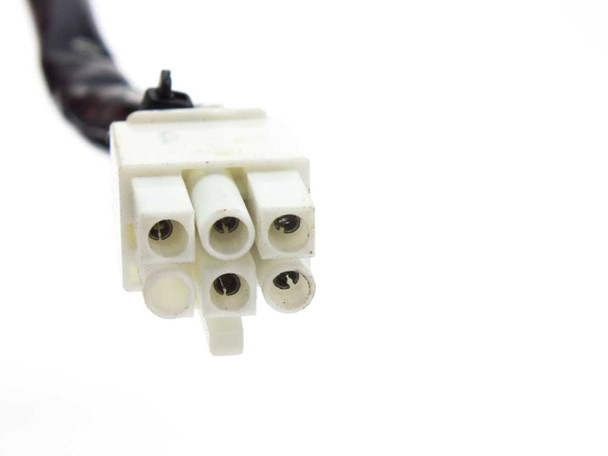

  • 6-pin Molex-style connector on motor cable — closeup showing white housing and pin sockets
$200.00
Was: $550.00
Current Stock: 2

Sold Out

Description

Tung Lee M315-402 Stepless Variable Speed Motor 15W 220V w/ Vexta ASM46AK

Single-phase AC gear motor assembly with integrated 1:15 reducer and Vexta stepper motor. Provides variable speed control from 90–1400 RPM (50Hz) or 90–1700 RPM (60Hz).

Specifications & What's Included

  • Power: 15W at 220V AC, 50/60 Hz
  • Motor: Vexta ASM46AK DC stepper (Oriental Motor Co., Ltd.)
  • Gear head: 3GN-15 with 1:15 ratio
  • Speed range: 90–1400 RPM (50Hz); 90–1700 RPM (60Hz)
  • Capacitor: 1 µF
  • 6-pin connector attached
  • Made in Japan

Applications

Used in industrial automation, conveyor systems, and telecom equipment requiring controlled rotational speed. Stepless variable speed motors are common in packaging machinery, material handling, and laboratory instrumentation where precise speed adjustment is necessary without discrete step changes.

Condition: Used
This Tung Lee M315-402 stepless variable speed gear motor assembly with Vexta ASM46AK has been inspected and is in good condition. The unit shows normal wear consistent with previous industrial use — light surface scuffing on the aluminum body and mounting plate is visible in the photos. The Vexta ASM46AK motor label is intact and legible. The 6-pin connector and motor cable appear complete and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Tung Lee Electrical
Model:
M315-402
MPN:
M315-402
Secondary Model:
ASM46AK
Type:
Stepless Variable Speed AC Gear Motor Assembly
SKU:
49411
Condition:
Used – Inspected
Seller Notes:
Includes Vexta ASM46AK DC motor and 1:15 gear head reducer (3GN-15); 6-pin connector attached
Country/Region of Manufacture:
Japan
Voltage Rating:
220V AC
Power Rating:
15W
Phase:
Single Phase
Frequency:
50/60 Hz
Speed Range (50Hz):
90 - 1400 RPM
Speed Range (60Hz):
90 - 1700 RPM
Capacitor:
1 uF
Gear Ratio:
1:15
Gear Head Model:
3GN-15
Motor Manufacturer:
Oriental Motor Co., Ltd. (VEXTA)
Motor Model:
ASM46AK
Motor Voltage:
DC 1.95V
Motor Current:
1.3A
Form Factor:
Integrated Gear Motor Assembly with Linear Stage
Condition Notes:
Tung Lee M315-402 variable speed gear motor with Vexta ASM46AK. Inspected and in good used condition. Shows normal surface wear on aluminum body. Cable and 6-pin connector intact. Please contact us with any questions.
