Tung Lee 4RK25GN-C Reversible Motor 220V 25W 1250RPM w/ 1U-211-008-P160 Index Drive
This is a Tung Lee Electrical 4RK25GN-C AC reversible motor paired with a 1U-211-008-P160 rotary indexing drive, sold as a complete mounted assembly on an aluminum base plate. The motor is a single-phase AC induction reversible type rated at 220V, 25W, designed for bidirectional operation and commonly used in automated positioning, assembly, and light industrial machinery. The gearhead, model 4GN-18, is an inline gear reducer mounted directly to the motor, and together they drive the indexing unit's rotary output shaft. Lead wires with spade connectors exit the motor for easy hookup.
Specifications & What's Included
- Motor Model: Tung Lee 4RK25GN-C

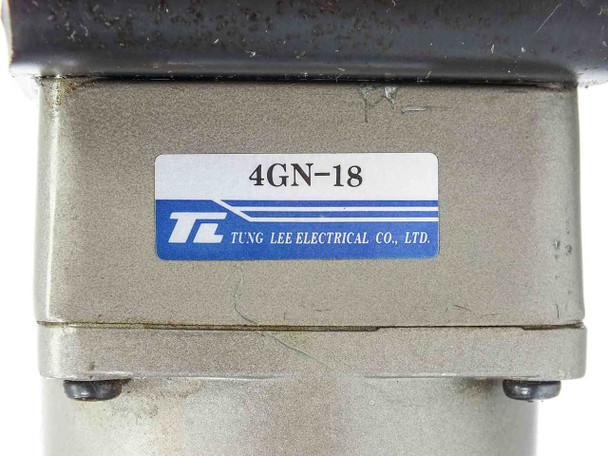

- Gearhead Model: 4GN-18 (Tung Lee Electrical)
- Indexing Drive Model: 1U-211-008-P160
- Voltage: 220V AC
- Power: 25W
- Current: 0.5A
- Capacitor: 2 µF
- Frequency: 50/60 Hz
- Output Speed: 1250 RPM (50Hz) / 1550 RPM (60Hz)
- Motor Type: Single-phase AC reversible induction motor
- Output Shaft: Vertical cylindrical shaft rising from indexing drive bearing housing
- Mounting: Aluminum base plate with four standoff pillars and rubber feet
- Lead Wires: Black-jacketed wiring harness with red female spade connectors
- Includes: Motor, gearhead, indexing drive, base plate, and lead wire assembly
Applications
AC reversible motors of this type are widely used in light industrial automation — including indexing tables, rotary positioners, conveyor drives, and precision assembly machinery — where bidirectional control and compact form factor are needed. The 4RK series from Tung Lee Electrical is a standard induction motor platform common in Asian-manufactured automation equipment and OEM machinery from the 1980s through 2000s, and compatible gearheads like the 4GN series allow gear ratio selection for torque/speed matching to the application. The integral indexing drive converts the motor's continuous rotation into precise, repeatable rotary step movements, making this assembly well suited for pick-and-place, dial-table, and cam-driven mechanisms in manufacturing and assembly lines. This type of equipment continues to be used in legacy and custom machinery where direct replacement or retrofit is required.

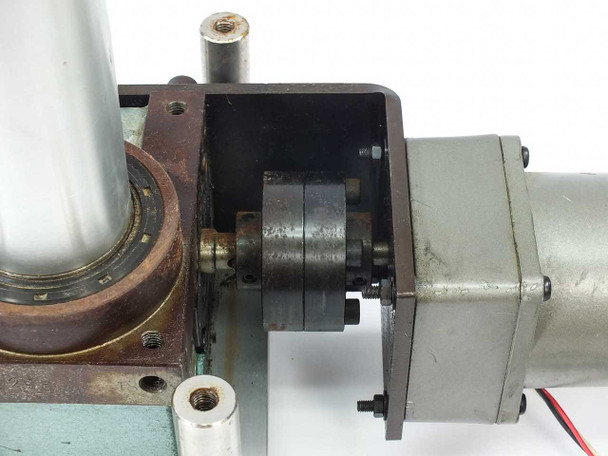

This Tung Lee 4RK25GN-C Reversible Motor and 1U-211-008-P160 Indexing Drive assembly has been inspected and is in good used condition. The motor nameplate is clean and fully legible. The indexing drive body and base plate show surface oxidation and age-related wear consistent with prior industrial use, including some rust spotting on the drive housing and minor scuffing on the aluminum base. The gearhead cover was removed for inspection — internal gears are visible and intact in the photos. Lead wires are present with spade connectors attached. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Tung Lee Electrical Co., Ltd. |
Model: |
4RK25GN-C |
MPN: |
4RK25GN-C |
Secondary Model: |
1U-211-008-P160 |
Gearhead Model: |
4GN-18 |
Type: |
AC Reversible Motor with Indexing Drive |
SKU: |
49422 |
Voltage Rating: |
220V AC |
Power Rating: |
25W |
Current Rating: |
0.5A |
Frequency: |
50/60 Hz |
Speed (RPM): |
1250 RPM (50Hz) / 1550 RPM (60Hz) |
Capacitor: |
2 uF |
Phase: |
Single Phase |
Motor Type: |
Reversible AC Induction Motor |
Indexing Drive Model: |
1U-211-008-P160 |
Seller Notes: |
Includes motor, gearhead (4GN-18), indexing drive (1U-211-008-P160), base plate, and lead wires |
Country/Region of Manufacture: |
Taiwan |
Condition: |
Used – Inspected and in Good Condition |
Form Factor: |
Base-Mounted Assembly |
Condition Notes: |
Tung Lee 4RK25GN-C Reversible Motor w/ 1U-211-008-P160 Indexing Drive. Inspected, good used condition. Drive housing shows surface rust and age wear; motor nameplate clean. Lead wires with spade connectors included. |
