Tung Lee Electrical 4RK25GN-C Reversible Motor BD-2AA-002-P01-0 4.5D Index Drive

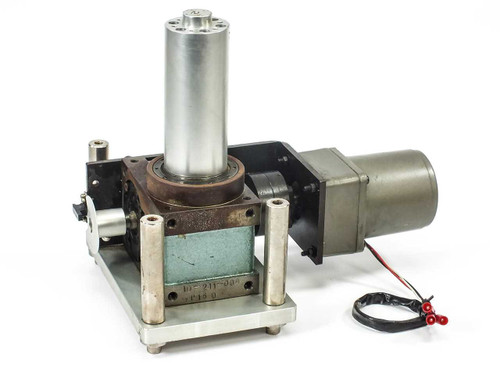

This is a Tung Lee Electrical 4RK25GN-C 2-phase reversible AC induction motor assembled with a BD-2AA-002-P01-0 4.5D cam-type indexing drive. The motor provides bidirectional rotation at 1250 or 1550 RPM depending on line frequency, driving the indexing unit which converts continuous rotary input into precise, intermittent indexed output motion. The unit is offered as a complete, integrated motor-and-indexer assembly with wiring harness attached.
Specifications & What's Included
- Motor Model: Tung Lee Electrical 4RK25GN-C
- Indexing Drive Model: BD-2AA-002-P01-0
- Drive Type: 4.5D cam indexing drive
- Motor Type: 2-phase reversible AC induction motor
- Power Rating: 25 Watts
- Voltage: 220V AC
- Current: 0.5A
- Capacitor: 2uF
- Frequency: 50/60 Hz
- Speed: 1250 RPM (60Hz) / 1550 RPM (50Hz)
- Motor Shaft Diameter: 10mm
- Gearbox/Output Shaft Diameter: 14mm

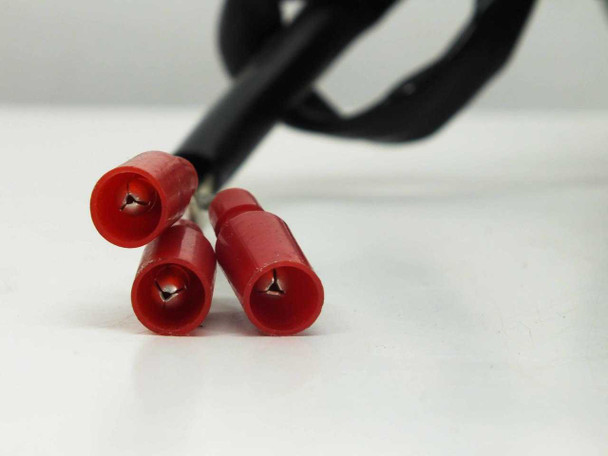

- Output Connector: 3-pin red bullet connectors on wiring harness
- Indexer face features multi-hole bolt pattern output flange and output dial plate
- 4.5D designation cast into indexer housing (visible on unit)
- Country of Manufacture: Taiwan
Applications
Cam-type indexing drives like the BD-2AA-002-P01-0 are used in automated assembly, packaging, and manufacturing machinery where a rotating input must be converted into precise, repeatable stepped output motion — for example, advancing a turntable, dial plate, or fixture through a fixed number of equally spaced positions per revolution. The reversible AC motor allows the direction of rotation to be changed by switching the capacitor wiring, which is useful in applications requiring bidirectional or reversing operation. These motor-indexer assemblies are common in pick-and-place machines, rotary transfer systems, bottle filling and capping lines, and general factory automation equipment. The 4.5D designation refers to the indexer's dwell-to-motion ratio and number of stops per cycle, which determines how many index positions the output shaft advances per revolution of the input. Tung Lee Electrical is a Taiwanese manufacturer of fractional-horsepower AC motors widely used in industrial automation throughout Asia and internationally.
This Tung Lee Electrical 4RK25GN-C reversible motor with BD-2AA-002-P01-0 4.5D indexing drive has been inspected and appears to be in good used condition. The motor body and indexer housing show normal surface wear consistent with prior industrial use, including some discoloration and light oxidation on the cast iron indexer body. The motor label is clean and fully legible. The wiring harness and red bullet connectors are intact and show no visible damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Tung Lee Electrical |
Model: |
4RK25GN-C |
Secondary Model: |
BD-2AA-002-P01-0 |
MPN: |
4RK25GN-C |
SKU: |
47532 |
Type: |
Reversible Motor with Indexing Drive |
Condition: |
Used – Inspected and Pulled from Working Environment |
Voltage Rating: |
220V AC |
Power Rating: |
25 Watts |
Phase: |
2-Phase |
Frequency: |
50/60 Hz |
Current Rating: |
0.5A |
Capacitor: |
2uF |
Speed (RPM): |
1250 / 1550 RPM |
Motor Shaft Diameter: |
10mm |
Gearbox Shaft Diameter: |
14mm |
Indexing Drive Model: |
BD-2AA-002-P01-0 4.5D |
Drive Type: |
4.5D Cam Indexing Drive |
Motor Type: |
Reversible AC Induction Motor |
Output Connector: |
3-pin bullet connector (red) |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Motor and indexing drive assembly sold as a complete unit with attached wiring harness. |
Condition Notes: |
Tung Lee 4RK25GN-C reversible motor with BD-2AA-002-P01-0 4.5D indexing drive. Inspected, good used condition. Normal surface wear and light oxidation on indexer housing. Wiring harness and connectors intact. |
