Description
Tung Lee Electrical 4RK25GN-C Reversible Motor CD-6AS-004-P11A Indexing Drive 220V 25W

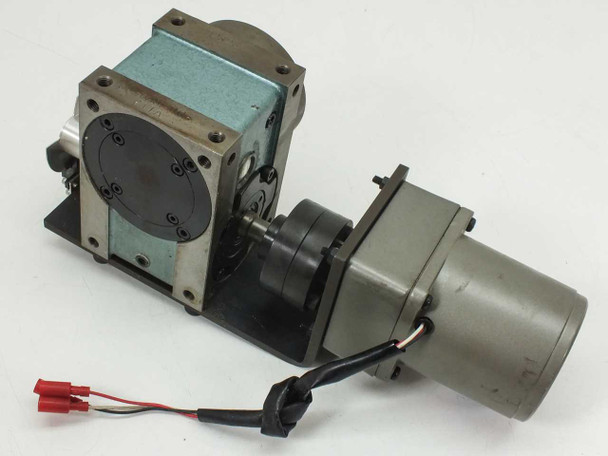

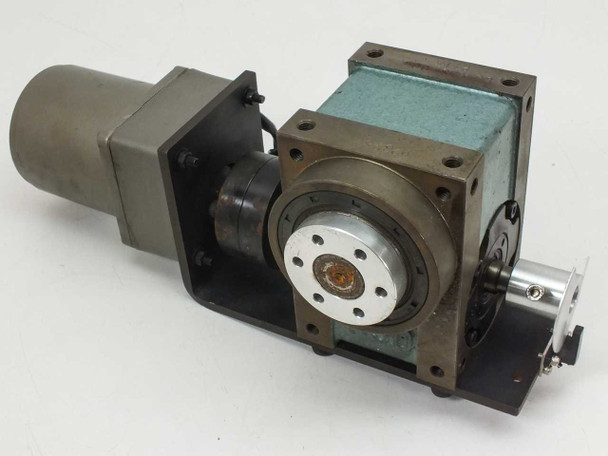

This is a Tung Lee Electrical 4RK25GN-C single-phase reversible AC induction motor directly coupled to a CD-6AS-004-P11A indexing drive gearbox. The motor is rated at 25W and runs on 220V AC at 50/60Hz, making it suitable for use in a wide range of precision motion and automation applications. The assembly provides both a 10mm motor shaft and a 14mm output drive shaft via the indexing gearbox, allowing flexible coupling to downstream mechanical components.
Specifications & What's Included
- Motor Model: Tung Lee Electrical 4RK25GN-C Reversible Motor
- Gearbox / Drive Model: CD-6AS-004-P11A Indexing Drive
- Voltage: 220V AC
- Power: 25W
- Current: 0.5A
- Capacitor: 2uF
- Frequency: 50/60Hz
- Speed: 1250 RPM (60Hz) / 1550 RPM (50Hz)
- Motor direction: Reversible (CW/CCW)
- Motor shaft diameter: 10mm

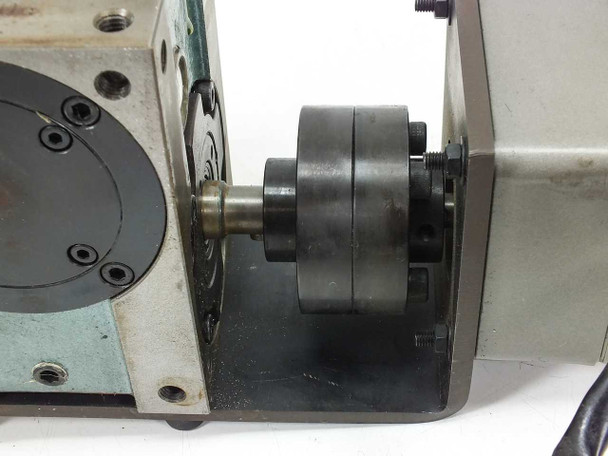

- Drive output shaft diameter: 14mm
- Phase: Single phase
- Lead wires: Three-conductor with red female bullet connectors
- Includes: Motor + indexing drive gearbox assembly as shown
Applications
Small single-phase reversible AC induction motors of this type — paired with indexing drive gearboxes — are widely used in precision automation, industrial machinery, and manufacturing equipment where controlled, repeatable rotary motion is needed. The reversible motor allows bidirectional operation under electronic control, while the indexing drive converts continuous rotation into precise, intermittent indexed steps. Assemblies like this are commonly found in disc and media handling equipment (such as CD/DVD production lines), labeling and packaging machinery, conveyor indexing systems, and laboratory automation setups. Tung Lee Electrical is a Taiwan-based manufacturer of small AC induction and reversible motors used throughout Asian-manufactured industrial and automation equipment. The 220V rating and 50/60Hz dual-frequency compatibility make this assembly suitable for use in both North American and international electrical environments with the appropriate supply voltage.
This Tung Lee Electrical 4RK25GN-C Reversible Motor with CD-6AS-004-P11A Indexing Drive has been inspected and appears to be in good used condition. The motor body and gearbox housing show minor surface wear and light scuffing consistent with prior use. The output flanges and shaft surfaces appear intact and undamaged. The lead wires and red bullet connectors are present and in good shape. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Tung Lee Electrical |
Model: |
4RK25GN-C |
MPN: |
4RK25GN-C |
Secondary Model: |
CD-6AS-004-P11A |
SKU: |
47530 |
Type: |
Reversible AC Motor with Indexing Drive Gearbox |
Voltage Rating: |
220V AC |
Power Rating: |
25W |
Current Rating: |
0.5A |
Frequency: |
50/60Hz |
Speed (RPM): |
1250 / 1550 RPM |
Capacitor: |
2uF |
Motor Shaft Diameter: |
10mm |
Drive Shaft Diameter: |
14mm |
Phase: |
Single Phase |
Motor Direction: |
Reversible |
Condition: |
Used – Inspected |
Seller Notes: |
Includes motor with attached indexing drive gearbox and lead wires with connectors |
Country/Region of Manufacture: |
Taiwan |
Condition Notes: |
Tung Lee Electrical 4RK25GN-C reversible motor with CD-6AS-004-P11A indexing drive. Inspected and in good used condition. Minor surface wear consistent with prior use. Lead wires and connectors present. |
