Description
Japan Servo UIH8S25 25W Induction Motor 110/115VAC 80mm 1250/1550 RPM w/ Cap
Single-phase AC induction motor with integral run capacitor and metal mounting base plate. Designed for low-power applications requiring continuous rotation at fixed speeds.
Specifications & What's Included
- Model: UIH8S25; Power: 25W (24W nominal)
- Voltage: 100/110–115VAC, 50/60Hz; Current: 0.6A
- Speed: 1250 RPM (50Hz) / 1550 RPM (60Hz)
- Frame: 80mm × 80mm; Single-phase design

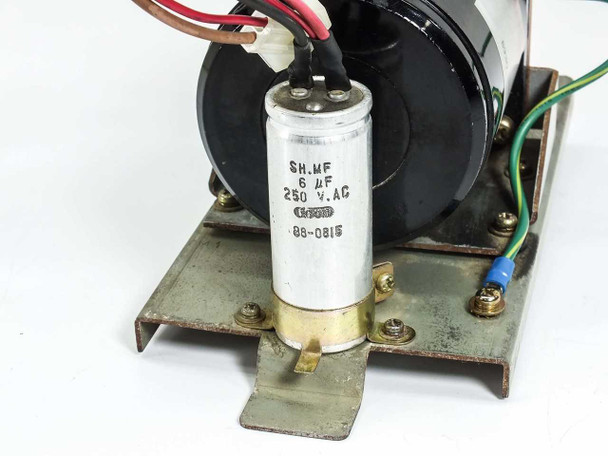

- Run capacitor: 6 µF (100V config) or 4 µF (110V config), 250VAC, SH.MF brand
- Mounting: Metal base plate with pneumatic push-fit ports on gearhead face

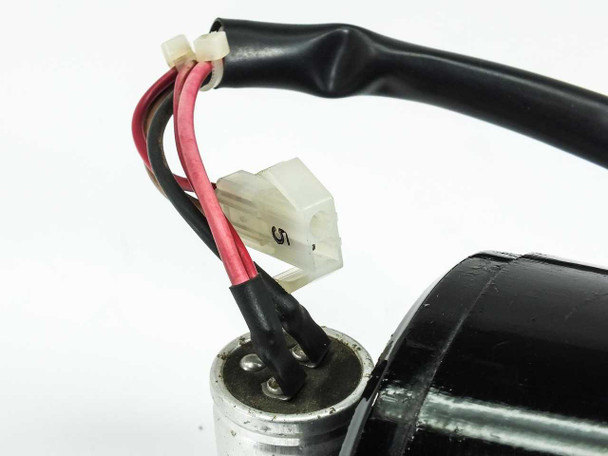

- Lead configuration: Pigtail with 2-pin connector

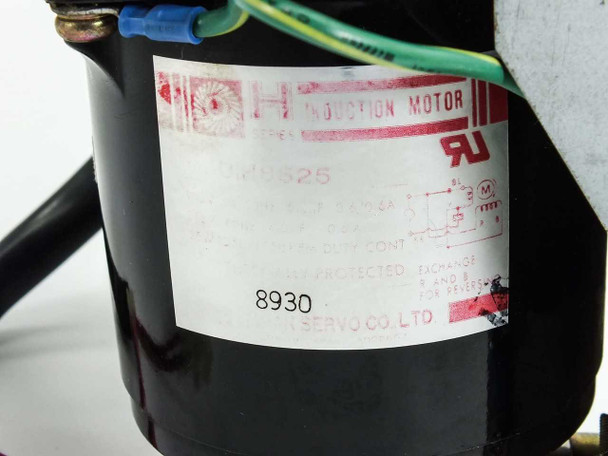

- Manufactured: Japan Servo Co., date code 8930
Applications
Single-phase induction motors of this class are used in telecom equipment, industrial control systems, and auxiliary machinery requiring low-speed torque delivery. Historically common in Japanese industrial and telecommunications infrastructure from the 1980s–1990s. The gearhead output with pneumatic ports indicates use in valve actuation, pump drives, or positioning mechanisms.
Condition: Used

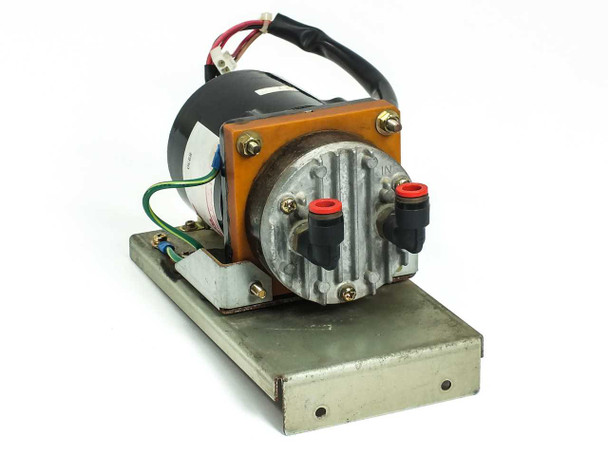

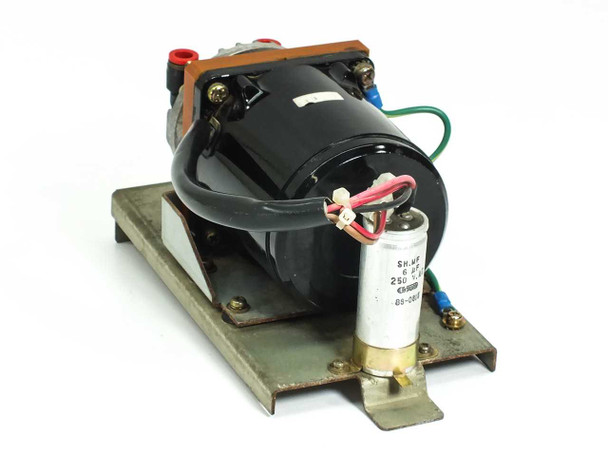

This Japan Servo UIH8S25 25W AC induction motor has been inspected and appears to be in good used condition. The motor body and gearhead show normal wear consistent with prior use. The orange bracket and aluminum gearhead face show some surface grime and light scuffing, and the metal base plate shows minor scratches and oxidation typical of a previously installed unit. The run capacitor (6uF, 250VAC) and its bracket are intact and securely mounted. The pigtail leads and 2-pin connector are in good condition with no visible damage to the wiring. Two red pneumatic push-fit ports on the gearhead face are present and intact. Please view our photo set and contact us if you have any questions.
This Japan Servo UIH8S25 25W AC induction motor has been inspected and appears to be in good used condition. The motor body and gearhead show normal wear consistent with prior use. The orange bracket and aluminum gearhead face show some surface grime and light scuffing, and the metal base plate shows minor scratches and oxidation typical of a previously installed unit. The run capacitor (6uF, 250VAC) and its bracket are intact and securely mounted. The pigtail leads and 2-pin connector are in good condition with no visible damage to the wiring. Two red pneumatic push-fit ports on the gearhead face are present and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Japan Servo Co. |
Model: |
UIH8S25 |
MPN: |
UIH8S25 |
Type: |
Single-Phase AC Induction Motor |
SKU: |
48770 |
Power Rating: |
25W (24W nominal) |
Voltage Rating: |
100VAC (50/60Hz) or 110VAC (60Hz) |
Current Rating: |
0.6A / 0.6A (100V); 0.6A (110V) |
Frequency: |
50/60 Hz |
Speed (RPM): |
1250 / 1550 RPM |
Frame Size: |
80mm x 80mm |
Phase: |
Single Phase |
Run Capacitor: |
6 uF, 250VAC (100V config); 4 uF (110V config) |
Capacitor Brand: |
SH.MF (visible on capacitor label) |
Capacitor Voltage Rating: |
250V AC |
Date Code: |
8930 (visible on motor label — week/year 1989) |
Mounting: |
Metal base plate with pump/gearhead face mount |
Output Connector: |
Two pneumatic push-fit ports on gearhead face |
Lead Configuration: |
Pigtail leads with 2-pin connector |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes attached run capacitor and metal mounting base plate |
Country/Region of Manufacture: |
Japan |
Condition Notes: |
Japan Servo UIH8S25 25W AC induction motor in good used condition. Motor body, gearhead, capacitor, wiring, and base plate all intact with normal wear. Pulled from prior installation. Please contact us with any questions. |
