Japan Servo P330A-165 Induction Motor 100-240V 50/60Hz 12RPM Gear Motor TP

Japan Servo P330A-165 Induction Motor 100-240V 50/60Hz 12RPM Gear Motor TP

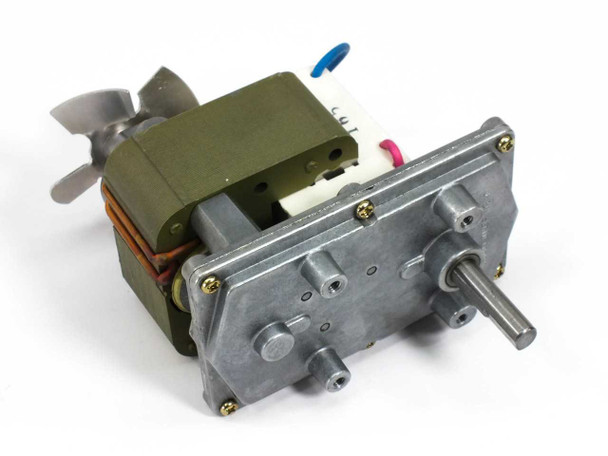

The Japan Servo P330A-165 is a single-phase AC induction gear motor of the Type T.P designation, manufactured by Japan Servo Co., Ltd. in Japan. It delivers a low-speed 12 RPM output through an integrated die-cast gearbox, accepts a wide input voltage range of 100–240V AC at 50 or 60 Hz, and includes a built-in axial cooling fan mounted directly on the motor stator.

Specifications & What's Included

• Manufacturer: Japan Servo Co., Ltd.

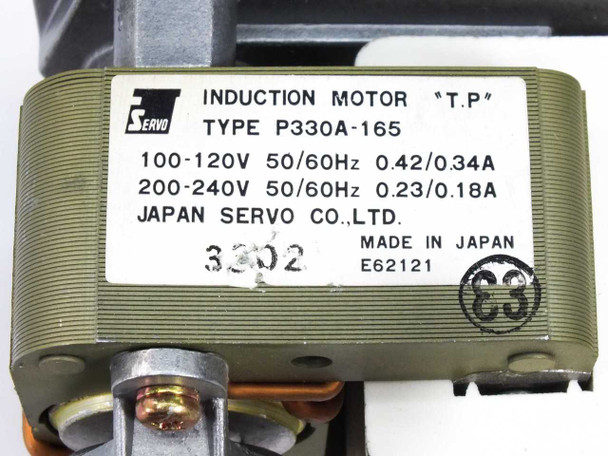

• Model / Type: P330A-165, Type T.P
• Motor type: Single-phase AC induction gear motor
• Input voltage: 100–120V AC or 200–240V AC (dual voltage)
• Frequency: 50 Hz or 60 Hz
• Current draw at 100–120V: 0.42A (50Hz) / 0.34A (60Hz)
• Current draw at 200–240V: 0.23A (50Hz) / 0.18A (60Hz)
• Output speed: 12 RPM

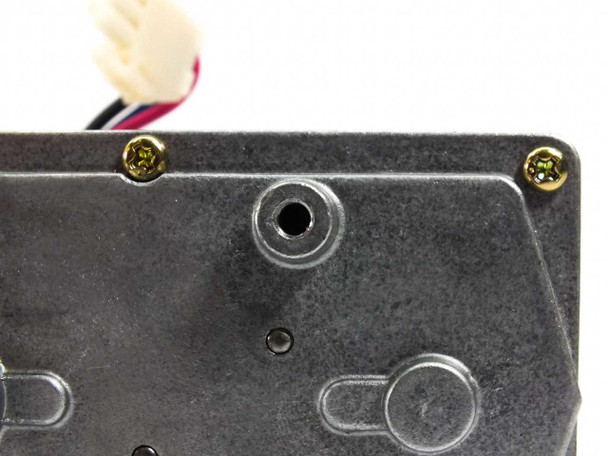

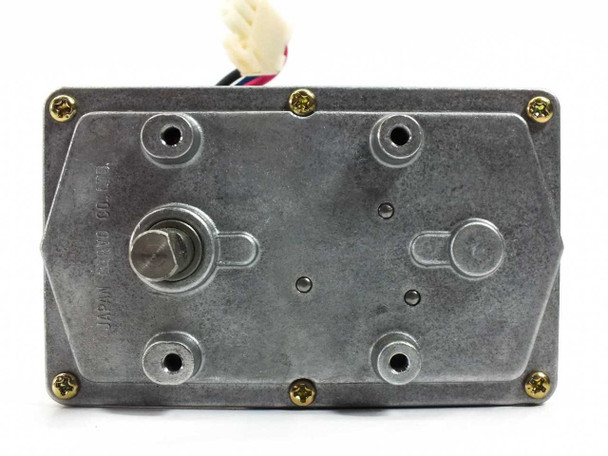

• Gearbox: Integral die-cast metal reduction gearbox with front output shaft

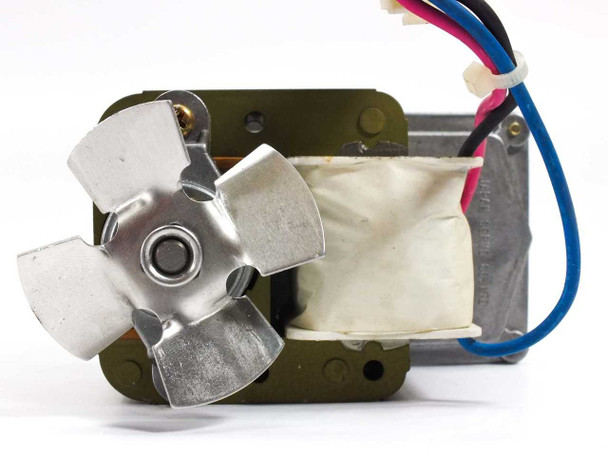

• Cooling: Integral four-blade aluminum axial fan
• Wire termination: 4-pin Molex-style connector with black, pink/red, and blue leads
• Construction: Laminated stator with copper windings; metal gearbox housing
• Country of manufacture: Japan
• Includes: Motor unit only

Applications

Low-RPM AC induction gear motors like the P330A-165 are used wherever a compact, self-contained drive unit with a slow, steady output shaft is needed. Typical applications include turntables, vending machines, timer mechanisms, small conveyor drives, display rotators, HVAC damper actuators, and general-purpose automation equipment that requires a reliable low-speed AC drive. The dual-voltage rating (100–120V and 200–240V) makes the motor suitable for use in equipment designed for both North American and international markets without rewiring. Japan Servo Co., Ltd. has long supplied precision small motors to industrial OEM and commercial appliance manufacturers throughout Japan and internationally, and the P330A series represents their standard fractional-horsepower induction gearmotor line used widely in OEM equipment assemblies.
