Description
Oriental Motor 5IK40GK-A2 Induction Motor 40W 100V 50/60Hz 1300/1550 RPM
Single-phase AC induction motor with integrated gearhead and sprocket/chain drive output. Rated 40W at 100V, 50/60Hz operation.
Specifications & What's Included
- Brand: Oriental Motor | Model: 5IK40GK-A2
- Power: 40W | Voltage: 100V AC | Current: 0.8A
- Speed: 1300 RPM (60Hz) / 1550 RPM (50Hz)
- Single phase, 10µF capacitor
- Gearhead with sprocket/chain drive output
- Multi-pin connector lead wiring harness included
- Manufactured in Japan
Applications
This motor type is used in light industrial machinery, conveyor systems, and automation equipment requiring low-speed, constant-torque operation. The gearhead design provides mechanical reduction and increased torque output. Oriental Motor geared motors are common in packaging machinery, small production lines, and telecom infrastructure equipment. Dual-frequency capability supports both 50Hz and 60Hz power systems.
Condition: Used

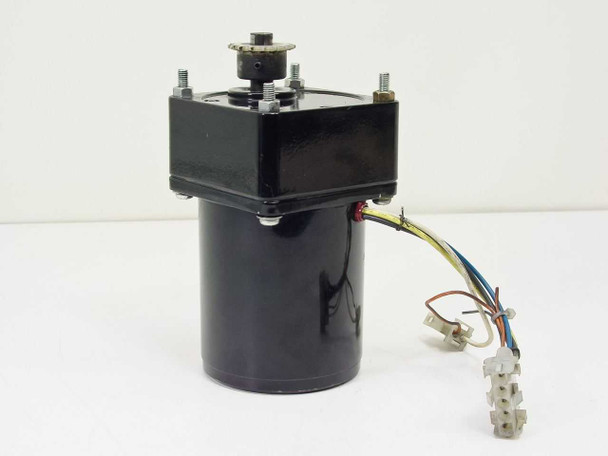

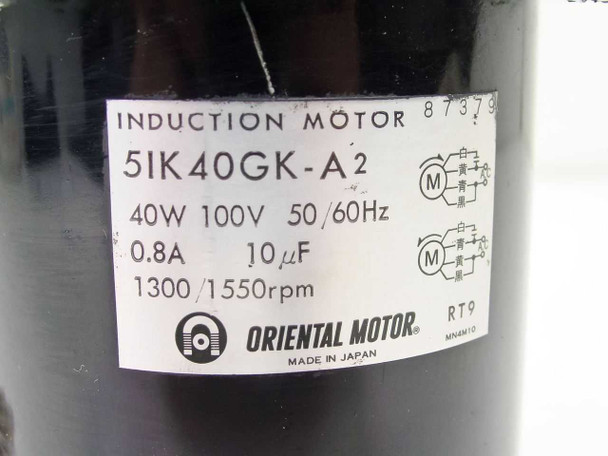

This Oriental Motor 5IK40GK-A2 induction motor with gearhead has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The motor body is clean with normal wear consistent with industrial service use. The rating label is intact and fully legible. The gearhead output sprocket is present and shows normal use wear. The multi-pin wiring harness and connector leads are attached and intact. Please view our photo set and contact us if you have any questions.
This Oriental Motor 5IK40GK-A2 induction motor with gearhead has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The motor body is clean with normal wear consistent with industrial service use. The rating label is intact and fully legible. The gearhead output sprocket is present and shows normal use wear. The multi-pin wiring harness and connector leads are attached and intact. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Oriental Motor |
Model: |
5IK40GK-A2 |
MPN: |
5IK40GK-A2 |
Type: |
AC Induction Motor with Gearhead |
SKU: |
41782 |
Power Rating: |
40W |
Voltage Rating: |
100V AC |
Current Rating: |
0.8A |
Frequency: |
50/60Hz |
Speed (RPM): |
1300 RPM (60Hz) / 1550 RPM (50Hz) |
Capacitor: |
10µF |
Phase: |
Single Phase |
Output Configuration: |
With Gearhead |
Drive Type: |
Sprocket / Chain Drive Output |
Country/Region of Manufacture: |
Japan |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes attached multi-pin connector lead wiring harness |
Condition Notes: |
Oriental Motor 5IK40GK-A2 induction motor with gearhead. Inspected, in good used condition. Pulled from a working environment where it was in active use. Wiring harness and connector intact. Normal wear. |
California Prop 65 Warning: |
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov |
