Oriental Motor 5IK40GK-A Induction Motor 100VAC 40W 0.8A 10uF 1300/1550 RPM
The Oriental Motor 5IK40GK-A is a single-phase AC induction motor rated at 40 watts and 100VAC. It runs at 1300 RPM on a 50Hz supply and 1550 RPM on 60Hz, and uses an external run capacitor (10 uF) for capacitor-run operation. The motor is built with a square face-mount flange and a geared output shaft, designed to couple directly to a compatible Oriental Motor gearhead in the 5IK series.
Specifications & What's Included

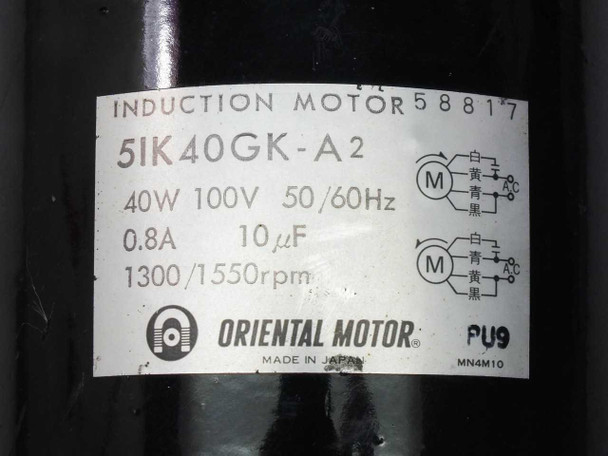

- Model: 5IK40GK-A (label reads 5IK40GK-A2)
- Type: Single-phase AC induction motor, capacitor-run
- Voltage: 100VAC
- Power: 40W
- Current: 0.8A
- Run Capacitor: 10 uF
- Speed: 1300 RPM at 50Hz / 1550 RPM at 60Hz
- Frequency: 50/60Hz
- Output: Geared shaft (gear teeth visible on output face)

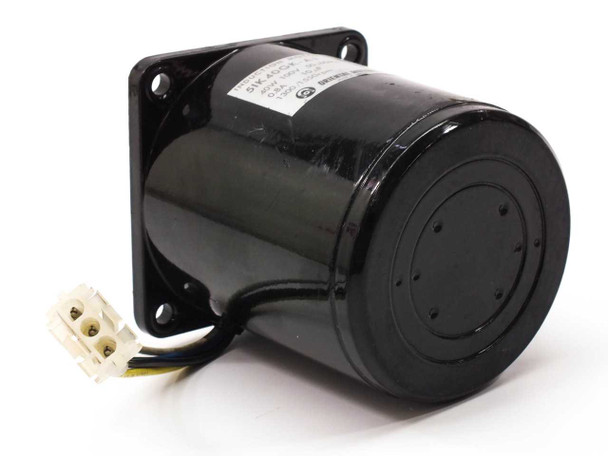

- Mounting: Square face-mount flange with 4 corner bolt holes
- Lead wire with 3-pin screw terminal connector (white, 3-position)
- Country of Manufacture: Japan
- Body Dimensions (approx.): 4.25 x 3.5 x 3.5 in
- Included: Motor with attached lead wire and connector — no gearhead included
Applications
The Oriental Motor 5IK series is a widely used line of compact AC induction motors designed for pairing with Oriental Motor gearheads to produce low-speed, constant-torque output for industrial automation and light machinery. These motors are a standard component in conveyor drives, packaging equipment, vending machines, medical devices, food processing equipment, and general factory automation where a compact, reliable gear motor is needed. The capacitor-run design provides smooth, quiet operation well suited to continuous-duty applications. The 5IK40GK-A is specifically sized for Oriental Motor's GK-series gearheads, making it a common replacement or spare motor for existing geared drive assemblies in manufacturing lines and OEM equipment throughout industry. Made in Japan, Oriental Motor AC induction motors of this type have long been used in precision equipment where consistent speed and compact form factor matter.
This Oriental Motor 5IK40GK-A induction motor has been inspected and is in good used condition. It was pulled from a working environment where it was previously in active use. The motor body and mounting flange show light surface wear consistent with normal service life. The output shaft and gear teeth appear intact with no visible damage. The 3-pin screw terminal connector and lead wire are present and in good shape. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Oriental Motor |
Model: |
5IK40GK-A |
MPN: |
5IK40GK-A2 |
SKU: |
48884 |
Type: |
AC Induction Motor |
Voltage Rating: |
100VAC |
Power Rating: |
40W |
Current Rating: |
0.8A |
Capacitance: |
10 uF |
Speed: |
1300 RPM (50Hz) / 1550 RPM (60Hz) |
Frequency: |
50/60Hz |
Phase: |
Single Phase |
Connector Type: |
3-pin screw terminal connector |
Country/Region of Manufacture: |
Japan |
Seller Notes: |
Motor only with attached lead wire and 3-pin connector. No gearhead included. |
Condition Notes: |
Oriental Motor 5IK40GK-A induction motor in good used condition. Pulled from a working environment. Inspected; body, shaft, and connector show light normal wear. Lead wire and 3-pin connector intact. |
