Description

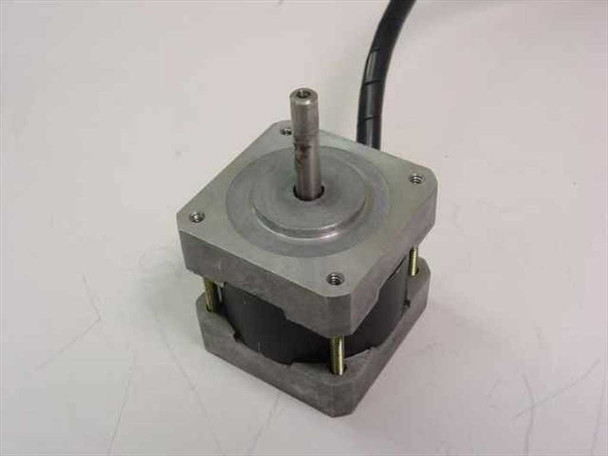

Applied Motion Products 5017-009 Stepping Motor 6V 0.8A 7.5 Ohm 1/4" Shaft
The Applied Motion Products 5017-009 is a compact bipolar stepping motor rated at 6V and 0.8A per phase with a phase resistance of 7.5 ohms. It features a 1/4-inch diameter output shaft and a four-bolt face-mount frame, making it a straightforward drop-in for precision motion control applications. The motor comes with a multi-conductor lead wire terminated in bare wire ends for direct connection to a stepper driver.
Specifications & What's Included
- Manufacturer: Applied Motion Products, Watsonville, CA
- Part Number: 5017-009
- Motor Type: Bipolar Stepping Motor (Stepper Motor)
- Voltage: 6V
- Current: 0.8A per phase
- Phase Resistance: 7.5 Ohm
- Shaft Diameter: 1/4 inch (0.25")
- Shaft Length: 7/8 inch
- Mounting: Four-corner bolt pattern, square face frame
- Lead Wire: Multi-conductor cable with bare wire ends (color-coded conductors visible in photos)
- Country of Manufacture: Taiwan
Applications
Stepping motors like the Applied Motion Products 5017-009 are used wherever precise, repeatable angular positioning is needed without the complexity of closed-loop feedback. They are standard components in CNC routers, milling machines, laser engravers, 3D printers, pick-and-place machines, laboratory automation equipment, and scientific instruments. The bipolar winding configuration — driven by a matched stepper driver or indexer — allows smooth microstepping and high holding torque relative to motor size. Applied Motion Products has been a recognized name in motion control since the 1980s, producing stepper motors and integrated drives used widely in industrial automation and OEM machine design. The compact square frame and 1/4-inch shaft on the 5017-009 are consistent with NEMA 17-class form factors commonly found in small-format CNC and robotics platforms, as well as older analytical and medical-device motion assemblies where the motor may need to be sourced as a replacement part.
This Applied Motion Products 5017-009 Stepping Motor has been inspected and appears to be in good used condition. The motor body shows light surface marks and minor wear consistent with previous use, but there is no damage to the frame or shaft. The multi-conductor lead wire is intact with bare wire ends as visible in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Applied Motion Products |
Model: |
5017-009 |
MPN: |
5017-009 |
Type: |
Stepping Motor (Stepper Motor) |
SKU: |
31070 |
Voltage Rating: |
6V |
Current Rating: |
0.8A |
Resistance: |
7.5 Ohm |
Shaft Diameter: |
1/4 inch (0.25") |
Shaft Length: |
7/8 inch |
Winding Type: |
Bipolar |
Step Angle: |
1.8 degrees (200 steps/rev) |
Country/Region of Manufacture: |
Taiwan |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Includes attached multi-conductor lead wire (bare wire ends). |
Compatible With: |
CNC machines, robotics, automation equipment, 3D printers |
Condition Notes: |
Applied Motion Products 5017-009 Stepping Motor. Inspected and in good used condition. Light surface wear on motor body; shaft and lead wire intact. No damage noted. |
