Description
Gong Tzyh BHE50 Speed Reducer Yaskawa SGML-04AF14 AC Servo Motor 1:30 400W

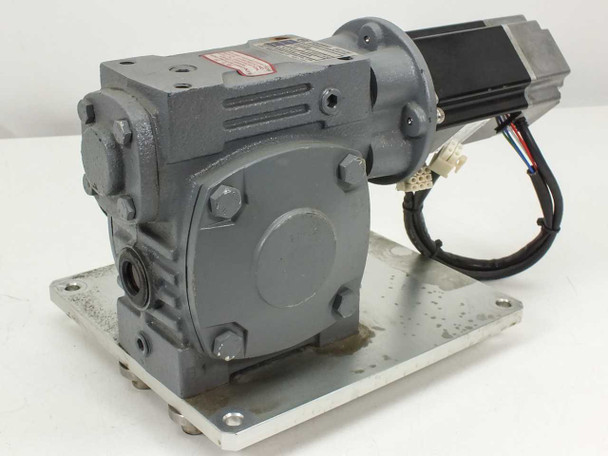

This is a combined assembly consisting of a Gong Tzyh BHE50 worm gear speed reducer made by Taiwan Gong Ji Chang Co., Ltd., mated to a Yaskawa Electric Corporation SGML-04AF14 AC servo motor. The two units are bolted together and mounted on an aluminum base plate, making this a ready-to-install servo drive assembly. The output shaft of the reducer carries a toothed timing pulley for belt-driven power transmission.
Specifications & What's Included

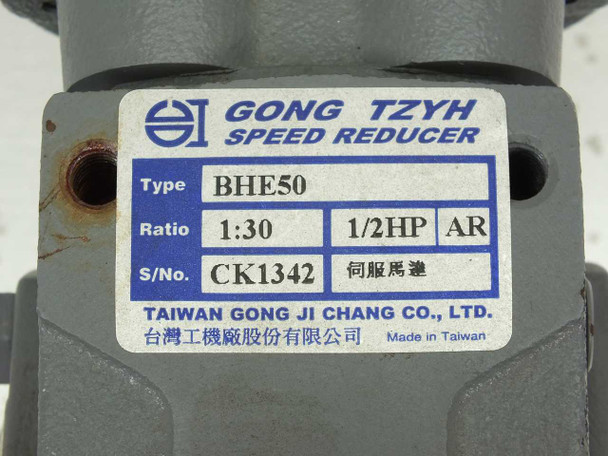

- Speed Reducer: Gong Tzyh BHE50 – worm gear, right-angle (AR) configuration
- Reducer Manufacturer: Taiwan Gong Ji Chang Co., Ltd. – Made in Taiwan

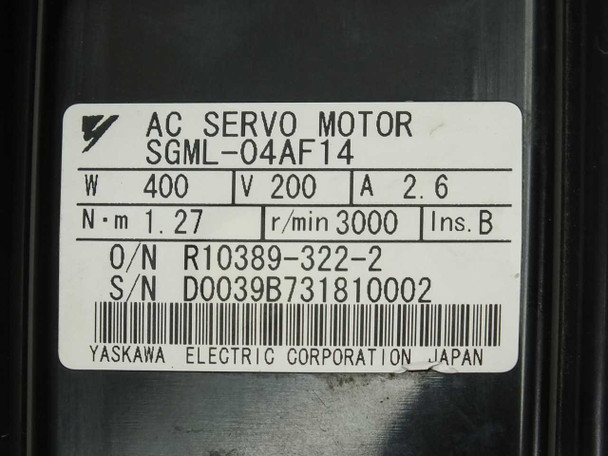

- Servo Motor: Yaskawa Electric Corporation SGML-04AF14 – Made in Japan
- Gear Ratio: 1:30
- Motor Power: 400W (1/2 HP)
- Motor Voltage: 200V
- Motor Current: 2.6A
- Motor Torque: 1.27 N·m
- Motor Speed: 3000 r/min
- Insulation Class: B
- Motor Order Number: R10389-322-2
- Output: Toothed timing pulley on reducer output shaft

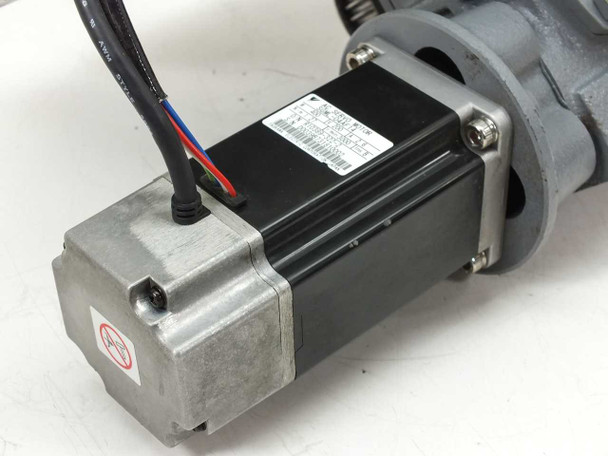

- Connectors: Two multi-pin AMP/Molex-style pigtail connectors on motor leads
- Mounting: Aluminum base plate (attached)
Applications
Worm gear speed reducers paired with AC servo motors like this assembly are used in precision motion control applications where high torque, controlled speed reduction, and accurate positioning are required. The 1:30 gear ratio multiplies the motor's output torque while reducing shaft speed proportionally, making this type of assembly well-suited for CNC machinery, robotic joints, automated conveyor and indexing systems, packaging equipment, and general factory automation. Yaskawa's SGML series AC servo motors are part of the Sigma family of servo drives and have been widely used in Japanese and international industrial automation equipment since the 1990s. The right-angle worm gear configuration is common where the motor must be oriented perpendicular to the driven shaft, saving space in compact machine designs. The timing pulley on the output shaft allows direct connection to a synchronous belt drive without the need for a separate coupling.
This Gong Tzyh BHE50 speed reducer with Yaskawa SGML-04AF14 AC servo motor has been inspected and is in good used condition. The reducer housing shows some surface wear and minor scuffing consistent with prior use, and there is light rust spotting visible on the base plate. The output shaft timing pulley is present and intact. The motor wiring harness and multi-pin connectors appear complete with no visible damage to the leads. Overall the assembly is complete and presents well. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Gong Tzyh / Yaskawa |
Model: |
BHE50 |
MPN: |
SGML-04AF14 |
Secondary Model: |
SGML-04AF14 |
Type: |
AC Servo Motor with Worm Gear Speed Reducer |
SKU: |
47490 |
Speed Reducer Model: |
BHE50 |
Speed Reducer Manufacturer: |
Taiwan Gong Ji Chang Co., Ltd. |
Servo Motor Model: |
SGML-04AF14 |
Servo Motor Manufacturer: |
Yaskawa Electric Corporation |
Gear Ratio: |
1:30 |
Power Rating: |
400W (1/2 HP) |
Voltage Rating: |
200V |
Current Rating: |
2.6A |
Torque: |
1.27 N·m |
Motor Speed: |
3000 r/min |
Insulation Class: |
Class B |
Reducer Type: |
AR (Right Angle Worm Gear) |
Output: |
Toothed timing pulley on output shaft |
Connector Type: |
Multi-pin AMP/Molex-style connectors (pigtail leads) |
Mounting: |
Aluminum base plate |
O/N (Order Number): |
R10389-322-2 |
Country/Region of Manufacture: |
Taiwan (reducer); Japan (servo motor) |
Seller Notes: |
Reducer and servo motor mounted on aluminum base plate; timing pulley on output shaft included |
Condition Notes: |
Gong Tzyh BHE50 speed reducer with Yaskawa SGML-04AF14 AC servo motor. Inspected and in good used condition. Minor surface wear and light rust on base plate. Output timing pulley and wiring harness intact. |
