Description

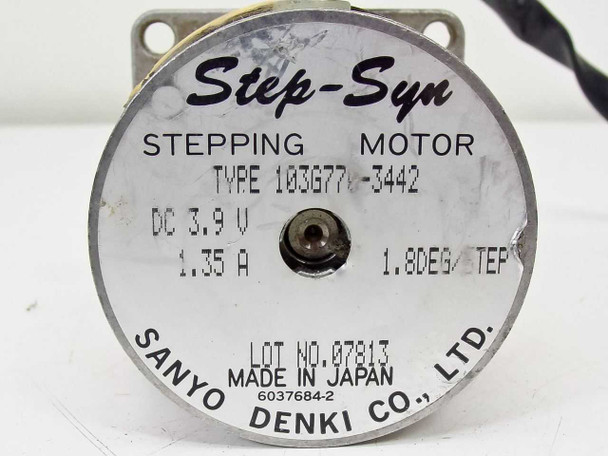

Sanyo Denki Step-Syn 103G770-3442 Stepping Motor DC 3.9V 1.35A 1.8 Deg/Step
A two-phase stepper motor from Sanyo Denki's Step-Syn series designed for precision positioning applications. The motor accepts 3.9V DC input and delivers 1.8-degree steps for controlled rotational increments.
Specifications & What's Included
- Model: 103G770-3442
- Voltage: DC 3.9V
- Current Rating: 1.35A
- Step Angle: 1.8 Degrees/Step (200 steps per revolution)
- Phases: 2

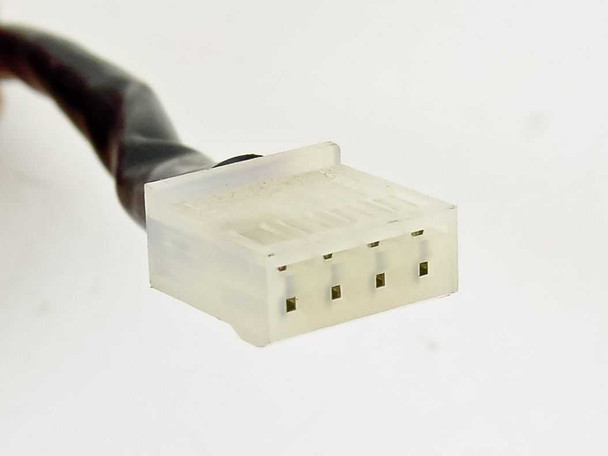

- Connector: 4-pin connector lead (attached)
- Shaft: Toothed/timing pulley output
- Mount: Face/flange mount
- Manufactured in Japan
Applications
Stepping motors of this type are used in telecom switching equipment, industrial control systems, and precision positioning mechanisms. The 1.8-degree step angle and two-phase design make this motor suitable for equipment requiring moderate-speed, accurate position control in telecommunications infrastructure, test equipment, and legacy automation systems. The low voltage rating indicates use in control circuits or systems with integrated power regulation.
This Sanyo Denki Step-Syn 103G770-3442 Stepping Motor has been inspected and is in good condition. The body shows light wear consistent with prior use, including some yellowing to the outer wrap and minor scuffing to the metal housing, but there is no visible damage to the shaft, flange, or connector. The 4-pin connector lead is intact and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Sanyo Denki |
Model: |
103G770-3442 |
MPN: |
103G770-3442 |
Type: |
Stepping Motor (Stepper Motor) |
SKU: |
42107 |
Series: |
Step-Syn |
Voltage: |
DC 3.9V |
Current Rating: |
1.35A |
Step Angle: |
1.8 Degrees/Step |
Steps Per Revolution: |
200 |
Connector Type: |
4-Pin Connector |
Number of Phases: |
2 |
Shaft Type: |
Toothed / Timing Pulley Output Shaft |
Mounting: |
Face/Flange Mount |
Lot Number: |
07813 |
Country/Region of Manufacture: |
Japan |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Includes attached 4-pin connector lead. Inspected and in good condition. |
Condition Notes: |
Sanyo Denki Step-Syn 103G770-3442 Stepping Motor. Inspected and in good condition. Light wear to housing and outer wrap. 4-pin connector lead intact. No visible damage to shaft or flange. |
