Unbranded

Stepper Motor w/ Gear Assembly BLG-4320-BA Copier Robotics Experiment Parts

(No reviews yet) Write a Review
SKU:
31582
MPN:
Steel
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout
  • Stepper motor with gear assembly BLG-4320-BA — full assembly view with multi-wire harness and secondary gear bracket

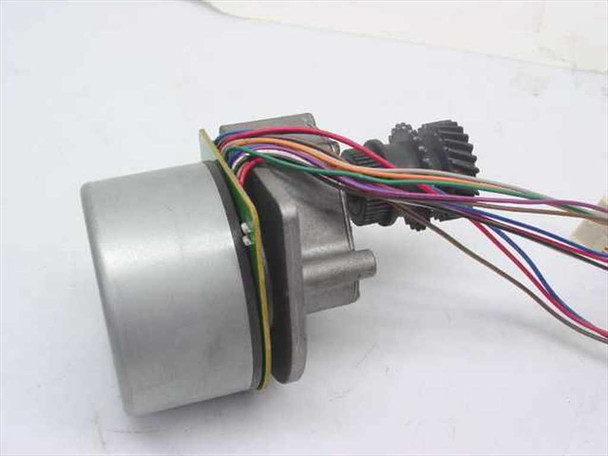

  • Stepper motor BLG-4320-BA — side view showing aluminum motor housing and attached gear train

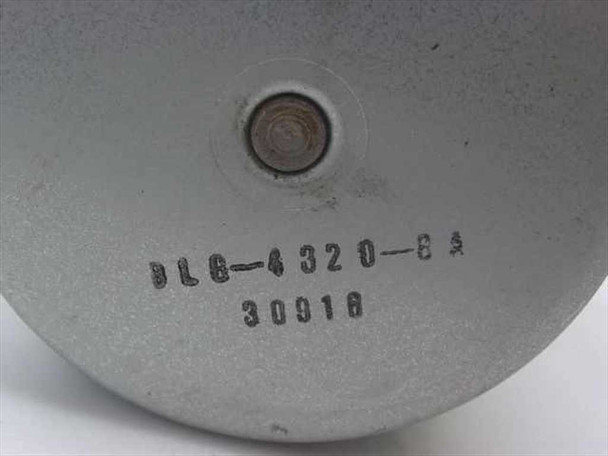

  • BLG-4320-BA part number label on motor end cap — stamped markings visible on aluminum housing

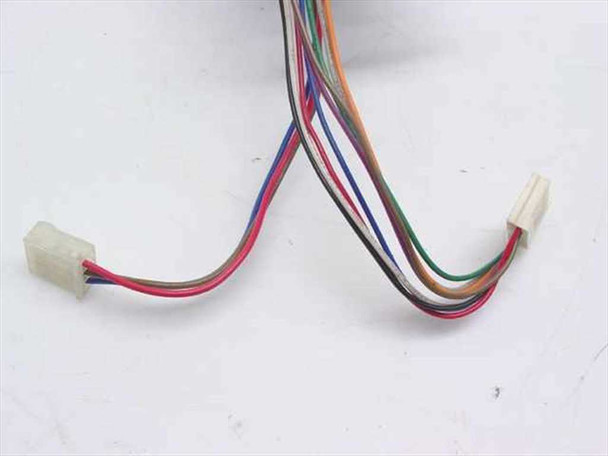

  • Multi-wire harness detail — two white multi-pin connectors on approximately 14-16 colored wires

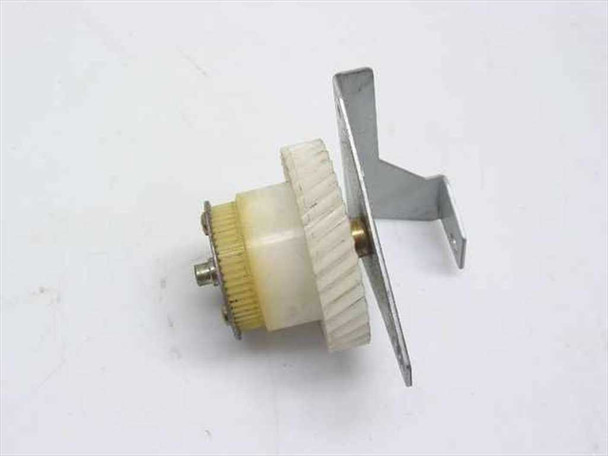

  • Secondary gear assembly with plastic gear wheel and metal L-bracket mount
$20.00
Was: $40.00
Current Stock: 1

Sold Out

Description

Stepper Motor w/ Gear Assembly BLG-4320-BA Copier Robotics Experiment Parts

Used stepper motor with integrated gear train assembly, pulled from working copier equipment. Includes motor housing, plastic and metal gear assembly, and multi-wire harness with two connectors for integration into automation or experimental systems.

Specifications & What's Included

  • Model: BLG-4320-BA
  • Type: Stepper Motor with Gear Assembly
  • Housing: Steel and Aluminum
  • Gear Train: Plastic and Metal construction
  • Connectors: Two multi-pin wire harness (approximately 14–16 wires)

Applications

Stepper motors with gear assemblies are standard components in office copier mechanisms for paper feed, document positioning, and toner cartridge movement. These units are also used in robotics platforms for precise motion control and positioning tasks. The gear reduction allows for controlled torque and speed suitable for DIY electronics projects, automation experiments, and custom mechanical builds requiring repeatable stepper actuation.

Condition: Used
This stepper motor and gear assembly (BLG-4320-BA) was pulled from a working environment where it was in active use. It has been inspected and appears to be in good condition. The motor housing and gear components show normal wear consistent with prior service use. The multi-wire harness and both connectors are intact. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
BLG-4320-BA
MPN:
BLG-4320-BA
Type:
Stepper Motor with Gear Assembly
SKU:
31582
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes motor, gear train assembly, and multi-wire harness with two connectors
Application:
Copier, Robotics, DIY Experiments, Parts
Drive Type:
Stepper Motor
Gear Type:
Plastic and Metal Gear Train
Connector Type:
Two Multi-Pin Wire Harness Connectors
Number of Wires:
Multi-wire harness (approx. 14-16 wires)
Housing Material:
Steel / Aluminum
Compatible With:
Copier machines, robotics platforms, DIY electronics projects
Condition Notes:
Stepper motor BLG-4320-BA pulled from a working environment, inspected and in good used condition. Motor housing, gear assembly, and wiring harness with two connectors all intact. Normal service wear. Contact us with questions.
View AllClose

Related Products

Related Products

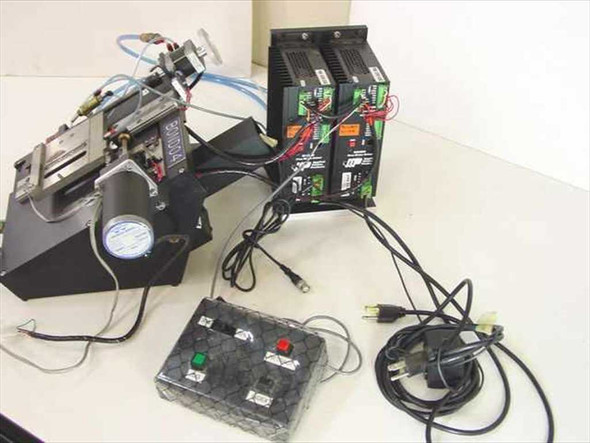

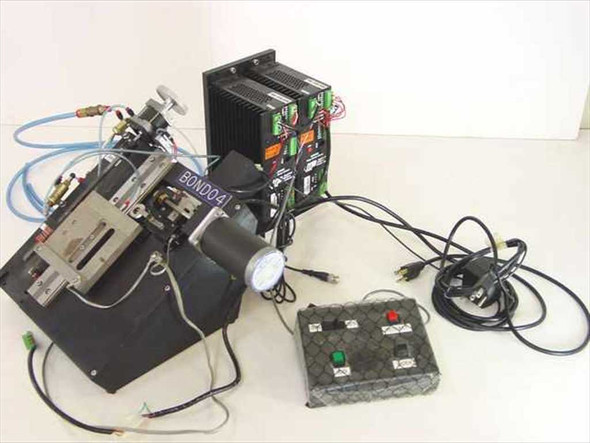

AMC Bondo4 custom stepper motor assembly — full system overview with linear slide, Applied Motion Si5580 drivers, and control box AMC Bondo4 stepper motor assembly — alternate angle showing linear stage mechanism, motor drivers, and control box with power cables
Add to Cart
Quick view

AMC Bondo4 Custom Stepper Motor Assembly Applied Motion Si5580 w/ Controllers

AMC

$750.00
Was: $1,500.00
AMC Bondo4 Custom Stepper Motor Assembly Applied Motion Si5580 w/ Controllers Custom linear stepper motor assembly with dual motors and drivers. Functions as a benchtop automation unit with...
26003
SKU:
26003
Availability:
Usually ships within 1-2 business days.
Weight:
60.00 LBS
Brand:
AMC / Applied Motion Products
Model:
Bondo4
MPN:
Bondo4
Type:
Custom Stepper Motor Driven Linear Assembly
SKU:
26003
Condition:
Used – Inspected
Seller Notes:
Includes linear slide, 2 stepper motors, 2 Applied Motion Si5580 drivers, pneumatic lines, limit switches, control box, BNC cable
Stepper Motor Driver:
Applied Motion Products Si5580 (x2)
Stepper Motor Manufacturer:
Anaheim Automation
Stepper Motor Model:
23D3098
Motor Voltage:
2.2 VDC
Motor Current:
4.6 A
Driver Interface:
RS-232
Lead Screw Resolution:
80 TPI or finer
Linear Stroke:
Minimum 6 inches
Control Box Buttons:
30%, 50% speed, Jog, Retract, Index, Stop
Pneumatic:
Yes — pneumatic/vacuum lines with brass fittings included
Limit Switches:
End limit switches included
Form Factor:
Benchtop / Custom Assembly
Country/Region of Manufacture:
United States
Review Status:
Auto-Approved (needs review) 2026-07-04
Condition Notes:
This AMC Bondo4 custom stepper motor-driven assembly has been inspected and is in good used condition. The assembly includes the linear slide, both stepper motors, both Applied Motion Si5580 drivers, pneumatic lines and fittings, end limit switches,

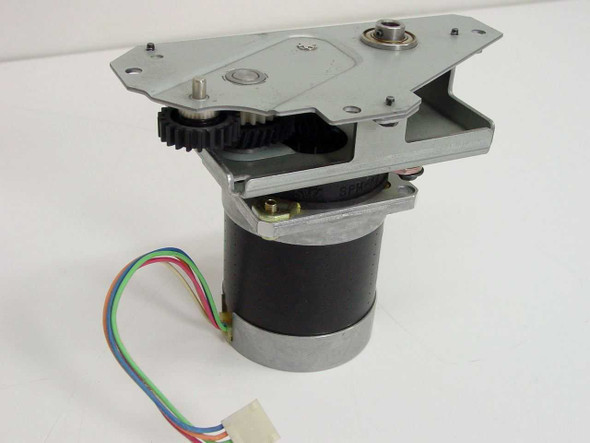

Shinano Kenshi STH-54D403 stepper motor with gear assembly – front left three-quarter view showing motor body, gear bracket, and 6-pin wiring harness Shinano Kenshi STH-54D403 stepper motor gear assembly – rear three-quarter view showing spur gear train and aluminum mounting bracket
