Mycom BRA85-10 Stepper Motor Jig Rotator Axial Positioning Apparatus Assembly

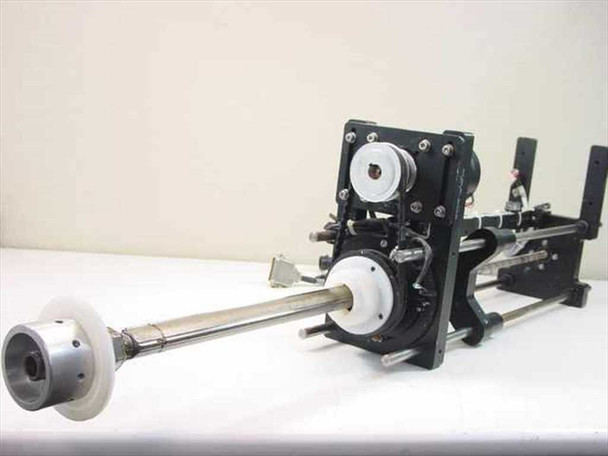

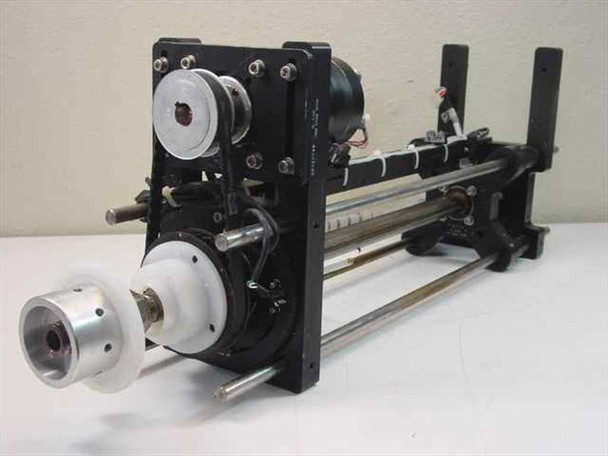

Dual-axis positioning apparatus combining rotary jig motion with linear axial adjustment. Driven by stepper motors via lead screw and timing belt drive mechanisms for coordinated multi-axis control.
Specifications & What's Included
- Brand: Mycom | Model: BRA85-10 | Origin: Japan
- Motion axes: Rotary jig rotation + linear axial lead-screw positioning

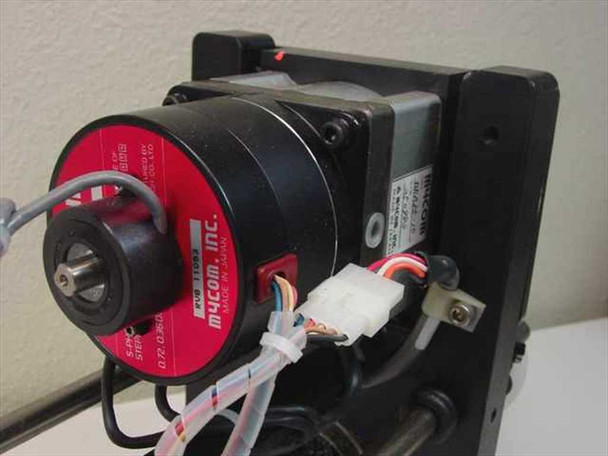

- Motor configuration: One stepper motor installed; second motor mount present but motor absent

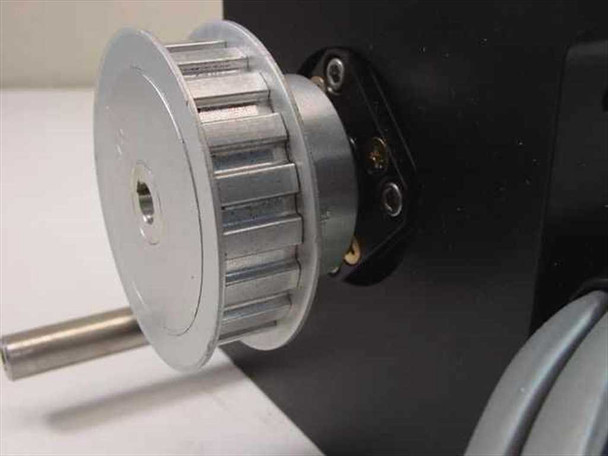

- Drive: Lead screw (axial), timing belt/pulley (rotary)

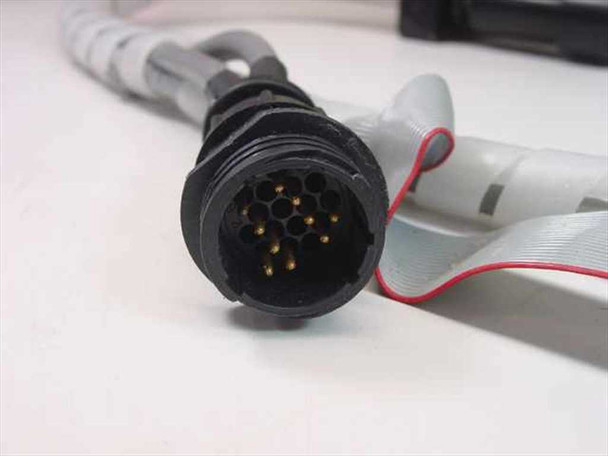

- Connector: Multi-pin circular connector (approx. 12-pin) with ribbon cable
- Included: Rails, carriage, lead screw, wiring harness with circular connector
Applications
Used in industrial assembly, testing, and manufacturing automation where precise multi-axis positioning is required. Common in telecom equipment assembly, component testing rigs, and inspection systems requiring synchronized rotation and linear feed. Compatible with standard stepper motor control systems and industrial automation platforms using stepper drive interfaces.
Condition: Used

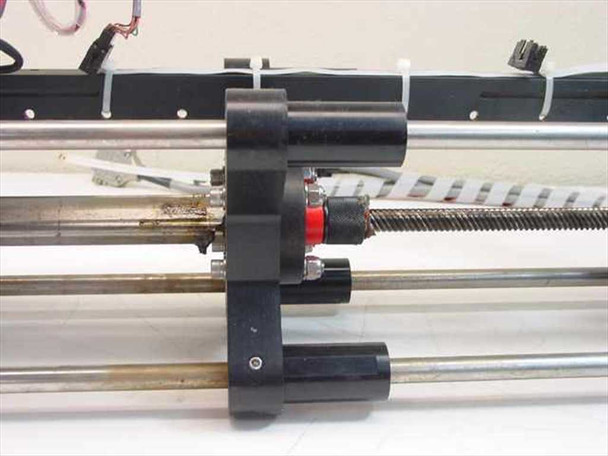

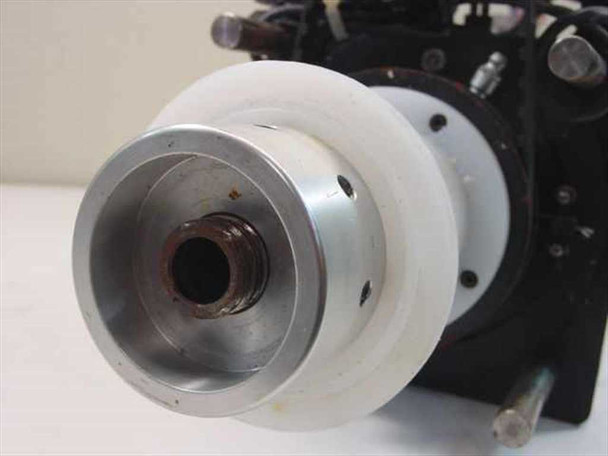

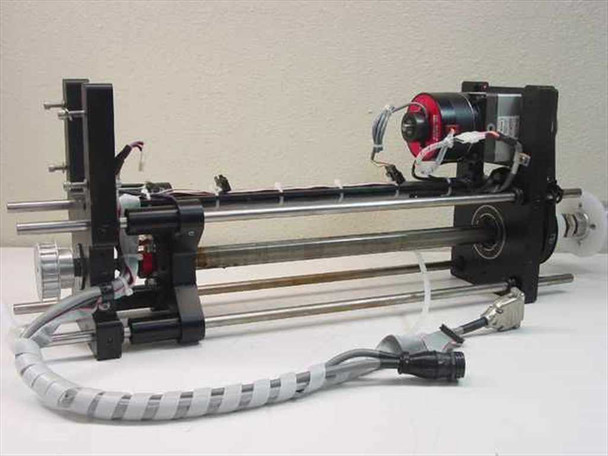

This Mycom BRA85-10 stepper motor jig rotator and axial positioning apparatus has been inspected and appears to be in good condition. One stepper motor is present and drives jig rotation via a timing belt and pulley; the second motor mount is intact but the second motor is missing. The linear lead-screw axis hardware — rails, screw, carriage, and white hub coupling — is present and intact. The assembly shows normal wear consistent with prior lab or automation use, including minor surface oxidation visible on the lead-screw and carriage area. A wiring harness with a multi-pin circular connector is included. Please view our photo set and contact us if you have any questions.
This Mycom BRA85-10 stepper motor jig rotator and axial positioning apparatus has been inspected and appears to be in good condition. One stepper motor is present and drives jig rotation via a timing belt and pulley; the second motor mount is intact but the second motor is missing. The linear lead-screw axis hardware — rails, screw, carriage, and white hub coupling — is present and intact. The assembly shows normal wear consistent with prior lab or automation use, including minor surface oxidation visible on the lead-screw and carriage area. A wiring harness with a multi-pin circular connector is included. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Mycom |
Model: |
BRA85-10 |
MPN: |
BRA85-10 |
Type: |
Stepper Motor Jig Rotator & Axial Positioning Apparatus |
SKU: |
32590 |
Country/Region of Manufacture: |
Japan |
Motor Type: |
Stepper Motor |
Number of Motors: |
1 (second motor position present but motor missing) |
Motion Axes: |
Rotary (jig rotation) + Linear (axial lead-screw) |
Drive Mechanism: |
Lead screw (axial), timing belt/pulley (rotary) |
Connector Type: |
Multi-pin circular connector (approx. 12-pin) |
Cable Included: |
Yes — ribbon cable with circular multi-pin connector |
Condition: |
Used – Inspected |
Seller Notes: |
One stepper motor present; second motor mount present but motor is missing. Includes wiring harness with multi-pin circular connector. |
Condition Notes: |
Mycom BRA85-10 stepper motor jig rotator apparatus. Inspected, good condition. One stepper motor present; second motor is missing. Rails, lead screw, carriage, and wiring harness included. Normal wear. |
