Atecom 100mm P-Type Silicon Wafers 525±25µm 1250±20% Ωcm B/100 Epi Qty 50

(No reviews yet) Write a Review
SKU:
53137
MPN:
100mm
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout

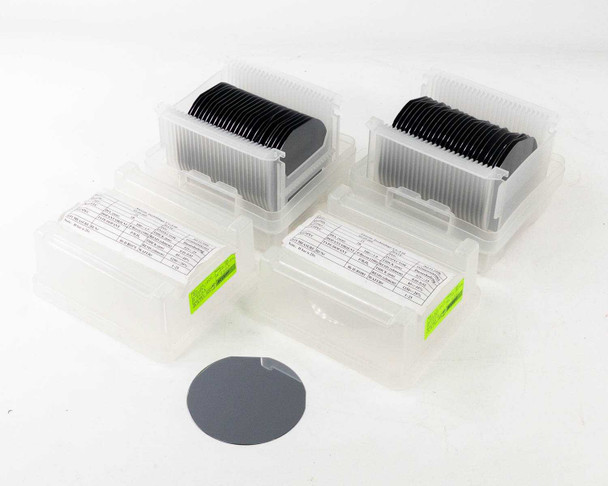

  • Atecom 100mm P-type epitaxial silicon wafers – overview of four cassette boxes and one loose wafer on white background
  • Two Atecom silicon wafer cassette boxes closed, showing spec labels with green stickers on front
  • Atecom Technology cassette label closeup – Part 03-09-009, 25 wafers, P/Boron/(100), 525±25µm, epi 1250±20% Ωcm, run 06-II-B1078
  • Open cassette showing approximately 25 polished 100mm silicon wafers standing upright in white plastic carrier – angled overhead view
  • Close side view of 100mm silicon wafers stacked in white cassette showing dark reflective polished surfaces
  • Atecom Technology cassette label closeup – Part 03-09-009, Cassette 2B, 25 wafers, epi run 06-II-B1081, same substrate and epi specs
  • Second open cassette with 25 polished 100mm silicon wafers standing upright – angled overhead view
  • Close angled view of second cassette showing dark polished silicon wafer edges in white carrier
  • Two closed Atecom silicon wafer cassette boxes side by side, lids latched, spec labels visible on front
$500.00
Was: $1,000.00
Current Stock: 1

Sold Out

Description

Atecom 100mm P-Type Silicon Wafers 525±25µm 1250±20% Ωcm B/100 Epi Qty 50

Lot of 50 epitaxial polished silicon wafers manufactured by Atecom Technology. P-type boron-doped substrate with epitaxial layer, supplied in two original plastic cassettes of 25 wafers each.

Specifications & What's Included

  • Diameter: 100mm (4-inch)
  • Thickness: 525 ±25 µm (substrate)
  • Resistivity: 1250 ±20% Ωcm (epi layer)
  • Conductivity Type: P-Type Boron (B₂H₆)
  • Crystal Orientation: (100)
  • Epi Layer Thickness: 85 ±10% µm
  • Surface: Polished
  • Manufacture Date: July 11, 2006
  • Epi Run Numbers: 06-II-B1078 and 06-II-B1081

Applications

These wafers are used in semiconductor device fabrication, epitaxial growth processes, MEMS manufacturing, and photovoltaic research. The specifications support standard diffusion and epitaxial processing workflows. Compatible with conventional 100mm wafer handling equipment and cassette systems used in research and production environments.

Condition: Used
This Atecom Technology 100mm P-Type Epitaxial Polished Silicon Wafer lot has been inspected and appears to be in good condition. The wafers are stored in their original plastic cassettes with Atecom spec labels intact. The polished surfaces appear clean and free of obvious damage or contamination in the photos. The cassettes and carriers show normal storage wear but are fully intact and functional. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Atecom Technology
Model:
03-09-009
MPN:
03-09-009
Type:
Epitaxial Polished Silicon Wafer
SKU:
53137
Quantity:
50 wafers (2 cassettes of 25)
Diameter:
100mm (4 inch)
Thickness:
525 ±25 µm (substrate)
Resistivity:
1250 ±20% Ωcm (epi layer)
Conductivity Type:
P-Type
Dopant:
Boron (B₂H₆)
Crystal Orientation:
(100) / 1-0-0
Dopant/Orient (Sub Spec):
P/Boron/(100)
Epi Type/Dopant:
P/B₂H₆
Epi Layer Thickness:
85 ±10% µm
Sub Spec Resistivity (Ωcm):
0.01-0.02
Sub Spec Diameter:
100 ±1.0 mm
Epi Run Numbers:
06-II-B1078 (Cassette 1B), 06-II-B1081 (Cassette 2B)
Date of Manufacture:
July 11, 2006
PO Number:
O200605081003
Surface:
Polished
Condition:
Used – Inspected and Tested
Seller Notes:
Lot of 50 wafers in two plastic cassettes of 25 each with original Atecom spec labels
Country/Region of Manufacture:
Taiwan
Application:
Semiconductor research, MEMS, photovoltaics, epitaxial device fabrication
Form Factor:
Wafer / Substrate
Compatible With:
Standard 100mm (4-inch) wafer process equipment and cassettes
Condition Notes:
Atecom 100mm P-type epi silicon wafers, lot of 50. Inspected and in good condition. Stored in original plastic cassettes with spec labels intact. Pulled from a working environment. Please contact us with any questions.
View AllClose
