Siltronic AG 100mm FZ Polished Silicon Wafer 525±25µm 320-480Ω·cm <100> Lot of 6

(No reviews yet) Write a Review
SKU:
53130
MPN:
100MM
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
2.00 LBS
Shipping:
Calculated at Checkout

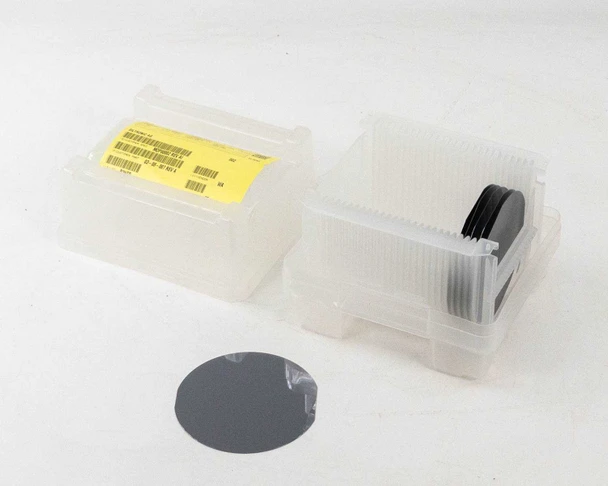

  • Siltronic AG 100mm FZ polished silicon wafers — two plastic wafer cassettes with one wafer removed and placed in front, showing dark mirror-like polished surface
  • Siltronic AG wafer cassette label showing Diameter 100mm, Orientation 1-0-0, Crystal FZ, Thickness 525±25µm, Resistivity 320-480 Ω·cm, customer spec MOP00002 REV A1, part 03-08-007 REV A, lot R2HTD, quantity 25
  • Siltronic AG 100mm FZ polished silicon wafers standing upright in slotted plastic carrier cassette — multiple wafers visible showing reflective dark surface
  • Siltronic AG 100mm FZ silicon wafer cassette open showing wafers in carrier alongside label — lot R2HTD, customer part 03-08-007 REV A
$275.00
Was: $550.00
Current Stock: 1

Sold Out

Description

Siltronic AG 100mm FZ Polished Silicon Wafer 525±25µm 320-480Ω·cm <100> Lot of 6

Float Zone polished silicon wafers for semiconductor research and device fabrication. These N-type phosphorus-doped wafers feature high resistivity and chemical-mechanical polished surfaces suitable for precision applications.

Specifications & What's Included

  • Manufacturer: Siltronic AG (Germany)
  • Diameter: 100mm (4 inch)
  • Thickness: 525 ± 25 µm
  • Crystal Growth: Float Zone (FZ)
  • Orientation: <100>
  • Resistivity: 320–480 Ω·cm
  • Dopant: N-type (Phosphorus)
  • Surface: Polished (CMP)
  • Quantity: 6 wafers in original slotted carrier cassette

Applications

Float Zone wafers are used in semiconductor R&D, photovoltaic device development, MEMS fabrication, RF component testing, and physics research. The high resistivity and low defect density make them suitable for high-frequency circuits, power devices, and precision measurements where material purity is required.

Condition: Used
This lot of Siltronic AG 100mm FZ polished silicon wafers has been inspected and appears to be in good condition. The wafers are stored in the original Siltronic slotted plastic carrier cassette and show no visible chips, cracks, or major surface defects in our photos. Some minor handling marks or light surface contamination typical of previously handled semiconductor wafers may be present and are not uncommon for surplus wafer lots of this type. This listing is for 6 wafers from the labeled lot. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Siltronic AG
Model:
MOP00002 REV A1
MPN:
03-08-007 REV A
Type:
Polished Float Zone (FZ) Silicon Wafer
SKU:
53130
Diameter:
100mm (4 inch)
Thickness:
525 ± 25 µm
Crystal Growth Method:
Float Zone (FZ)
Orientation:
<100>
Resistivity:
320–480 Ω·cm
Dopant Type:
N-type (Phosphorus)
Surface Finish:
Polished (CMP — Chemical Mechanical Polished)
Quantity in Lot:
6 wafers
Lot Number:
R2HTD
Customer Spec Number:
MOP00002 REV A1
Customer Part Number:
03-08-007 REV A
Seller Notes:
Lot of 6 wafers in original Siltronic slotted wafer carrier/cassette.
Country/Region of Manufacture:
Germany
Application:
Semiconductor R&D, photovoltaics, MEMS, RF devices, physics research
Condition:
Used – Inspected and in Good Condition
Condition Notes:
Lot of 6 Siltronic AG 100mm FZ polished silicon wafers. Inspected and in good condition. Stored in original slotted carrier cassette. Minor handling marks possible. Please view photos and contact us with any questions.
