Trumpf Huttinger 0372600 MOP 2-Ch Master Oscillator 13.56 MHz RF Plasma Etch
Two-channel master oscillator generating 13.56 MHz RF signals for plasma processing. Used in RF plasma etch, PVD sputtering, and RF deposition systems to drive plasma generation in semiconductor fabrication and materials processing equipment.
Specifications & What's Included
- Model: MOP; Part Number: 0372600
- 2-channel configuration; 13.56 MHz frequency
- Power input: 85–264V AC, 50/60 Hz; 3.15A fuses (F1/F2)
- Rackmount form factor, 2U; 19" × 15" × 3.5"
- Backlit LCD display (Ch0 and Ch1 frequency and phase readout)
- Rear connectors: IEC AC inlet, BNC, DB9 (×3), DB25
- Manufactured in Germany
Applications
The MOP series supplies RF drive signals for plasma processing in semiconductor, optics, and materials science applications. Commonly integrated into Trumpf Huttinger RF power supply systems and standalone plasma chambers requiring dual-channel frequency/phase control at the ISM band frequency of 13.56 MHz.
Condition: Used

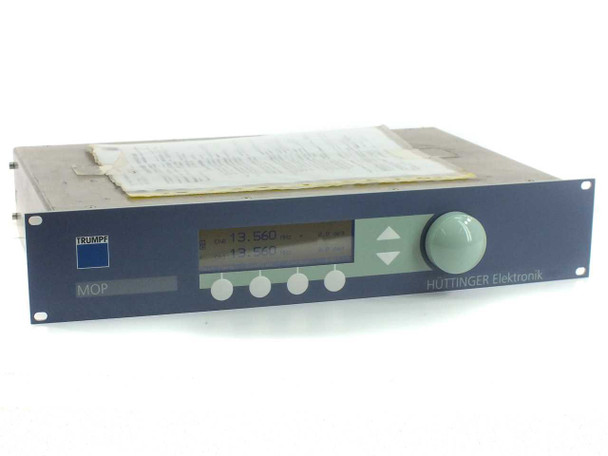

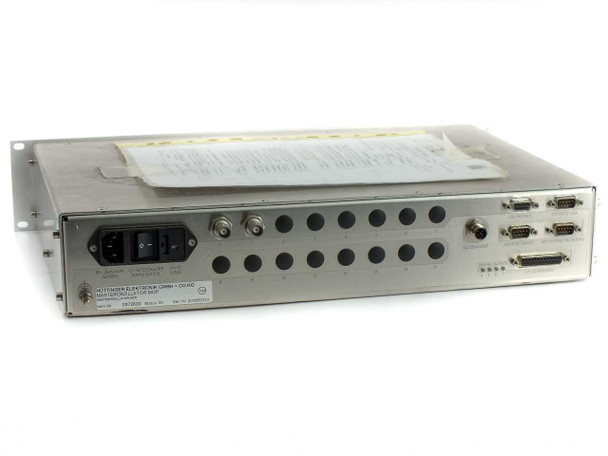

Trumpf Huttinger 0372600 MOP 2-Channel Master Oscillator, 13.56 MHz RF deposition unit. Powers on and displays both Ch0 and Ch1 at 13.560 MHz as shown in photos. Removed from a large sputtering tool at a solar manufacturing facility. Light cosmetic wear consistent with rack-mounted lab use. All front panel controls—LCD display, soft-key buttons, and rotary encoder—are intact and functional. Rear panel includes IEC inlet, BNC connectors, and serial/parallel ports with no visible damage.
Trumpf Huttinger 0372600 MOP 2-Channel Master Oscillator, 13.56 MHz RF deposition unit. Powers on and displays both Ch0 and Ch1 at 13.560 MHz as shown in photos. Removed from a large sputtering tool at a solar manufacturing facility. Light cosmetic wear consistent with rack-mounted lab use. All front panel controls—LCD display, soft-key buttons, and rotary encoder—are intact and functional. Rear panel includes IEC inlet, BNC connectors, and serial/parallel ports with no visible damage.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Trumpf Huttinger |
Model: |
MOP |
MPN: |
0372600 |
SKU: |
52209 |
Type: |
2-Channel Master Oscillator |
Frequency: |
13.56 MHz |
Number of Channels: |
2 |
Power Requirements: |
85–264V N/PE, 50/60Hz |
Fuse Rating: |
3.15A (F1/F2) |
Form Factor: |
Rackmount, 2U |
Dimensions: |
19" x 15" x 3.5" |
Application: |
RF Plasma Etch, PVD Sputtering, RF Deposition |
Display: |
Backlit LCD — shows Ch0 and Ch1 frequency and phase |
Rear Connectors: |
IEC AC inlet, BNC, DB9 (x3), DB25 |
Status Code: |
Status 00 |
Condition: |
Used – Powers On, Further Testing Limited |
Seller Notes: |
Unit powers on; further testing not available at our facility |
Country/Region of Manufacture: |
Germany |
Condition Notes: |
Trumpf Huttinger 0372600 MOP 2-Ch 13.56MHz. Powers on, LCD shows both channels at 13.560MHz. Light wear from lab use. All controls intact. No damage. |
