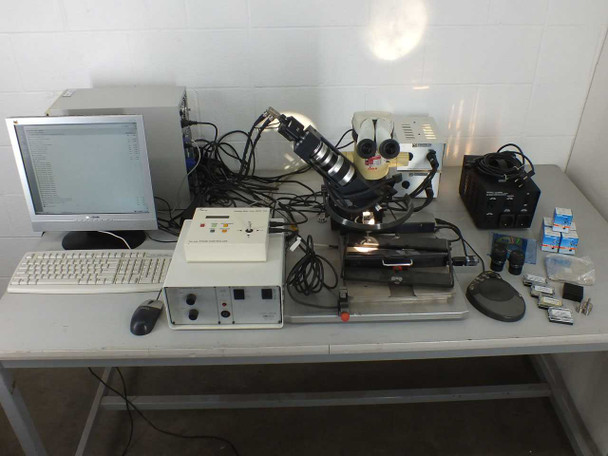

  • Finetech Fineplacer PCB rework station full system overview on workbench with Leica MZ6 microscope, PC, monitor, keyboard, controllers, and accessories
  • Finetech Fineplacer system overview from left angle showing two-axis stage, Leica MZ6 microscope head, Sigma Koki SHOT-102 stage controller, and PC workstation
  • Finetech Fineplacer system accessories laid out including Leica MZ6 microscope, Finetech Placer Control unit, two Euromex EK-1 fiber optic illuminators, TC-2000E converter, eyepieces, software CDs, and small accessory boxes

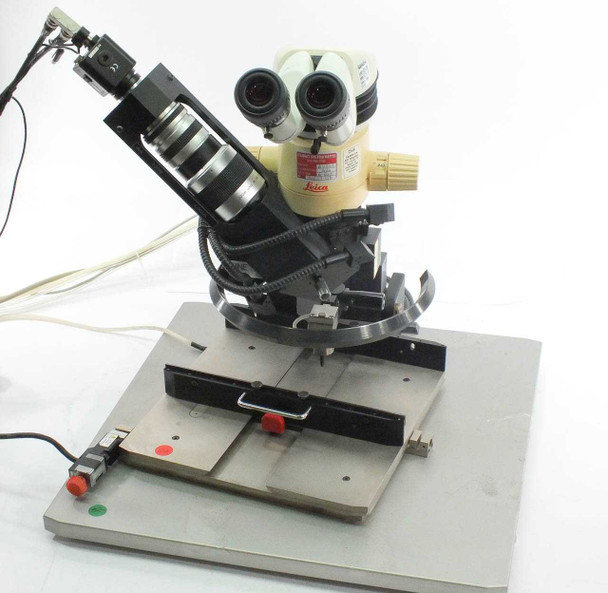

  • Finetech Fineplacer manual rework station main unit with Leica MZ6 stereo microscope mounted on two-axis XY stage platform, front-right view
  • Close-up of Leica MZ6 label on microscope body showing 'LEICA MZ6' model designation
  • Close-up of Leica microscope body label showing part number 'LEICA 10445302' on the focus/zoom barrel

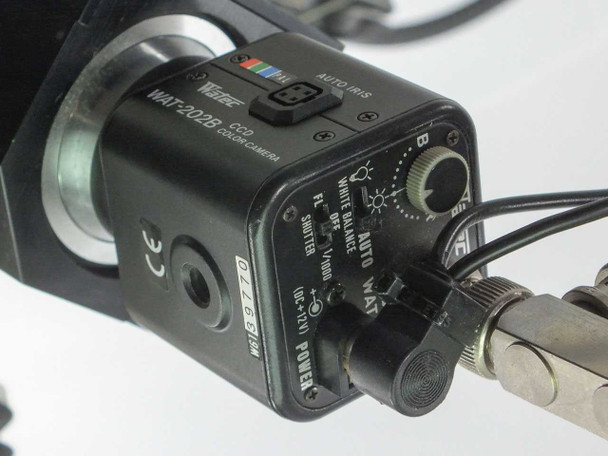

  • Watec WAT-202B CCD color camera mounted on Fineplacer optical column, showing auto iris, white balance, and power controls
  • Finetech Placer Control unit front panel showing illumination control knobs for head and target, vacuum status indicator, pipette mode selector, and power switch
  • Finetech Placer Control unit rear panel showing AUX power out, power in, head vacuum port, module interface RJ45, RS-232, pipette foot switch, pivot arm, table foot switch, placer support DB25, option output, camera 1 and camera 2 BNC connectors, and voltage selector 230V/115V

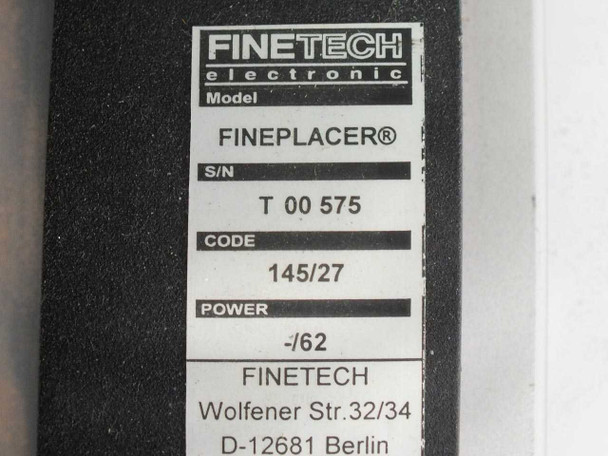

  • Finetech Fineplacer label showing model 'FINEPLACER', S/N T 00575, Code 145/27, Power -/62, manufactured by Finetech electronic, Berlin Germany

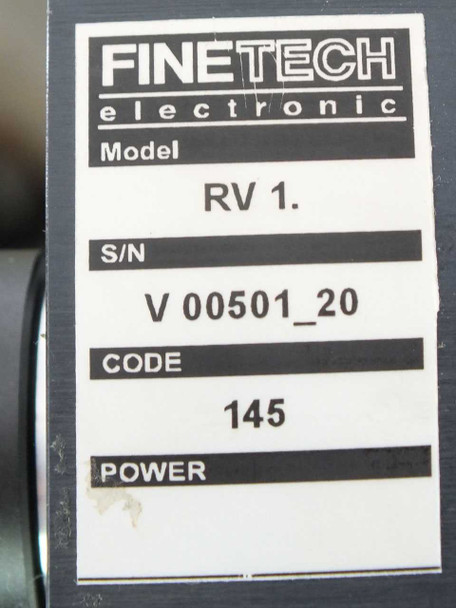

  • Finetech RV 1. component label showing model 'RV 1.', S/N V 00501_20, Code 145

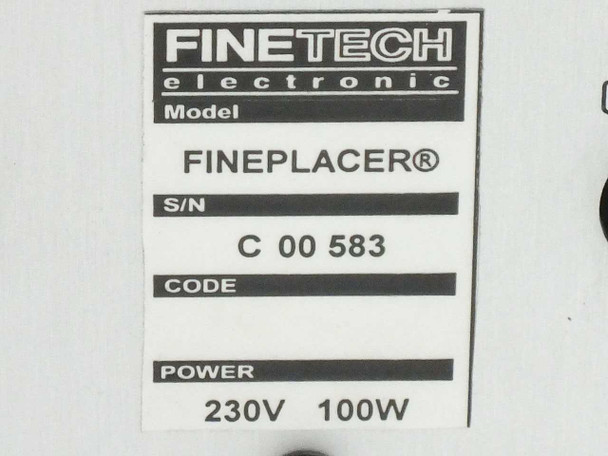

  • Finetech Fineplacer label on secondary unit showing model 'FINEPLACER', S/N C 00583, Code blank, Power 230V 100W

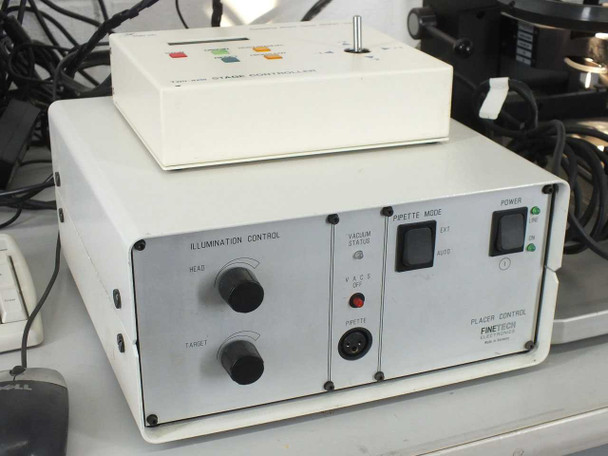

  • Finetech Placer Control unit with Sigma Koki SHOT-102 two-axis stage controller placed on top, bench view

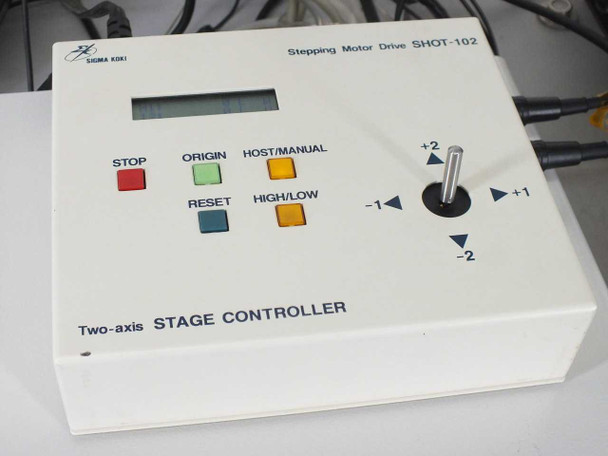

  • Sigma Koki SHOT-102 Stepping Motor Drive two-axis stage controller front panel showing STOP, ORIGIN, HOST/MANUAL, RESET, HIGH/LOW buttons and joystick

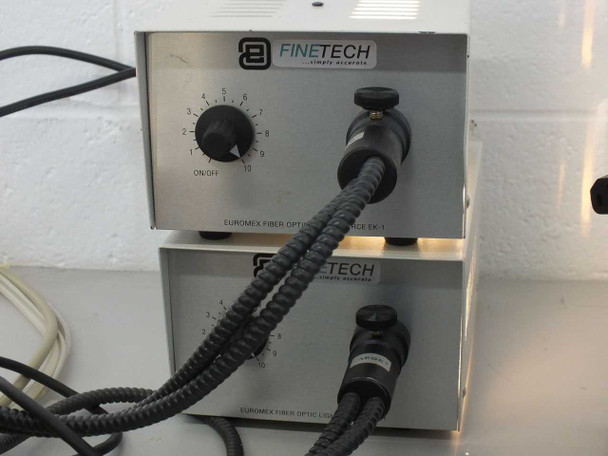

  • Two Finetech Euromex EK-1 fiber optic light source illuminators stacked, with flexible fiber optic light guide cables attached

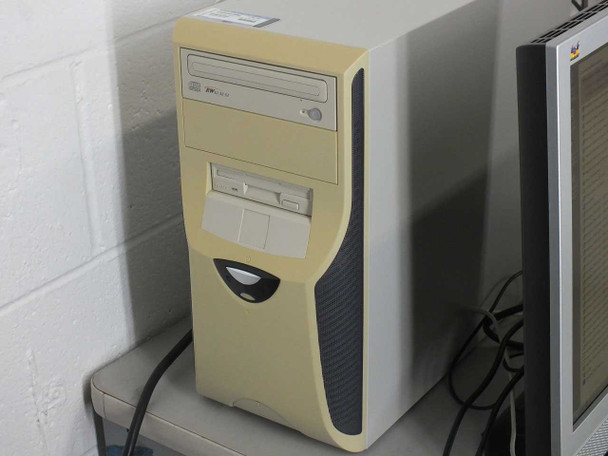

  • Control PC tower (beige/tan desktop) with optical drive and floppy drive bays, used for Finetech Fineplacer software

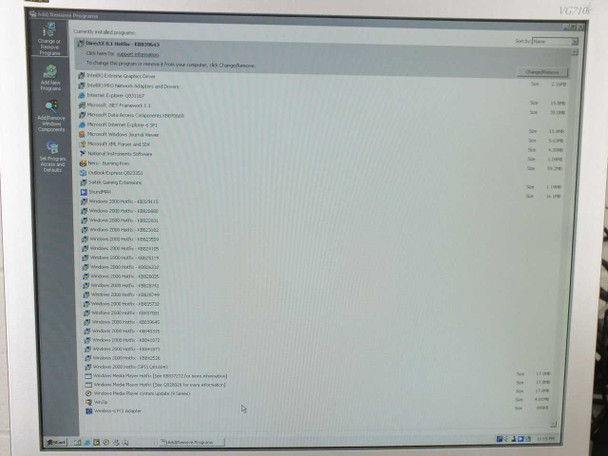

  • PC monitor screen showing Windows XP Add/Remove Programs panel with Fineplacer EM02B4.2 software and associated drivers/components listed

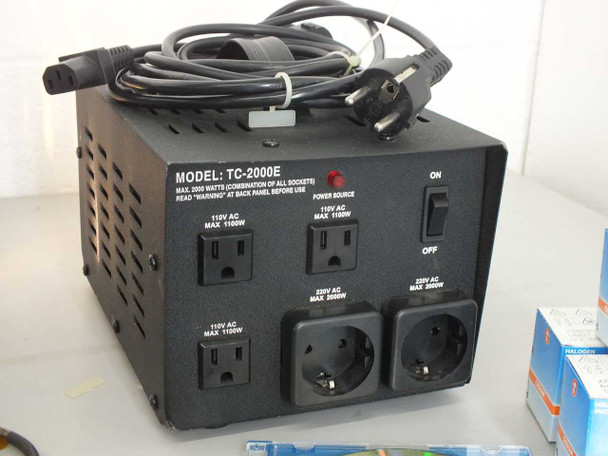

  • TC-2000E up/down voltage converter, model TC-2000E, showing 110V and 220V AC outlets (max 1100W and 2000W), power switch, and EU schuko input cable

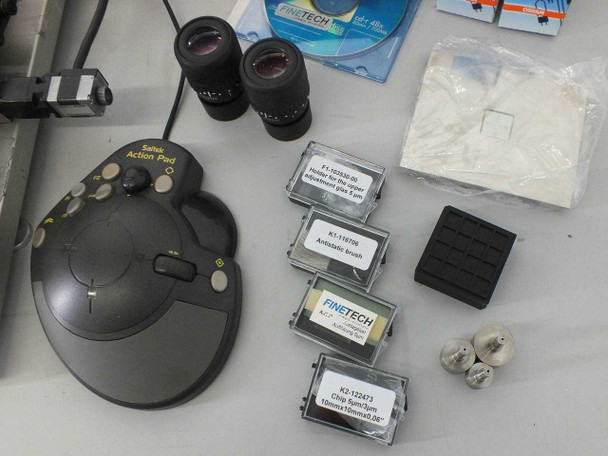

  • Accessories laid out including Saitek Action Pad joystick, two Leica eyepieces, Finetech accessory boxes (part numbers F1-502650-01, K1-116728, K2-132473 visible), foam pad, and small hardware pieces

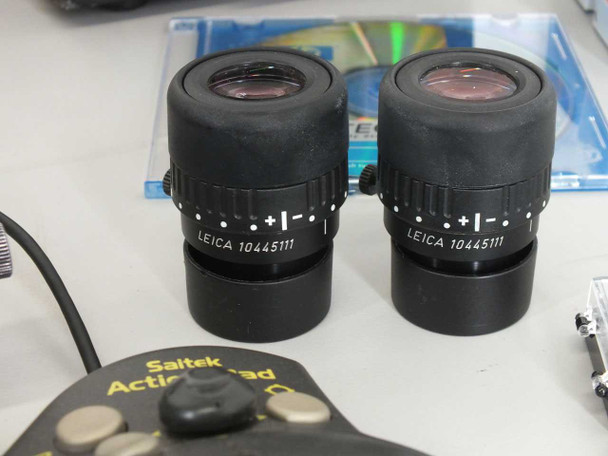

  • Pair of Leica 10445111 eyepieces with diopter adjustment rings, shown side by side with Saitek Action Pad and Finetech software CD in background
  • Finetech Fineplacer Manual PCB Rework Station with Leica MZ6 Microscope - AS IS
  • Finetech Fineplacer Manual PCB Rework Station with Leica MZ6 Microscope - AS IS
  • Finetech Fineplacer Manual PCB Rework Station with Leica MZ6 Microscope - AS IS
  • Finetech Fineplacer Manual PCB Rework Station with Leica MZ6 Microscope - AS IS
  • Finetech Fineplacer Manual PCB Rework Station with Leica MZ6 Microscope - AS IS
$8,000.00
Was: $16,000.00
Current Stock: 1

Sold Out

Description

Finetech Fineplacer PCB Rework Station Leica MZ6 Microscope SHOT-102 Stage

Benchtop PCB rework and die placement station combining Finetech Fineplacer control system with Leica MZ6 stereomicroscope and motorized stage. Used for microelectronics assembly, flip-chip placement, and die attach operations in manufacturing and repair environments.

Specifications & What's Included

  • Leica MZ6 microscope with Leica 10445111 2x eyepieces
  • Watec WAT-202B CCD color camera
  • Sigma Koki SHOT-102 two-axis stepping motor drive stage controller
  • Finetech Euromex EK-1 fiber optic light source (x2)
  • Finetech Placer Control unit with illumination, vacuum, and pipette mode controls
  • TC-2000E 110/220V converter (max 2000W)
  • Saitek Action Pad joystick controller
  • PC with Windows XP and Finetech software installed; monitor, keyboard included
  • Power: 230V, 100W (Fineplacer)
  • Benchtop dimensions: 20" x 26" x 20"

Applications

PCB rework stations of this type perform precision die placement, flip-chip assembly, and microelectronics repair with magnified vision and motorized stage positioning. The integrated microscope and CCD camera enable visual feedback for component placement and inspection. This equipment was standard in electronics manufacturing labs, repair facilities, and R&D environments for high-precision assembly work requiring sub-millimeter accuracy.

Condition: Used
The Finetech Fineplacer PCB Rework Station with Leica MZ6 Microscope is offered in used condition, sourced from a closed electrical engineering laboratory. This comprehensive system includes the main Fineplacer unit, Leica MZ6 stereo microscope, Sigma Koki SHOT-102 two-axis stage controller, two Finetech Euromex EK-1 fiber optic illuminators, Watec WAT-202B CCD camera, TC-2000E up/down converter, Saitek Action Pad joystick, control PC with monitor and keyboard, Finetech software CD, and associated accessories as shown in photos. The major components display cosmetic wear consistent with laboratory use. Please review the complete photo documentation to verify all included items and components before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Finetech
Model:
Fineplacer
Secondary Model:
Leica MZ6
MPN:
Fineplacer Code 145/27
SKU:
52060
Type:
Manual PCB Rework & Die Placement Station
Condition:
As-Is / For Parts or Not Working
Form Factor:
Benchtop
Power Requirements:
230V, 100W (Fineplacer); TC-2000E up/down converter included
Microscope Brand:
Leica
Microscope Model:
MZ6
Microscope Part Number:
Leica 10445302
Eyepieces:
Leica 10445111 (2x, visible on units)
Camera:
Watec WAT-202B CCD Color Camera
Stage Controller:
Sigma Koki SHOT-102 Two-Axis Stepping Motor Drive
Illumination:
Finetech Euromex EK-1 Fiber Optic Light Source (x2)
Up/Down Converter:
TC-2000E, 110/220V, Max 2000W
Placer Control Unit:
Finetech Placer Control (front panel: illumination, vacuum, pipette mode)
Joystick Controller:
Saitek Action Pad
Included Software:
Finetech Software CD
Included Computer:
PC, Monitor, Keyboard (Windows XP, Fineplacer software installed)
Main Unit Dimensions:
20" x 26" x 20"
Application / Use Case:
PCB rework, die attach, flip-chip placement, microelectronics
Country/Region of Manufacture:
Germany
Seller Notes:
Sold as-is from closed electrical engineering lab; may not be complete. Review photo set for included items.
Condition Notes:
Finetech Fineplacer PCB Rework Station w/ Leica MZ6 Microscope, Sigma Koki SHOT-102 stage & accessories. Used, from closed lab. See photos for complete contents & cosmetic condition.
