Research Devices M9 Infrared Microscope Heated Platform Rework Station Kulite

(No reviews yet) Write a Review
SKU:
43219
MPN:
M9
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
162.00 LBS
Shipping:
Calculated at Checkout
  • Research Devices M9 Infrared Microscope Heated Platform Rework Station – full system overview showing controller console with CRT monitor and microscope XY stage assembly
  • Research Devices M9 rework station controller console – close-up of Olympic Controls LED-35D process indicator reading 0.97 Kg and Quantem Temperature Controller reading 0.19°C, with PEDESTAL and TARG/GAIN AUTO/MAN toggle switches; QSI calibration label visible
  • Research Devices M9 controller console – Audiotronics-branded power switch panel with red indicator LED and ON/OFF toggle switch
  • Research Devices M9 controller console CRT monitor – close-up of H. HOLD, V. HOLD, BRIGHT, and CONTRAST adjustment knobs; model marking 9VM967 visible
  • Research Devices M9 infrared camera or illuminator module – side view showing circular aluminum-mount lens aperture with central black optical element
  • Research Devices M9 IR optical module – front-on close-up of circular aluminum-flanged lens mount with central infrared objective aperture and mounting screws
  • Research Devices M9 rework station illuminator control panel – ON/OFF rocker switch, AUTO/COLL–REFLECT toggle, HI/LO toggle, and INTENSITY rotary knob
  • Research Devices M9 rework station – close-up of precision micrometer adjustment mechanism on XY positioning stage, graduated scale visible (0–30 range)
  • Research Devices M9 infrared microscope objective turret – multiple Research Devices Infrared-branded objective lenses visible on revolving nosepiece, with collimator lens also present
  • Research Devices M9 heated platform stage – top view of circular aluminum heated platen with small orange semiconductor die/chip sample placed on surface
  • Research Devices M9 XY stage platform – top-down view of flat steel stage plate showing surface oxidation/rust patina, gas line fitting at center, and linear rail slides on sides
  • Research Devices M9 infrared microscope – front view of objective turret over XY stage platform showing multiple IR objectives positioned over stage surface; surface oxidation visible on stage plate
  • Research Devices M9 rework station – close-up of large cylindrical infrared optical assembly mounted on articulating arm above XY stage, with green signal wiring visible
  • Research Devices M9 rework station – Kulite Semiconductor Inc. Industrial Products Division transducer label showing INPUT 3277 OHMS and OUTPUT 852 OHMS, Ridgefield New Jersey
  • Research Devices M9 rework station – rear panel detail showing AUTO/MOTORS controls, HEATER OUT terminal block, and optical eyepiece port with wiring harness
  • Research Devices M9 rework station – side view of complete microscope/positioner column assembly with MTI-branded vertical column module, micrometer adjuster, and articulating arm with sample holder
  • Research Devices M9 rework station – close-up of Starrett-brand precision micrometer head mounted on vertical column assembly, graduated 0–20 scale visible
  • Research Devices M9 rework station – close-up of multi-pin circular connector (part number 206039-1 stamped on shell, Mexico markings) on interconnecting cable
  • Research Devices M9 infrared microscope – close-up of large-diameter black eyepiece/camera port tube on microscope body
  • Research Devices M9 Infrared Microscope Heated Platform Rework Station – full rear three-quarter view of complete system showing controller console, XY stage assembly, cabling, and gas lines
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
  • Research Devices M9 Infared Microscope Heated Platform Rework Station
$3,200.00
Was: $6,400.00
Current Stock: 1

Sold Out

Description

Research Devices M9 Infrared Microscope Heated Platform Rework Station Kulite

Benchtop infrared microscope system with heated XY positioning stage designed for semiconductor rework, die attach operations, and thermal inspection. Incorporates integrated controller console with temperature regulation and process monitoring.

Specifications & What's Included

  • Research Devices M9 infrared reflection/collimation microscope with multiple IR objective lenses
  • Heated platform with XY positioning stage
  • Kulite Semiconductor transducer (Input 3277 Ohms, Output 852 Ohms)
  • Controller console: Quantem Temperature Controller, Olympic Controls LED-35D Process Indicator, Audiotronics CRT monitor
  • Illumination controls: AUTO/COLL and REFLECT toggle, HI/LO intensity selection
  • Gas line fittings and multi-pin circular connectors included

Applications

Used in semiconductor manufacturing and rework environments for die attachment, bond wire repair, and infrared thermal inspection processes. The heated stage enables temperature-controlled operations critical to semiconductor assembly work. Typical applications include failure analysis, rework qualification, and process validation in semiconductor fabrication.

Condition: Used
This Research Devices M9 Infrared Microscope Heated Platform Rework Station has been inspected and appears to be in good condition. It was pulled from a working semiconductor environment where it was in active use and functional. The system includes the controller console (with integrated CRT monitor, Olympic Controls LED-35D process indicator, and Quantem temperature controller), the infrared microscope column with multiple Research Devices infrared objective lenses, the heated XY positioning stage, the Kulite Semiconductor transducer assembly, and the associated cabling. The XY stage plate shows surface oxidation/patina consistent with normal laboratory use. The controller console and optical components appear clean and intact. Gas line fittings are present. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Research Devices
Model:
M9
MPN:
M9
Type:
Infrared Microscope Heated Platform Rework Station
SKU:
43219
Condition:
Used – Pulled from Working Environment
Seller Notes:
Includes Kulite Semiconductor transducer, IR objective lenses, XY stage, controller console, and cabling
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Application / Use Case:
Semiconductor rework, die attach, IR inspection, bond wire repair
Illumination Type:
Infrared (IR)
Microscope Type:
Infrared Reflection/Collimation Microscope
Stage Type:
Heated Platform with XY Positioning Stage
Objective Type:
Research Devices Infrared Objectives (multiple, visible in photos)
Transducer / Sensor:
Kulite Semiconductor Inc. – Input 3277 Ohms, Output 852 Ohms
Controller:
Integrated console with Audiotronics monitor, Olympic Controls LED-35D, Quantem Temp Controller
Temperature Controller:
Quantem Temperature Controller (visible on console)
Process Indicator:
Olympic Controls Inc. LED-35D Process Indicator
Monitor:
Integrated CRT video monitor (Audiotronics branded)
Illumination Control:
AUTO/COLL / REFLECT toggle; HI/LO toggle; INTENSITY knob
Gas Lines:
Gas line fittings included (visible in photos)
Connector Type:
Multi-pin circular connector (206039-1, visible on cable)
Compatible With:
Semiconductor die attach, rework, and IR inspection processes
Heater Output:
Heater Out connection present on rear panel
Condition Notes:
Research Devices M9 IR Microscope Heated Rework Station pulled from a working semiconductor environment, in use and functional. Includes controller console, IR objectives, heated XY stage, Kulite transducer, and cabling.
View AllClose

Related Products

Related Products

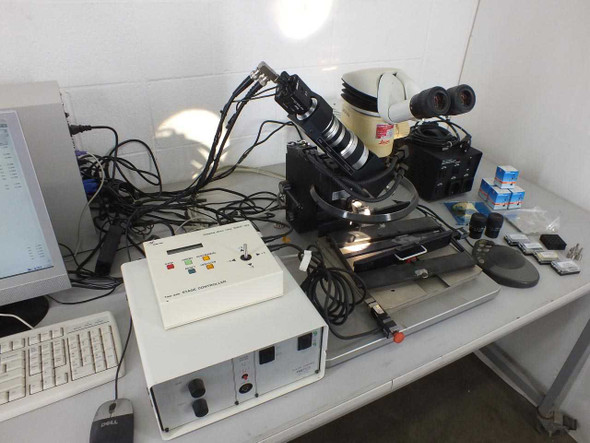

Finetech Fineplacer PCB rework station full system overview on workbench with Leica MZ6 microscope, PC, monitor, keyboard, controllers, and accessories Finetech Fineplacer system overview from left angle showing two-axis stage, Leica MZ6 microscope head, Sigma Koki SHOT-102 stage controller, and PC workstation
