Semiconductor Tools
Semiconductor tools are specialized equipment used in the manufacturing and testing of semiconductor devices. These tools are vital for the production of integrated circuits and other electronic components. Common examples include wafer fabrication tools, semiconductor metrology tools, and packaging equipment. Semiconductor tools are designed to ensure precision, accuracy, and efficiency in the semiconductor manufacturing process. They help in etching, deposition, patterning, and testing of semiconductor materials. These tools play a crucial role in the semiconductor industry, enabling the development of cutting-edge technology. Investing in high-quality semiconductor tools is essential for achieving optimal results in semiconductor manufacturing.
-
Varian 01-019314 HV Converter & Heater Supply Board Dash 00 Rev 12
Varian
$50.00Was: $100.00Varian 01-019314 HV Converter & Heater Supply Board Dash 00 Rev 12HV converter and heater supply PCB assembly for Varian semiconductor and vacuum process equipment. Board includes power transformer and filtering capacitors, connects via DB25 female...51818- SKU:
- 51818
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Varian
- Model:
- 01-019314
- MPN:
- 01-019314
- Secondary Model:
- 01-019314-00
- Type:
- HV Converter & Heater Supply PCB Assembly
- SKU:
- 51818
- Dash Number:
- Dash 00
- Revision:
- Rev 12
- Form Factor:
- Card / PCB Module with Aluminum Bracket
- Connector Type:
- DB25 Female (J3)
- Key Components:
- Sprague 10.0uF 10% 400 DC capacitors (x3), power transformer
- Application:
- Varian semiconductor / vacuum process equipment
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Board only with aluminum side bracket. Pulled from a working Varian system.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Varian 01-019314 HV Converter & Heater Supply, Dash 00 Rev 12. Pulled from a working Varian system where it was in active use. Inspected and in good condition. PCB, capacitors, DB25 connector, and bracket all appear intact.
$50.00Was: $100.00 -

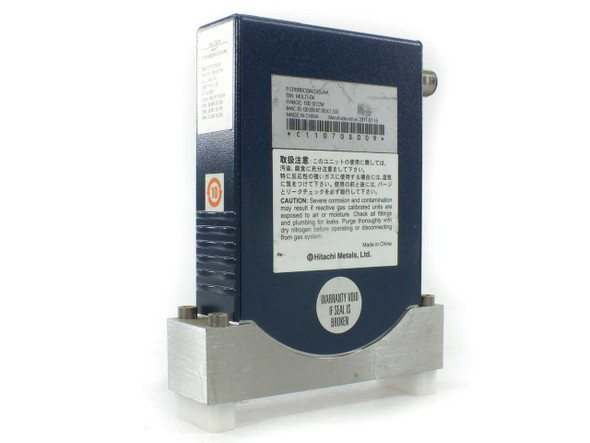

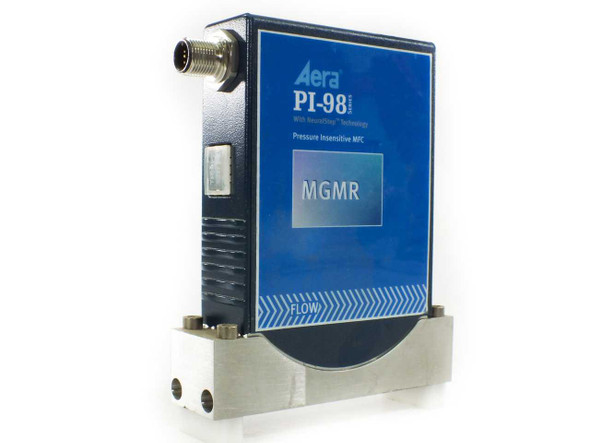

Aera PI-98 PI-980 Pressure Insensitive MFC Mass Flow Controller 100 SCCM N2
Hitachi Metals
$135.00Was: $275.00Aera PI-98 PI-980 Pressure Insensitive MFC Mass Flow Controller 100 SCCM N2Pressure insensitive thermal mass flow controller for nitrogen gas management. The PI-980 series uses NeuralStep technology to maintain accurate flow rates across varying...51811- SKU:
- 51811
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.65 LBS
- Brand:
- Aera (Hitachi Metals)
- Model:
- PI-98
- Secondary Model:
- PI-980 Series
- MPN:
- 0190-34212
- SKU:
- 51811
- Type:
- Pressure Insensitive Mass Flow Controller (MFC)
- Gas Type:
- N2 (Nitrogen)
- Full Scale Flow Range:
- 100 SCCM
- Semi Gas Code:
- 13
- Conversion Factor (CF):
- 1.000
- BIN Configuration:
- MULTI-04 (MGMR — Multi-Gas Multi-Range)
- Technology:
- NeuralStep Pressure Insensitive Thermal MFC
- Connector Type:
- M12 circular connector (top)
- Interface:
- Digital — Address/Data Rate rotary switches, NET/MOD/STATUS indicators
- Flow Direction:
- Labeled FLOW on body
- Application:
- Semiconductor etch, CVD, PVD, diffusion processes
- Form Factor:
- Inline / Panel Mount
- Country/Region of Manufacture:
- China
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Unit only — no cables or accessories included. Part 0190-34212.
- Condition Notes:
- Aera PI-98 PI-980 MFC (0190-34212), 100 SCCM N2. Inspected, good used condition. Pulled from a working semiconductor processing environment. Normal handling wear. M12 connector and manifold ports appear intact.
$135.00Was: $275.00 -
Advanced Energy Aera PI-980 MFC Mass Flow Controller 10000 SCCM N2
Advanced Energy
$85.00Was: $175.00Advanced Energy Aera PI-980 MFC Mass Flow Controller 10000 SCCM N2 FCPIDN980C-ABAPressure insensitive mass flow controller designed for semiconductor process gas flow regulation. This unit handles nitrogen at flow rates up to 10000 SCCM with DeviceNet...51795- SKU:
- 51795
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 6.00 LBS
- Brand:
- Advanced Energy
- Model:
- PI-980
- MPN:
- FCPIDN980C-ABA
- Secondary Model:
- Aera PI-980
- Type:
- Pressure Insensitive Mass Flow Controller (MFC)
- SKU:
- 51795
- Flow Range:
- 10000 SCCM
- Calibration Gas:
- N2 (Nitrogen)
- Communication Protocol:
- DeviceNet (DNET)
- Firmware Version:
- DNET FW 2.10
- Diaphragm Material:
- SPRON 510
- Seat Material:
- PCTFE
- BIN:
- MULTI-08
- OEM Customer:
- AMAT (Applied Materials)
- Inlet/Outlet Valve:
- Ham-Let HMC20-4VKC Metal Diaphragm Valve
- Valve Cv:
- 0.3
- Valve Body Material:
- SUS 316
- Valve Normally:
- Normally Closed
- Country/Region of Manufacture:
- China
- Manufacture Date:
- 2009-05-26
- Form Factor:
- Surface Mount / Stick Module
- Application:
- Semiconductor process gas flow control
- Compatible With:
- Applied Materials (AMAT) semiconductor process tools
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:

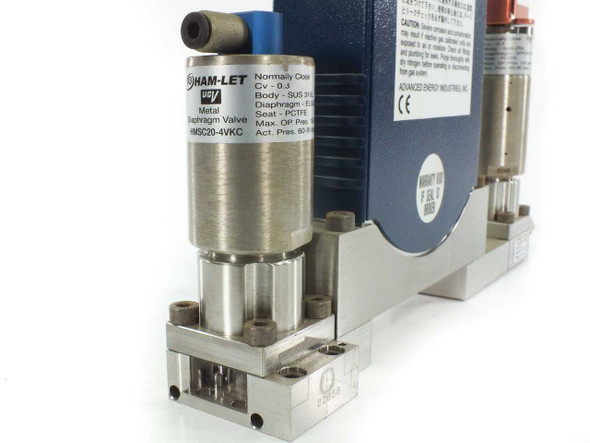

- Includes MFC body with inlet/outlet Ham-Let metal diaphragm valves on manifold base
- Condition Notes:
- Advanced Energy Aera PI-980 MFC (FCPIDN980C-ABA) inspected and in good used condition. Pulled from a working semiconductor fab environment where it was in active use. Body, valves, and manifold intact with normal wear.
$85.00Was: $175.00 -

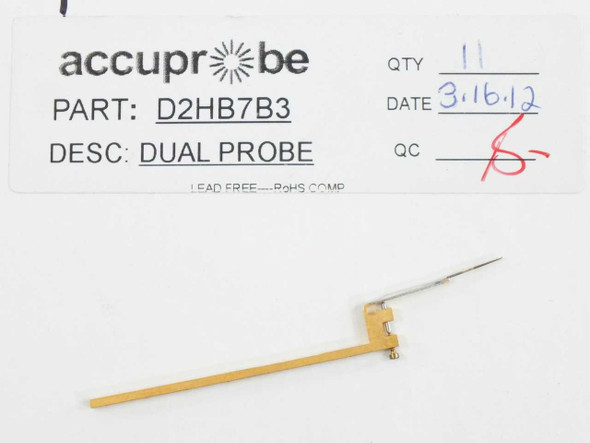

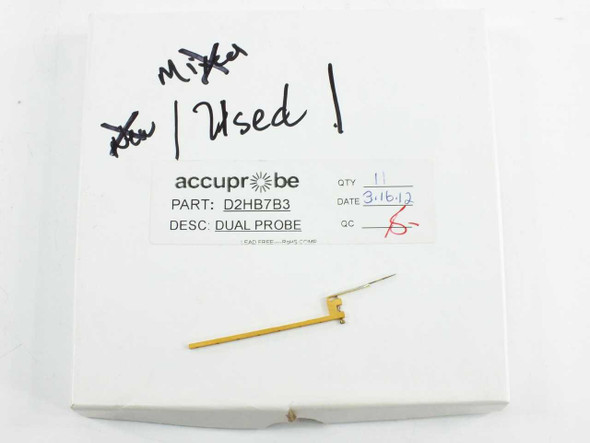

Accuprobe D2HB7B3 Dual D-Type Probe Card Probe BeCu Long Standard Tip 15 mil
Accuprobe Inc
$110.00Was: $225.00Accuprobe D2HB7B3 Dual D-Type Probe Card Probe BeCu Long Standard Tip 15 milThe Accuprobe D2HB7B3 is a Dual D-Type probe designed for use with probe cards in semiconductor wafer testing applications. It features a beryllium copper (BeCu) needle mounted...51721- SKU:
- 51721
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 0.60 LBS
- Brand:
- Accuprobe
- Model:
- D2HB7B3
- MPN:
- D2HB7B3
- Type:
- Dual D-Type Probe Card Probe
- SKU:
- 51721
- Blade Type:
- Standard (D-Type)
- Holder Length:
- Long – 1.720" (43.688 mm)
- Needle Material:
- Beryllium Copper (BeCu)
- Needle Diameter:
- 15 mils (0.381 mm)
- Tip Diameter:
- 0.005" (0.127 mm)
- Tip Drop (B):
- 0.015" (0.381 mm)
- Tip Depth (D):
- 0.324" (8.230 mm)
- Tip Extension L1:
- 0.350" (8.89 mm)
- Overall Length:
- 0.900" (22.86 mm)
- RoHS Compliance:
- Lead-Free / RoHS Compliant
- Compatible With:
- Probe Cards – D-Type Blade Configuration
- Application:
- Semiconductor Wafer Probing / IC Testing
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Listing is for a single probe. Inspected and in good condition.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Accuprobe D2HB7B3 Dual D-Type BeCu probe card probe. Inspected and in good condition. Normal handling wear. BeCu needle and gold blade holder intact. Original box included.
$110.00Was: $225.00 -

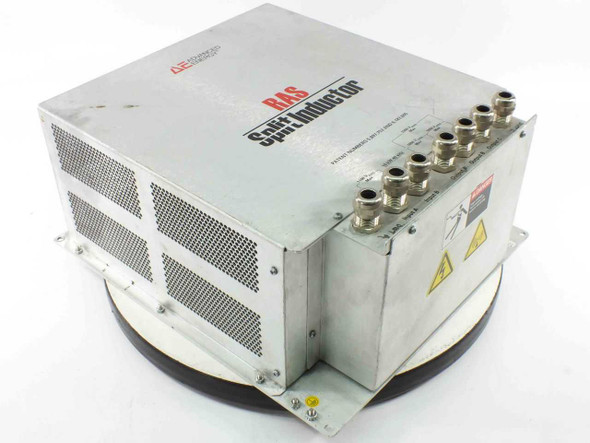

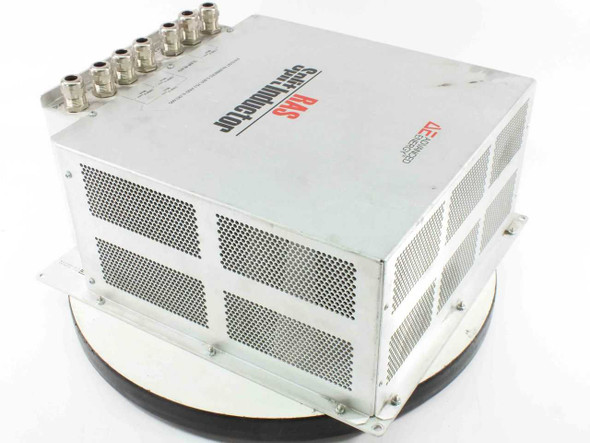

Advanced Energy RAS Split Inductor 10kW 40kHz 3152522-001B Semiconductor
Advanced Energy
$900.00Was: $1,800.00Advanced Energy RAS Split Inductor 10kW 40kHz 3152522-001B SemiconductorRF split inductor and power filter module designed for Advanced Energy RAS semiconductor processing systems. Handles high-voltage multi-output distribution in plasma-based...51712- SKU:
- 51712
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 29.00 LBS
- Brand:
- Advanced Energy
- Model:
- RAS Split Inductor
- MPN:
- 3152522-001B
- Secondary Model:
- 3152522-001 B
- SKU:
- 51712
- Type:
- RF Split Inductor / Power Filter Module
- Power Rating:
- 10 kW
- Frequency:
- 40 kHz
- Input Voltage Max:
- 1100 V max (Input A, Input B)
- Output Voltage Max A:
- 1650 V max (Output A)
- Output Voltage Max B:
- 2300 V max (Output B)
- Output Voltage Max C:
- 1650 V max (Output C)
- Connections:
- Multi-port high-voltage bulkhead connectors (Input A/B, Output A/B/C)
- Application:
- Semiconductor plasma/PVD/CVD RF power systems
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Sold as-is, untested. Unit only — no cables or accessories included.
- Country/Region of Manufacture:
- United States
- Form Factor:
- Standalone / Panel-Mount Module
- Condition Notes:
- Advanced Energy RAS Split Inductor 3152522-001B sold as-is. We were unable to test this unit — functionality not confirmed. Fair used cosmetic condition. No cables or accessories. Sold for parts or repair.
$900.00Was: $1,800.00 -
Advanced Energy MDX Pinnacle 8kW DC Power Supply B5181854DD 400V 3-Phase
Advanced Energy AE
$2,200.00Was: $4,400.00Advanced Energy MDX Pinnacle 8kW DC Power Supply B5181854DD 400V 3-PhaseDC magnetron drive power supply designed for industrial plasma and vacuum deposition systems. Operates from 400V three-phase AC input and delivers 8 kW of regulated DC output for...51709- SKU:
- 51709
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 56.00 LBS
- Brand:
- Advanced Energy
- Model:
- B5181854DD
- Secondary Model:
- 3152352-122B
- MPN:
- B5181854DD
- SKU:
- 51709
- Type:
- DC Magnetron Drive Power Supply
- Product Line:
- MDX Pinnacle
- Power Output:
- 8 kW
- Input Voltage:
- 400V AC
- Input Current:
- 22A
- Phase:
- Three Phase
- Frequency:
- 50/60 Hz
- Application:
- PVD Sputtering, Plasma Etch, Semiconductor
- Form Factor:
- Rackmount, 3U
- Condition:
- Used – Inspected
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Unit only; inspected and appears to be in good condition.
- Condition Notes:
- Advanced Energy MDX Pinnacle 8kW DC Power Supply B5181854DD has been inspected and appears to be in good condition with typical rack wear. Please view our photos and contact us with any questions.
$2,200.00Was: $4,400.00 -
Entegris Fluoroware H20-551 9-Slot 2" Wafer Chip Tray w/ Cover Bare Die CSP
Entegris
$50.00Was: $100.00Entegris Fluoroware H20-551 9-Slot 2" Wafer Chip Tray w/ Cover Bare Die CSP Lot/10This lot consists of 10 complete sets of Entegris Fluoroware H20-551 9-slot wafer chip trays, each paired with its H20-02 clear cover and H20-0B retention clip. The trays...51620- SKU:
- 51620
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 0.95 LBS
- Brand:
- Entegris
- Model:
- H20-551
- MPN:
- H20-551
- Type:
- Wafer Chip Tray with Cover
- SKU:
- 51620
- Lot Size:
- 10 Sets (Tray + Cover + Clip each)
- Tray Model:
- Entegris Fluoroware H20-551
- Cover Model:
- Fluoroware H20-02
- Clip Model:
- Fluoroware H20-0B
- Number of Slots:
- 9
- Wafer Size:
- 2 inch (2")
- Tray Dimensions:
- 2" x 2"
- Die Type Compatibility:
- Bare Die, CSP (Chip Scale Package)
- Material:
- Fluoroware (fluoropolymer plastic)
- Application / Use Case:
- Semiconductor wafer die storage and transport
- Condition:
- Used – Inspected
- Seller Notes:
- Lot of 10 sets; each set includes tray, cover, and clip. Chips and sharpie markings included; markings clean off with rubbing alcohol.
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Lot of 10 used Entegris H20-551 9-slot 2" wafer chip trays, each with H20-02 cover and H20-0B clip. Sharpie markings on covers clean off easily with rubbing alcohol. Chips included. Good used condition.
$50.00Was: $100.00 -
Glo-Quartz TR91-12A Infrared Belt Dryer 9kW 240V 38A 12" Belt 96" Semiconductor
Glo-Quartz
$2,000.00Was: $4,000.00Glo-Quartz TR91-12A Infrared Belt Dryer 9kW 240V 38A 12" Belt 96" SemiconductorThe Glo-Quartz TR91-12A is a tabletop infrared conveyor belt dryer manufactured by Glo-Quartz Electric Heater Co., Inc. (Pasadena, CA / Mentor, OH). It uses a quartz infrared...51548- SKU:
- 51548
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 266.00 LBS
- Brand:
- Glo-Quartz
- Model:
- TR91-12A
- MPN:
- TR91-12A
- Type:
- Infrared Conveyor Belt Dryer
- SKU:
- 51548
- Manufacturer:
- Glo-Quartz Electric Heater Co., Inc.
- Manufacturer Location:
- Pasadena, CA / Mentor, OH
- Cat No.:
- A9
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Belt runs smoothly; tested to 345°F at TEMP setting 48
- Form Factor:
- Tabletop / Floor-Standing Conveyor
- Power Requirements:
- 240V AC, Single Phase, 38A, 9kW
- Voltage Rating:
- 240V AC
- Current Rating (Amps):
- 38A
- Power Rating:
- 9 kW
- Phase:
- Single Phase
- Heating Method:
- Infrared Quartz
- Belt Width:
- 12 inches
- Belt Length:
- 96 inches (192 inches total loop)
- Max Belt Speed:
- 16 ft/min (192 in/min)
- Min Belt Speed:
- 0.37 in/min (4.4 in/min)
- Max Temperature (Tested):
- 345°F at TEMP dial setting 48
- Temperature Control Range:
- TEMP dial 0–84
- Heating Chamber Dimensions:
- 45"L x 13"W x 4-3/4"H
- Overall Dimensions:
- 109"L x 20"W x 36"H
- Controls:
- Conveyor on/off, Speed dial, Heat on/off, Zone 1 dial
- Ammeter:
- Glo-Quartz branded AC Amperes panel meter
- Exhaust:
- Top-mounted exhaust duct/hood
- Application / Use Case:
- Semiconductor, PCB, screen printing, flux/coating drying
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Glo-Quartz TR91-12A Infrared Belt Dryer, powered and tested — belt runs smoothly, heats to 200°F at 18A, tested to 345°F at TEMP setting 48. Removed from semiconductor facility. Good working order. View photos; contact us with questions.
$2,000.00Was: $4,000.00
