Description
NAS Electronics Equitec Heated PCB Reflow Soldering Assembly Tool SMC Pneumatic

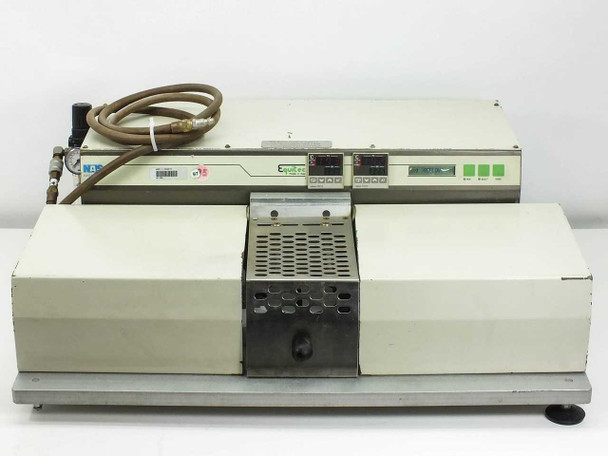

Benchtop-mounted heated PCB reflow soldering tool designed for circuit board assembly operations. Dual heating zones with pneumatic actuation control the reflow process.
Specifications & What's Included

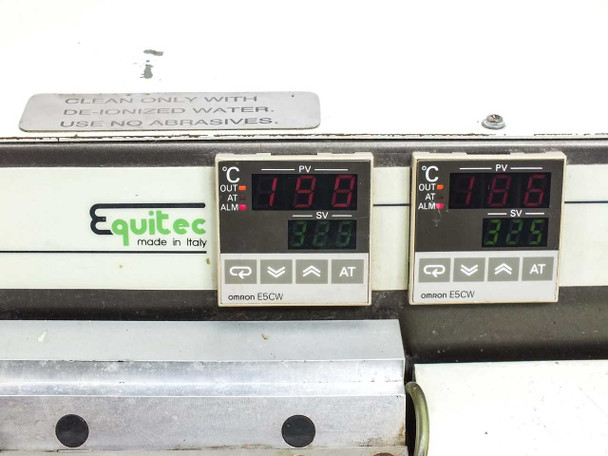

- Dual Omron E5CW temperature controllers with digital PV/SV readout (°C)

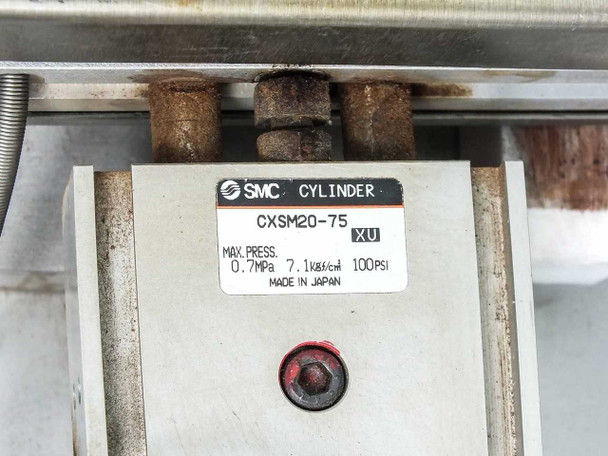

- SMC CXSM20-75 XU pneumatic cylinder, max pressure 0.7 MPa (100 PSI)
- SMC EAW2000 filter regulator, set pressure 0.5–8.5 bar
- LCD display with RUN, SELECT, ENTER controls
- Reflow mode operation

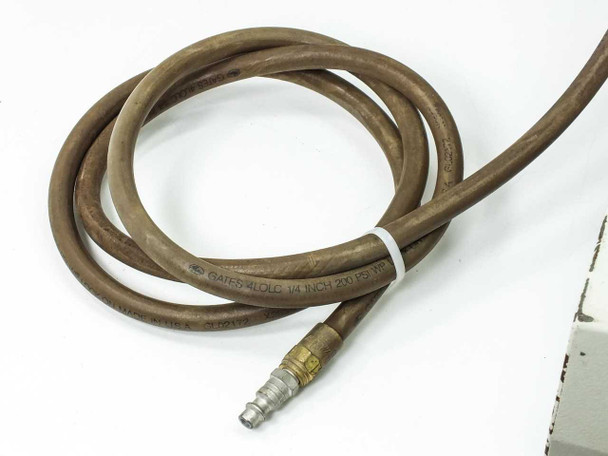

- Includes Gates Mold 1/4 inch 200 PSI compressed air hose
- Manufactured in Italy
Applications

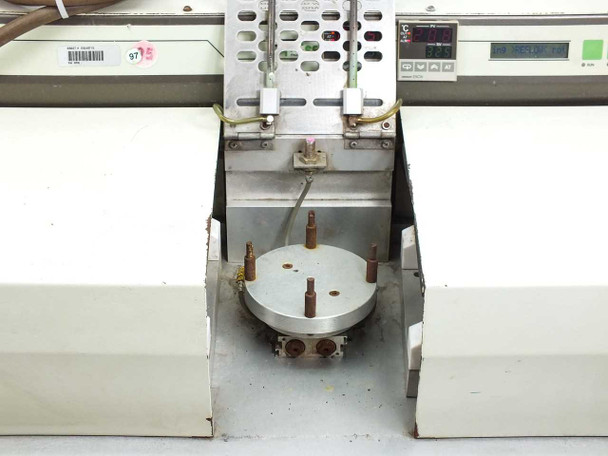

Used in electronics manufacturing for thermal reflow soldering of PCB components. The dual heated platens and programmable temperature control enable controlled heating profiles for surface mount and through-hole assembly work. Typical applications include production line soldering, prototype assembly, and rework stations in electronics facilities.
Condition: Used

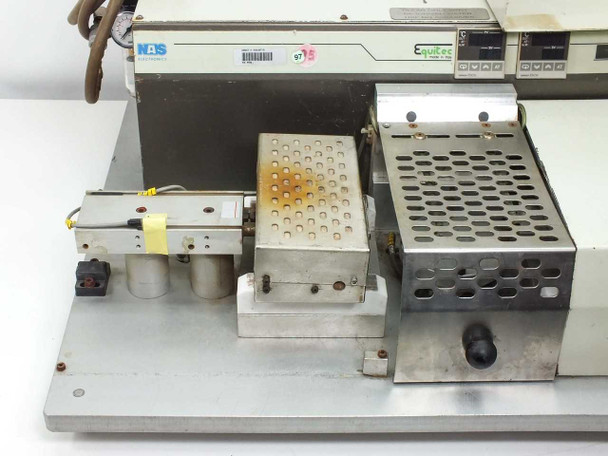

This NAS Electronics Equitec Heated PCB Reflow Assembly Tool has been inspected and is in good used condition. The unit shows normal wear consistent with prior industrial use, including some discoloration and oxidation on the stainless steel platen surfaces and metalwork, and general surface scuffing on the outer enclosure. The dual Omron E5CW temperature controllers are present and intact. The SMC CXSM20-75 pneumatic cylinder and SMC EAW2000 filter regulator assembly are included, as is the compressed air supply hose (Gates Mold 1/4 inch, 200 PSI). Please view our photo set and contact us if you have any questions.
This NAS Electronics Equitec Heated PCB Reflow Assembly Tool has been inspected and is in good used condition. The unit shows normal wear consistent with prior industrial use, including some discoloration and oxidation on the stainless steel platen surfaces and metalwork, and general surface scuffing on the outer enclosure. The dual Omron E5CW temperature controllers are present and intact. The SMC CXSM20-75 pneumatic cylinder and SMC EAW2000 filter regulator assembly are included, as is the compressed air supply hose (Gates Mold 1/4 inch, 200 PSI). Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
NAS Electronics |
Model: |
Equitec |
MPN: |
Equitec |
Type: |
Heated PCB Reflow / Circuit Board Assembly Tool |
SKU: |
46343 |
Country/Region of Manufacture: |
Italy |
Form Factor: |
Benchtop |
Temperature Controller: |
Dual Omron E5CW (x2) |
Temperature Controller Model: |
Omron E5CW |
Temperature Display: |
Dual digital PV/SV readout (°C) |
Pneumatic Cylinder: |
SMC CXSM20-75 XU |
Cylinder Max Pressure: |
0.7 MPa / 7.1 kgf/cm² / 100 PSI |
Filter Regulator: |
SMC EAW2000 |
Filter Regulator Set Pressure: |
0.5 – 8.5 bar |
Process Mode: |
Reflow (REFLOW mode displayed on LCD) |
Controls: |
RUN, SELECT, ENTER buttons; LCD display |
Air Supply: |
Pneumatic — requires compressed air input |
Air Hose: |
Included — Gates Mold 1/4 inch 200 PSI hose |
Heating Zones: |
Dual heated platens / zones |
Application: |
PCB reflow soldering, circuit board assembly |
Condition: |
Used – Inspected |
Seller Notes: |
Includes compressed air hose and SMC filter/regulator assembly |
Condition Notes: |
This NAS Electronics Equitec Heated PCB Reflow Assembly Tool has been inspected and is in good used condition. Shows normal wear and oxidation on platens. Dual Omron E5CW controllers, SMC pneumatic cylinder, filter regulator, and air hose included. |
