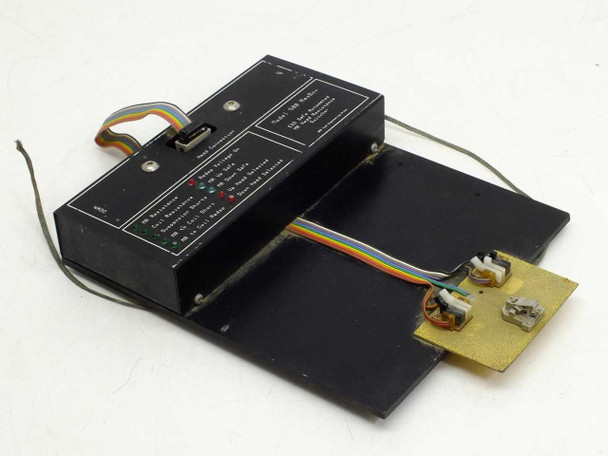

  • AMG Test Engineering 500 ResBox MR Head Resistance Switcher – three-quarter view showing main control unit, ribbon cable harness, and attached head test fixture board on black base plate

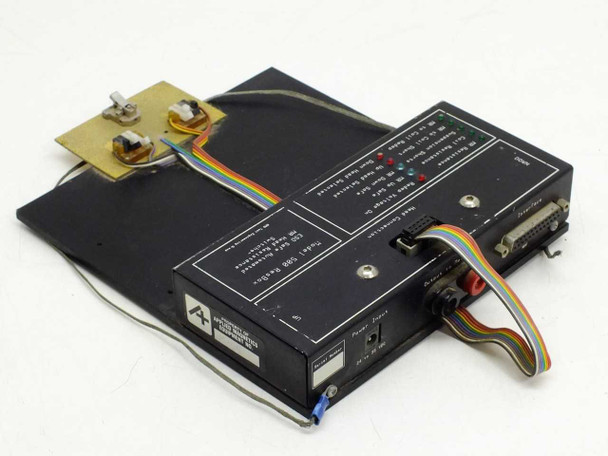

  • AMG Test Engineering 500 ResBox – rear three-quarter view showing D-Sub control interface connector on right side of main unit and head fixture board with trimmers
  • AMG Test Engineering 500 ResBox – close-up of front panel label showing Model 500 ResBox, ESD Safe Automated MR Head Resistance Switcher, AMG Test Engineering Group
  • AMG Test Engineering 500 ResBox – close-up of head test fixture board showing two trimmer potentiometers, ribbon cable connections, and spring-loaded head clamp fixture
  • AMG Test Engineering 500 ResBox – top-down front panel view showing Head Connection ribbon header, ten LED status indicators, and Model 500 ResBox label with function legend
$60.00
Was: $125.00
Current Stock: 1

Sold Out

Description

AMG Test Engineering 500 ResBox ESD Safe MR Head Resistance Switcher HDD

Benchtop test module designed for automated resistance measurement and characterization of magnetoresistive (MR) hard disk drive heads. Routes and measures MR head resistance values during HDD head testing and validation workflows.

Specifications & What's Included

  • Model: 500 ResBox | MPN: 500 ResBox
  • Type: MR Head Resistance Switcher with automated control
  • ESD safe design
  • Front panel ribbon cable header connector for head connection
  • Rear D-Sub control interface
  • LED indicators: MR resistance, coil resistance, suspension shorts, MR to coil short, MR to coil redep, redep voltage, head safe modes, and head selection status
  • Includes head test fixture board and ribbon cable harness
  • Made in USA

Applications

Used in HDD manufacturing and R&D environments for automated characterization and validation of MR read head performance. Integrates into test stations for measuring head resistance parameters, detecting shorts and defects, and validating head functionality before drive assembly. Commonly deployed in hard disk drive production facilities and engineering labs through the 2000s-2010s era of MR and GMR head technology development.

Condition: Used
This AMG Test Engineering Model 500 ResBox ESD Safe MR Head Resistance Switcher has been inspected and appears to be in good used condition. The main control unit, attached head test fixture board, and ribbon cable harness are all present and visually intact. The front panel LED indicators and labeling are clean and legible. Some light surface wear and minor scuffing on the enclosure is consistent with previous lab use. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
AMG Test Engineering Group
Model:
500 ResBox
MPN:
500 ResBox
Type:
MR Head Resistance Switcher
SKU:
46982
Condition:
Used – Inspected
Application / Use Case:
MR Head Resistance Testing, HDD Head Characterization
ESD Safe:
Yes
Automation:
Automated
Head Connection:
Ribbon cable header connector (front panel)
Control Interface:
D-Sub connector (rear panel)
LED Indicators:
MR Resistance, Coil Resistance, Suspension Shorts, MR to Coil Short, MR to Coil Redep, Redep Voltage On, MR Up Safe, MR Down Safe, Up Head Selected, Down Head Selected
Form Factor:
Benchtop / Standalone Module
Compatible With:
MR (Magnetoresistive) Hard Disk Drive Heads
Seller Notes:
Includes attached head test fixture board and ribbon cable harness.
Country/Region of Manufacture:
United States
Condition Notes:
AMG Test Engineering 500 ResBox MR Head Resistance Switcher. Inspected and in good used condition. Main unit, head fixture board, and ribbon cable harness present. Light surface wear consistent with lab use.
View AllClose

Related Products

Related Products

RDJ Controls 400 Resbox
Add to Cart
Quick view

RDJ Controls 400 Resbox

RDJ Controls

$59.00
Was: $125.00
RDJ Controls 400 Resbox  Condition: NewPlease view our photo set and contact us if you have any questions about the condition of this item.
26453
SKU:
26453
Weight:
0.00 LBS

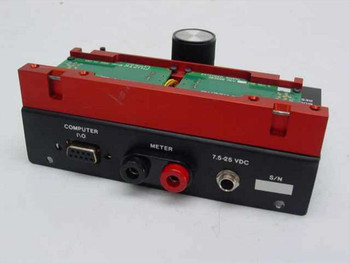

RDJ Controls Model 400 Resbox with Guzik 303600 Extender Controller Board installed – front three-quarter view showing red anodized extender board assembly, rotary knob, and MR-Coil/Coil/MR LED indicators on black chassis RDJ Controls Model 400 Resbox – rear panel view showing DB9 Computer I/O port, banana jack Meter outputs, 7.5–25 VDC power input jack, and serial number label
