Conner Peripherals Moon Lander II Static Head Tester 044205 Assy 04750-002

(No reviews yet) Write a Review
SKU:
31740
MPN:
44205
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
5.00 LBS
Shipping:
Calculated at Checkout

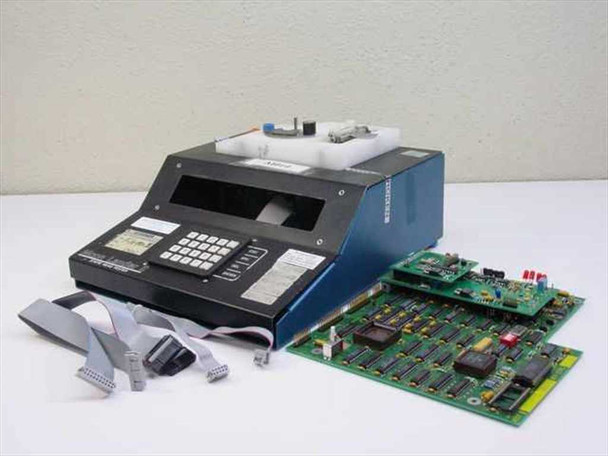

  • Conner Moon Lander II Static Head Tester 044205 — full unit shown with two PCBs and ribbon cables laid out in front

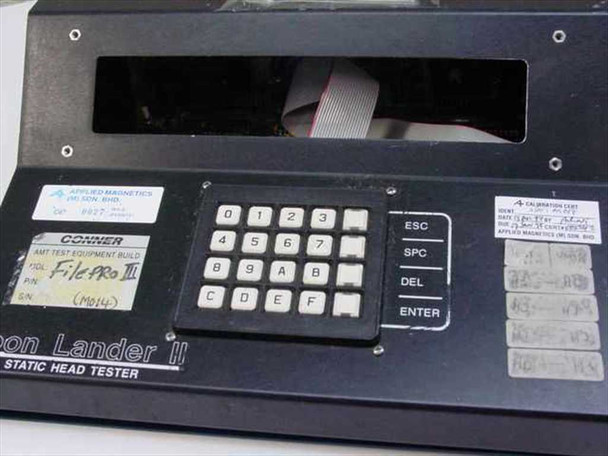

  • Conner Moon Lander II front panel showing hex keypad, ESC/SPC/DEL/ENTER keys, FilePro III label, and Applied Magnetics calibration stickers

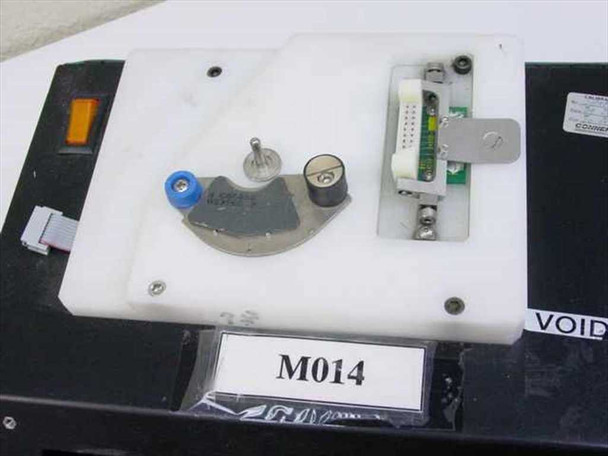

  • Moon Lander II M014 head fixture detail showing head stack mounting area, actuator arm, and VOID label on white plastic mechanism base
  • Conner Moon Lander II interior view showing main PCB Assy 04750-002 Rev Level 01 installed in blue chassis with internal power components

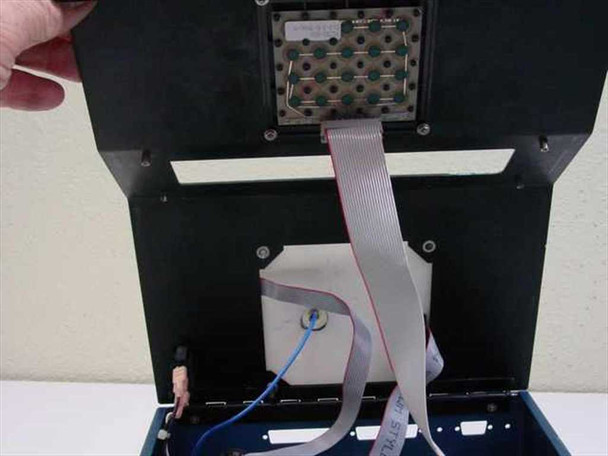

  • Moon Lander II interior rear view showing head fixture PCB mounted at top with ribbon cable routing and blue wire harness
  • Close-up of Conner PCB Assy 04750-002 Rev Level 01 showing IC chips including Malaysia-marked DIP ICs and hand-labeled FP3 socket area
  • Secondary PCB removed from unit showing multiple DIP ICs, red DIP switch, and yellow Assy label — Rev Level visible at board edge
  • Close-up of PCB silk-screen reading STATIC HEAD STACK TESTER P2B PCA 04750-002 with Texas Instruments SN74ALS244BN and Motorola SN74LS245N ICs

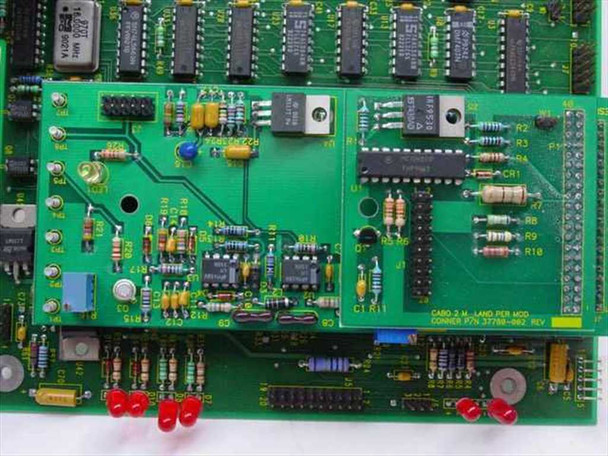

  • Close-up of secondary PCB labeled CABO 2M LAND PER MOD, CONNER P/N 37788-002 with red LED indicators and mixed DIP IC population
$85.00
Was: $175.00
Current Stock: 1

Sold Out

Description

Conner Peripherals Moon Lander II Static Head Tester 044205 Assy 04750-002

Benchtop testing apparatus designed for evaluating HDD read/write heads and head stack assemblies. This static head tester was used in Conner Peripherals' manufacturing and quality control operations.

Specifications & What's Included

  • Model: Moon Lander II | MPN: 044205
  • Assembly: Assy 04750-002 Rev Level 01
  • Head Fixture: M014
  • Main PCB (04750-002 Rev 01), secondary PCB, ribbon cables, M014 head fixture
  • Front panel: Hex keypad with ESC/SPC/DEL/ENTER keys and display window
  • Connectivity: Ribbon cable and internal PCB interconnect
  • Form Factor: Benchtop unit
  • Manufactured in United States

Applications

Static head testers were used to measure electrical parameters of hard drive read/write heads prior to full assembly and field deployment. This unit tested individual head elements and complete head stack assemblies for Conner's desktop and server-class drives. Typical use included resistance, capacitance, and continuity verification of magnetic transducer elements.

Condition: Used
This Conner Peripherals Moon Lander II Static Head Tester (P/N 044205) has been inspected and appears to be in good used condition. The unit is being offered as a parts unit. The main chassis and front panel keypad show normal handling wear consistent with lab use. The main PCB (Assy 04750-002, Rev Level 01) and secondary PCB are present and appear intact, with no obvious damage to the boards. Ribbon cables and the M014 head fixture are included. Applied Magnetics calibration and configuration stickers are visible on the front panel. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Conner Peripherals
Model:
Moon Lander II
MPN:
044205
Secondary Model:
04750-002
Type:
Static Head Tester
Assembly Number:
Assy 04750-002 Rev Level 01
Head Fixture:
M014
Application / Use Case:
HDD read/write head and head stack testing
Includes:
Main PCB (04750-002 Rev 01), secondary PCB, ribbon cables, M014 head fixture
Interface / Connectivity:
Ribbon cable, internal PCB interconnect
Front Panel:
Hex keypad, ESC/SPC/DEL/ENTER keys, display window
PCB Markings:
Static Head Stack Tester P2B PCA 04750-002
Condition:
Used – Inspected
SKU:
31740
Country/Region of Manufacture:
United States
Form Factor:
Benchtop
Seller Notes:
Includes main PCB (Assy 04750-002), secondary PCB, ribbon cables, M014 head fixture
Condition Notes:
Conner Moon Lander II Static Head Tester 044205 offered as a parts unit. Inspected and in good used condition. Includes main PCB (Assy 04750-002 Rev 01), secondary PCB, ribbon cables, and M014 head fixture. Normal lab wear. Contact us with questions.
View AllClose

Related Products

Related Products

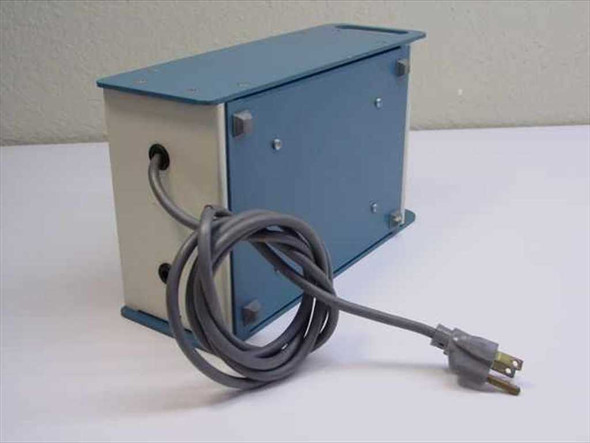

Moonlander Stubby M31460 Static Electrical Tester – front panel view showing LED indicators, toggle switch, red pushbutton, and product label Moonlander Stubby M31460 Static Electrical Tester – rear and side view showing attached AC power cord with standard NEMA 5-15 plug
