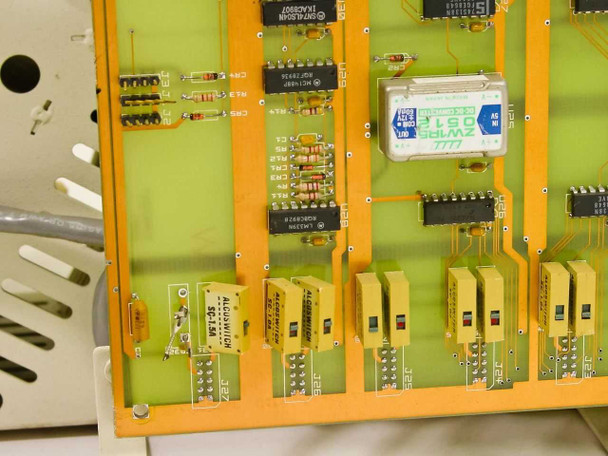

  • Close-up of HDR30 backplane board showing ICs including crystal oscillator labeled ZW-S1 DS1, along with Allegro switch components and resistor arrays
  • Close-up of HDR30 backplane PCB reverse side showing Texas Instruments SN74LS74AN and SN74LS125AN logic ICs and red connector headers
  • Conner Peripherals HDR30 burn-in rack chassis side view showing multi-row drive sled bays with wiring harnesses and connectors
  • Detail of HDR30 rack drive bays showing blue and red/white wiring harnesses routed through multiple sled slots
  • Close-up of an 8-pin drive connector from the HDR30 wiring harness showing bent and damaged pins
  • Close-up of Conner Peripherals HDR30 backplane PCB silkscreen showing 'CONNER PERIPHERALS 03370-001 REV-F1' printed on board edge
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Conner Peripherals HDR30 03370-001 Rev-F1 Hard Drive Burn-In Rack For Parts

This is a 30-slot hard drive burn-in rack designed for testing and aging Conner Peripherals hard drives. It functions as a test chassis for validating drive performance and reliability over extended operational periods.

Specifications & What's Included

  • Model: HDR30 (03370-001 Rev-F1)
  • Drive slots: 30 capacity
  • Backplane PCB: 03370-001 Rev-F1
  • Includes drive sleds and wiring harnesses with connectors
  • Manufactured in the United States

Applications

Hard drive burn-in racks like this HDR30 were used in manufacturing and quality assurance environments to stress-test drives at operating temperature under continuous load. These systems identified early failures and validated drive stability before shipment. The HDR30 supported Conner Peripherals' product line and was compatible with their HDD burn-in and aging test systems.

Condition: For Parts or Not Working
This Conner Peripherals HDR30 Hard Drive Burn-In Rack is being sold AS-IS for parts or repair. Some of the connector pins on the wiring harnesses are bent, as visible in the photos. The backplane board (03370-001 Rev-F1), drive sleds, and wiring harnesses are included and may be useful as donor parts. This unit has not been tested and is not guaranteed functional. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Conner Peripherals
Model:
HDR30
MPN:
03370-001
Secondary Model:
03370-001 Rev-F1
SKU:
34055
Type:
Hard Drive Burn-In Rack / Test Chassis
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes backplane board (03370-001 Rev-F1), drive sleds, and wiring harnesses. Some pins bent.
Form Factor:
Rack / Chassis
Compatible With:
Conner Peripherals hard drives; HDD burn-in/aging systems
Number of Drive Slots:
30 (approx., per HDR30 designation)
Backplane Part Number:
03370-001 Rev-F1
Includes:
Backplane PCB, drive sleds, wiring harnesses with connectors
Country/Region of Manufacture:
United States
Condition Notes:
Conner Peripherals HDR30 burn-in rack sold AS-IS for parts. Some wiring harness connector pins are bent. Includes backplane (03370-001 Rev-F1), sleds, and harnesses. Not tested, not guaranteed functional.
