Guzik C-201 300210 Head Calibrator PCB Assembly BNC Connector Calibration Board

(No reviews yet) Write a Review
SKU:
42740
MPN:
300210
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
  • Guzik C-201 300210 Head Calibrator PCB front side showing Guzik Technical Enterprises label, BNC connector, toroid inductor, and resistors with assembly and model label reading HEAD CALB. C-201 Serial 205
  • Guzik C-201 300210 Head Calibrator PCB reverse side showing solder traces, component pads, part number 300213 printed on board, BNC connector, and attached multi-wire harness
  • Close-up of Guzik 300210 Calibrator PCB label showing brand name Guzik Technical Enterprises, part number 300210, toroid coil T1, and resistors R1 and R2

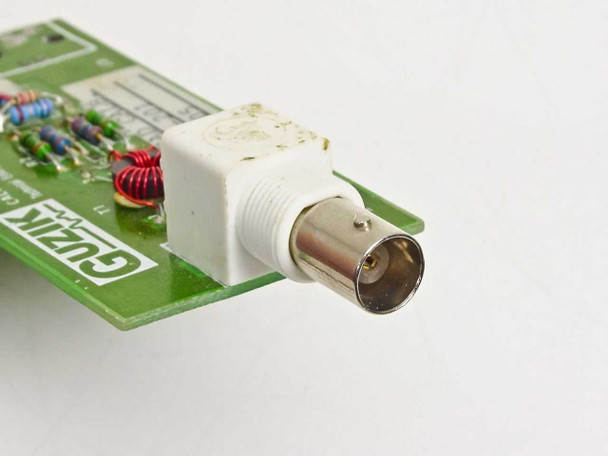

  • Close-up of white BNC connector on Guzik C-201 Head Calibrator PCB showing center pin and coupling nut detail

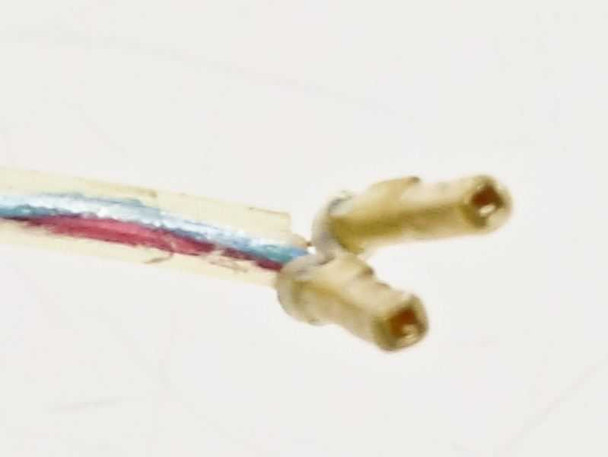

  • Close-up of multi-wire harness on Guzik C-201 calibrator showing two crimp pin female terminals on red, blue, and white wires
  • Close-up of single crimp pin female terminal on multi-wire harness from Guzik C-201 300210 Head Calibrator PCB
$75.00
Was: $150.00
Current Stock: 2

Sold Out

Description

Guzik C-201 300210 Head Calibrator PCB Assembly BNC Connector Calibration Board

PCB assembly used for magnetic head calibration in disk drive test systems. The board features a BNC connector interface and includes an attached multi-wire harness with crimp pin terminals.

Specifications & What's Included

  • Brand: Guzik Technical Enterprises
  • Model: C-201 / MPN: 300210
  • Type: Head Calibrator PCB Assembly
  • Connector: BNC with multi-wire harness and crimp terminals
  • Application: Magnetic head calibration and disk drive testing

Applications

This calibrator assembly was used in Guzik disk drive test equipment and similar magnetic media test systems. The head calibrator is part of the diagnostic chain for validating read/write head positioning and performance. Commonly integrated into automated test stations for hard disk drive manufacturing and repair operations.

Condition: Used
This Guzik C-201 Head Calibrator PCB assembly (300210) has been inspected and is in good used condition. The board is intact with no cracked substrate, missing components, or obvious damage to traces. The BNC connector is present and shows minor surface discoloration on the white housing. The toroid inductor, resistors, and passive components all appear intact and in place. The attached multi-wire harness terminates in crimp pin connectors; the wire insulation is intact. Some light surface wear and handling marks are visible on the PCB silkscreen. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
