Guzik

Guzik 302010 Filter32F8000 Program Filter PCB Assembly Card Rev B

(No reviews yet) Write a Review
SKU:
42736
MPN:
302010
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
1.00 LBS
Shipping:
Calculated at Checkout

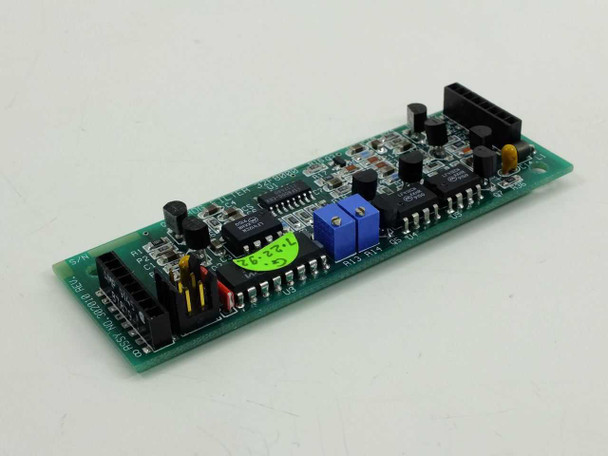

  • Guzik 302010 Filter32F8000 Program Filter PCB card – top view showing components, ICs, blue trimmers, and header connectors
  • Guzik 302010 Filter32F8000 Program Filter PCB card – bottom/solder-side view showing component markings and board traces
  • Guzik 302010 Filter32F8000 PCB close-up – board edge showing ASSY NO. 302010 REV B silkscreen, S/N location, and header J3
  • Guzik 302010 Filter32F8000 PCB close-up – corner detail showing LFH12CN KAAR IC, output header connector, and SMD components
$150.00
Was: $300.00
Current Stock: 1

Sold Out

Description

Guzik 302010 Filter32F8000 Program Filter PCB Assembly Card Rev B

Program filter PCB assembly card for Guzik hard drive test and servo analysis equipment. Bare PCB card module without enclosure.

Specifications & What's Included

  • Brand: Guzik
  • Model: Filter32F8000
  • MPN: 302010
  • Hardware Revision: Rev B
  • Form Factor: PCB Card / Module
  • Condition: Used – Inspected

Applications

This filter card is used in Guzik hard drive diagnostic and servo analysis systems. The Filter32F8000 processes and conditions signals for drive testing applications. Compatible with Guzik test equipment platforms that accept this PCB module format. Typically installed in test benches and automated drive characterization systems.

Condition: Used
This Guzik 302010 Filter32F8000 Program Filter PCB card has been inspected and is in good used condition. The board is clean with no visible damage, broken components, or burnt areas. Normal minor handling marks are present consistent with previous use. The board silkscreen confirms ASSY NO. 302010 REV B. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Guzik
Model:
Filter32F8000
MPN:
302010
Type:
Program Filter PCB Assembly Card
SKU:
42736
Hardware Revision:
Rev B
Form Factor:
PCB Card / Module
Condition:
Used – Inspected
Seller Notes:
Bare PCB card only; no enclosure. Inspected and in good condition.
Compatible With:
Guzik hard drive test and servo analysis equipment
Condition Notes:
Guzik 302010 Filter32F8000 Program Filter PCB card. Inspected and in good used condition. Board is clean with no visible damage. ASSY NO. 302010 REV B confirmed on silkscreen.
