Moonlander Stubby M31460 Static Electrical Tester Voice Coil Shorts Head Sel

(No reviews yet) Write a Review
SKU:
31259
MPN:
M31460
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
6.00 LBS
Shipping:
Calculated at Checkout

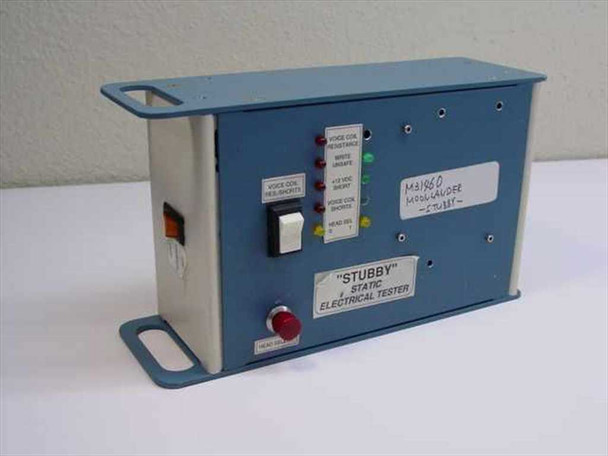

  • Moonlander Stubby M31460 Static Electrical Tester – front panel view showing LED indicators, toggle switch, red pushbutton, and product label

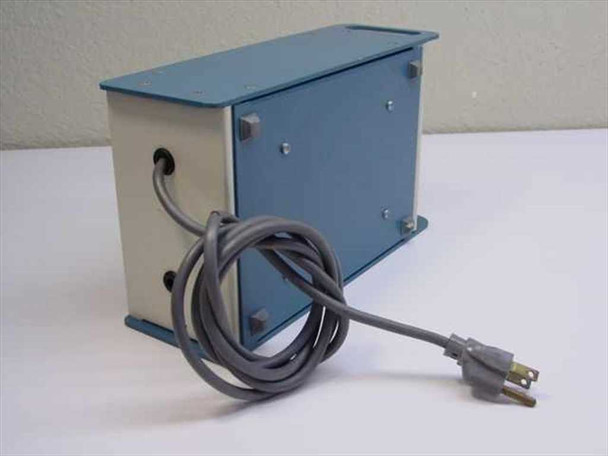

  • Moonlander Stubby M31460 Static Electrical Tester – rear and side view showing attached AC power cord with standard NEMA 5-15 plug
  • Moonlander Stubby M31460 Static Electrical Tester – front panel close-up showing voice coil resistance, write unsafe, +12VDC short, voice coil shorts, and head select LED indicators with handwritten M31460 Moonlander Stubby label
  • Moonlander Stubby M31460 Static Electrical Tester – power rocker switch close-up with ON/OFF label
$75.00
Was: $150.00
Current Stock: 1

Sold Out

Description

Moonlander Stubby M31460 Static Electrical Tester Voice Coil Shorts Head Sel

Benchtop static electrical tester designed for disk drive head and voice coil diagnostics. Tests voice coil resistance, voice coil shorts, write unsafe conditions, +12VDC shorts, and head select functionality with LED indicator feedback.

Specifications & What's Included

  • Model: Moonlander Stubby M31460
  • Power: 120V AC (NEMA 5-15 plug)
  • Test Functions: Voice Coil Res/Shorts, Write Unsafe, +12VDC Short, Head Select 0/1
  • Indicators: Red, green, and yellow LEDs for each test function
  • Controls: Toggle switch (Voice Coil Res/Shorts), Head Select switch, Power rocker switch
  • Includes attached AC power cord

Applications

This tester was used in disk drive manufacturing and repair facilities to verify the electrical integrity of read/write heads and voice coil assemblies. Commonly deployed in hard disk drive production lines and service centers during the 1990s-2000s for quality assurance testing. Identifies shorts and resistance faults in voice coil systems before assembly or repair completion.

Condition: Used
This Moonlander Stubby M31460 Static Electrical Tester was pulled from a working environment where it was in active use and functional. It has been inspected and is in good used condition. The front panel labels, LED indicators, and controls are all intact and legible. The unit shows light cosmetic wear consistent with bench use — the enclosure has minor scuffing and the label on the front panel is in good shape. The attached AC power cord is included and shows no damage. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Unbranded
Model:
Moonlander Stubby
MPN:
M31460
Type:
Static Electrical Tester
SKU:
31259
Condition:
Used – Pulled from Working Environment
Form Factor:
Benchtop
Power Requirements:
120V AC (standard NEMA 5-15 plug)
Features:
Voice Coil Resistance, Voice Coil Shorts, Write Unsafe, +12VDC Short, Head Select 0/1
Indicators:
Red, green, and yellow LED indicators for each test function
Controls:
Toggle switch (Voice Coil Res/Shorts), Head Select switch, Power rocker switch
Application:
Disk drive head and voice coil static electrical testing
Seller Notes:
Includes attached AC power cord (NEMA 5-15).
Country/Region of Manufacture:
United States
Condition Notes:
Moonlander Stubby M31460 Static Electrical Tester pulled from a working environment where it was in active use and functional. Inspected and in good used condition. Front panel, LEDs, and controls intact. Includes AC power cord.
View AllClose

Related Products

Related Products

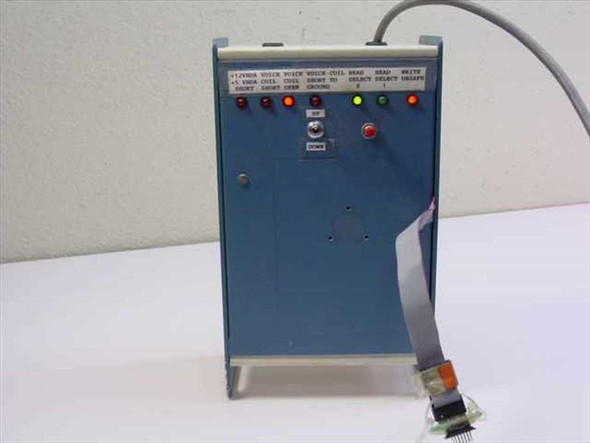

Unbranded M31461 Stubby Tester for Static Electricity Unbranded M31461 Stubby Tester for Static Electricity
