M31461 Hard Disk Drive HDD Fault Tester +12V +5V Voice Coil Head Select

M31461 Hard Disk Drive HDD Fault Tester +12V +5V Voice Coil Head Select Indicator

The M31461 is a benchtop hard disk drive fault test fixture designed to monitor and indicate fault conditions across the key electrical subsystems of a hard disk drive under test. The front panel provides a row of labeled LED indicators corresponding to the major HDD signal lines, giving a technician an at-a-glance view of fault status during drive testing or troubleshooting.

Specifications & What's Included

• Model / Part Number: M31461
• Type: Hard Disk Drive (HDD) Fault Tester / Test Fixture
• Form Factor: Benchtop metal enclosure, blue and gray

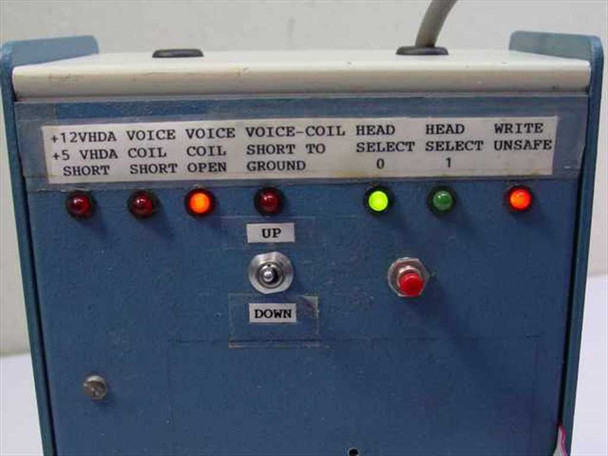

• Front panel LED fault indicators:
  • +12VHDA Short
  • +5VHDA Short
  • Voice Coil Short
  • Voice Coil Open
  • Voice-Coil Short to Ground
  • Head Select 0
  • Head Select 1
  • Write Unsafe
• Front panel controls: UP / DOWN toggle switch
• Side panel: Orange illuminated power rocker switch
• Interface: Ribbon cable (flat flex) connector for HDD attachment
• Rear: AC power cord
• Includes attached ribbon cable and power cord as shown

Applications

This type of HDD fault test fixture was used in disk drive manufacturing, repair, and quality-assurance environments — primarily during the era of full-height and half-height MFM, RLL, and early IDE hard drives from the late 1970s through the early 1990s, when voice-coil actuator drives became the dominant design. Technicians used benchtop testers like this one to verify power rail integrity (+12V and +5V HDA lines), check for voice coil faults (short to ground, short across coil, or open coil), confirm correct head select signaling (head 0 and head 1), and monitor the write unsafe line — a critical signal that prevents writes when drive conditions are out of spec. These fixtures were standard bench tools in drive repair shops, OEM manufacturing lines, and field service depots for brands such as Seagate, Miniscribe, Micropolis, Quantum, and others. Equipment of this type is still sought by vintage computing hobbyists, retro hardware restorers, and technicians maintaining legacy systems that rely on early Winchester-technology hard drives.
