Camtek Falcon PD 200mm Optical Wafer Inspection System Basler A201b Camera

(No reviews yet) Write a Review
SKU:
46801
MPN:
Falcon PD
Condition:
Used
Availability:
This item requires freight shipping. Please contact us for a shipping quote, to arrange local pickup, or to schedule a viewing at our facility.
Weight:
2,307.00 LBS
Shipping:
Calculated at Checkout

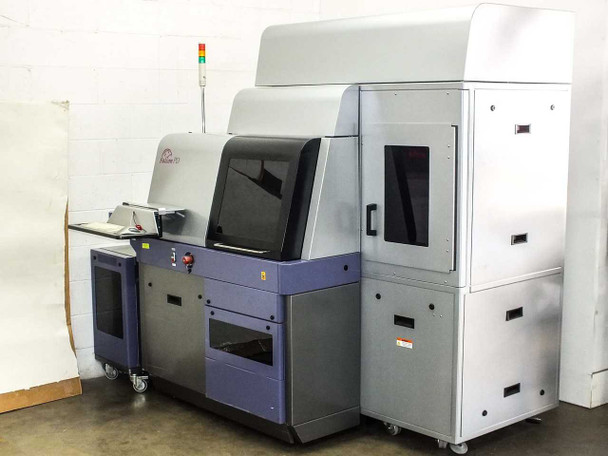

  • Camtek Falcon PD 200mm wafer inspection system – full system front view showing main inspection cabinet and auxiliary enclosure on casters

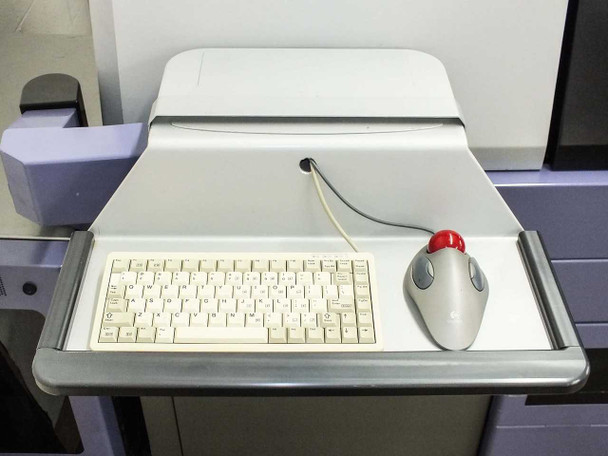

  • Camtek Falcon PD – operator console with compact keyboard and trackball mouse on sliding tray

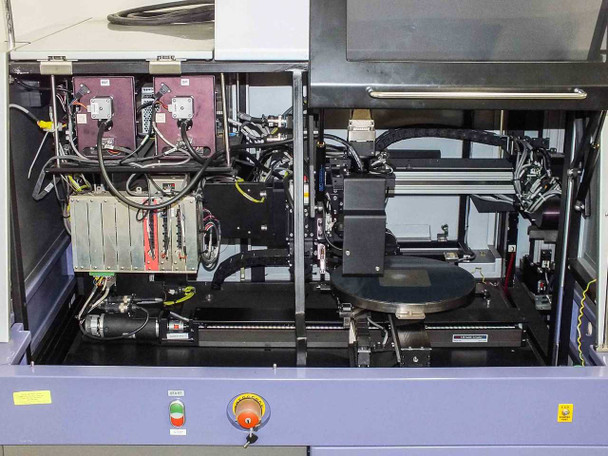

  • Camtek Falcon PD interior – open main cabinet showing wafer chuck stage, optical head assembly, REF and DIF detector modules, and motion subsystem

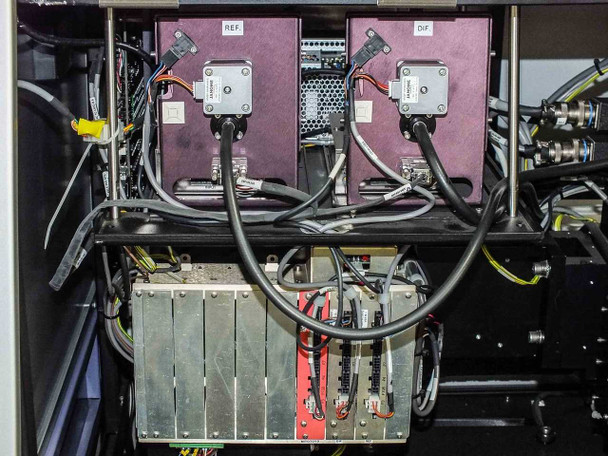

  • Camtek Falcon PD – close-up of REF and DIF labeled detector/illumination modules with cabling and electronics chassis below
  • Camtek Falcon PD – internal motor and actuator assembly with Mitutoyo labeled bracket, DIF/REF labels, and motion components; assembly label SA029W795 REV.A visible
  • Camtek Falcon PD – optical subassembly showing 9600-series component module mounted on precision XY stage with fine adjustment hardware
  • Camtek Falcon PD – optical inspection head close-up showing dual-lens objective turret assembly with laser warning label and precision mounting hardware

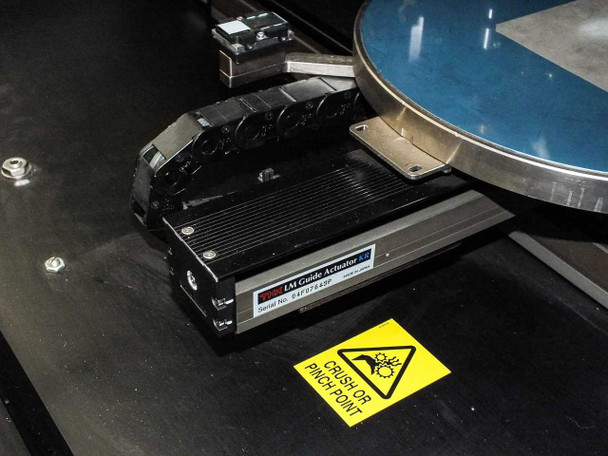

  • Camtek Falcon PD – IAI Guide Actuator linear stage with crush/pinch point warning label, adjacent to wafer chuck platen

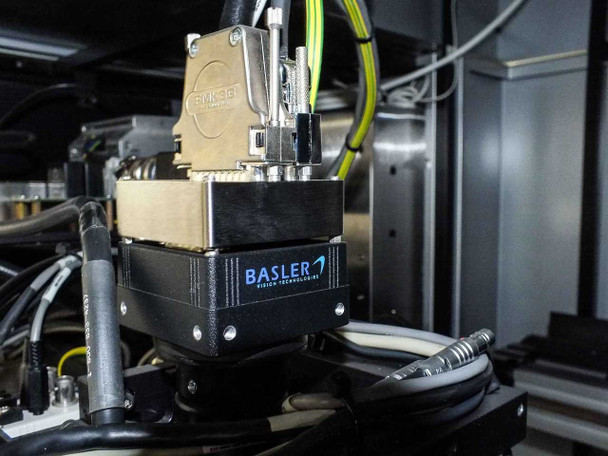

  • Camtek Falcon PD – Basler Vision Technologies A201b monochrome camera mounted on inspection head with DB-style connector cable

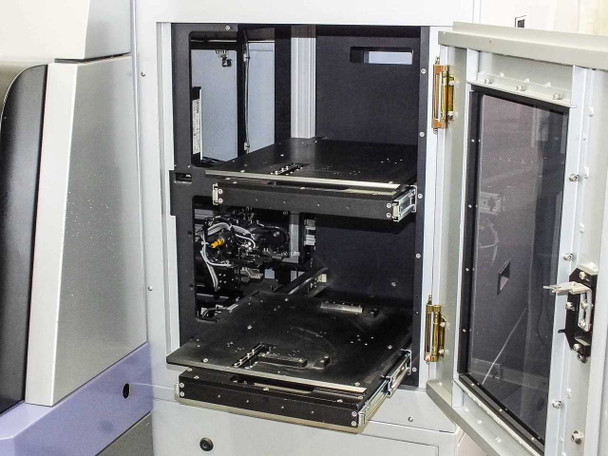

  • Camtek Falcon PD – auxiliary enclosure interior showing two-tier slide-out optical/mechanical subassembly trays

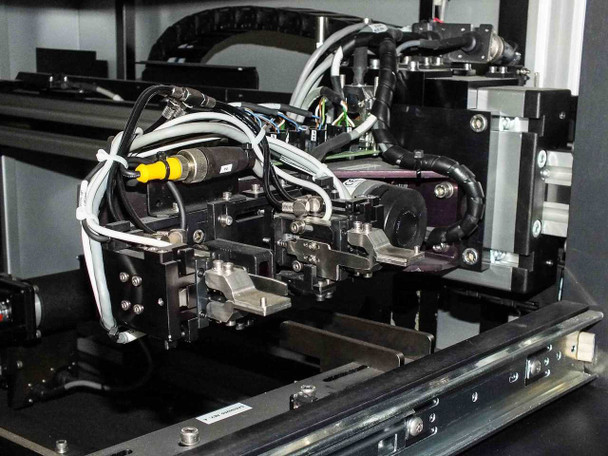

  • Camtek Falcon PD – secondary optical/mechanical subassembly drawer showing dual lens/camera mount assemblies on precision linear rails

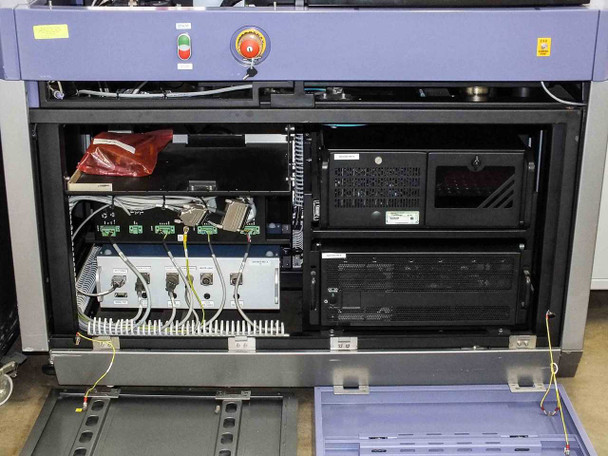

  • Camtek Falcon PD – electronics rack inside main cabinet showing rackmount computers, power distribution, E-stop buttons, and wiring harness

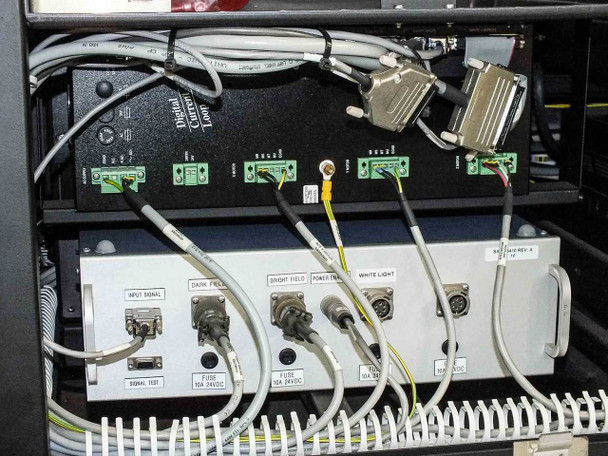

  • Camtek Falcon PD – electronics rack rear panel showing Digital Current Loop controller board, and illumination power supply with DARK FIELD, BRIGHT FIELD, POWER FIELD, and WHITE LIGHT outputs with fused connections
  • Camtek Falcon PD – internal computer showing HP DVD/CD drive, floppy drive, and hard drive bay with security lock panel

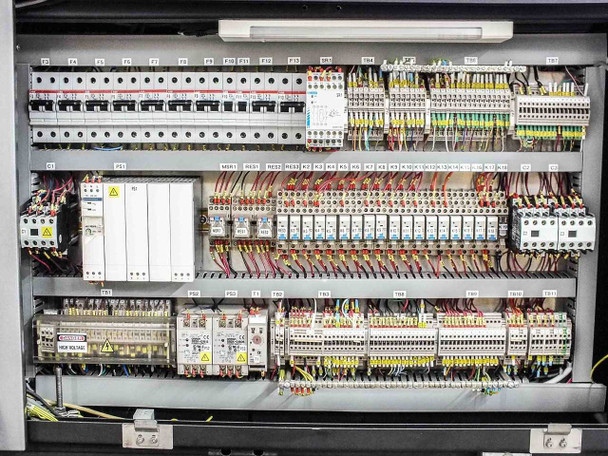

  • Camtek Falcon PD – electrical cabinet panel with circuit breakers, terminal blocks, contactors, and white DIN-rail mounted control modules
  • Camtek Falcon PD – secondary electrical enclosure showing Digital Current Loop rackmount controller and ACSTech80 motion control module with wiring looms
  • Camtek Falcon PD – Digital Current Loop controller front panel showing AC supply terminals, 24V and 6VU outputs, COMM and EXTENSION DB9 connectors

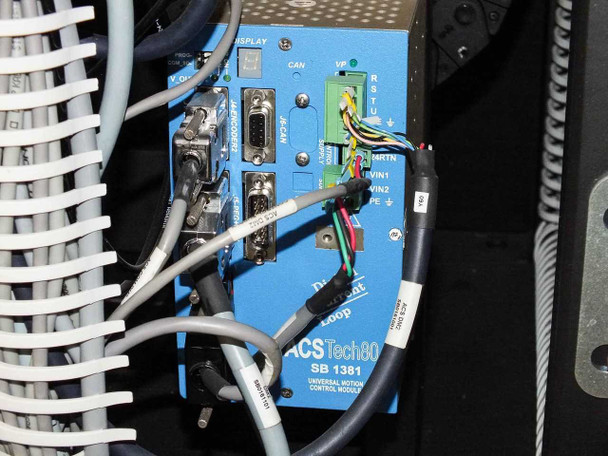

  • Camtek Falcon PD – ACSTech80 SB 1381 Universal Motion Control Module close-up showing CAN, DISPLAY, and ENCODER connectors with wiring
  • Camtek Falcon PD – standalone auxiliary blue/grey rolling computer/electronics enclosure on casters
  • Camtek Falcon PD – MasterNew-branded computer/server chassis showing three drive bays each with floppy drives, power supplies, and LG optical drives
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
  • Camtek Falcon PD 200mm Wafer Inspection System with Basler A201b Camera - As Is
$15,000.00
Was: $30,000.00
Current Stock: 1

Sold Out

Description

Camtek Falcon PD 200mm Optical Wafer Inspection System Basler A201b Camera

Floor-standing optical inspection system for 200mm semiconductor wafers. Uses brightfield and darkfield imaging to detect surface defects and process anomalies during wafer manufacturing.

Specifications & What's Included

  • Basler A201b monochrome camera (1 MP, 1008×1018 pixels)
  • Three computers connected via umbilical interface
  • ACSTech80 SB 1381 motion control module
  • Digital current loop illumination controller
  • Enviro HEPA filter (650 CFM)
  • Power: 220V AC, 50/60 Hz
  • Maximum wafer size: 200mm
  • Floor-standing multi-cabinet system on casters
  • Manufactured: Week 46, 2005

Applications

Designed for semiconductor manufacturing quality control, this system inspects 200mm wafers for defects including particulates, scratches, and process-related anomalies. Brightfield and darkfield modes address different defect types and surface characteristics. Historically deployed in fabs and inspection facilities for in-process and final wafer screening.

Condition: For Parts or Not Working
This Camtek Falcon PD 200mm Optical Wafer Inspection System is being sold as-is and has not been fully tested. The system is a complex, multi-cabinet semiconductor inspection platform, and a complete functional test is beyond what we are able to perform at our facility. We cannot confirm the operational status of the inspection optics, motion stages, cameras, or control software. The system appears physically complete with the Basler A201b camera, three integrated computers, illumination and motion control electronics, HEPA filter unit, and associated cabling all present and visible. This item requires freight shipping — please contact us for a shipping quote, to arrange local pickup, or to schedule a viewing at our facility before purchasing. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Camtek
Model:
Falcon PD
MPN:
Falcon PD
Type:
Optical Wafer Inspection System
SKU:
46801
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes Basler A201b camera, 3 computers w/ umbilical, HEPA filter 650 CFM
Country/Region of Manufacture:
Israel
Power Requirements:
220V AC, 50/60 Hz
Maximum Wafer Size:
200 mm
Camera Model:
Basler A201b (monochrome)
Camera Resolution:
1 MP, 1008(H) x 1018(V) pixels
Manufacture Date:
Week 46, 2005
HEPA Filter:
Enviro HEPA filter, 650 CFM
Number of Computers:
3 (connected via umbilical)
Motion Controller:
ACSTech80 SB 1381 Universal Motion Control Module
Illumination Controller:
Digital Current Loop controller module
Inspection Type:
Brightfield and Darkfield optical inspection
Application:
200mm semiconductor wafer defect inspection
Form Factor:
Floor-standing multi-cabinet system on casters
Compatible Wafer Size:
Up to 200 mm
Condition Notes:
Camtek Falcon PD 200mm Wafer Inspection System sold as-is, not fully tested. Complex multi-cabinet system; functional status of optics, stages, and controls unconfirmed. Freight shipping required — contact us for quote or to arrange viewing.
