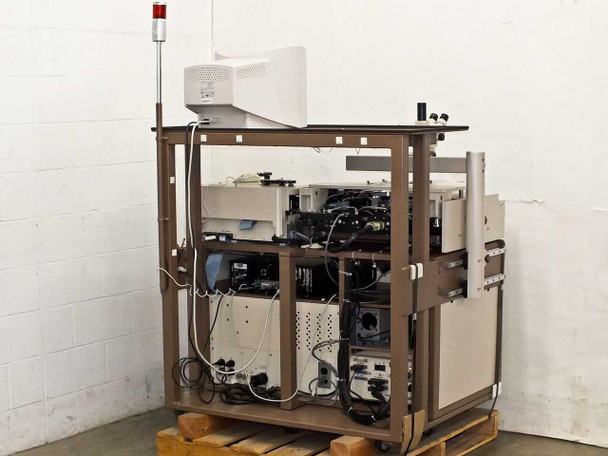

Pacific Western Systems P5NMS Semi-Auto Wafer Inspection Prober Olympus SZ40
Semi-automatic wafer inspection and probing workstation designed for semiconductor fabrication environments. Features motorized XY stage with vacuum chuck, integrated Olympus SZ40 stereo microscope, and PWS Probe II control software.
Specifications & What's Included

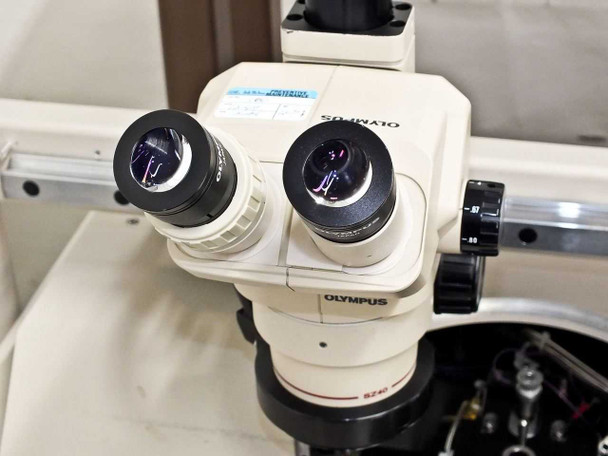

- Olympus SZ40 (SZ4045) stereo microscope

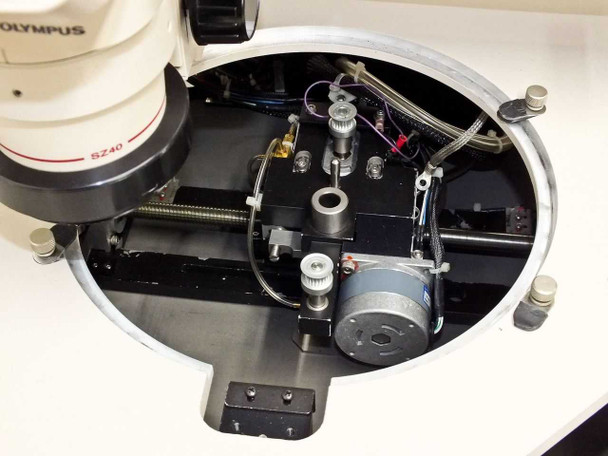

- Motorized X/Y stage with vacuum chuck and rotation control
- PWS Probe II software on Intel P4 1.6GHz PC (256MB RAM, 40GB HDD)
- Windows NT Workstation 4.0 operating system

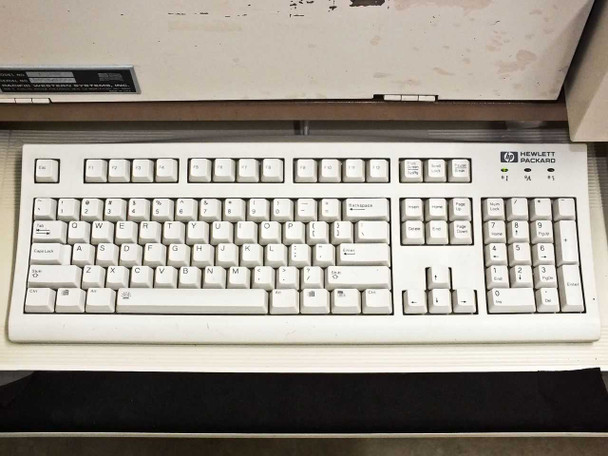

- ViewSonic E70f 17" CRT monitor, HP keyboard, PS/2 mouse

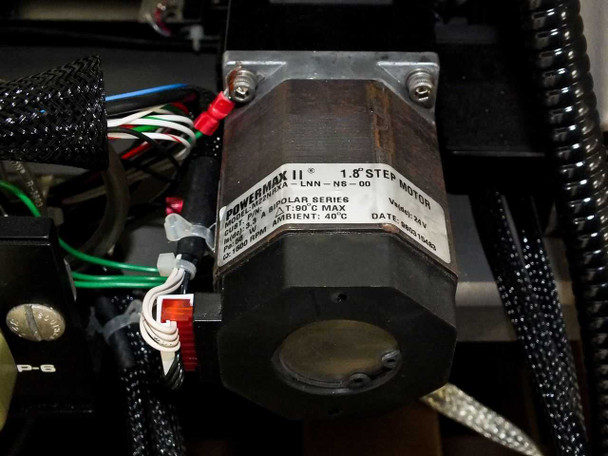

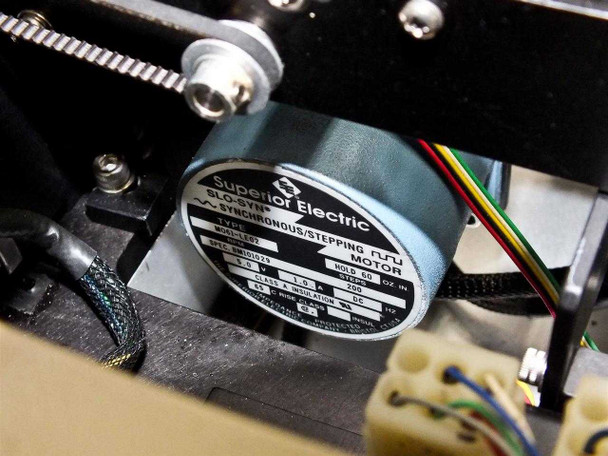

- Superior Electric SLO-SYN stepping motors
- Overall dimensions: 50"W x 41"D x 70"H
Applications
Used in semiconductor fabrication for wafer inspection, defect identification, and probing workflows. The semi-automatic motorized stage supports multiple wafer sizes with selectable orientation control. Compatible with standard fab inspection protocols and wafer probing procedures common in 1990s-2000s semiconductor manufacturing environments.
Condition: Used

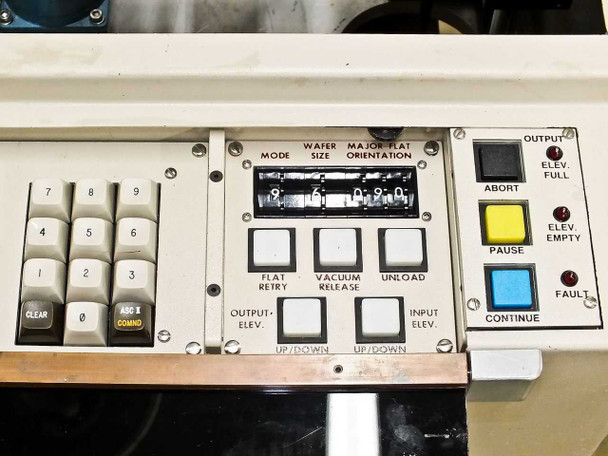

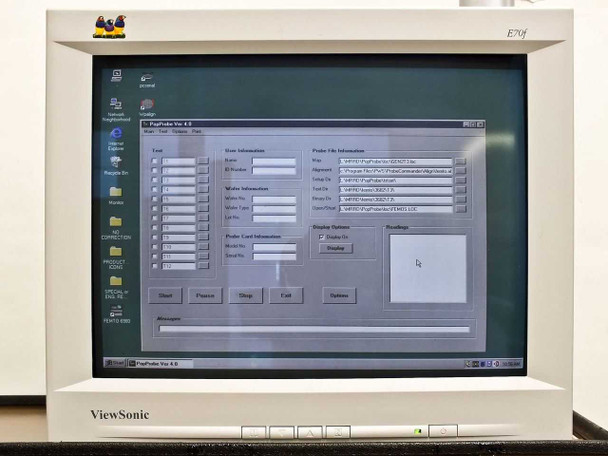

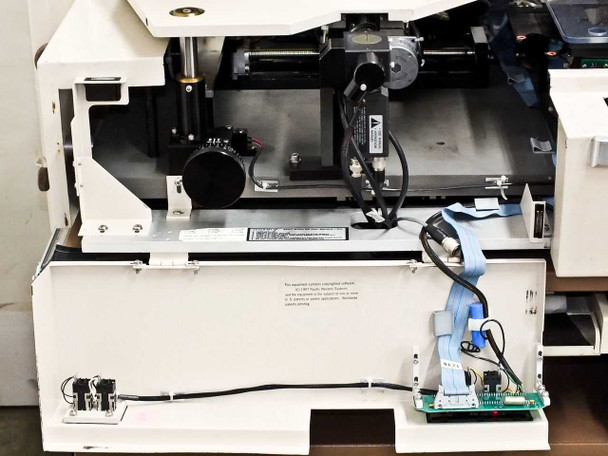

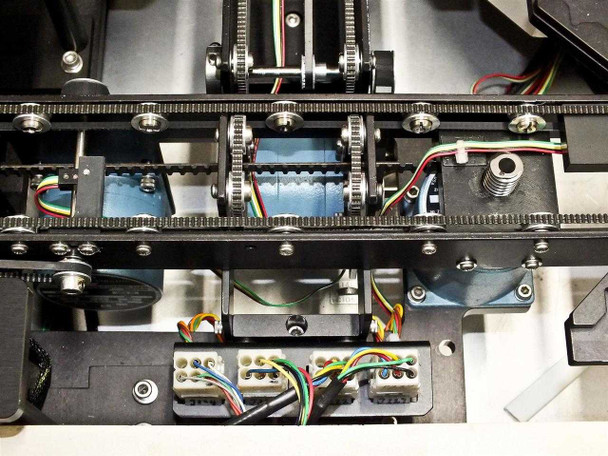

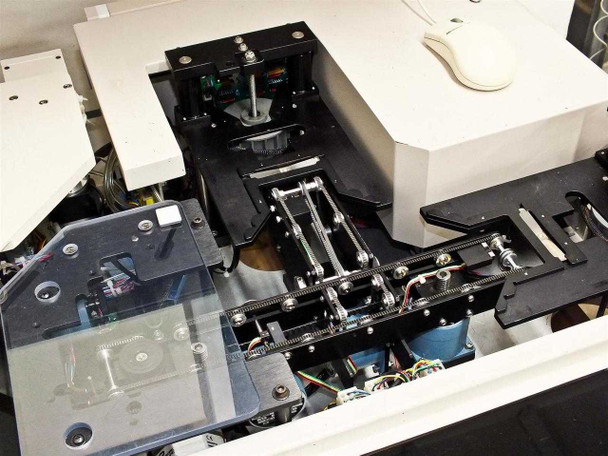

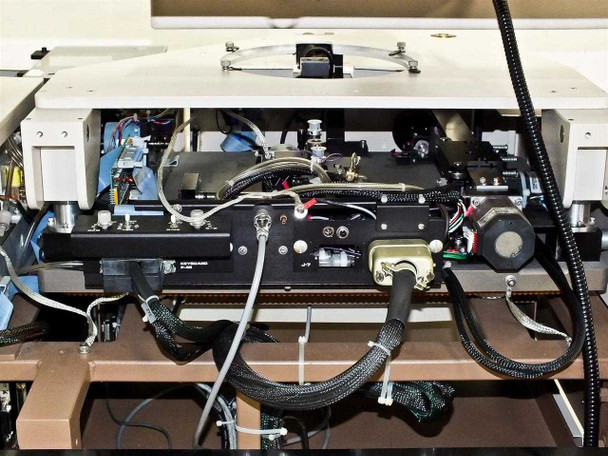

This Pacific Western Systems P5NMS Semi-Automatic Wafer Inspection Prober powers on and the included PC boots successfully to Windows NT 4.0 with the PWS Probe II application loading. We were unable to test the prober mechanics and wafer handling functions beyond that point, so the full operational status of the stage, chuck, and automation systems cannot be confirmed. The system is being sold in as-found condition. Cosmetically, the unit shows its age — the control panel surfaces have notable soiling, staining, and some surface debris visible in several areas, consistent with years of lab use. The Olympus SZ40 stereo microscope, the operator control panels (including X/Y step counters, mode selectors, elevator controls, and wafer size dials), the ViewSonic E70f 17" CRT monitor, HP PS/2 keyboard, and mouse are all included and present. The internal card cage, stepper motor drivers, belt drive assemblies, and wiring harnesses appear intact. This system requires freight shipping — please contact us for a shipping quote, to arrange local pickup, or to schedule an in-person viewing at our facility.
This Pacific Western Systems P5NMS Semi-Automatic Wafer Inspection Prober powers on and the included PC boots successfully to Windows NT 4.0 with the PWS Probe II application loading. We were unable to test the prober mechanics and wafer handling functions beyond that point, so the full operational status of the stage, chuck, and automation systems cannot be confirmed. The system is being sold in as-found condition. Cosmetically, the unit shows its age — the control panel surfaces have notable soiling, staining, and some surface debris visible in several areas, consistent with years of lab use. The Olympus SZ40 stereo microscope, the operator control panels (including X/Y step counters, mode selectors, elevator controls, and wafer size dials), the ViewSonic E70f 17" CRT monitor, HP PS/2 keyboard, and mouse are all included and present. The internal card cage, stepper motor drivers, belt drive assemblies, and wiring harnesses appear intact. This system requires freight shipping — please contact us for a shipping quote, to arrange local pickup, or to schedule an in-person viewing at our facility.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Pacific Western Systems |
Model: |
P5NMS |
MPN: |
P5NMS |

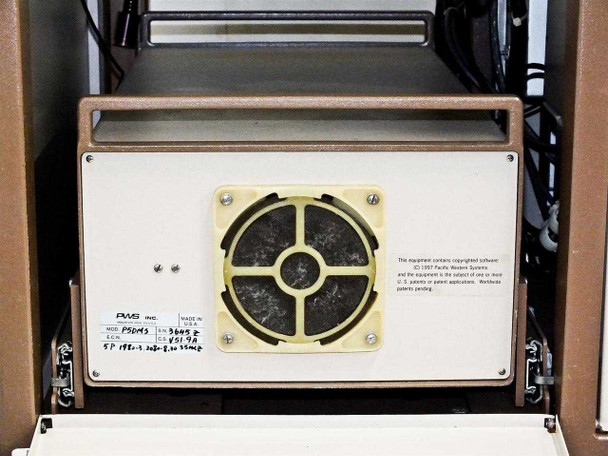

Secondary Model: |
P5DMS Probe II |
SKU: |
44943 |
Type: |
Semi-Automatic Wafer Inspection Prober |
Condition: |
Used – Powers On, Limited Test |
Seller Notes: |
Includes Olympus SZ40 stereo microscope, PWS Probe II PC, ViewSonic E70f 17" monitor, HP keyboard, PS/2 mouse |
Country/Region of Manufacture: |
United States |
Form Factor: |
Freestanding Workstation |
Application / Use Case: |
Semiconductor Wafer Inspection, Wafer Probing |
Microscope Model: |
Olympus SZ40 (SZ4045) Stereo Microscope |

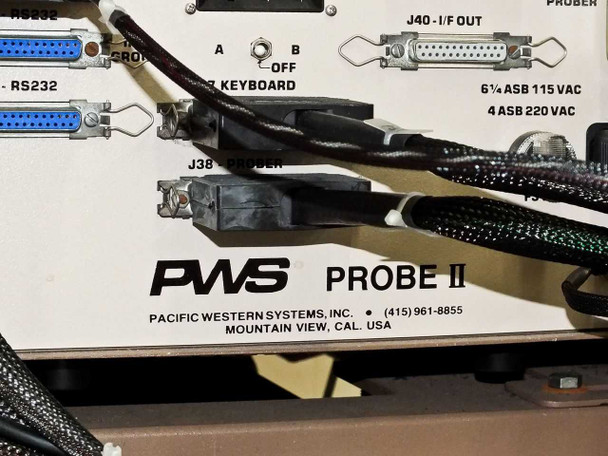

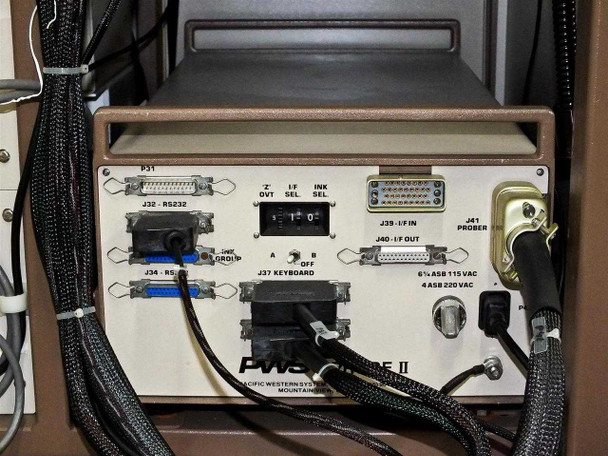

Control Software: |
PWS Probe II (Windows NT Workstation 4.0) |

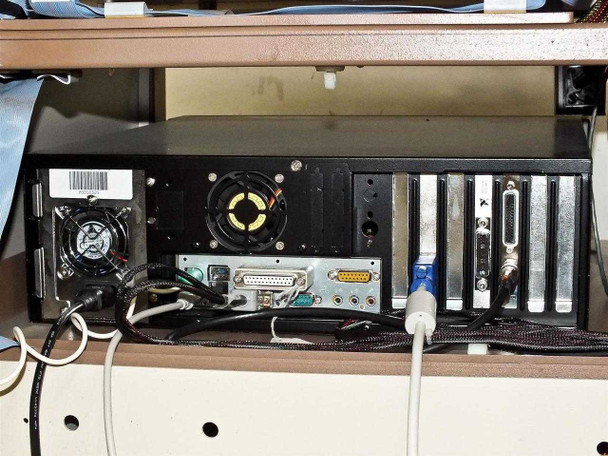

Included PC: |

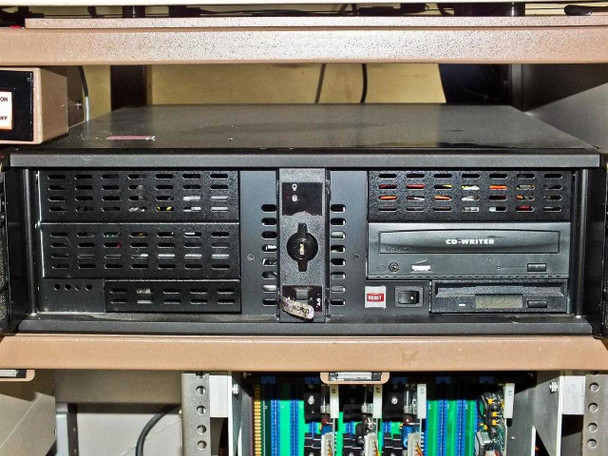

Intel P4 1.6GHz, 256MB RAM, 40GB HDD, CD-RW, 1.44" Floppy |
Included Monitor: |
ViewSonic E70f 17" CRT Monitor |
Wafer Stage: |

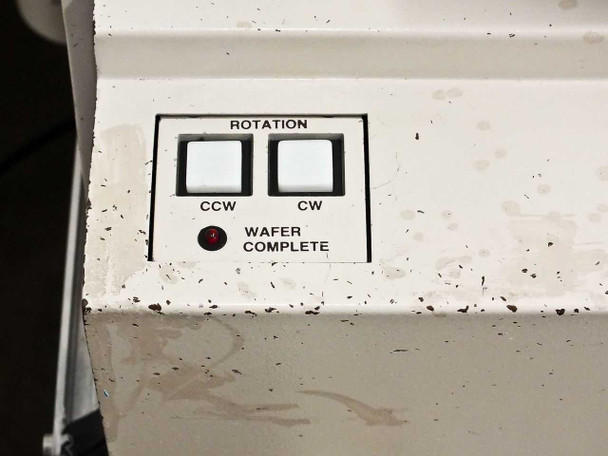

Motorized X/Y stage with vacuum chuck and rotation (CCW/CW) |

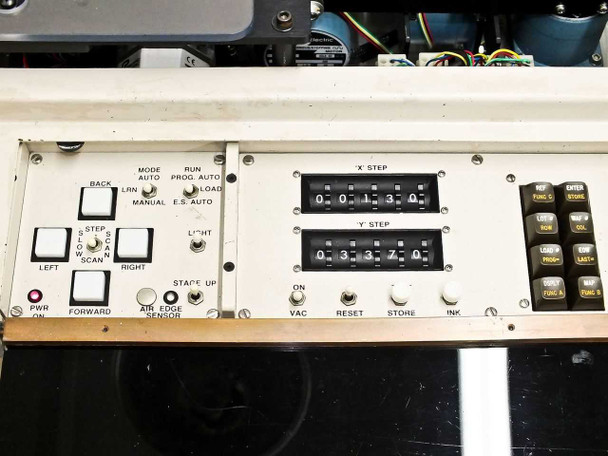

Stage Controls: |
X Step, Y Step dials; Mode, Run, Auto, Prog, Manual, E.S. Auto |
Wafer Size Control: |
Selectable via front-panel dial (Wafer Size, Major Flat, Orientation) |
Drive Motors: |
Superior Electric SLO-SYN Synchronous/Stepping motors |
Elevator Controls: |
Output/Input elevator Up/Down, Abort, Pause, Continue, Fault buttons |
Overall Dimensions: |
50" W x 41" D x 70" H |
Compatible With: |
Semiconductor fab inspection, wafer probing workflows |
Shipping Method: |
Freight shipping required |
Condition Notes: |
Pacific Western Systems P5NMS wafer prober powers on; PC boots to Windows NT 4.0 PWS Probe II. Mechanical/automation functions not tested further. Sold as-found. Shows cosmetic wear. Freight shipping required. Contact us with questions. |
