Pacific Western Systems
-

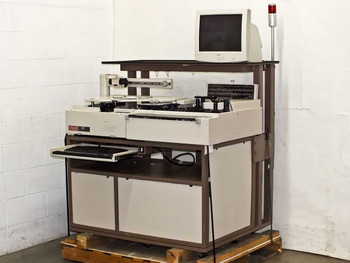

Pacific Western Systems P5NMS Semi-Auto Wafer Inspection Prober PWS 23
Pacific Western Systems
$3,500.00Was: $7,000.00Pacific Western Systems P5NMS Semi-Auto Wafer Inspection Prober PWS 23Semi-automatic wafer inspection and probing system designed for semiconductor production environments. Features motorized X/Y...44946- SKU:
- 44946
- Availability:
- This item requires freight shipping — contact us for a quote or to arrange local pickup.
- Weight:
- 865.00 LBS
- Brand:
- Pacific Western Systems
- Model:
- P5NMS
- MPN:
- P5NMS
- Secondary Model:
- PWS 23
- SKU:
- 44946
- Type:
- Semi-Automatic Wafer Inspection Prober
- Condition:
- As-Is / For Parts or Not Working
- Country/Region of Manufacture:
- United States
- Form Factor:
- Freestanding Workstation
- Overall Dimensions:
- 51" W x 41" D x 65" H
- Application:
- Semiconductor Wafer Inspection / Probing
- Automation Level:
- Semi-Automatic
- Wafer Orientation:
- Flat Finder / Major Flat Orientation
- Stage Motion:
- X/Y Motorized Stage with Stepper Motors
- Chuck Type:
- Vacuum Chuck
- Control Interface:
- Integrated Keypad, Numeric Panel, Mode Selector
- Display:
- LED Alphanumeric Readout, Dell CRT Monitor
- Included Components 1:
- Dell E771P 17" CRT Monitor
- Included Components 2:
- Dell QUIETKEY Keyboard
- Included Components 3:
- Patlite ST-T Red Signal Tower Light
- Included Components 4:
- H-P50MS Probe (qty 2 per original listing)
- Stepper Motors:
- Superior Electric / Haydon Air Devices stepper motors
- Internal Drive:
- Powermax II bipolar stepper motor (Pacific Scientific)
- Power Supply (Internal):
- 100–240V AC, 50/60 Hz (per rear label: 1780-3200W range noted)
- Seller Notes:
- Sold AS-IS for parts/repair. Includes Dell monitor, keyboard, Patlite tower. Freight required.
- Condition Notes:
- PWS P5NMS wafer inspection prober sold AS-IS for parts or repair. Not tested; appears to be missing some parts. Includes Dell monitor, keyboard, Patlite signal tower. Freight shipping required. No functionality guarantee.
$3,500.00Was: $7,000.00 -
Pacific Western Systems P5NMS Wafer Prober Semi-Automatic PWS P50 Semiconductor
Pacific Western Systems
$4,500.00Was: $9,000.00Pacific Western Systems P5NMS Wafer Prober Semi-Automatic PWS P50 SemiconductorSemi-automatic wafer prober designed for semiconductor wafer probing and inspection applications. Features a circular...44945- SKU:
- 44945
- Availability:
- Freight shipment required; contact us for a shipping quote or to arrange local pickup.
- Weight:
- 865.00 LBS
- Brand:
- Pacific Western Systems
- Model:
- P5NMS
- MPN:
- P5NMS
- Secondary Model:
- P50
- SKU:
- 44945
- Type:
- Semi-Automatic Wafer Prober
- Condition:
- As-Is / For Parts or Not Working
- Application:
- Semiconductor Wafer Probing / Wafer Inspection
- Automation Level:
- Semi-Automatic
- Sub-System:
- PWS P50
- Included Monitor:
- Dell E770P 17" CRT Monitor
- Included Keyboard:
- Logitech USB Keyboard
- Overall Dimensions:
- 51" W x 41" D x 65" H
- Approximate Weight:
- 865 lbs
- Country/Region of Manufacture:
- United States
- Stepper Motor:
- Compumotor Powermax II (model not fully legible)
- Control Panel Features:
- X/Y Step dials, VAC, Reset, Store, Ink controls
- Loader Interface:
- Output/Input elevator, centering fingers, flat finder
- Wafer Chuck:
- Circular vacuum chuck with rotation (CW/CCW)
- Shipping Method:
- Freight required
- Seller Notes:
- Sold AS-IS. Includes Dell E770P 17" CRT monitor and Logitech keyboard. Missing some parts.
- Condition Notes:
- Pacific Western Systems P5NMS Wafer Prober sold AS-IS for parts or repair. Has not been tested; appears to be missing some parts. Not guaranteed functional. Includes Dell 17" CRT monitor and keyboard. Freight shipping required.
$4,500.00Was: $9,000.00 -
Pacific Western Systems P5NMS Semi-Auto Wafer Inspection Prober Olympus SZ40
Pacific Western Systems
$3,800.00Was: $7,600.00Pacific Western Systems P5NMS Semi-Auto Wafer Inspection Prober Olympus SZ40Semi-automatic wafer inspection and probing workstation designed for semiconductor fabrication environments. Features...44943- SKU:
- 44943
- Availability:
- This item requires freight shipping. Contact us for a shipping quote or to arrange local pickup.
- Weight:
- 865.00 LBS
- Brand:
- Pacific Western Systems
- Model:
- P5NMS
- MPN:
- P5NMS
- Secondary Model:
- P5DMS Probe II
- SKU:
- 44943
- Type:
- Semi-Automatic Wafer Inspection Prober
- Condition:
- Used – Powers On, Limited Test
- Seller Notes:
- Includes Olympus SZ40 stereo microscope, PWS Probe II PC, ViewSonic E70f 17" monitor, HP keyboard, PS/2 mouse
- Country/Region of Manufacture:
- United States
- Form Factor:
- Freestanding Workstation
- Application / Use Case:
- Semiconductor Wafer Inspection, Wafer Probing
- Microscope Model:
- Olympus SZ40 (SZ4045) Stereo Microscope
- Control Software:
- PWS Probe II (Windows NT Workstation 4.0)
- Included PC:
- Intel P4 1.6GHz, 256MB RAM, 40GB HDD, CD-RW, 1.44" Floppy
- Included Monitor:
- ViewSonic E70f 17" CRT Monitor
- Wafer Stage:
- Motorized X/Y stage with vacuum chuck and rotation (CCW/CW)
- Stage Controls:
- X Step, Y Step dials; Mode, Run, Auto, Prog, Manual, E.S. Auto
- Wafer Size Control:
- Selectable via front-panel dial (Wafer Size, Major Flat, Orientation)
- Drive Motors:
- Superior Electric SLO-SYN Synchronous/Stepping motors
- Elevator Controls:
- Output/Input elevator Up/Down, Abort, Pause, Continue, Fault buttons
- Overall Dimensions:
- 50" W x 41" D x 70" H
- Compatible With:
- Semiconductor fab inspection, wafer probing workflows
- Shipping Method:
- Freight shipping required
- Condition Notes:
- Pacific Western Systems P5NMS wafer prober powers on; PC boots to Windows NT 4.0 PWS Probe II. Mechanical/automation functions not tested further. Sold as-found. Shows cosmetic wear. Freight shipping required. Contact us with questions.
$3,800.00Was: $7,600.00
