Pacific Western Systems P5NMS Wafer Prober Semi-Automatic PWS P50 Semiconductor

(No reviews yet) Write a Review
SKU:
44945
MPN:
P5NMS
Condition:
Used
Availability:
Freight shipment required; contact us for a shipping quote or to arrange local pickup.
Weight:
865.00 LBS
Shipping:
Calculated at Checkout

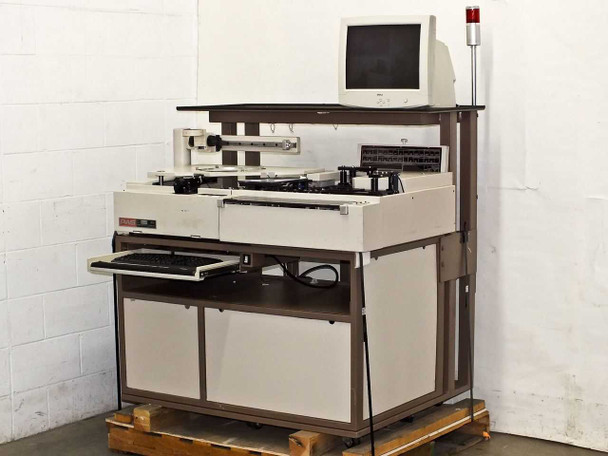

  • Pacific Western Systems P5NMS semi-automatic wafer prober full system view on pallet with Dell CRT monitor mounted on top shelf

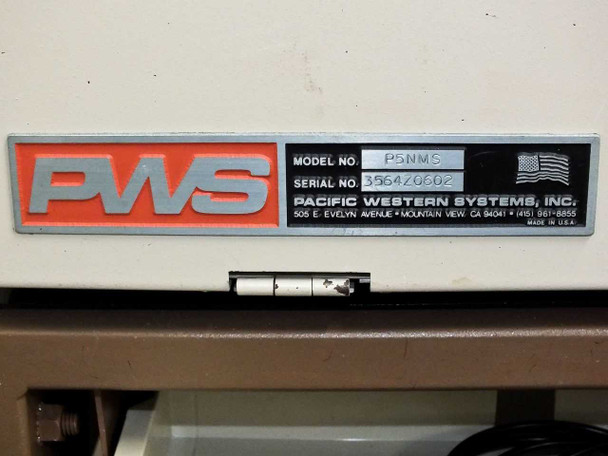

  • Pacific Western Systems PWS nameplate showing Model No. P5NMS and Serial No. 356420602, Made in USA

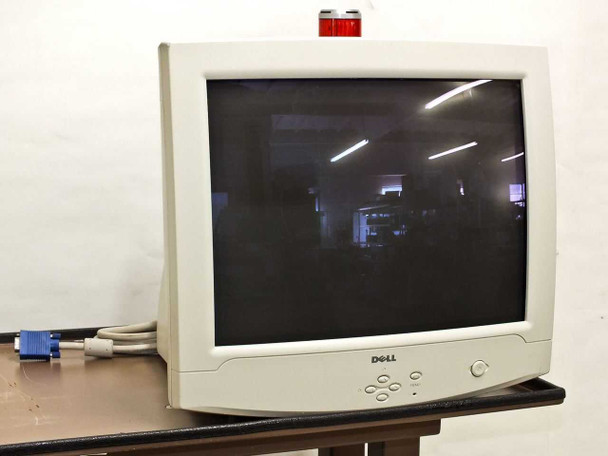

  • Dell E770P 17-inch CRT monitor included with the PWS P5NMS wafer prober system, with VGA cable attached

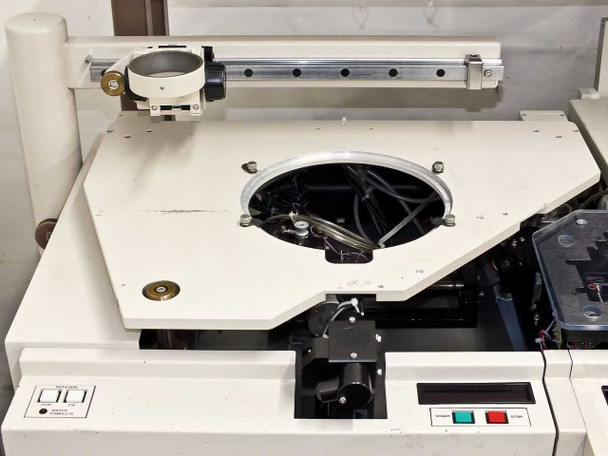

  • PWS P5NMS wafer chuck stage top view showing circular vacuum chuck opening, linear arm, and front-panel controls

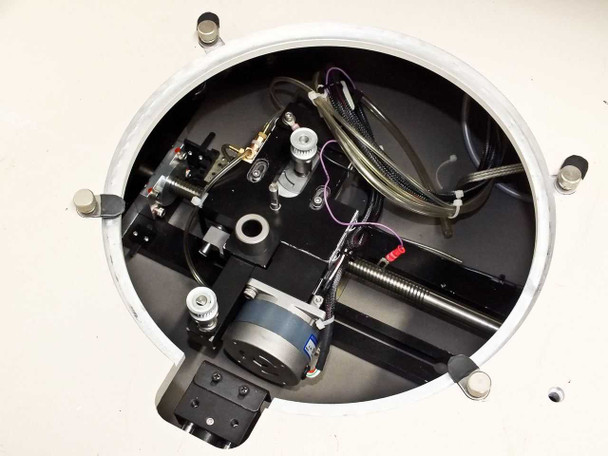

  • Close-up interior view of PWS P5NMS circular wafer chuck mechanism showing vacuum plumbing, wiring, and X-Y stage components

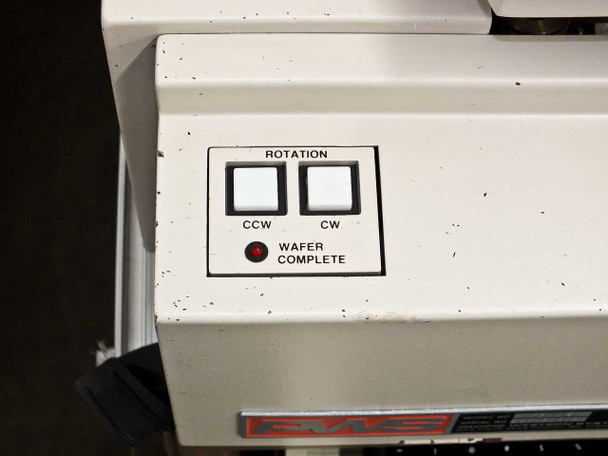

  • PWS P5NMS front panel rotation controls showing CCW and CW buttons and Wafer Complete indicator light

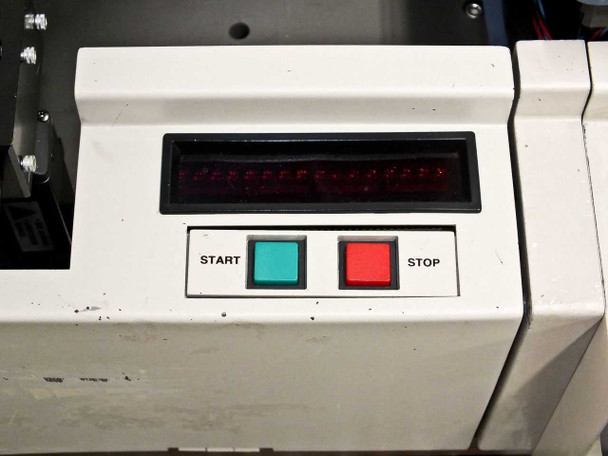

  • PWS P5NMS front control panel showing LED alphanumeric display with Start and Stop buttons
  • PWS P5NMS interior view with access panel open showing probe arm mechanism, ribbon cables, and circuit board

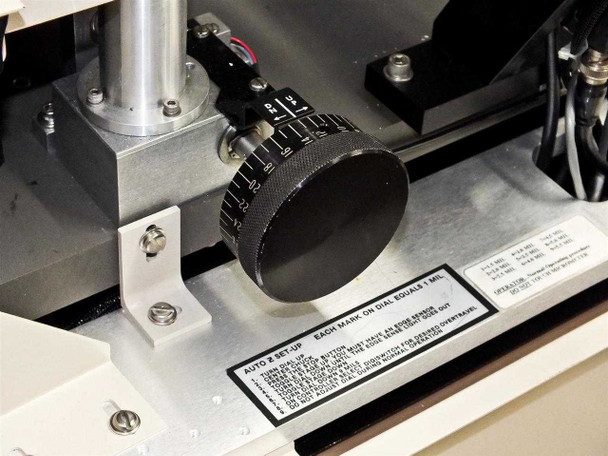

  • PWS P5NMS probe arm area showing dial adjustment knob with calibration label reading each mark equals 1 mil

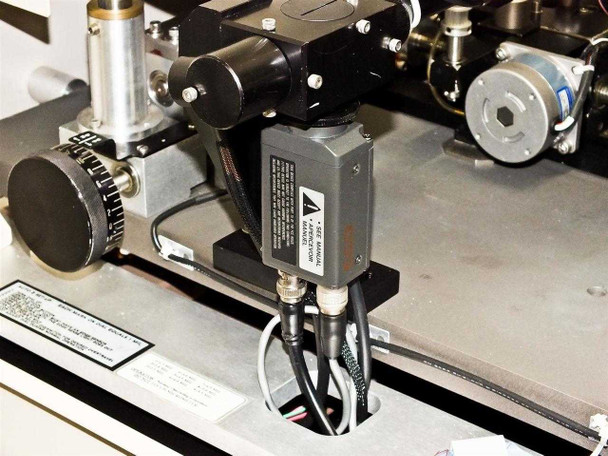

  • Close-up of sensor module mounted on PWS P5NMS probe arm, black rectangular unit with multi-conductor cable

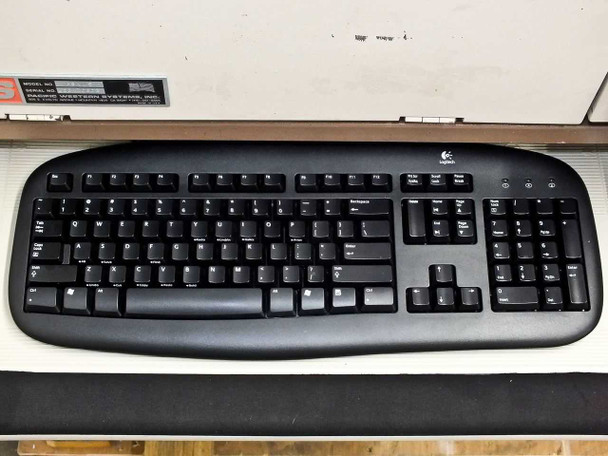

  • Logitech keyboard included with the PWS P5NMS wafer prober system, shown on slide-out keyboard tray

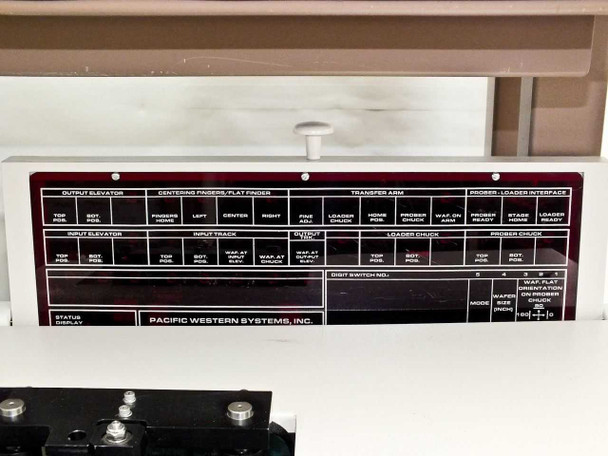

  • PWS P5NMS system status display panel showing output elevator, centering fingers, flat finder, transfer arm, and prober-loader interface indicators

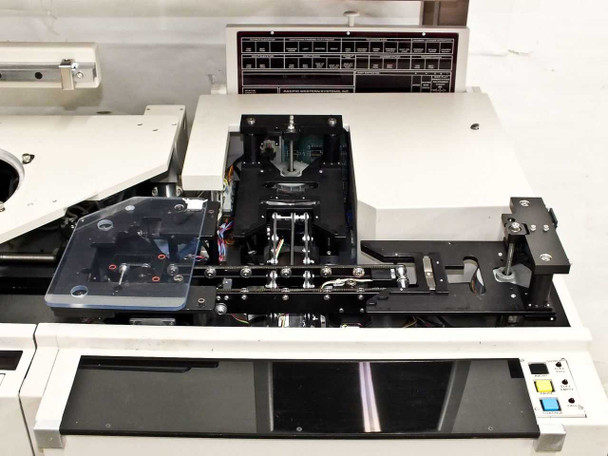

  • PWS P5NMS top-down view of wafer loading track and probe station area with transparent guard plate visible

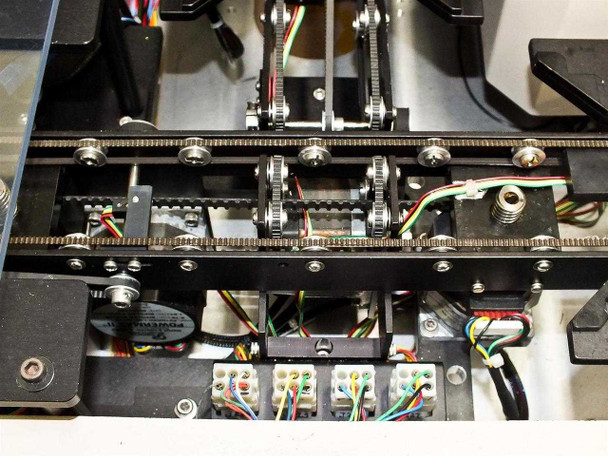

  • PWS P5NMS internal drive mechanism showing timing belt, pulleys, stepper motors, and wiring harnesses

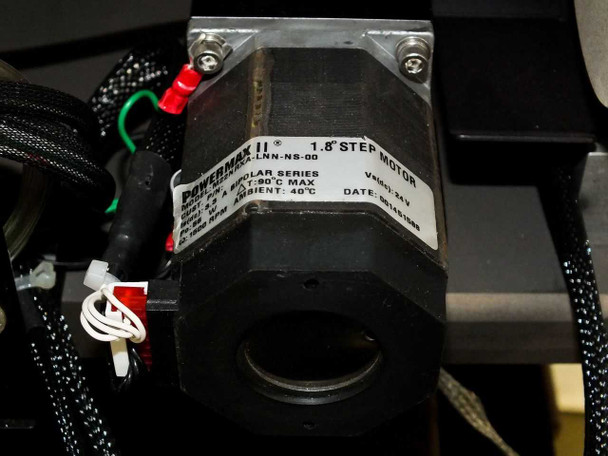

  • Close-up of Compumotor Powermax II bipolar stepper motor installed in PWS P5NMS transport mechanism

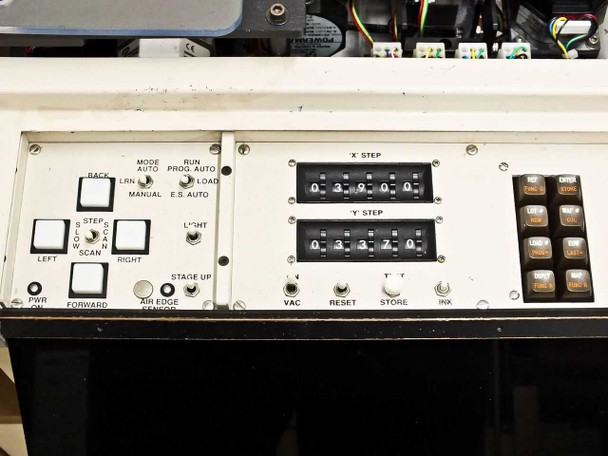

  • PWS P5NMS operator control panel showing mode switches, X Step and Y Step dial counters, VAC, Reset, Store, and Ink controls

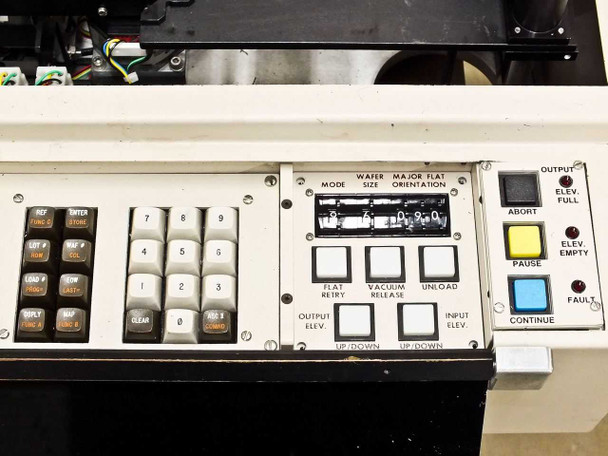

  • PWS P5NMS loader operator panel showing numeric keypad, wafer size/flat orientation mode selector, output elevator, abort, pause, fault, and continue controls

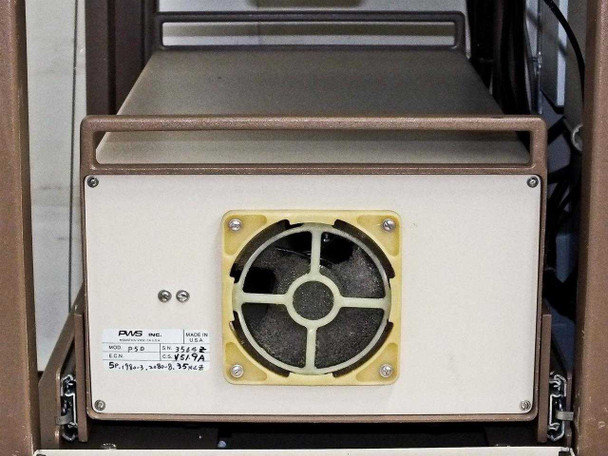

  • PWS P50 sub-system rear enclosure panel with cooling fan and PWS Inc. label showing model P50

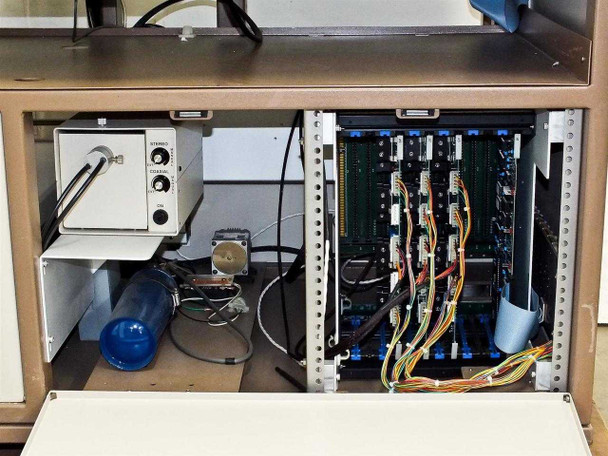

  • PWS P5NMS lower cabinet interior showing control electronics rack with multiple populated card slots, power supply, and wiring harnesses

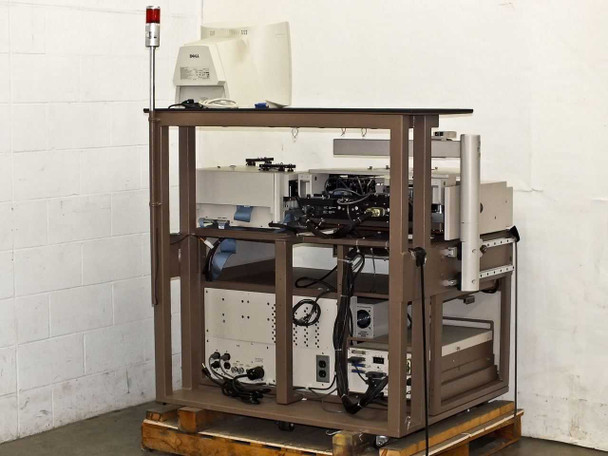

  • Pacific Western Systems P5NMS wafer prober rear three-quarter view on pallet showing frame structure, rear cable routing, and lower cabinet

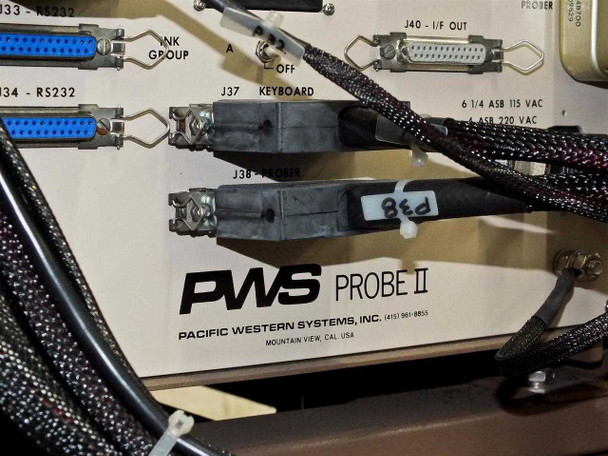

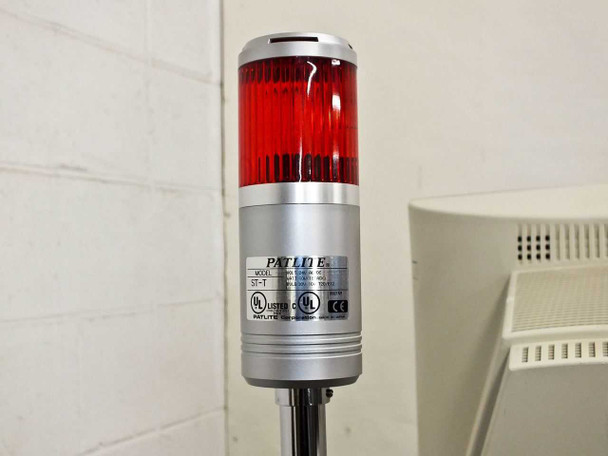

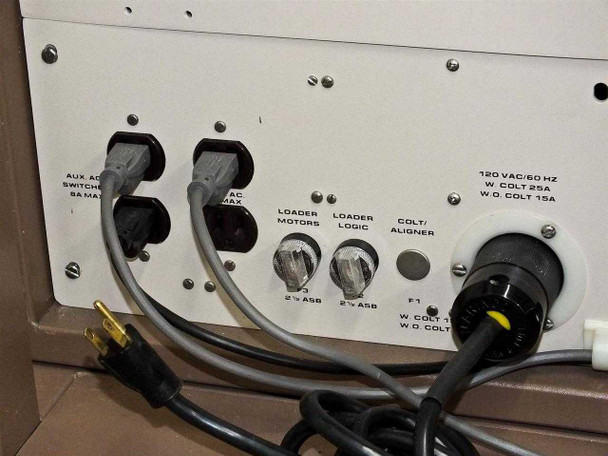

  • Pacific Western Systems P5NMS PWS Wafer Inspection Semi-Automatic Prober
  • Pacific Western Systems P5NMS PWS Wafer Inspection Semi-Automatic Prober
  • Pacific Western Systems P5NMS PWS Wafer Inspection Semi-Automatic Prober
  • Pacific Western Systems P5NMS PWS Wafer Inspection Semi-Automatic Prober
  • Pacific Western Systems P5NMS PWS Wafer Inspection Semi-Automatic Prober
  • Pacific Western Systems P5NMS PWS Wafer Inspection Semi-Automatic Prober
  • Pacific Western Systems P5NMS PWS Wafer Inspection Semi-Automatic Prober
  • Pacific Western Systems P5NMS PWS Wafer Inspection Semi-Automatic Prober
  • Pacific Western Systems P5NMS PWS Wafer Inspection Semi-Automatic Prober
$4,500.00
Was: $9,000.00
Current Stock: 1

Sold Out

Description

Pacific Western Systems P5NMS Wafer Prober Semi-Automatic PWS P50 Semiconductor

Semi-automatic wafer prober designed for semiconductor wafer probing and inspection applications. Features a circular vacuum chuck with rotation capability and manual X/Y step dial control.

Specifications & What's Included

  • Model: P5NMS / P50
  • Stepper Motor: Compumotor Powermax II
  • Wafer Chuck: Circular vacuum chuck with CW/CCW rotation
  • Loader Interface: Output/input elevator with centering fingers and flat finder
  • Control Panel: X/Y step dials, VAC, Reset, Store, Ink controls
  • Dimensions: 51" W × 41" D × 65" H; Weight: 865 lbs
  • Included: Dell E770P 17" CRT monitor and Logitech USB keyboard

Applications

Wafer probers are used in semiconductor manufacturing and testing to perform electrical and physical measurements on silicon wafers during production and quality control stages. This semi-automatic model was used in fabrication facilities for wafer inspection and probe card testing workflows.

Condition: For Parts or Not Working
This Pacific Western Systems P5NMS Semi-Automatic Wafer Prober is being sold AS-IS for parts or repair. The system has not been tested and appears to be missing some components. It is not guaranteed to be functional and is offered in its current condition only. The unit includes a Dell E770P 17" CRT monitor and a Logitech keyboard. Externally, the prober shows normal wear consistent with lab use — paint chipping and scuffing are visible on the control panel and enclosure surfaces. The lower cabinet electronics rack, drive mechanisms, and chuck assembly are present and visible in the photos. This system requires freight shipping due to its size and weight (approximately 865 lbs); please contact us for a shipping quote, to arrange local pickup, or to schedule a viewing at our facility. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Pacific Western Systems
Model:
P5NMS
MPN:
P5NMS
Secondary Model:
P50
SKU:
44945
Type:
Semi-Automatic Wafer Prober
Condition:
As-Is / For Parts or Not Working
Application:
Semiconductor Wafer Probing / Wafer Inspection
Automation Level:
Semi-Automatic
Sub-System:
PWS P50
Included Monitor:
Dell E770P 17" CRT Monitor
Included Keyboard:
Logitech USB Keyboard
Overall Dimensions:
51" W x 41" D x 65" H
Approximate Weight:
865 lbs
Country/Region of Manufacture:
United States
Stepper Motor:
Compumotor Powermax II (model not fully legible)
Control Panel Features:
X/Y Step dials, VAC, Reset, Store, Ink controls
Loader Interface:
Output/Input elevator, centering fingers, flat finder
Wafer Chuck:
Circular vacuum chuck with rotation (CW/CCW)
Shipping Method:
Freight required
Seller Notes:
Sold AS-IS. Includes Dell E770P 17" CRT monitor and Logitech keyboard. Missing some parts.
Condition Notes:
Pacific Western Systems P5NMS Wafer Prober sold AS-IS for parts or repair. Has not been tested; appears to be missing some parts. Not guaranteed functional. Includes Dell 17" CRT monitor and keyboard. Freight shipping required.
View AllClose

Related Products

Related Products

Pacific Western Systems P5NMS PWS 23 semi-automatic wafer inspection prober full system view with Dell CRT monitor mounted on top shelf and signal tower PWS P5NMS model plate showing Model No. P5NMS, Serial No. 35662, Pacific Western Systems Inc., Mountain View CA — Made in USA
Add to Cart
Quick view

Pacific Western Systems P5NMS Semi-Auto Wafer Inspection Prober PWS 23

Pacific Western Systems

$3,500.00
Was: $7,000.00
Pacific Western Systems P5NMS Semi-Auto Wafer Inspection Prober PWS 23Semi-automatic wafer inspection and probing system designed for semiconductor production environments. Features motorized X/Y...
44946
SKU:
44946
Availability:
This item requires freight shipping — contact us for a quote or to arrange local pickup.
Weight:
865.00 LBS
Brand:
Pacific Western Systems
Model:
P5NMS
MPN:
P5NMS
Secondary Model:
PWS 23
SKU:
44946
Type:
Semi-Automatic Wafer Inspection Prober
Condition:
As-Is / For Parts or Not Working
Country/Region of Manufacture:
United States
Form Factor:
Freestanding Workstation
Overall Dimensions:
51" W x 41" D x 65" H
Application:
Semiconductor Wafer Inspection / Probing
Automation Level:
Semi-Automatic
Wafer Orientation:
Flat Finder / Major Flat Orientation
Stage Motion:
X/Y Motorized Stage with Stepper Motors
Chuck Type:
Vacuum Chuck
Control Interface:
Integrated Keypad, Numeric Panel, Mode Selector
Display:
LED Alphanumeric Readout, Dell CRT Monitor
Included Components 1:
Dell E771P 17" CRT Monitor
Included Components 2:
Dell QUIETKEY Keyboard
Included Components 3:
Patlite ST-T Red Signal Tower Light
Included Components 4:
H-P50MS Probe (qty 2 per original listing)
Stepper Motors:
Superior Electric / Haydon Air Devices stepper motors
Internal Drive:
Powermax II bipolar stepper motor (Pacific Scientific)
Power Supply (Internal):
100–240V AC, 50/60 Hz (per rear label: 1780-3200W range noted)
Seller Notes:
Sold AS-IS for parts/repair. Includes Dell monitor, keyboard, Patlite tower. Freight required.
Condition Notes:
PWS P5NMS wafer inspection prober sold AS-IS for parts or repair. Not tested; appears to be missing some parts. Includes Dell monitor, keyboard, Patlite signal tower. Freight shipping required. No functionality guarantee.
Pacific Western Systems P5NMS semi-automatic wafer inspection prober full system view with Olympus stereo microscope and monitor on pallet PWS P5NMS model and serial number label reading Model No P5NMS, Pacific Western Systems Inc, Mountain View CA
Add to Cart
Quick view

Pacific Western Systems P5NMS Semi-Auto Wafer Inspection Prober Olympus SZ40

Pacific Western Systems

$3,800.00
Was: $7,600.00
Pacific Western Systems P5NMS Semi-Auto Wafer Inspection Prober Olympus SZ40Semi-automatic wafer inspection and probing workstation designed for semiconductor fabrication environments. Features...
44943
SKU:
44943
Availability:
This item requires freight shipping. Contact us for a shipping quote or to arrange local pickup.
Weight:
865.00 LBS
Brand:
Pacific Western Systems
Model:
P5NMS
MPN:
P5NMS
Secondary Model:
P5DMS Probe II
SKU:
44943
Type:
Semi-Automatic Wafer Inspection Prober
Condition:
Used – Powers On, Limited Test
Seller Notes:
Includes Olympus SZ40 stereo microscope, PWS Probe II PC, ViewSonic E70f 17" monitor, HP keyboard, PS/2 mouse
Country/Region of Manufacture:
United States
Form Factor:
Freestanding Workstation
Application / Use Case:
Semiconductor Wafer Inspection, Wafer Probing
Microscope Model:
Olympus SZ40 (SZ4045) Stereo Microscope
Control Software:
PWS Probe II (Windows NT Workstation 4.0)
Included PC:
Intel P4 1.6GHz, 256MB RAM, 40GB HDD, CD-RW, 1.44" Floppy
Included Monitor:
ViewSonic E70f 17" CRT Monitor
Operating System:
Windows NT Workstation 4.0
Wafer Stage:
Motorized X/Y stage with vacuum chuck and rotation (CCW/CW)
Stage Controls:
X Step, Y Step dials; Mode, Run, Auto, Prog, Manual, E.S. Auto
Wafer Size Control:
Selectable via front-panel dial (Wafer Size, Major Flat, Orientation)
Drive Motors:
Superior Electric SLO-SYN Synchronous/Stepping motors
Elevator Controls:
Output/Input elevator Up/Down, Abort, Pause, Continue, Fault buttons
Overall Dimensions:
50" W x 41" D x 70" H
Compatible With:
Semiconductor fab inspection, wafer probing workflows
Shipping Method:
Freight shipping required
Condition Notes:
Pacific Western Systems P5NMS wafer prober powers on; PC boots to Windows NT 4.0 PWS Probe II. Mechanical/automation functions not tested further. Sold as-found. Shows cosmetic wear. Freight shipping required. Contact us with questions.

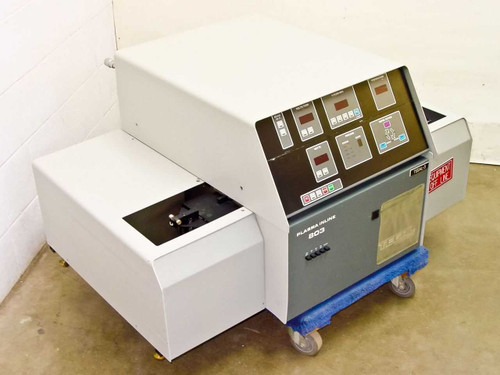

Tegal 803 Inline Automatic Wafer RF Plasma Etcher – front and right side view showing front panel controls, digital displays, and partial cover open on wafer load station Tegal 803 Plasma Etcher – rear view showing wiring harnesses, large rotary disconnect switch, multiple gas/utility fittings, and power cable
