Description
Drytek 100S Plasma Wafer Etcher Switch Board 2800194 Assy 2800193 Omron Relay

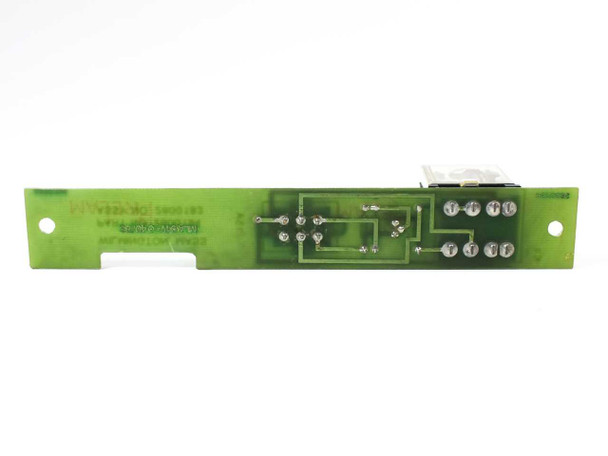

PCB switch board assembly used in the Drytek 100S Plasma Wafer Etcher system. The board contains an Omron MY2E-UA-DC24 relay (24V DC coil) and multi-pin header connector for control and switching functions in the etching process.
Specifications & What's Included
- Part Number: 2800194
- Assembly Number: 2800193
- Board Number: MLA 94V-040/83
- Omron Relay: MY2E-UA-DC24, 24V DC coil
- Connector: Multi-pin header (~8-pin, red)
- Manufactured in Wilmington, MA
Applications
This switch board was used in plasma wafer etching systems for semiconductor dry etch applications. The Drytek 100S is an industrial-grade plasma etcher used for processing silicon wafers and other substrates in semiconductor manufacturing. The relay and switch board manage process control signals and equipment sequencing during etching operations.
Condition: Used
This Drytek 100S Plasma Wafer Etcher Switch Board (P/N 2800194, Assy 2800193) has been inspected and is in good condition. The board was pulled from a Drytek 100S Plasma Wafer Etcher that was previously in service. The green PCB shows light handling wear consistent with normal use; the Omron MY2E-UA-DC24 relay and red multi-pin header connector are present and intact with no visible damage. Board markings — part number, assembly number, and origin label (Wilmington, MA) — are clearly legible. Please view our photo set and contact us if you have any questions.
This Drytek 100S Plasma Wafer Etcher Switch Board (P/N 2800194, Assy 2800193) has been inspected and is in good condition. The board was pulled from a Drytek 100S Plasma Wafer Etcher that was previously in service. The green PCB shows light handling wear consistent with normal use; the Omron MY2E-UA-DC24 relay and red multi-pin header connector are present and intact with no visible damage. Board markings — part number, assembly number, and origin label (Wilmington, MA) — are clearly legible. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Drytek |
Model: |
2800194 |
MPN: |
2800194 |
Secondary Model: |
2800193 |
SKU: |
48422 |
Type: |
Switch Board / Relay PCB Assembly |
Board Number: |
MLA 94V-040/83 |
Assembly Number: |
2800193 |
Compatible With: |
Drytek 100S Plasma Wafer Etcher |
Relay Component: |
Omron MY2E-UA-DC24 |
Relay Coil Voltage: |
24V DC |
Connector Type: |
Multi-pin header connector (red, ~8-pin) |
Form Factor: |
PCB / Card Module |
Application: |
Plasma Wafer Etching / Semiconductor Dry Etch |
Country/Region of Manufacture: |
United States (Wilmington, MA) |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Switch board only; pulled from Drytek 100S Plasma Wafer Etcher. |
Condition Notes: |
Drytek 100S Plasma Wafer Etcher Switch Board P/N 2800194 (Assy 2800193). Pulled from service, inspected, in good condition. Omron MY2E-UA-DC24 relay and connector intact. Light handling wear only. |
