Drytek
-
Drytek 100S Plasma Wafer Etcher Display Board 2800042 Assy 2800044 D-2800041
Drytek
$175.00Was: $350.00Drytek 100S Plasma Wafer Etcher Display Board 2800042 Assy 2800044 D-2800041This is an OEM display board (P/N 2800042) pulled directly from a Drytek 100S Plasma Wafer Etcher. The board serves as the...48426- SKU:
- 48426
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Drytek
- Model:
- 2800042
- MPN:
- 2800042
- Secondary Model:
- 2800044
- Schematic Number:
- D-2800041
- Type:
- Display Board / Front Panel PCB
- SKU:
- 48426
- Compatible With:
- Drytek 100S Plasma Wafer Etcher
- Application:
- Plasma Wafer Etching / Semiconductor Dry Etch
- Display Type:
- 7-Segment LED (TIME, PROCESS, FORWARD, REFLECTED)
- Form Factor:
- Panel-Mount PCB Assembly
- Connector Type:
- Edge connector (card-edge) + red keyed ribbon connector
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Pulled from Drytek 100S Plasma Wafer Etcher; includes harness wiring
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Drytek 2800042 Display Board pulled from a Drytek 100S Plasma Wafer Etcher. Appears in good used condition; no visible damage to panel, connectors, or wiring. Not bench-tested outside of the parent system. Please contact us with any questions.
$175.00Was: $350.00 -
Drytek DRIE-100 Cassette Planar Plasma Wafer Etcher System w/Manuals
Drytek
$5,835.00Was: $20,000.00Drytek DRIE-100 Cassette Planar Plasma Wafer Etcher System w/Manuals Uses chlorine- and fluorine-based chemistries for etching various Si, polysilicon, nitride, tungsten, tungsten silicide films.+...19334- SKU:
- 19334
- Weight:
- 1,370.00 LBS
$5,835.00Was: $20,000.00 -

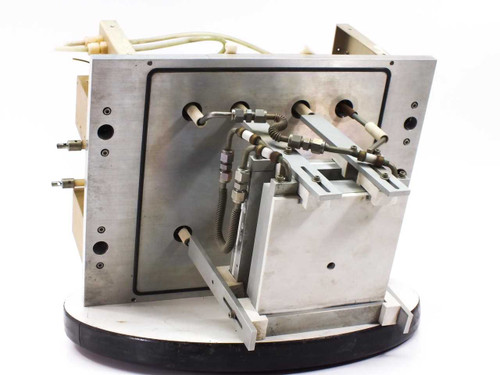

Drytek S100 RF Wafer Power System Jennings RB2A-26N00 Cardwell Plasma Etch
Drytek
$450.00Was: $900.00Drytek S100 RF Wafer Power System Jennings RB2A-26N00 Cardwell Plasma EtchRF matching network and power delivery system for plasma wafer etching equipment. Manages RF signal impedance matching and...48459- SKU:
- 48459
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 55.00 LBS
- Brand:
- Drytek
- Model:
- S100
- MPN:
- S100
- Type:
- RF Wafer Power System / RF Matching Network
- SKU:
- 48459
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes Jennings RB2A-26N00 relay, Cardwell 229-207-2 inductor, Cardwell 154-3-1 capacitor, 4x HECHT50 caps, 1x CRC850
- Compatible With:
- Drytek 100S Plasma Wafer Etcher
- Application:
- Plasma Wafer Etching, Semiconductor RF Power Delivery
- Included Component 1:
- Jennings RB2A-26N00 Glass Relay, 20kVDC
- Included Component 2:
- Cardwell 229-207-2 Roller Inductor Coil
- Included Component 3:
- Cardwell 154-3-1 Air Variable Capacitor
- Included Component 4:
- High Energy Corp. HECHT50 120pF Ceramic Capacitors (Qty 4)
- Included Component 5:
- High Energy Corp. CRC850 Surge Suppressor (Qty 1)
- Aluminum Plate Dimensions:
- 6.0 x 6.25 in
- Overall Dimensions:
- 18.5 x 17 x 13.5 in
- Cooling:
- Forced air — cooling fan mounted on chassis
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Standalone Chassis
- Condition Notes:
- Drytek S100 RF Wafer Power System in good used condition. Pulled from a working Drytek 100S Plasma Wafer Etcher. All components present including Jennings relay, Cardwell inductor/capacitor, ceramic caps, and surge suppressor. Normal wear.
$450.00Was: $900.00 -
Drytek 100S Plasma Wafer Etcher Switch Board 2800194 Assy 2800193 Omron Relay
Drytek
$65.00Was: $125.00Drytek 100S Plasma Wafer Etcher Switch Board 2800194 Assy 2800193 Omron RelayPCB switch board assembly used in the Drytek 100S Plasma Wafer Etcher system. The board contains an Omron MY2E-UA-DC24...48422- SKU:
- 48422
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Drytek
- Model:
- 2800194
- MPN:
- 2800194
- Secondary Model:
- 2800193
- SKU:
- 48422
- Type:
- Switch Board / Relay PCB Assembly
- Board Number:
- MLA 94V-040/83
- Assembly Number:
- 2800193
- Compatible With:
- Drytek 100S Plasma Wafer Etcher
- Relay Component:
- Omron MY2E-UA-DC24
- Relay Coil Voltage:
- 24V DC
- Connector Type:
- Multi-pin header connector (red, ~8-pin)
- Form Factor:
- PCB / Card Module
- Application:
- Plasma Wafer Etching / Semiconductor Dry Etch
- Country/Region of Manufacture:
- United States (Wilmington, MA)
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Switch board only; pulled from Drytek 100S Plasma Wafer Etcher.
- Condition Notes:
- Drytek 100S Plasma Wafer Etcher Switch Board P/N 2800194 (Assy 2800193). Pulled from service, inspected, in good condition. Omron MY2E-UA-DC24 relay and connector intact. Light handling wear only.
$65.00Was: $125.00 -
Drytek 100S Plasma Wafer Etcher LED Control Board 2800052 Assy 2800054 C-2800051
Drytek
$85.00Was: $175.00Drytek 100S Plasma Wafer Etcher LED Control Board 2800052 Assy 2800054 C-2800051This is a genuine Drytek LED/Control Board removed from a Drytek 100S Plasma Wafer Etcher. The board carries part...48421- SKU:
- 48421
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Drytek
- Model:
- 2800052
- MPN:
- 2800052
- Secondary Model:
- 2800054
- Schematic Number:
- C-2800051
- Assembly Number:
- 2800054
- Type:
- LED / Control Board
- Compatible With:
- Drytek 100S Plasma Wafer Etcher
- Application / Use Case:
- Plasma Wafer Etching / Semiconductor Fabrication
- Form Factor:
- Panel / Board Module
- Connector Types:
- Multi-pin edge connector, red keyed locking connectors (J107)
- Condition:
- Used – Pulled from Working Environment
- SKU:
- 48421
- Seller Notes:
- Pulled from a Drytek 100S Plasma Wafer Etcher; board and panel included as shown
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Drytek 100S Plasma Wafer Etcher LED/Control Board P/N 2800052, pulled from a 100S system. Panel and PCB intact; LED indicators, pushbuttons, edge connector, and wiring harness all present. Normal surface wear. Sold as used.
$85.00Was: $175.00 -

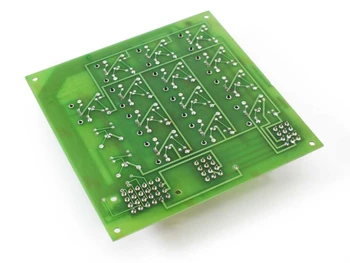

Drytek 100S Solid State Driver Board 2800072 Assy 2800074 Plasma Wafer Etcher
Drytek
$150.00Was: $300.00Drytek 100S Solid State Driver Board 2800072 Assy 2800074 Plasma Wafer Etcher PCBSolid state driver board used in Drytek 100S plasma wafer etching systems. This PCB controls RF power delivery and...48420- SKU:
- 48420
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Drytek
- Model:
- 100S
- MPN:
- 2800072
- Secondary Model:
- 2800074
- Type:
- Solid State Driver Board / PCB
- SKU:
- 48420
- Part Number:
- 2800072
- Assembly Number:
- 2800074
- Schematic Number:
- 2800071
- Compatible With:
- Drytek 100S Plasma Wafer Etcher
- Application / Use Case:
- Plasma wafer etching — semiconductor dry etch system
- Form Factor:
- PCB / Card Module
- Board Dimensions:
- Approx. 6.5 x 6.5 inches
- Connector Types:
- Red multi-pin IDC connectors (14-pin and 20-pin)
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Board only — pulled from a Drytek 100S Plasma Wafer Etcher
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Drytek 100S Solid State Driver Board P/N 2800072 pulled from a Drytek 100S Plasma Wafer Etcher. Good used condition — clean PCB, no visible damage. Not bench-tested. Please view photos and contact us with questions.
$150.00Was: $300.00 -
Drytek DRY-KW1 RF Power Supply PA-500A DR-100A Plasma Wafer Etch Semiconductor
Drytek
$825.00Was: $2,200.00Drytek DRY-KW1 RF Power Supply PA-500A DR-100A Plasma Wafer Etch Semiconductor RF power supply unit designed for plasma wafer etching in semiconductor fabrication. This 7U rackmount system was...48413- SKU:
- 48413
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 140.00 LBS
- Brand:
- Drytek
- Model:
- DRY-KW1
- MPN:
- DRY-KW1
- SKU:
- 48413
- Condition:
- Used – Inspected
- Seller Notes:
- Includes 2x PA-500A amplifier modules and 1x DR-100A driver module
- Form Factor:
- Rackmount, 7U
- Compatible With:
- Drytek 100S Plasma Wafer Etcher
- Application / Use Case:
- Plasma Wafer Etching, Semiconductor Fabrication, PVD/CVD
- Type:
- RF Power Supply
- Modules Included:
- 2x PA-500A (amplifier), 1x DR-100A (driver)
- Rack Height:
- 7U (12.25 in)
- Overall Dimensions:
- 23 x 19 x 12.25 in
- Country of Manufacture:
- United States
- Condition Notes:
- This Drytek DRY-KW1 RF Power Supply shows normal cosmetic wear consistent with prior service use — the front panel finish has some scuffing and paint wear visible on the lower section.
$825.00Was: $2,200.00
