Description
Drytek 100S Solid State Driver Board 2800072 Assy 2800074 Plasma Wafer Etcher PCB

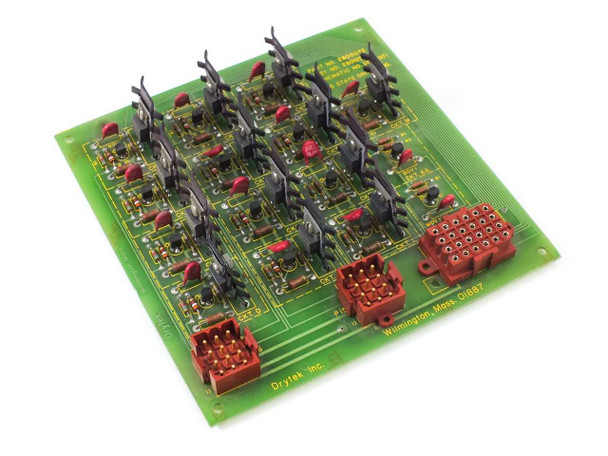

Solid state driver board used in Drytek 100S plasma wafer etching systems. This PCB controls RF power delivery and switching functions for semiconductor dry etch processes.
Specifications & What's Included
- Brand: Drytek
- Model: 100S
- Part Number: 2800072 / Assembly: 2800074
- Board dimensions: Approximately 6.5 x 6.5 inches
- Connectors: Red multi-pin IDC (14-pin and 20-pin)
- Form factor: PCB module card
- Manufactured: United States
Applications
This driver board was used in semiconductor manufacturing equipment for plasma dry etching processes. The Drytek 100S is a chamber-based wafer etch system used in microelectronics fabrication to etch patterns into silicon wafers. The solid state driver board interfaces with RF power control circuits and plasma ignition systems. Typical applications include dielectric etching, polysilicon etching, and metal etching in semiconductor device production.
This Drytek 100S Solid State Driver Board (P/N 2800072) was pulled from a Drytek 100S Plasma Wafer Etcher. The board is in good used condition — the PCB is clean with no visible cracked traces, burned components, or physical damage. Component leads are intact and the red IDC connectors show no bent or broken pins. Some light oxidation and handling marks are present, as expected for a board removed from service. It has not been bench-tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Drytek |
Model: |
100S |
MPN: |
2800072 |
Secondary Model: |
2800074 |
Type: |
Solid State Driver Board / PCB |
SKU: |
48420 |
Part Number: |
2800072 |
Assembly Number: |
2800074 |

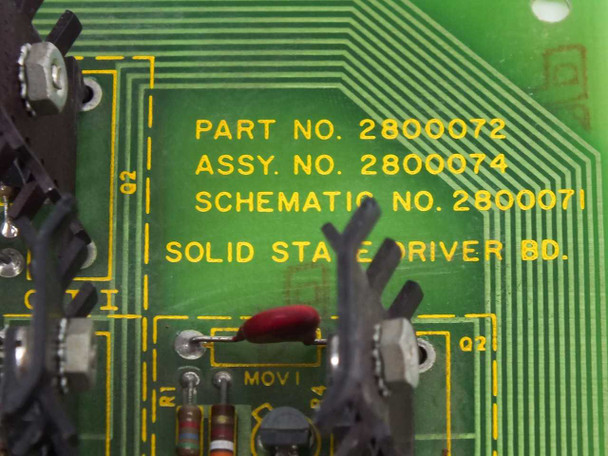

Schematic Number: |
2800071 |
Compatible With: |
Drytek 100S Plasma Wafer Etcher |
Application / Use Case: |
Plasma wafer etching — semiconductor dry etch system |
Form Factor: |
PCB / Card Module |
Board Dimensions: |
Approx. 6.5 x 6.5 inches |
Connector Types: |
Red multi-pin IDC connectors (14-pin and 20-pin) |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Board only — pulled from a Drytek 100S Plasma Wafer Etcher |
Condition: |
Used – Pulled from Working Environment |
Condition Notes: |
Drytek 100S Solid State Driver Board P/N 2800072 pulled from a Drytek 100S Plasma Wafer Etcher. Good used condition — clean PCB, no visible damage. Not bench-tested. Please view photos and contact us with questions. |
