Semiconductor Tools
Semiconductor tools are specialized equipment used in the manufacturing and testing of semiconductor devices. These tools are vital for the production of integrated circuits and other electronic components. Common examples include wafer fabrication tools, semiconductor metrology tools, and packaging equipment. Semiconductor tools are designed to ensure precision, accuracy, and efficiency in the semiconductor manufacturing process. They help in etching, deposition, patterning, and testing of semiconductor materials. These tools play a crucial role in the semiconductor industry, enabling the development of cutting-edge technology. Investing in high-quality semiconductor tools is essential for achieving optimal results in semiconductor manufacturing.
-

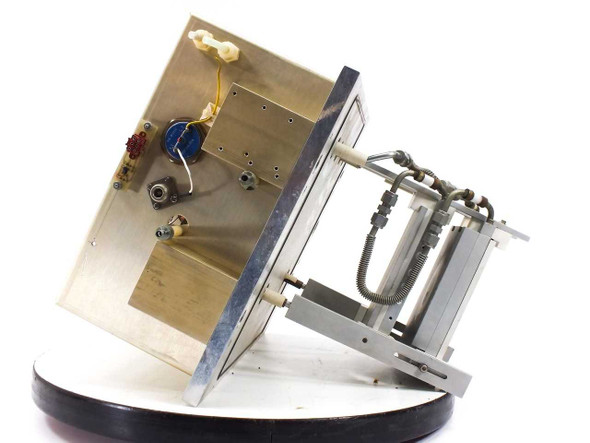

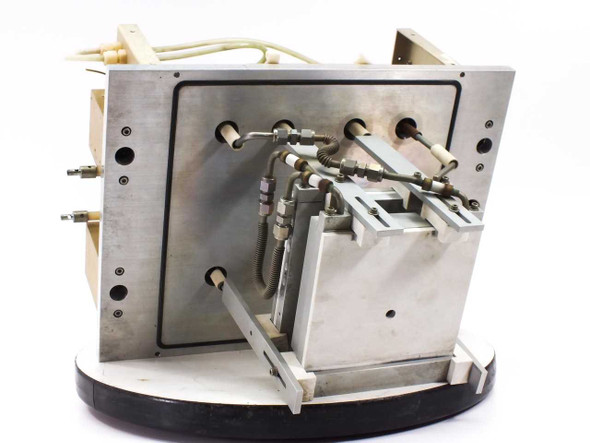

Drytek S100 RF Wafer Power System Jennings RB2A-26N00 Cardwell Plasma Etch
Drytek
$450.00Was: $900.00Drytek S100 RF Wafer Power System Jennings RB2A-26N00 Cardwell Plasma EtchRF matching network and power delivery system for plasma wafer etching equipment. Manages RF signal impedance matching and power distribution in semiconductor processing...48459- SKU:
- 48459
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 55.00 LBS
- Brand:
- Drytek
- Model:
- S100
- MPN:
- S100
- Type:
- RF Wafer Power System / RF Matching Network
- SKU:
- 48459
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Includes Jennings RB2A-26N00 relay, Cardwell 229-207-2 inductor, Cardwell 154-3-1 capacitor, 4x HECHT50 caps, 1x CRC850
- Compatible With:
- Drytek 100S Plasma Wafer Etcher
- Application:
- Plasma Wafer Etching, Semiconductor RF Power Delivery
- Included Component 1:
- Jennings RB2A-26N00 Glass Relay, 20kVDC
- Included Component 2:
- Cardwell 229-207-2 Roller Inductor Coil
- Included Component 3:
- Cardwell 154-3-1 Air Variable Capacitor
- Included Component 4:
- High Energy Corp. HECHT50 120pF Ceramic Capacitors (Qty 4)
- Included Component 5:
- High Energy Corp. CRC850 Surge Suppressor (Qty 1)
- Aluminum Plate Dimensions:
- 6.0 x 6.25 in
- Overall Dimensions:
- 18.5 x 17 x 13.5 in
- Cooling:
- Forced air — cooling fan mounted on chassis
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop / Standalone Chassis
- Condition Notes:
- Drytek S100 RF Wafer Power System in good used condition. Pulled from a working Drytek 100S Plasma Wafer Etcher. All components present including Jennings relay, Cardwell inductor/capacitor, ceramic caps, and surge suppressor. Normal wear.
$450.00Was: $900.00 -

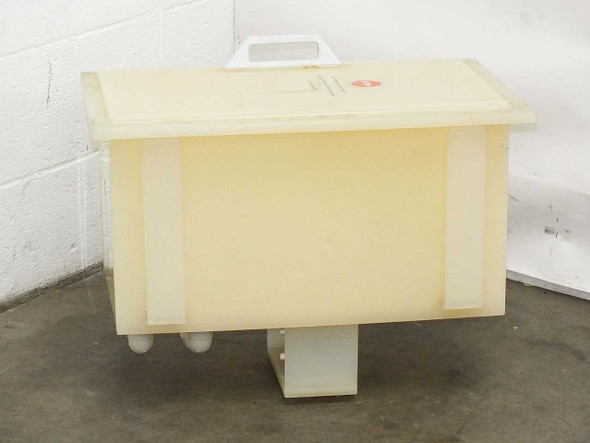

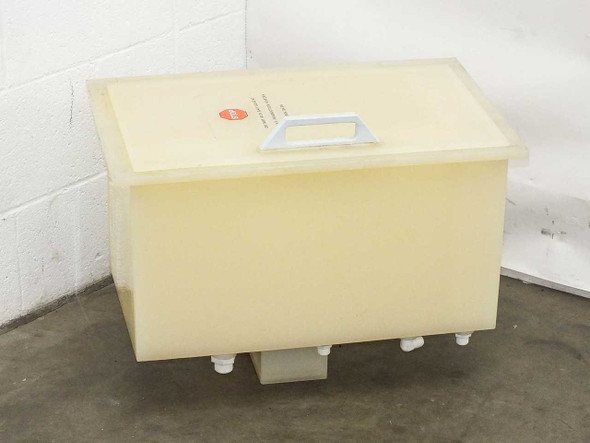

PTFE Benchtop Wafer Etch Bath Recirculating Filter Washer 23.25x15x16.5 As-Is
Custom
$400.00Was: $800.00PTFE Benchtop Wafer Etch Bath Recirculating Filter Washer 23.25x15x16.5 As-IsThis is a custom-fabricated PTFE (polytetrafluoroethylene) benchtop wafer etch bath with an integrated recirculating filter system. The unit features a lidded main bath chamber,...48451- SKU:
- 48451
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 36.00 LBS
- Brand:
- Unbranded
- Model:
- Custom PTFE Wafer Etch Bath
- Type:
- Benchtop PTFE Recirculating Filter Wafer Etch Bath
- Material:
- PTFE (Polytetrafluoroethylene)
- Form Factor:
- Benchtop
- Outer Dimensions:
- 23.25" x 15" x 16.5"
- Inner Dimensions:
- 20.25" x 11.25" x 11.25"
- Wafer Rinse Section Dimensions:
- 17.5" x 8.75" x 10" Deep
- Application / Use Case:
- Semiconductor wafer wet etching, rinsing, cleaning
- Condition:
- As-Is / For Parts or Not Working
- Seller Notes:
- Lid has broken corner and broken hinge section. Sold as-is.
- Number of Fittings:
- Multiple PVC plumbing fittings (inlet/outlet ports visible)
- Filter/Pump Housing:
- External PTFE pump/filter housing on underside
- Wafer Carrier Plate:
- PTFE perforated wafer carrier plate included
- SKU:
- 48451
- Condition Notes:
- Custom PTFE benchtop wafer etch bath sold AS-IS. Lid has a broken corner and broken hinge section — chipped and cosmetically damaged, does still close. Bath body intact. No functionality guaranteed. For parts or repair.
$400.00Was: $800.00 -
Drytek 100S Plasma Wafer Etcher Switch Board 2800194 Assy 2800193 Omron Relay
Drytek
$65.00Was: $125.00Drytek 100S Plasma Wafer Etcher Switch Board 2800194 Assy 2800193 Omron RelayPCB switch board assembly used in the Drytek 100S Plasma Wafer Etcher system. The board contains an Omron MY2E-UA-DC24 relay (24V DC coil) and multi-pin header connector for...48422- SKU:
- 48422
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 1.00 LBS
- Brand:
- Drytek
- Model:
- 2800194
- MPN:
- 2800194
- Secondary Model:
- 2800193
- SKU:
- 48422
- Type:
- Switch Board / Relay PCB Assembly
- Board Number:
- MLA 94V-040/83
- Assembly Number:
- 2800193
- Compatible With:
- Drytek 100S Plasma Wafer Etcher
- Relay Component:
- Omron MY2E-UA-DC24
- Relay Coil Voltage:
- 24V DC
- Connector Type:
- Multi-pin header connector (red, ~8-pin)
- Form Factor:
- PCB / Card Module
- Application:
- Plasma Wafer Etching / Semiconductor Dry Etch
- Country/Region of Manufacture:
- United States (Wilmington, MA)
- Condition:
- Used – Pulled from Working Environment
- Seller Notes:
- Switch board only; pulled from Drytek 100S Plasma Wafer Etcher.
- Condition Notes:
- Drytek 100S Plasma Wafer Etcher Switch Board P/N 2800194 (Assy 2800193). Pulled from service, inspected, in good condition. Omron MY2E-UA-DC24 relay and connector intact. Light handling wear only.
$65.00Was: $125.00 -
Drytek 100S Plasma Wafer Etcher LED Control Board 2800052 Assy 2800054 C-2800051
Drytek
$85.00Was: $175.00Drytek 100S Plasma Wafer Etcher LED Control Board 2800052 Assy 2800054 C-2800051This is a genuine Drytek LED/Control Board removed from a Drytek 100S Plasma Wafer Etcher. The board carries part number 2800052, assembly number 2800054, and schematic...48421- SKU:
- 48421
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 4.00 LBS
- Brand:
- Drytek
- Model:
- 2800052
- MPN:
- 2800052
- Secondary Model:
- 2800054
- Schematic Number:
- C-2800051
- Assembly Number:
- 2800054
- Type:
- LED / Control Board
- Compatible With:
- Drytek 100S Plasma Wafer Etcher
- Application / Use Case:
- Plasma Wafer Etching / Semiconductor Fabrication
- Form Factor:
- Panel / Board Module
- Connector Types:
- Multi-pin edge connector, red keyed locking connectors (J107)
- Condition:
- Used – Pulled from Working Environment
- SKU:
- 48421
- Seller Notes:
- Pulled from a Drytek 100S Plasma Wafer Etcher; board and panel included as shown
- Country/Region of Manufacture:
- United States
- Condition Notes:
- Drytek 100S Plasma Wafer Etcher LED/Control Board P/N 2800052, pulled from a 100S system. Panel and PCB intact; LED indicators, pushbuttons, edge connector, and wiring harness all present. Normal surface wear. Sold as used.
$85.00Was: $175.00 -
Drytek 100S Solid State Driver Board 2800072 Assy 2800074 Plasma Wafer Etcher
Drytek
$150.00Was: $300.00Drytek 100S Solid State Driver Board 2800072 Assy 2800074 Plasma Wafer Etcher PCBSolid state driver board used in Drytek 100S plasma wafer etching systems. This PCB controls RF power delivery and switching functions for semiconductor dry etch processes...48420- SKU:
- 48420
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Drytek
- Model:
- 100S
- MPN:
- 2800072
- Secondary Model:
- 2800074
- Type:
- Solid State Driver Board / PCB
- SKU:
- 48420
- Part Number:
- 2800072
- Assembly Number:
- 2800074
- Schematic Number:
- 2800071
- Compatible With:
- Drytek 100S Plasma Wafer Etcher
- Application / Use Case:
- Plasma wafer etching — semiconductor dry etch system
- Form Factor:
- PCB / Card Module
- Board Dimensions:
- Approx. 6.5 x 6.5 inches
- Connector Types:
- Red multi-pin IDC connectors (14-pin and 20-pin)
- Country/Region of Manufacture:
- United States
- Seller Notes:
- Board only — pulled from a Drytek 100S Plasma Wafer Etcher
- Condition:
- Used – Pulled from Working Environment
- Condition Notes:
- Drytek 100S Solid State Driver Board P/N 2800072 pulled from a Drytek 100S Plasma Wafer Etcher. Good used condition — clean PCB, no visible damage. Not bench-tested. Please view photos and contact us with questions.
$150.00Was: $300.00 -

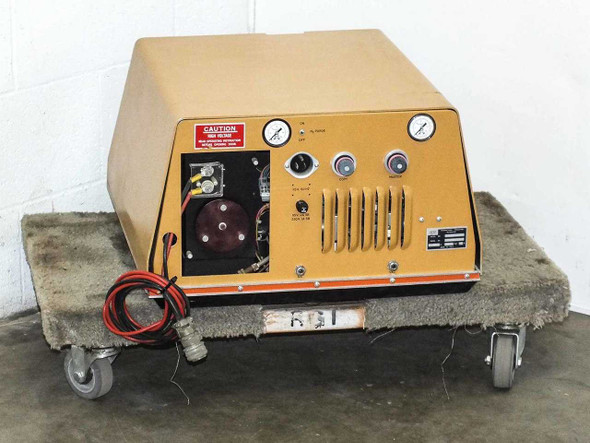

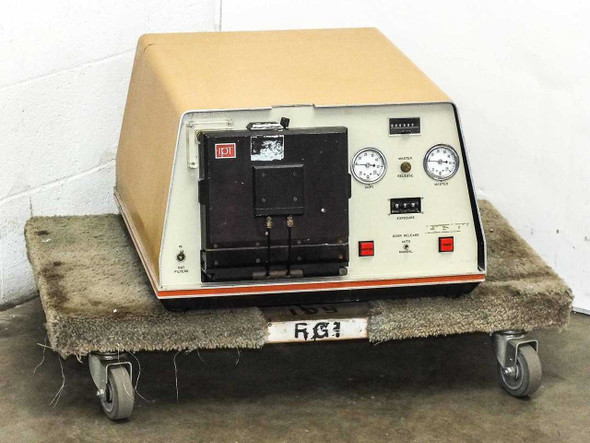

IPT PD1200-553 Optical Coating System International Production Technology 115V
International Production Technology
$875.00Was: $1,800.00IPT PD1200-553 Optical Coating System International Production Technology 115VBenchtop optical coating and contact exposure system designed for photomask duplication and contact printing applications. Features nitrogen purge capability, dual pressure...47451- SKU:
- 47451
- Availability:
- Usually ships within 1-2 business days.
- Weight:
- 155.00 LBS
- Brand:
- International Production Technology (IPT)
- Model:
- PD1200-553
- MPN:
- PD1200-553
- Secondary Model:
- MHP-XX-Z-553
- SKU:
- 47451
- Type:
- Optical Coating / Contact Exposure System
- Voltage:
- 115V AC
- Frequency:
- 60 Hz
- Current Rating:
- 2A (115V); 1A SB at 230V
- Power Requirements:
- 115V 60Hz 2A / 230V 1A SB
- Country/Region of Manufacture:
- United States
- Form Factor:
- Benchtop
- Gas Purge:
- N2 (Nitrogen) Purge
- Controls:
- Exposure dial, Copy/Master pressure gauges, Door Release (Auto/Manual)
- Gauges:
- Two analog pressure gauges (Copy, Master); one smaller gauge on rear
- Application:
- Optical coating, photomask duplication, contact printing
- Industry:
- Semiconductor, Photolithography, Optics
- Condition:
- Used – Inspected and in Good Condition
- Seller Notes:
- Unit only; no accessories confirmed included. See photos for full detail.
- Condition Notes:
- IPT PD1200-553 Optical Coating System inspected and in good used condition. Panel wear and discoloration consistent with lab use. Controls, gauges, chamber, and substrate holder present. 115V 60Hz 2A. See photos. Contact us with questions.
$875.00Was: $1,800.00 -
Thomas Swan Epison II MOCVD 1x2 Quartz Reactor Lepel T-7.5-3-KC-SW RF Heater
Thomas Swan
$12,000.00Was: $24,000.00Thomas Swan Epison II MOCVD 1x2 Quartz Reactor Lepel T-7.5-3-KC-SW RF Heater Metal Organic Chemical Vapor Deposition (MOCVD) system designed for compound semiconductor epitaxial growth. Consists of a 1x2 vertical quartz reactor chamber with water-cooled...47342- SKU:
- 47342
- Availability:
- This is a large capital equipment item — please contact us to arrange inspection, freight, and lead time before purchasing.
- Weight:
- 2,000.00 LBS
- Brand:
- Thomas Swan Scientific Equipment
- Model:
- Epison II
- Secondary Model:
- EPITOR
- MPN:
- T-7.5-3-KC-SW
- SKU:
- 47342
- Condition:
- Used – Pulled from R&D Lab, Appears Complete, Not Fully Tested
- Seller Notes:
- Includes reactor, Lepel RF heater, 2x Epison II gas monitors, Tylan 2900 MFC. No H2 purifier.
- Form Factor:
- Freestanding Cabinet System on Casters
- Application / Use Case:
- MOCVD / OMVPE epitaxial deposition, compound semiconductor R&D
- Process Type:
- Metal Organic Chemical Vapor Deposition (MOCVD / OMVPE)
- Reactor Configuration:
- 1x2 vertical quartz reactor chamber
- RF Heater Model:
- Lepel T-7.5-3-KC-SW (water-cooled RF induction heater)
- RF Heater Power Requirements:
- 460V, 3-Phase, 60Hz, 21A, 16.7 KVA
- Thomas Swan Power Requirements:
- 208V, 3-Phase, 60Hz, 32A
- RF Heater Type:
- T-75.1-163-2 (Type per nameplate)
- Gas Flow Control:
- Tylan 2900 Series Mass Flow Controllers (MFC)
- Gas Monitors:
- Two Thomas Swan Epison II gas concentration monitors
- RF Power Controller:
- Control Concepts Model 3629C
- Circuit Breaker:
- Westinghouse Series C FDB14k, 25A, 3-Pole
- Gas Valve:
- Nor-Cal Products ESV-1002-NWB
- Year Installed:
- 1995
- Thomas Swan System Dimensions:
- 96"L x 42"D x 90"H
- Lepel Unit Dimensions:
- 43"L x 31"D x 58"H
- Temperature Control:
- Integrated temperature controller (Newport Electronics 269 TF, 08 digital thermometer)
- Susceptor Type:
- Graphite susceptor, inductively heated
- Not Included:
- Johnson Matthey HP-100 Hydrogen Purifier (shown in photos but not part of sale)
- Country of Manufacture:
- United Kingdom
- Compatible With:
- III-V compound semiconductor epitaxial growth (GaAs, InP, etc.)
- Condition Notes:
- This Thomas Swan Epison II MOCVD 1x2 quartz reactor system with Lepel RF induction heater was recently removed from an R&D laboratory. The system appears complete but has not been fully tested.
$12,000.00Was: $24,000.00 -

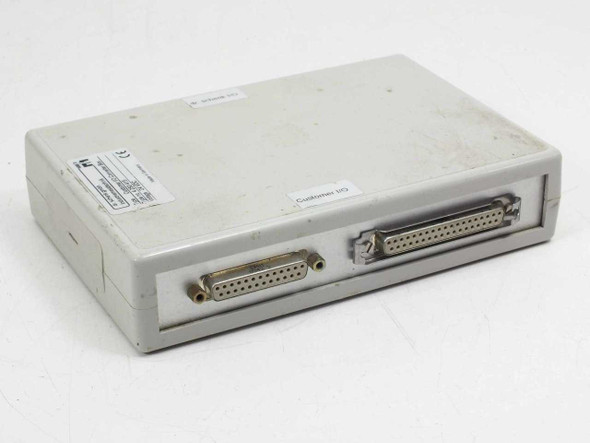

Dr. Schenk 4 250 415 Customer I/O Converter Box DB25 DB37 24VDC Germany
Dr Schenk
$40.00Was: $80.00Dr. Schenk 4 250 415 Customer I/O Converter Box DB25 DB37 24VDC GermanyThe Dr. Schenk GmbH 4 250 415 is a Customer I/O Converter Box designed for use with Dr. Schenk industriemesstechnik inspection and measurement systems. It serves as a signal interface...47339- SKU:
- 47339
- Availability:
- Usually ships within 1–2 business days.
- Weight:
- 2.00 LBS
- Brand:
- Dr. Schenk GmbH
- Model:
- 4 250 415
- MPN:
- 4 250 415
- Type:
- Customer I/O Converter Box
- SKU:
- 47339
- Voltage:
- 24 VDC
- Power Requirements:
- 24 VDC (AC adapter required, not included)
- Connector 1:
- DB25 (25-pin D-sub)
- Connector 2:
- DB37 (37-pin D-sub)
- Interface Type:
- DB25 and DB37 D-sub
- Form Factor:
- Desktop / Benchtop
- Country/Region of Manufacture:
- Germany
- Seller Notes:
- 24VDC AC adapter required but not included. DB25 and DB37 connectors.
- Condition Notes:
- Dr. Schenk 4 250 415 Customer I/O Converter Box. Inspected and in good condition. Light surface soiling and minor scuffs; all D-sub connector pins intact. 24VDC AC adapter required, not included. Contact us with any questions.
$40.00Was: $80.00
